Creating and Modeling a Character

Browse Pages: << < 12  13  14  15  16

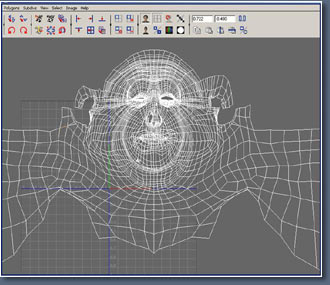

I've merged 2 parts of the map together.

Click to enlarge
Click to enlarge

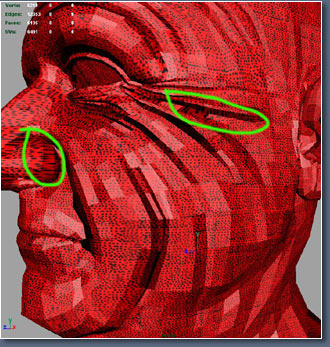

Now I use a large texture which is just loads of spots I use this to see where their are problems with stretching on the map. You can see that most of the map is OK I've picked out a few areas that need tweaking.

You can download my spot texture here, 642k

Click to enlarge
Click to enlarge

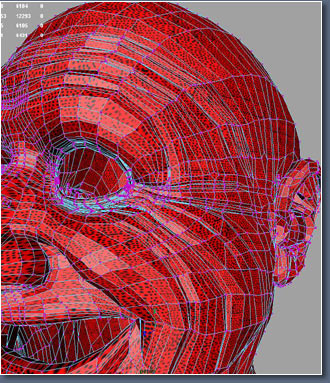

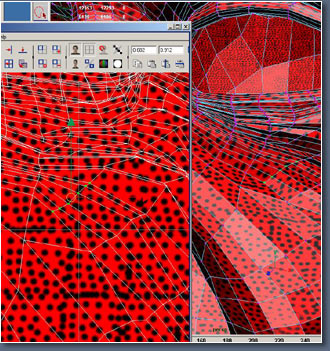

Now looking at the model I go round tweaking and moving uvs, its well worth spending a few hours checking and tweaking the map, because the textures and the final head will look better.

Click to enlarge
Click to enlarge

I've connected a few blend shapes to see if I can spot any major stretching in different poses.

Click to enlarge
Click to enlarge

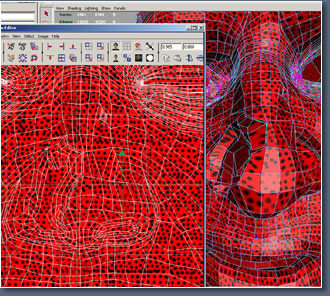

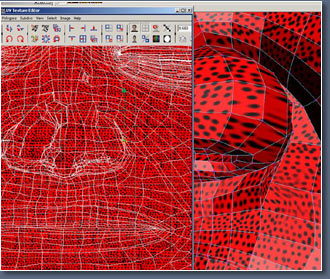

Tweaking the nose area.

Click to enlarge
Click to enlarge

Area much cleaner now.

Click to enlarge
Click to enlarge

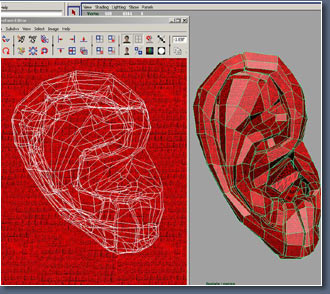

Now for the ears. Again you can probably get away with how it is now but I like a good UV map, so I spend some time tweaking and moving the uvs.

Click to enlarge
Click to enlarge

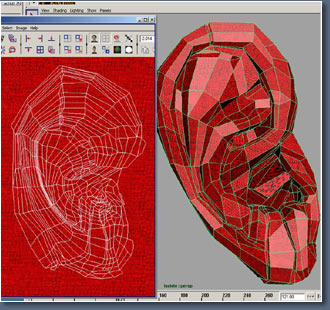

Here it is after tweaking.

Click to enlarge
Click to enlarge

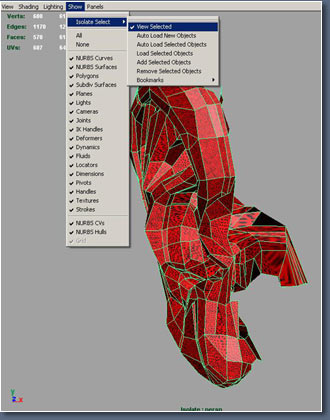

Isolating an area can be useful. Just select parts of the model you want then choose view selected from the menu above.

Click to enlarge
Click to enlarge

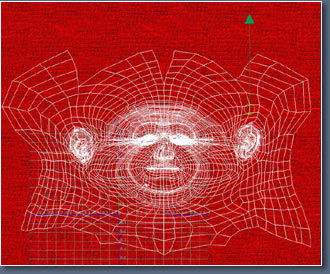

Here's the map so far, I've put the ears back in place.

Click to enlarge
Click to enlarge

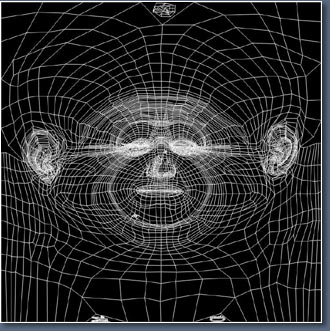

Here's the final map finished. I managed to find a few areas where I could squeeze the back part of the lips and back of the nose. now you can use the polygon transfer tool to transfer the UV map back on to your base head.

Click to enlarge
Click to enlarge

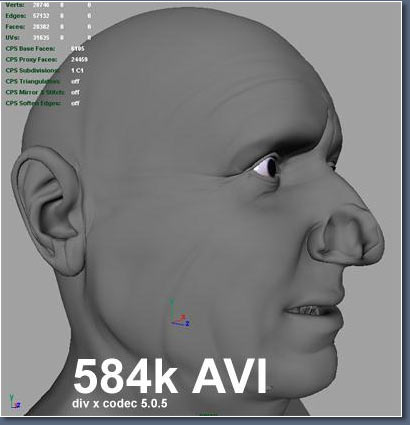

Wrinkle Test.

image 12

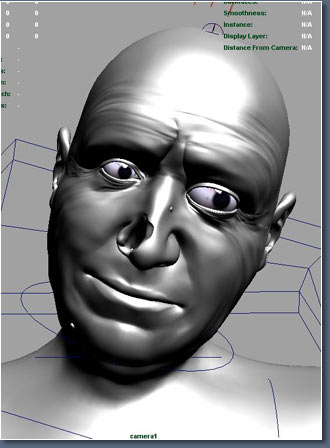

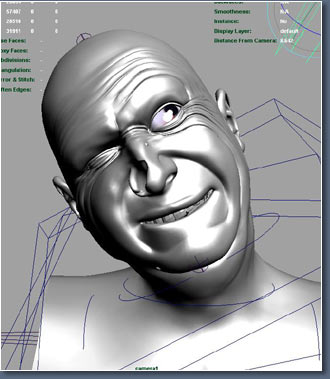

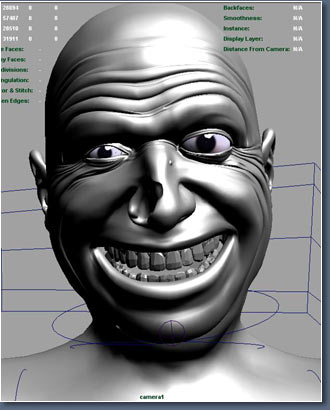

A few facial poses. still could do with a little tweaking.

Click to enlarge
Click to enlarge

Click to enlarge
Click to enlarge

Click to enlarge
Click to enlarge

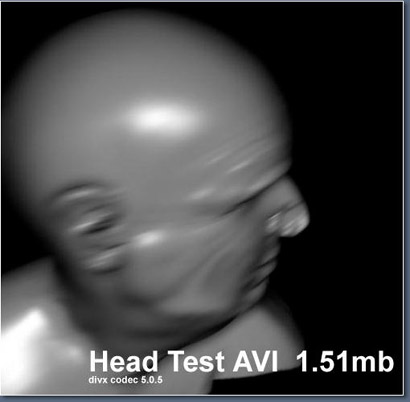

Well that's it, I'm afraid. I hope you didn't find it to boring and you found the base meshes useful.
