Modeling of the Head

Browse Pages: << < 1  2  3  4  5  > >>

Extrude the edges like above and weld the vertes pairs as below.

image 1

image 2

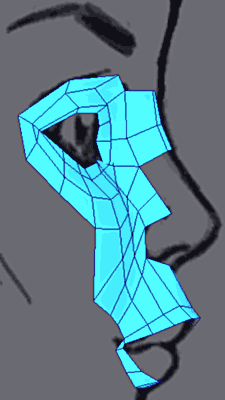

Complete the faces with Create poly

image 3

image 4

image 5

Extrusions on the nose, additions of edges with Cut and weld of the vertexes.

image 6

image 7

After adjustment of the vertexes.

image 8

image 9

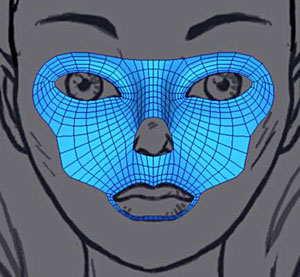

As with the body, add the modifier Meshsmooth in mode NURMS, iteration 1.
Make a copy mirror Instance.

image 10

image 11

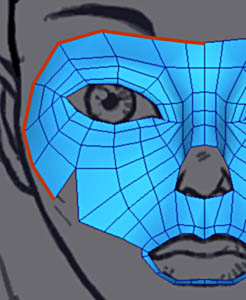

With Low poly cage adjust the vertexes to give a regular form to smoothed surface.

image 12

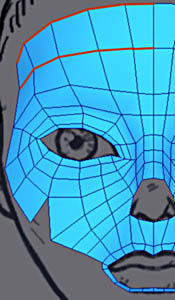

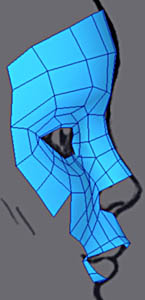

Continue to extrude to build the forehead

image 13

image 14

Now is time to add sphere eyes and adjust the eyelid area.

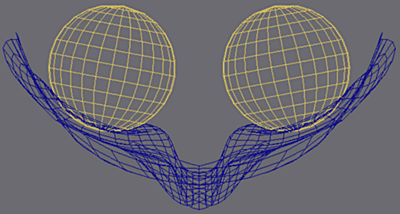

Create a sphere of diameter slightly higher than the width of the opening of the eye.

image 15

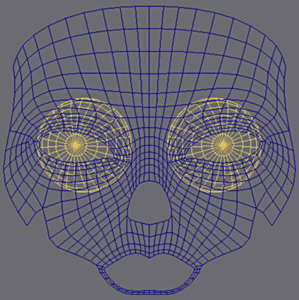

Apply to it a slight rotation to the vertical axis.

image 16

It is necessary to be arranged so that a circular division coincide with the edge of the pupil.

For that vary the number of segments of the sphere.

Here 27 segments are used

That will be useful later during the completion of the eye.

image 17

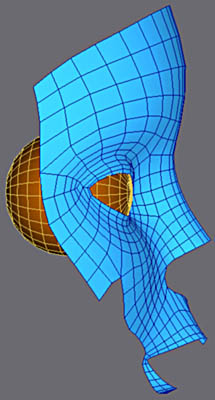

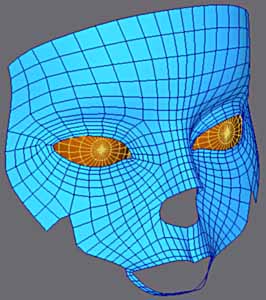

Finally adjust the vertexes of the eyelids top and bottom so they are placed on the outer edge of the spheres.

image 18

image 19



Author's URL: Michel Roger
