Modeling of the Head

Browse Pages: << < 2  3  4  5  6  > >>

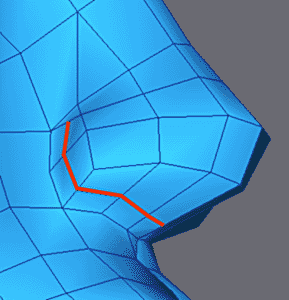

Insert these two series of edges with Cut.

image 1

image 2

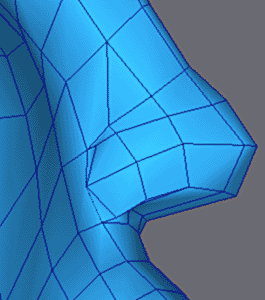

Possitions after adjustment.

image 3

image 4

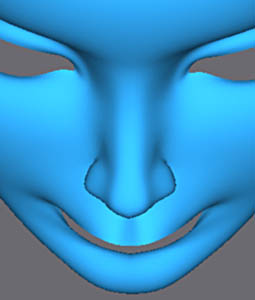

Look of the nose once subdivided. Work the form with the low poly cage and view smoothing at the same time.

image 5

image 6

image 7

image 8

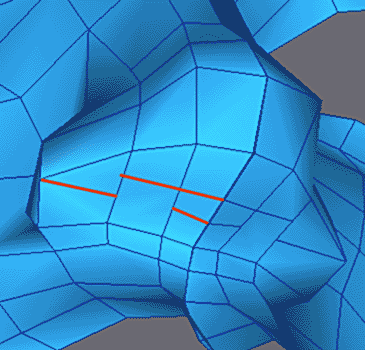

To finish, insert these edges to make the hole of the nose.

image 9

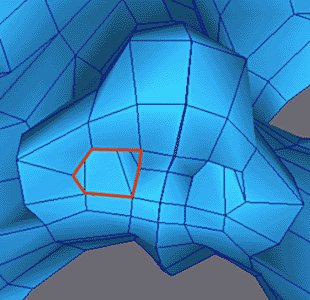

Select the polygon as indicated in the picture and made one Extrude inwards as well as Bevel to reduce the size of the internal hole.

image 10

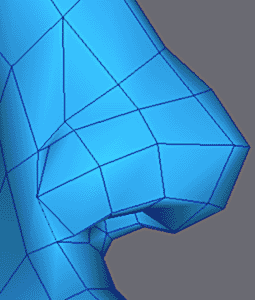

Dimentions of the nose in low polygons.

image 11

image 12

Finished nose, subdivided with interations 2.

image 13

image 14

image 15

Onto the mouth now.

Select the edges edge of the mouth and extrude with shift ket depressed and uniform scale

image 16

image 17

image 18

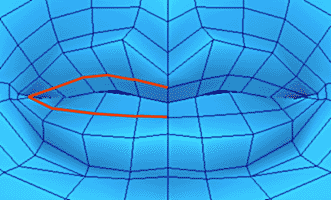

After having adjusted the vertexes, add edges with Cut.

image 19

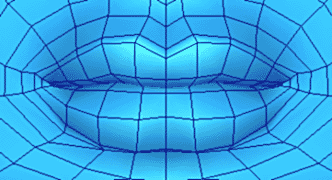

Stop to adjust the verticies.

image 20

image 21
