Create an Abstract Floating Break-Apart Rock Circle in Photoshop

psdvault Photo Editing Aug 29, 2012

In this tutorial, I will show you the steps I took to Create an Abstract Floating Rock Circle in Photoshop . This is a beginner-intermediate level Photoshop tutorial aiming to show you a few tricks to manipulate and combine objects together. Have a try :)

Note: The Photoshop tutorial is done in CS6 - therefore some screenshot may have slighting different layout as in the earlier version.

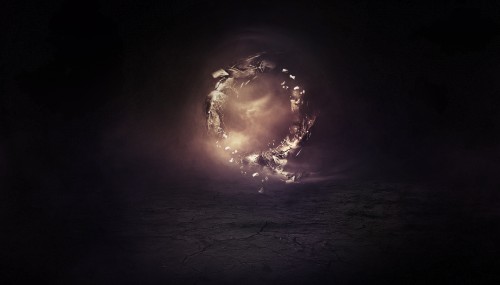

Here is a preview of the final effect I have for this tutorial: (click to enlarge)

floating rock text 2 500x285 Create an Abstract Floating Break Apart Rock Circle in Photoshop

Step 1

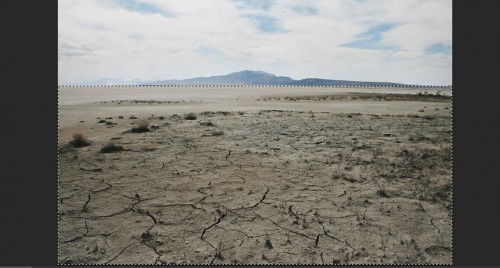

Create a new document sized 1400px * 800px with black background, load the ground image into Photoshop and use the Rectangular Marquee Tool to select the ground texture as shown below:

1 sel1 500x268 Create an Abstract Floating Break Apart Rock Circle in Photoshop

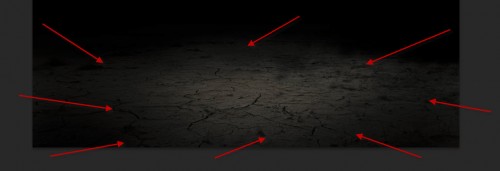

Paste the selection onto our document, use a big soft eraser to fade the edges on the ground as shown below:

Hint: set the eraser flow and opacity to around 40%, this will ensure you don't erase too much of the ground in one go.

1 paste 500x171 Create an Abstract Floating Break Apart Rock Circle in Photoshop

Add the following 2 adjustment layers on top of this ground layer:

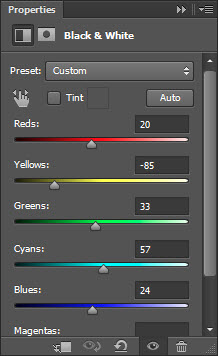

Black and White

1 bw1 Create an Abstract Floating Break Apart Rock Circle in Photoshop

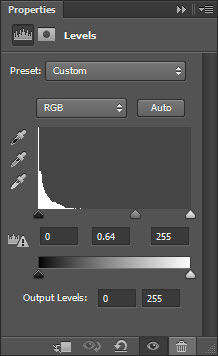

Levels

1 lv1 Create an Abstract Floating Break Apart Rock Circle in Photoshop

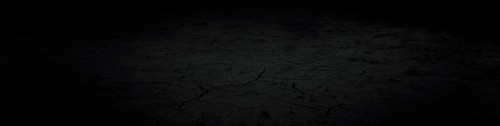

and here is the effect so far:

1 effect1 500x126 Create an Abstract Floating Break Apart Rock Circle in Photoshop

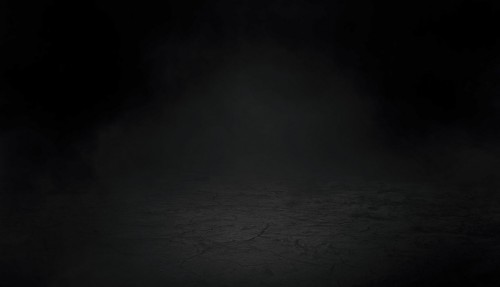

Use either the cloud filter or a cloud brush to paint some cloud/mist over the ground:

1 cloud 500x287 Create an Abstract Floating Break Apart Rock Circle in Photoshop

Step 2

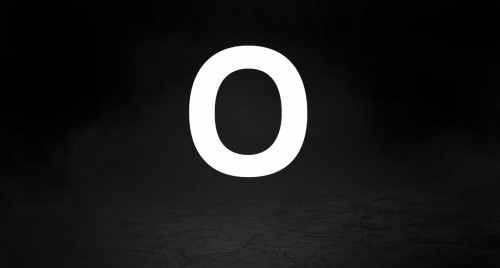

Use the type tool to type a "O" letter on top of the ground:

2 type 500x268 Create an Abstract Floating Break Apart Rock Circle in Photoshop

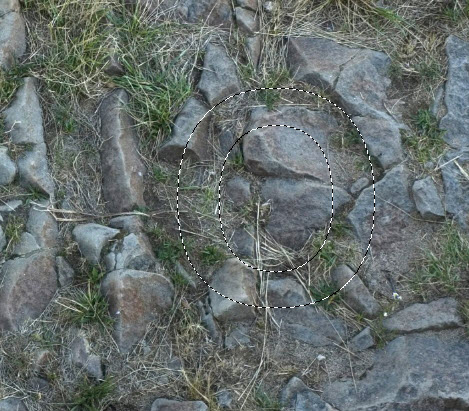

Load the selection of this type letter and mover the the selection over the rock texture:

2 move Create an Abstract Floating Break Apart Rock Circle in Photoshop

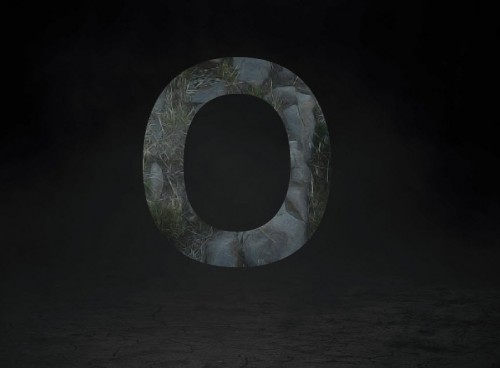

Copy and paste the selection over to our document:

2 copy paste 500x368 Create an Abstract Floating Break Apart Rock Circle in Photoshop

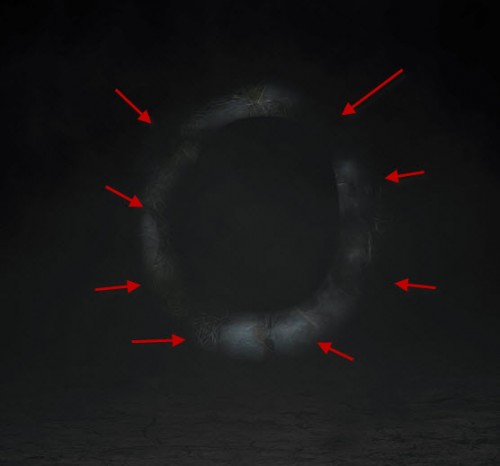

Again we use a soft eraser to fade the edge of the rock texture, as well as removing some parts of the texture to break it apart:

2 erase1 500x466 Create an Abstract Floating Break Apart Rock Circle in Photoshop

Add the following 3 adjustment layers as clipping mask to this rock layer:

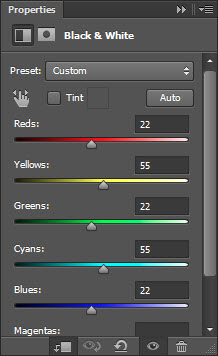

Black and white

2 bw1 Create an Abstract Floating Break Apart Rock Circle in Photoshop

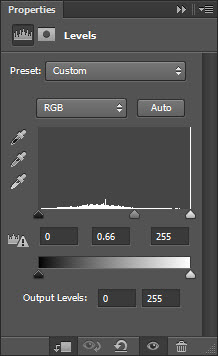

Levels

2 lv1 Create an Abstract Floating Break Apart Rock Circle in Photoshop

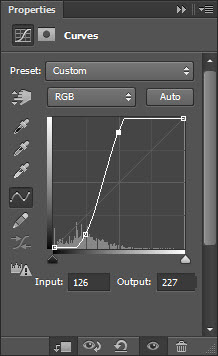

Curves

2 curves Create an Abstract Floating Break Apart Rock Circle in Photoshop

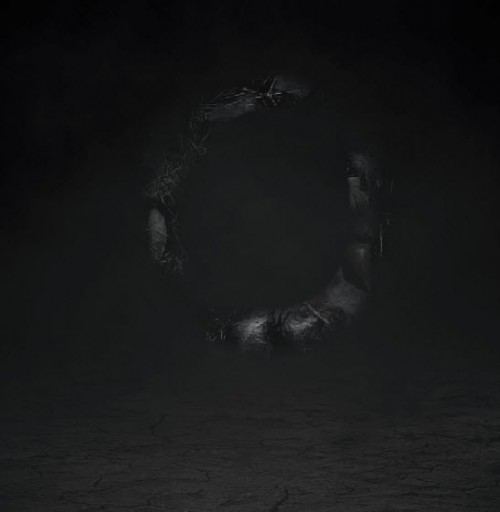

and you will have the following effect so far:

2 effect1 500x512 Create an Abstract Floating Break Apart Rock Circle in Photoshop

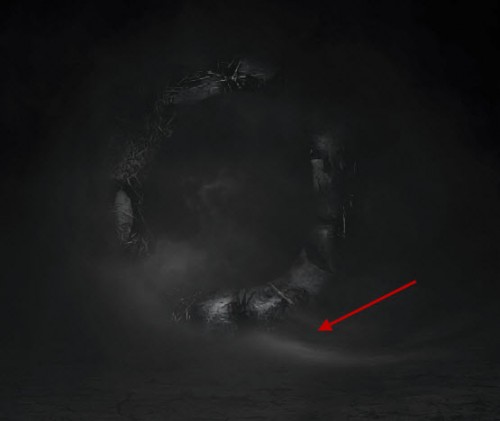

We will add some surround cloud to the rock to add some dramatic effect to it:

2 cloud 500x421 Create an Abstract Floating Break Apart Rock Circle in Photoshop

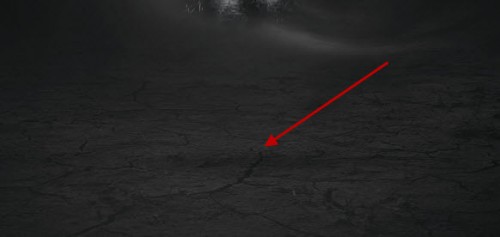

We can add a soft shadow to the ground with a soft black brush:

2 shadow 500x237 Create an Abstract Floating Break Apart Rock Circle in Photoshop

Step 3

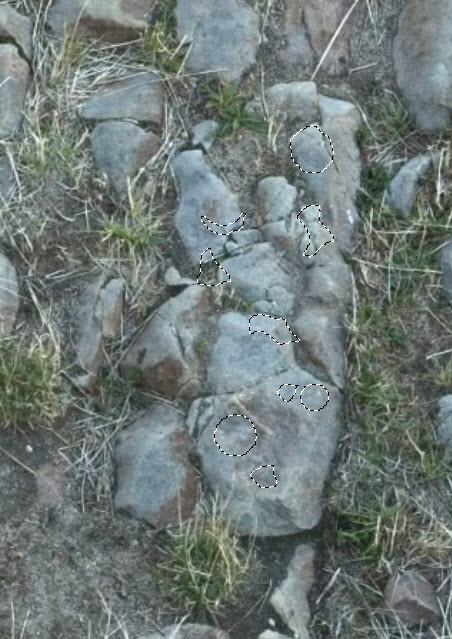

We will add some small rocks around the circle to form the break apart effect - use the quick selection tool to select a few small selections:

3 small Create an Abstract Floating Break Apart Rock Circle in Photoshop

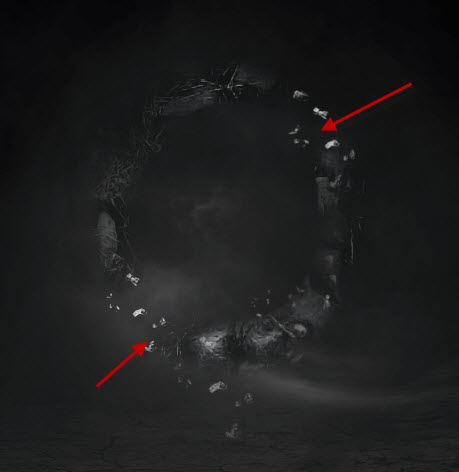

Copy and paste the selection over to our document, apply the black and white adjustment to the selection and change the blending mode to "screen", duplicate this small rock layer once and move it to the opposite side of the circle:

3 paste Create an Abstract Floating Break Apart Rock Circle in Photoshop

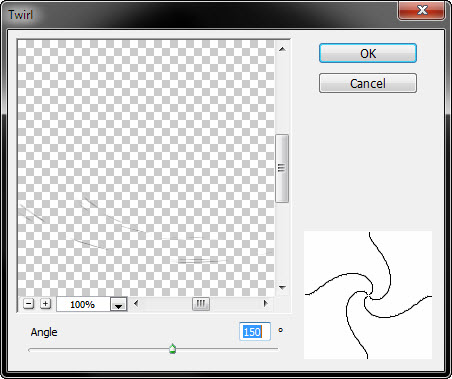

We can also duplicate this small rock layer once and apply the Twirl filter effect to it:

3 twirl Create an Abstract Floating Break Apart Rock Circle in Photoshop

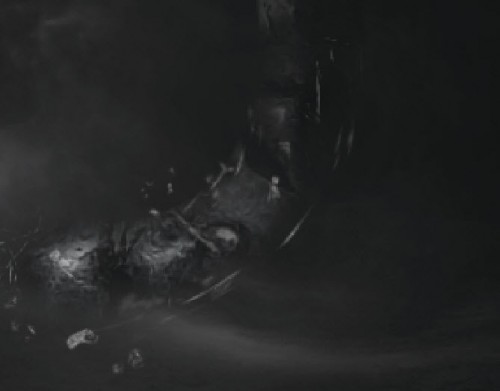

and this will form a flying effect as shown below:

3 twirl effect 500x391 Create an Abstract Floating Break Apart Rock Circle in Photoshop

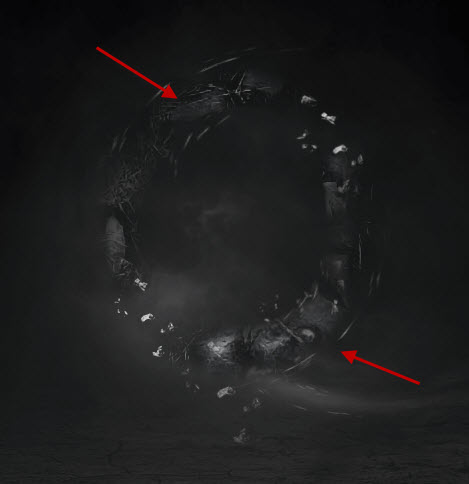

Duplicate this flying particle layers a few times and move them to different parts of the circle, as shown below:

3 twirl effect 2 Create an Abstract Floating Break Apart Rock Circle in Photoshop

Step 4

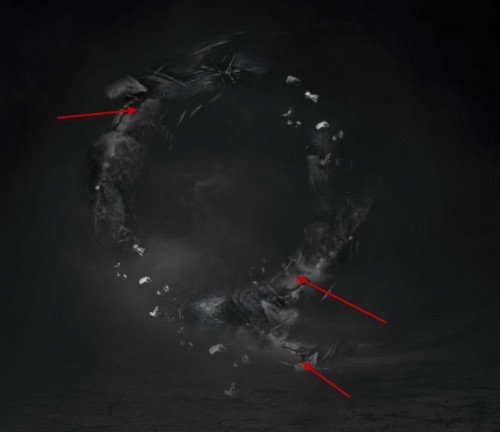

Now we can fine tune the effect a bit - we can go back to the rock texture and select a few more pieces and attach them to the circle:

Hint: apply the black and white adjustment to blending those addition layers in with the rest of the rocks.

4 rock 500x432 Create an Abstract Floating Break Apart Rock Circle in Photoshop

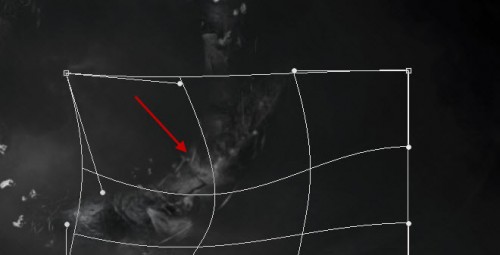

Use the Warp Tool to adjust the shapes of the rock as you see fit:

4 warp 500x255 Create an Abstract Floating Break Apart Rock Circle in Photoshop

We can add some colour effect to the image, and here is the final effect I have: (click to enlarge)

floating rock text 2 500x285 Create an Abstract Floating Break Apart Rock Circle in Photoshop
