Create a Stereoscopic 3D Effect

In this tutorial you'll combine stock photography with graphic elements create a stylish illustration. You'll learn how to blend photos together, how to create a stereoscopic 3D effect, and many other illustration techniques.

There's nothing too complicated here, but you are expected to have a good grasp of the Photoshop basic techniques in order to use this tutorial. This tutorial is fairly long but you can choose to focus on the section that teaches specific techniques such as how to blend photos in photoshop or how to create stereoscopic 3D effect in photoshop.

Create a Stereoscopic 3D Effect 1

Step 1: Creating the background

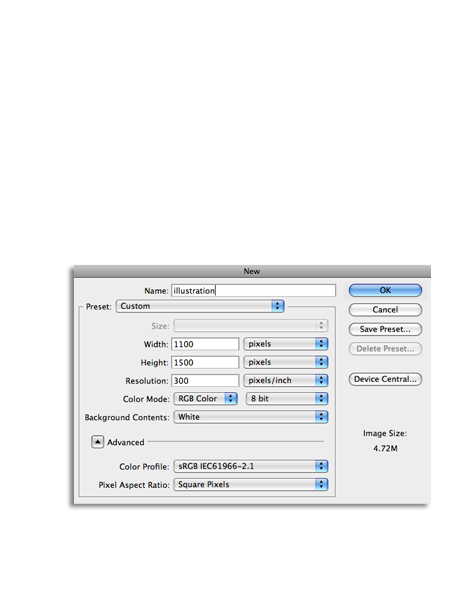

To begin, open a new 1100 x 1500 Photoshop document.

Create a Stereoscopic 3D Effect 2

Next add a Gradient Fill adjustment layer by clicking on the adjustment layer button at the bottom of your layers panel, and choosing Gradient.

Use Radial gradient with the Scale at 150%, and check Reverse. Click on the Gradient bar to bring up the Gradient Editor. Create a black to transparent gradient, and move the sliders on the right inwards to 70%.

Create a Stereoscopic 3D Effect 3

Take the Opacity of the Gradient layer down to 30%.

Create a Stereoscopic 3D Effect 4

To add texture to the background we'll add an astral backdrop, which you can download here: http://apod.nasa.gov/apod/ap110127.html

Once you've downloaded the stock image, you can drag it straight into your file, and resize it so that it covers the whole image.

Create a Stereoscopic 3D Effect 5

Go to Image > Adjustments > Desaturate, to turn the texture black and white.

Create a Stereoscopic 3D Effect 6

Then go to Image > Adjustments > Brightness/Contrast, and take the Contrast up to +30.

Create a Stereoscopic 3D Effect 7

Finally, go to Image > Adjustments > Invert, then set the blending mode to Multiply and the Opacity to 70%.

Create a Stereoscopic 3D Effect 8

Step 2: Adding the triangles

Select the Polygon Tool, and in the Sides box set the number to 3.

Drag out your triangle shape and rotate it so that it points downward.

Create a Stereoscopic 3D Effect 9

Duplicate the triangle layer twice, and move the duplicate triangles to the positions shown below.

Create a Stereoscopic 3D Effect 10

Duplicate the large triangle one more time, and rotate it so that it points upward. Move it's layer below all the other triangles, then double click on the layer to bring up the Layer Styles dialog box.

Take the Fill Opacity down to 0%, then click on Stroke. Set the Size to 3px, the position to Inside, and the color to white.

Click OK.

Create a Stereoscopic 3D Effect 11

Select the three black triangle layers, right click on them and choose Merge Layers.

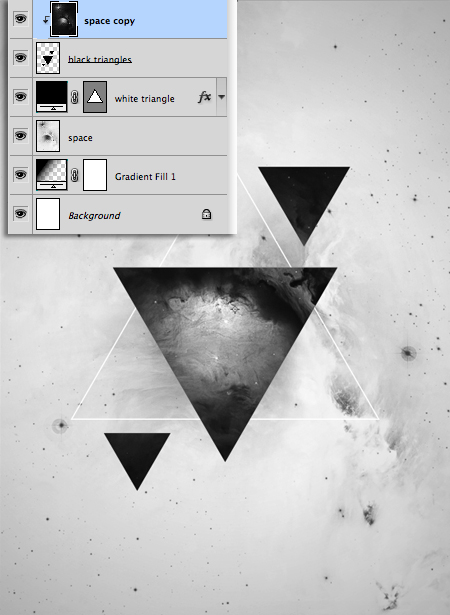

Now duplicate the space backdrop layer, Invert it, then move it above the black triangles layer. Right click on the layer and choose Create Clipping Mask so that the layer is only visible where it overlaps the triangles.

Create a Stereoscopic 3D Effect 12

With the background finished, we're now ready to add the subject of our image.

Create a Stereoscopic 3D Effect 13

Step 3: Blend photos in photoshop

In this part of the tutorial, we will be going through how to blend photos in photoshop. The female stock image we'll use for this tutorial can be downloaded here: http://nikxstock.deviantart.com/art/1-18-09-One-111088945

Once you've downloaded the image, open it in Photoshop, and use the Pen tool to draw carefully around the edge of the model.

Create a Stereoscopic 3D Effect 14

Don't worry about the hair too much, we'll tidy it up next. When you're finished, right click and choose Make Selection.

Create a Stereoscopic 3D Effect 15

Now go to Select > Refine Edge, and use the Refine Edge tool to draw over the edge of the hair and eyelashes.

When you're done, click OK.

Invert the selection and delete the background.

For more advice on making selections, including tips for using the Pen Toll, see this tutorial:

Create a Stereoscopic 3D Effect 16

Now, we will blend another photo with this image of the female model. You can download the skull stock here: http://tpenttil.deviantart.com/art/Kallo-2-272493357

With the skull open in Photoshop, make a selection of it using the Quick Selection tool, then bring up the Refine Edge box. Use the Refine Radius Tool and the Adjust Edge sliders to make sure the edges where the face is are tidy.

Create a Stereoscopic 3D Effect 17

When you've made your selection, copy it and paste it into the model file.

Resize it, and position it over the face of the model.

Create a Stereoscopic 3D Effect 18

Take the Opacity of the skull layer down so you can see the face beneath it. Carefully adjust its size and position so it fits naturally over the model's face.

When you're done you can bring the opacity up again, and move the skull layer below the model layer.

Create a Stereoscopic 3D Effect 19

Give the model layer a layer mask by selecting the layer and clicking on the layer mask button at the bottom of the layers panel.

With the layer mask thumbnail selected, take a large soft black brush and paint over the lower part of the models face to mask it out, revealing the skull layer below.

Create a Stereoscopic 3D Effect 20

Use a hard white brush to carefully paint back in the skin on the neck up to the base of the skull's jawline.

Use a larger soft white brush set to 40 % opacity to blend the skin with the skull over the rest of the face.

Create a Stereoscopic 3D Effect 21

When you're finished go to Select > Select All, then Edit > Copy Merged, and paste it into your original file.

Resize the model, and position her as I have in the image below.

Create a Stereoscopic 3D Effect 22

Step 4: Create stereoscopic 3D effect in photoshop

In step 4, it is a stereoscopic 3D effect photoshop tutorial.

First, desaturate the model layer, and duplicate it twice. Call the top duplicate 'blue/green', and the other one 'red'.

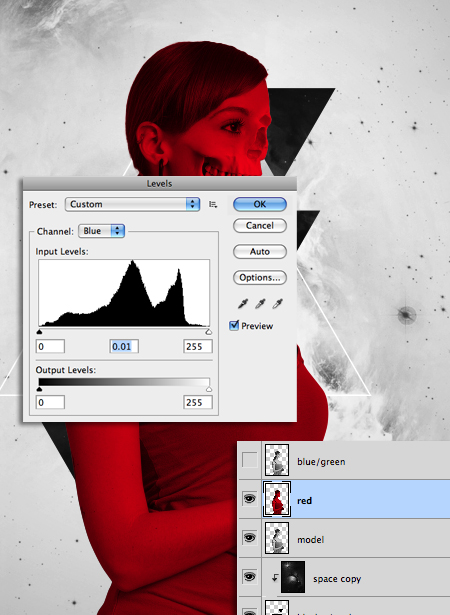

With the 'red' layer selected, go to Image > Adjustments > Levels. Select Green from the Channel box, and move the middle slider all the way to the right. Then choose Blue, and move the slider to the right.

Click OK.

Create a Stereoscopic 3D Effect 23

Next select the 'green/blue' layer, and bring up the Levels dialog box. Select Red, and move the slider all the way to the right.

Create a Stereoscopic 3D Effect 24

Now change both of the layer's blending modes to Lighten.

Using the Move Tool, nudge the 'green/blue' layer a little to left, and the 'red' layer a little to the right. This is how you can create sterepscopic 3D effect in photoshop.

Create a Stereoscopic 3D Effect 25

Step 5: How to layer mask in photoshop

Next we're going show how to use layer masks to remove the lower part of the model.

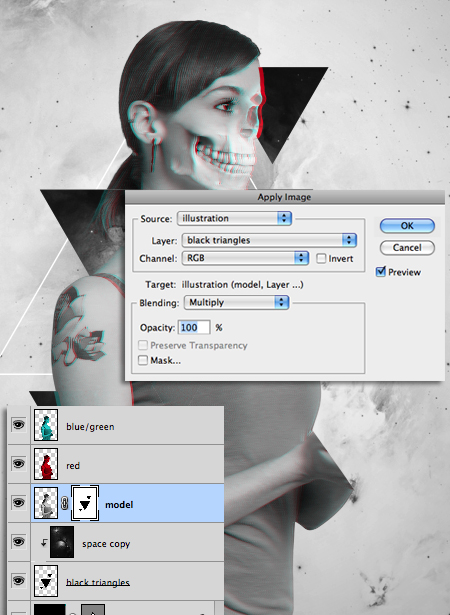

Click on the original model layer, and give it a layer mask. Click on the layer mask thumbnail then go to Image > Appy Image.

In the Layer field choose the 'black triangles' layer.

Click OK.

Create a Stereoscopic 3D Effect 26

Go to Image > Adjustments > Invert.

Create a Stereoscopic 3D Effect 27

Now take a white brush and paint the top of the head back in.

Create a Stereoscopic 3D Effect 28

Take a black brush and paint over the lower left triangle.

Now we'll use this layer mask and apply it to the other two model layers.

Create a Stereoscopic 3D Effect 29

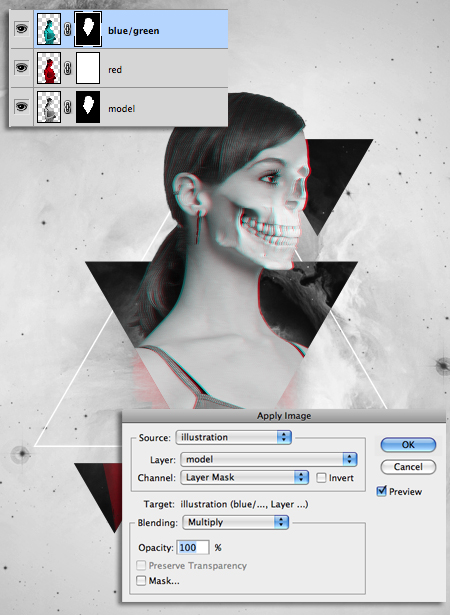

Give both the 'red' and 'blue/green' layers layer masks, and for each one use the Apply Image dialog box and apply the model layer with the Channel set to Layer Mask.

Create a Stereoscopic 3D Effect 30

Create a Stereoscopic 3D Effect 31

Next add a Brightness/Contrast adjustment layer above the model layer, and give it a clipping mask.

Take the Contrast up to +75.

Create a Stereoscopic 3D Effect 32

Step 6: Adding more elements

Take the Ellipse tool, and holding down the Shift key, drag out a circle over the model's left shoulder.

Create a Stereoscopic 3D Effect 33

Set the layer's blending mode to Multiply.

Create a Stereoscopic 3D Effect 34

The pre-cut crow stock can be downloaded here: http://peroni68.deviantart.com/gallery/26997909

You can drag the crow directly into the project and resize and position it. Take the layer below the model layer.

Create a Stereoscopic 3D Effect 35

Step 7: The skeleton

The skeleton stock can be downloaded here: http://mishkuu.deviantart.com/art/rib-cage-109065836

Once you've downloaded the stock, open it in Photoshop, and use the Quick Selection Tool and Refine Edge sliders to make a selection of the skeleton, and delete the background.

Create a Stereoscopic 3D Effect 36

Go to Filter > Filter Gallery, and choose the Glowing Edges filter. Use the settings shown in the image below.

Click OK.

Create a Stereoscopic 3D Effect 37

Now go to Image > Adjustments > Threshold, and move the slider a little to the left so there is a good amount of white detail.

Create a Stereoscopic 3D Effect 38

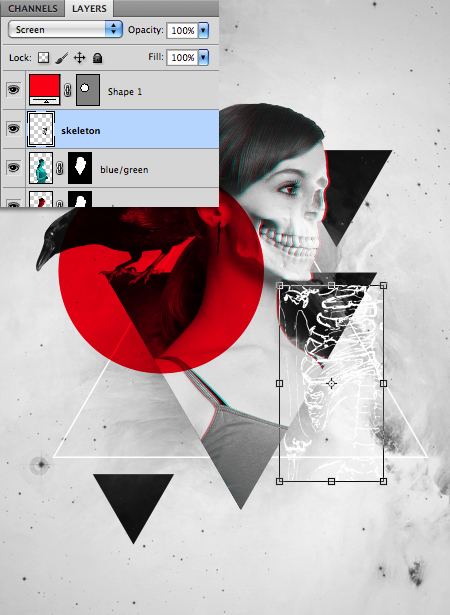

Select the whole canvas, copy it, and paste it into your project below the red circle layer.

Position it by the models right shoulder, and set the layer's blending mode to Screen.

Create a Stereoscopic 3D Effect 39

Finally we'll add some diagonal streaks across the image.

Take the Line tool with the Weight set to 1px. Hold down the Shift key and and drag the line diagonally all the way across the image. Duplicate it a few times and position the lines as I have below.

Create a Stereoscopic 3D Effect 40

Select all the line layers and merge them into one.

Take the Rectangular selection tool and select random parts of each line and delete the sections.

Create a Stereoscopic 3D Effect 41

The Final Outcome

Create a Stereoscopic 3D Effect 1

Hope you enjoy this tutorial. Remember, sharing is caring! See you at our next photoshop tutorial for beginners.
