Creating Web Layouts

My most complex of the three tutorials so far. This is beyond the other two. Instead of just telling you what to do, i will show various options on what to do. So of course, making it very long. Ok, so open a new image with a white background. The size should be around 750 x 400 or so. Create a new layer and make a selection from top to bottom. And covering most of the width, fill it in with a bright grey. Around the hex code of E8E8E8. Then deselect it pressing ctrl + d. Now, right click the layer and choose blending options. Check the stroke option and make a 1px stroke with a color of 4D5A6A


Create a new layer. Get the selection tool and make a selection like below. Dont Make it too big. But make shure that the selection is touching the blue line, but not overlapping it. If your not that good, you should zoom in and make shure its like mine.


Then, once you got the selection right, fill it in with the same blue color (4D5A6A).


Open the blending options for that layer, and exactly like before, add a 1px stroke with a blue stroke of 4D5A6A. Now, for a nice effect, zoom in the to max, get out your pencil tool, set it at 1px, and change the dark blue to a light blue color (around 66788E). Then add a 2px line in the bar that you made. Just make a strait line by dragging a line across the dark blue area. To make the line strait, hold shift. Then, add another line right on top of that one.

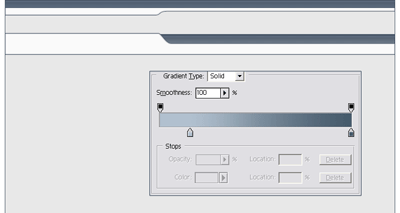

Now, you should make a pattern with horizontical scanlines. Just make the pattern, stop after the tutorial tells you to close the image without saving. Ctrl + click on your layer with the blue bar (to bring up it's selection). Create a new layer, and add the pattern you made to that selection by going to Edit -> Fill, and choose the pattern you made. Right-click on the scan lines layer and choose blending options, choose gradient overlay. Make a gradient where one side of the gradient is the same color as the bar (4D5A6A). And on the other side, make the color lighter.


Or, if you dont like that, you can also switch the colors, you can move the color's to the opposite sides, or move one half way or so. Whatever you like. Here's what i'll choose.

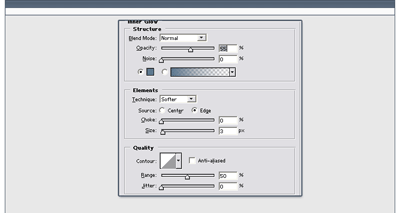

Create another new layer. But move it below your blue bar's layer. then make a selection not too tall (make shure it's touching, not overlapping, the blue lines on the outside), and fill it in with a very bright grey. Then right click on it's layer, choose stroke, add a 1px blue stroke like before. But now, also add a Inner glow with a nice blue tint like below.


One you do that, save that style for later use.
Next, what you can do, is get the Polygonal Lasso Tool, and about half way, make a selection like below, and holding shift, you can get strait lines.


And pressing the "delete" key get rids of that selected part. So do it.


Or, Instead of just using the polygonal lasso tool, to be more professional, you can use the pen tool by zooming in a bit and make round corners.
Then, you can turn the path into a selection and press the "delete" key to get rid of that selection.


Next, we create a new layer. And make a selection touching the blue lines, make this selection taller than the others and fill it in with the same bright grey you used on the other white section. Then add the same layer style on it.


Again, you can use the polygonal lasso tool to cut out a shape like below.


and get results like below


Or, you can add a cury line with the pen tool like below.


Turn the path into a selection, delete the selection, and get these results


Next thing were going to do is create a new layer, and place it under the layer with the big white area you just made. Create a selection covering the empty area you just deleted and fill it in with the dark blue we have been using (4D5A6A). So it looks like below.


Then add a 1px stroke with the dark blue. And just like the very first thing we did, get the pencil tool set at 1px, and add a 2px line near the top with a bright blue.


And again like before, ctrl + click on the layer to bring its selection, then add some vertical scanlines on a new layer, and add a gradient overlay that you like. Heres what i chose, i used a very bright blue on the bottom.


Lets move on to a sub-content area. Create a new layer and make a rectiangle selection. Fill it in with white or bright grey, then add the style you made for the other two bright grey areas. Like below.


Create another new layer and zoom in and make a selection on the top of that rectiangle, and fill it in with the dark blue we've been using.And just like before, add a 2px thick line across the blue area and add a 1px blue stroke, then add some scanlines on a new layer and adding a gradient overlay. You should already get the hang of doing the scanlines and gradient overlay quickly. Also, make shure it's big enough for the title you want to put thier (if you want to put a title their)

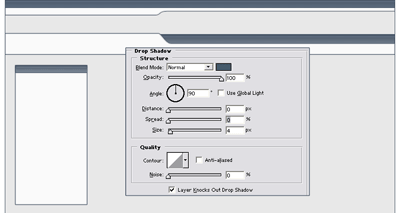

Now we go back to the blending options of the blue area we just made and add a drop shadow.

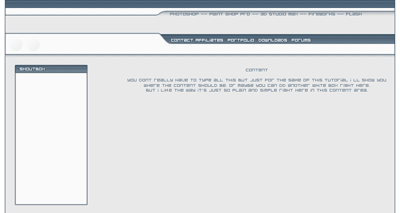

And now, you can add the menu or stuff wherever you want, maybe a few extra effect like more scanlines at some parts.


But of course, you wont forget to add a banner right? to show your real skill.
