Design Studio Layout #2

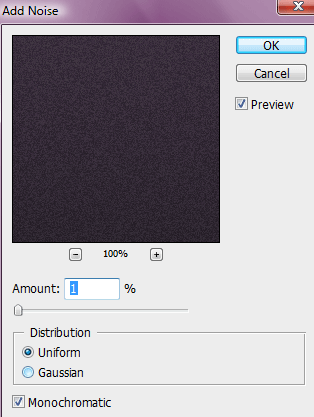

Create a new document 850x900 pixels, select the color #3e3640 as your forground and #201f20 as your background. Select the gradient tool and drag a linear gradient over your canvas. Apply the noise filter by going to "filter > noise > add noise" enter the setting as in the image below.

Design Studio Layout #2 image 1

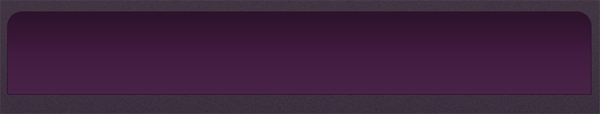

Select the rounded rectangle tool and create a rectangle nearly the width of your canvas. Make a selection at the bottom of your rectangle about 50 pixels in height, cut and paste to a new layer. Hide your cutted part of the rectangle for later. You should have something like this.

Design Studio Layout #2 image 2

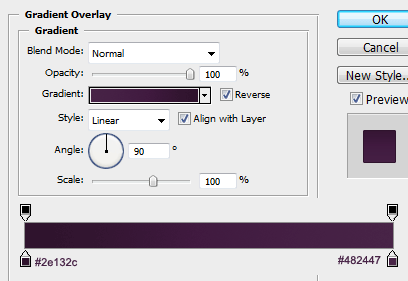

Add these layer styles to your rectangle to complete the effect.

Design Studio Layout #2 image 3

Design Studio Layout #2 image 4

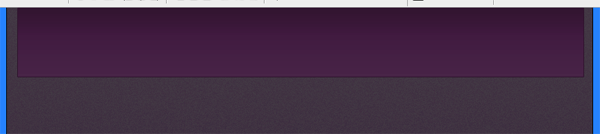

Move your rectangle to the top of your canvas hiding the top half of it where the rounded edges are.

Design Studio Layout #2 image 5

Unhide your other part of the rectangle and align it up at the bottom of your rectangle.

Design Studio Layout #2 image 6

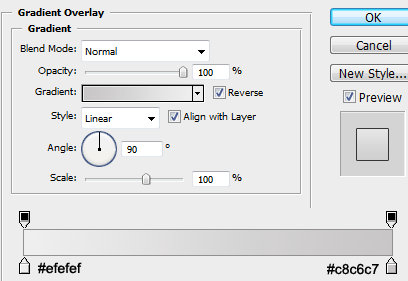

Add these layer styles to your bottom half of the rectangle.

Design Studio Layout #2 image 7

Design Studio Layout #2 image 8

Design Studio Layout #2 image 9

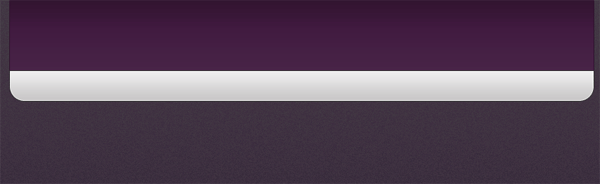

You should have something like this.

Design Studio Layout #2 image 10

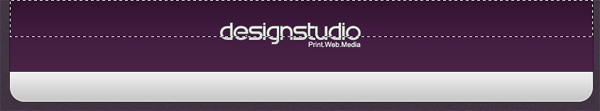

Add your website title, slogan and logo then with the rectangle marquee tool make a selection on your header like in the image below, fill the selection with the color white then lower opacity to 2%.

Design Studio Layout #2 image 11

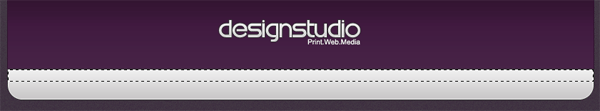

Do the same with the navigation.

Design Studio Layout #2 image 12

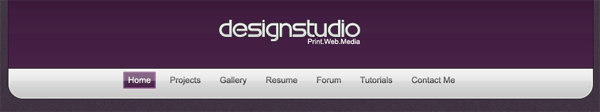

Add your navigation text to your navigation, on one part of the navigation add a hover button.

Design Studio Layout #2 image 13

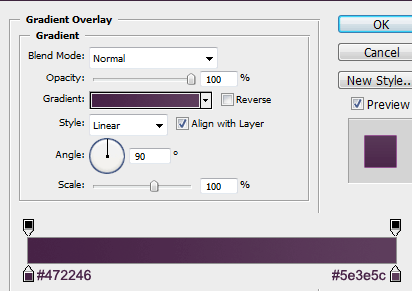

The layer styles for the hover button are as follows.

Design Studio Layout #2 image 14

Design Studio Layout #2 image 15

Design Studio Layout #2 image 16

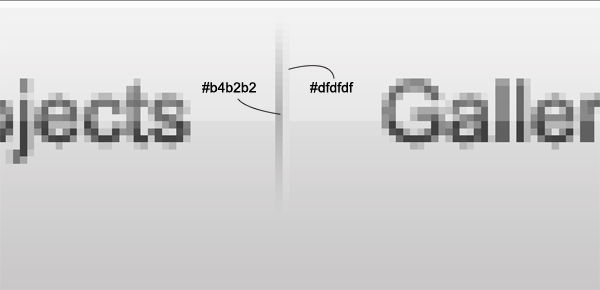

I also add a little shine to the hover button like we did to the header and navigation in the previous steps. Using two 1 pixel lines add a divider inbetween each navigation item. Add a layer mask to the divider then drag a reflected gradient over the top to blend in the top and bottom half the divider.

Design Studio Layout #2 image 17

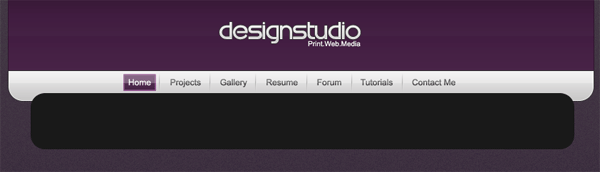

Create a new layer above everything eles in your layers window, with the rounded rectangle tool create a rectangle like the image below.

Design Studio Layout #2 image 18

Add these layer styles to the rectangle.

Design Studio Layout #2 image 19

Design Studio Layout #2 image 20

Design Studio Layout #2 image 21

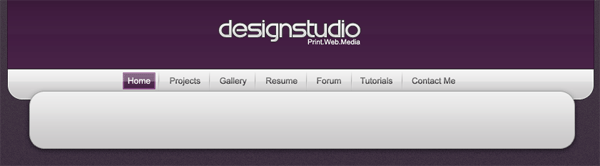

You should have something like this.

Design Studio Layout #2 image 22

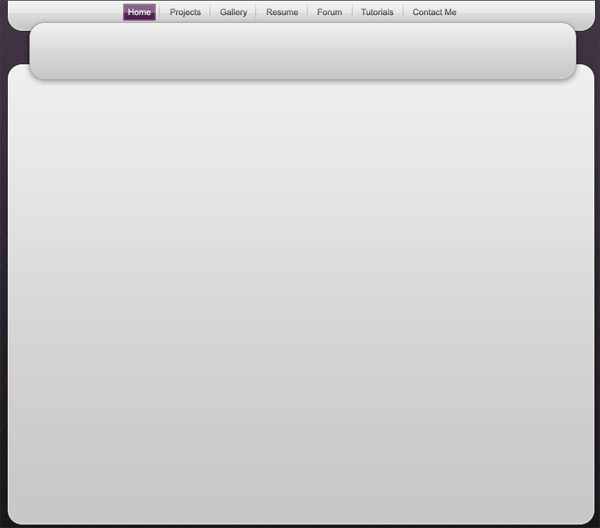

The the steps above and with the same layer styles add another big rectangle underneath the rectangle you just created.

Design Studio Layout #2 image 23

On the 1st rectangle we created add our login and password fields, the icons used in this part are from dryicons.

Design Studio Layout #2 image 24

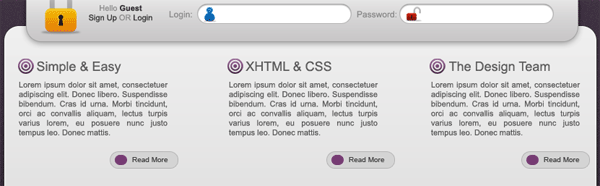

Once we've done that begin to fill in your content box with some content. The icons next to the titles are from the custom shapes libary within photoshop.

Design Studio Layout #2 image 25

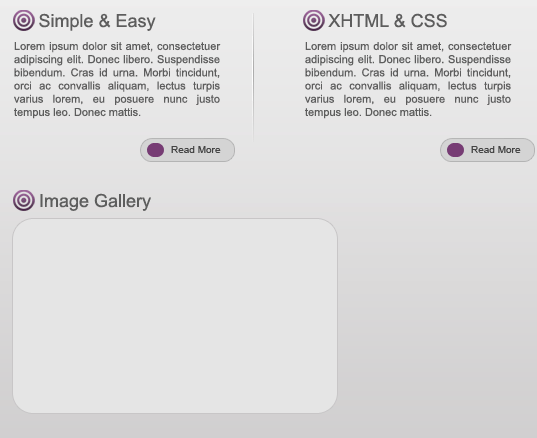

The read more buttons are made using the rounded rectangle. Inbetween each bit of text in the above image add a divider the same way we did on the navigation. Once you've done that select the rounded rectangle tool again and create a small box for our photo gallery.

Design Studio Layout #2 image 26

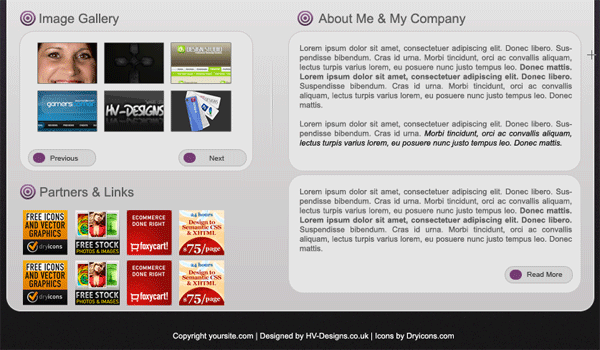

Fill the rectangle with the color #e8e8e8 then add a 1 pixel stroke to it using the color #cbc9ca. Repeat this process to add more content to your design.

Design Studio Layout #2 image 27

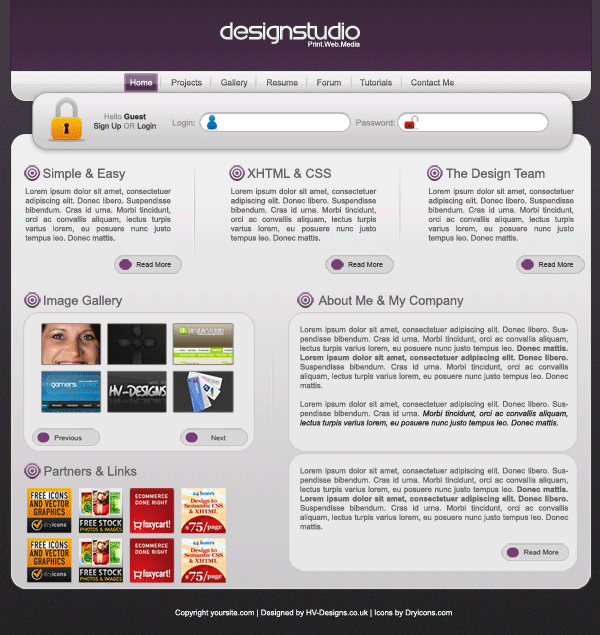

When your finished you should have something like this.

Design Studio Layout #2 image 28



Author's URL: Hv-Designs.co.uk
