Software Layout #5


Creating Our Document And Background

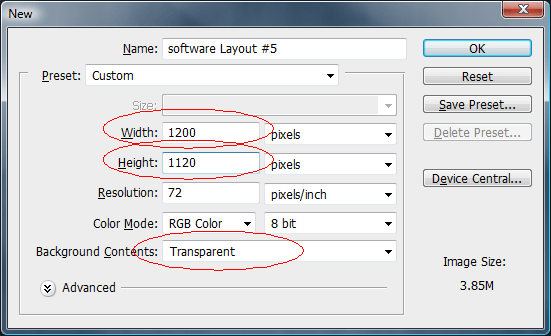

Create a new document 1200 x 1120 pixels with a transparent background.

Software Layout #5 image 1

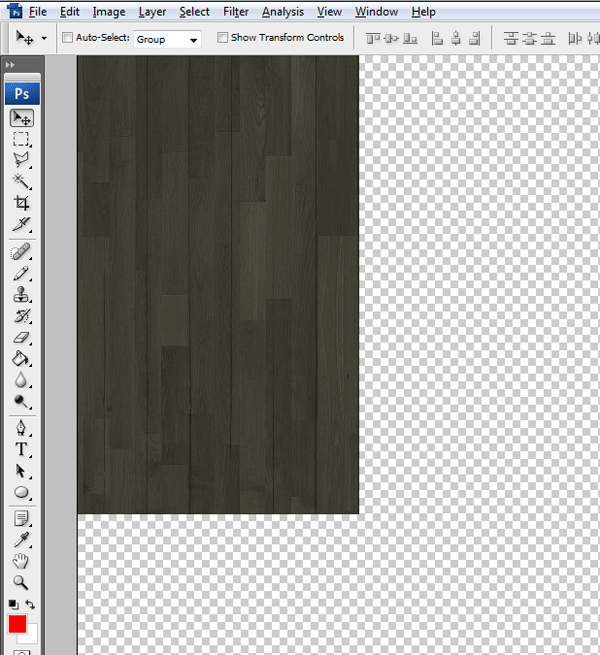

Once you've created your document download this wooden texture by "Matt Hamm". Once you've downloaded the texture place it in the top left corner of the canvas.

Software Layout #5 image 2

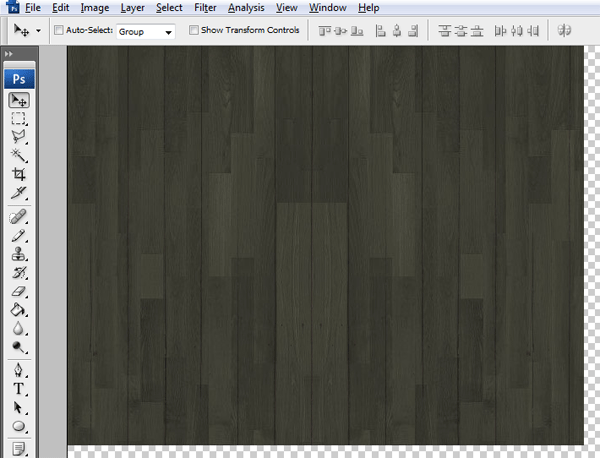

Duplicate the texture by right-clicking the layer and going to "duplicate layer". Once duplicated flip the duplicated texure horizontally then place it next to its orginal.

Software Layout #5 image 3

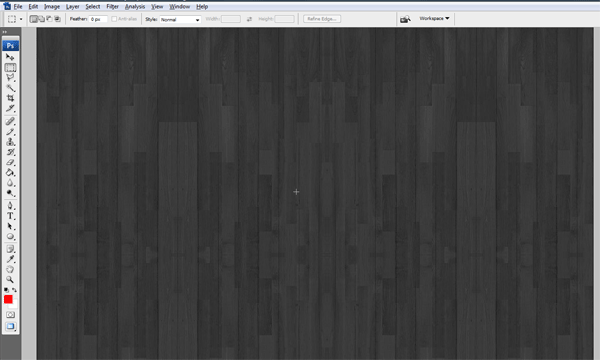

Repeat the process until you've reached the other side of the canvas. Once you've reached the right side of the canvas repeat the process again only this time flipping the texture vertically. When the whole canvas is covered merge all the layers into one layer called background. Finally desaturate the background by going to "image > adjustments > desaturate"

Software Layout #5 image 4

Creating The Title And Navigation

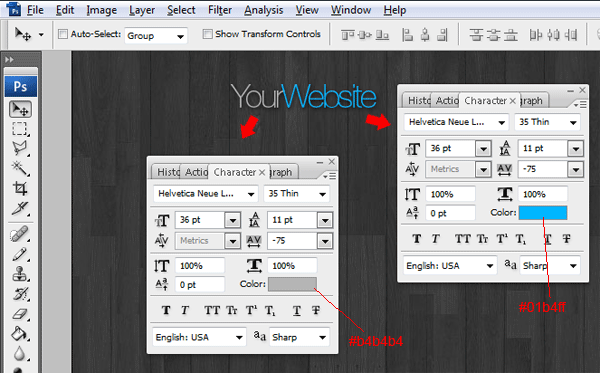

Select the type tool then add your website title in the top left corner. The font and settings ive used are listed in the image below.

Software Layout #5 image 5

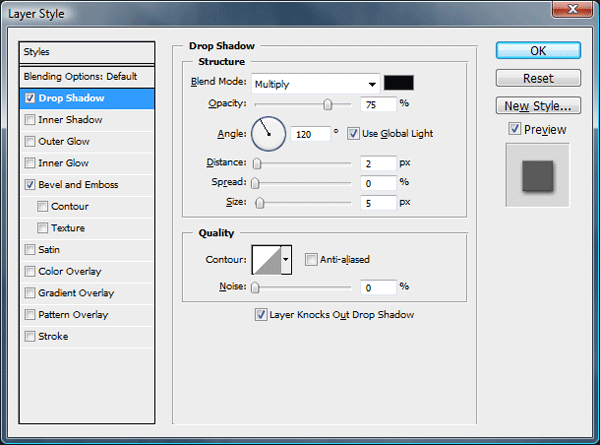

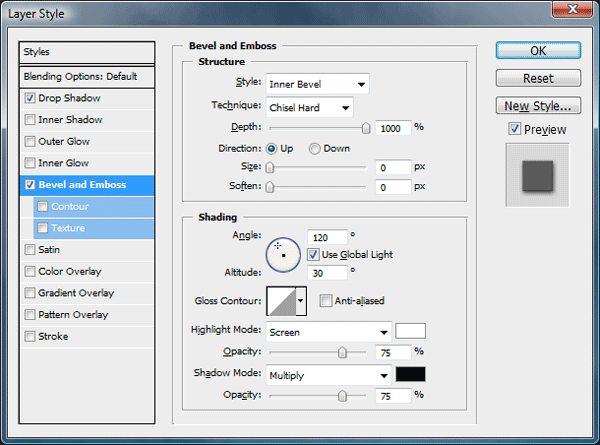

Once you've added the text add these layer styles.

Software Layout #5 image 6

Software Layout #5 image 7

Once you've sorted the website title on the right side add a simple text style navigation using the color #b3b3b3. On the first text link change the color to white (#ffffff).

Software Layout #5 image 8

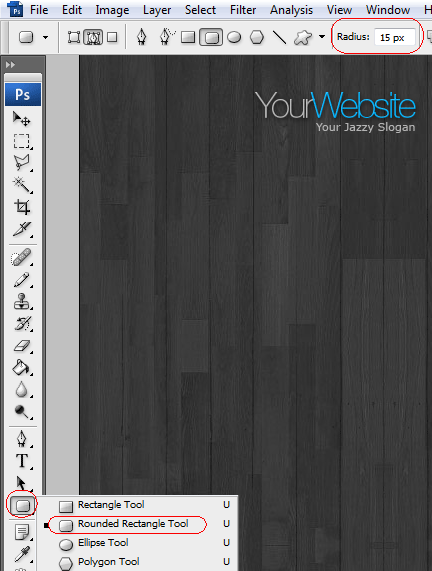

On the link that is coloured white were going to add a hover state. Select the rounded rectangle tool with a radius of 15px.

Software Layout #5 image 9

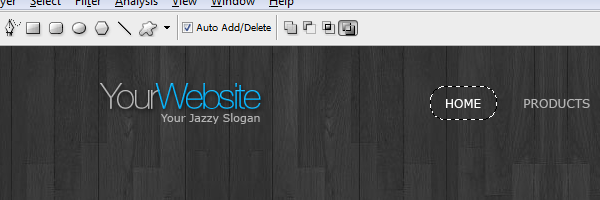

On a new layer underneath the navigation text create a small rectangle around the link.

Software Layout #5 image 10

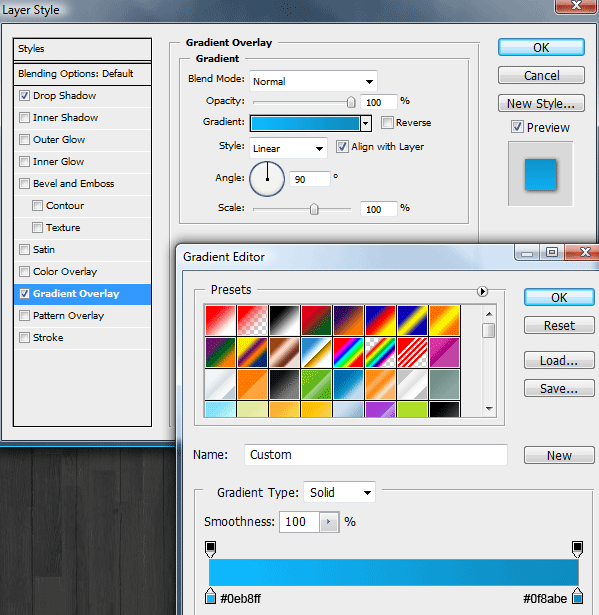

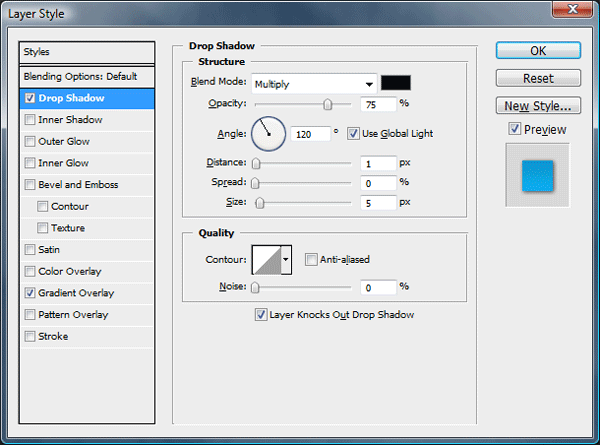

Fill the rectangle with any color then add these layer styles.

Software Layout #5 image 11

Software Layout #5 image 12

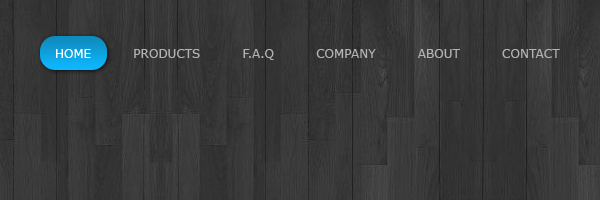

You should have something like this.

Software Layout #5 image 13

Creating The Outer Content Area

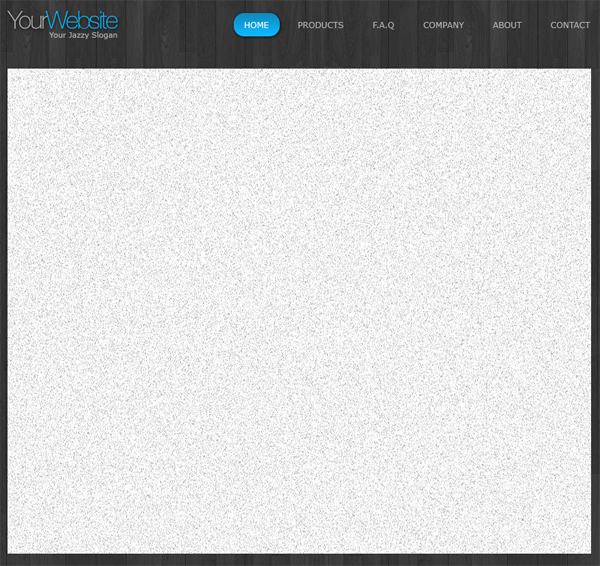

Select the rectangular marquee tool and create a big white rectangle, the rectangle should be about 850 x 700 pixels. Once you've created the rectangle add 15% noise by going "filter > noise > add noise".

Software Layout #5 image 14

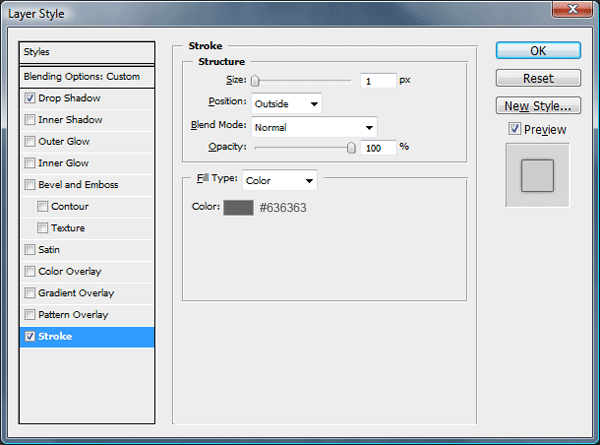

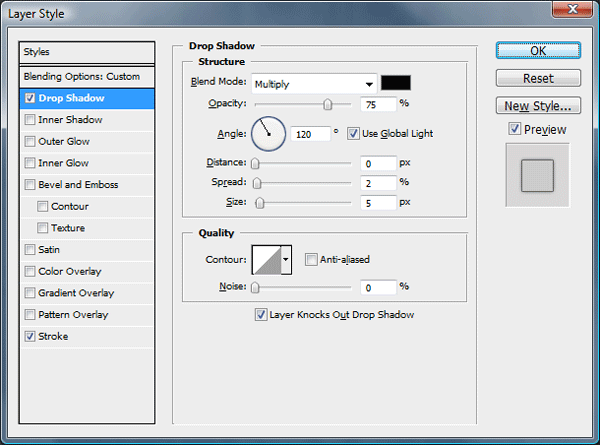

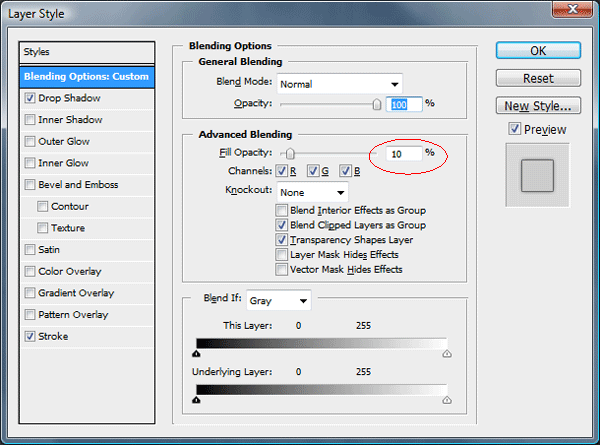

Once you've added the noise apply these layer styles.

Software Layout #5 image 15

Software Layout #5 image 16

Software Layout #5 image 17

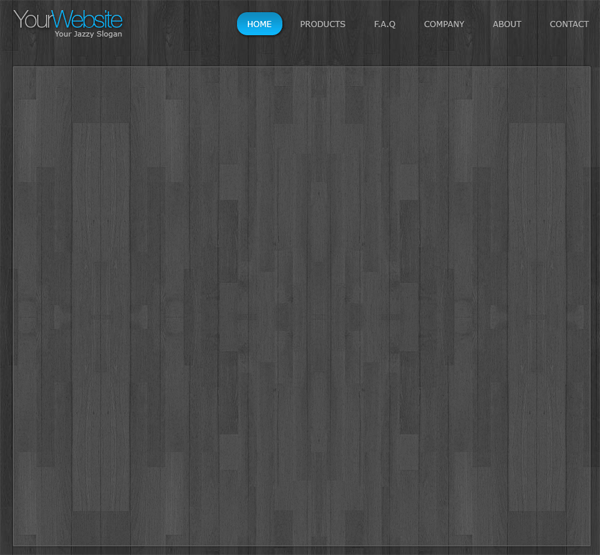

You should have something like this.

Software Layout #5 image 18

Creating The Inner Content Area

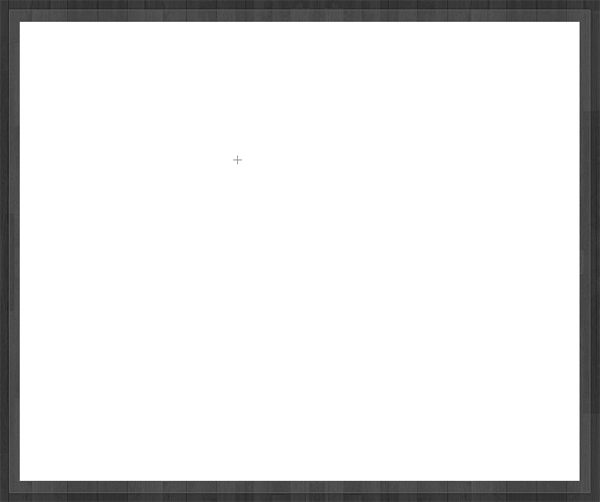

Click the "Outer Content Area" box whilst holding down the CTRL key on the keyboard, this should load a selection around the rectangle. Once the selection is loaded go to "select > modify > contract". Contract the selection by 20pixels then fill the selection with the color white on a new layer.

Software Layout #5 image 19

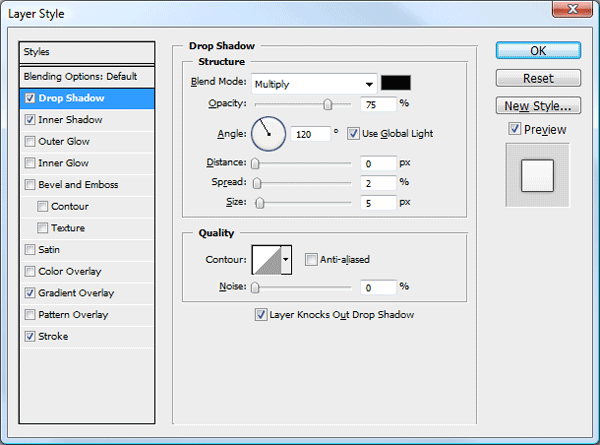

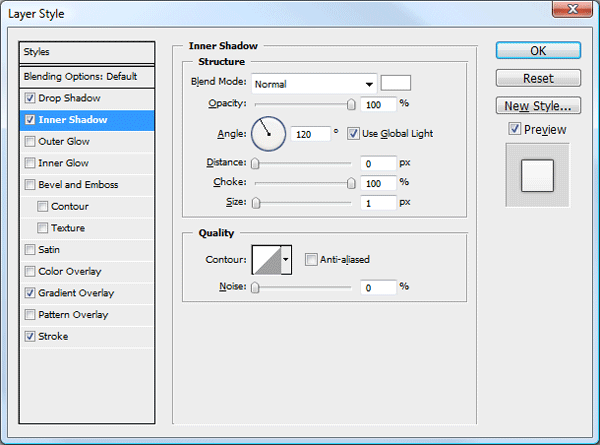

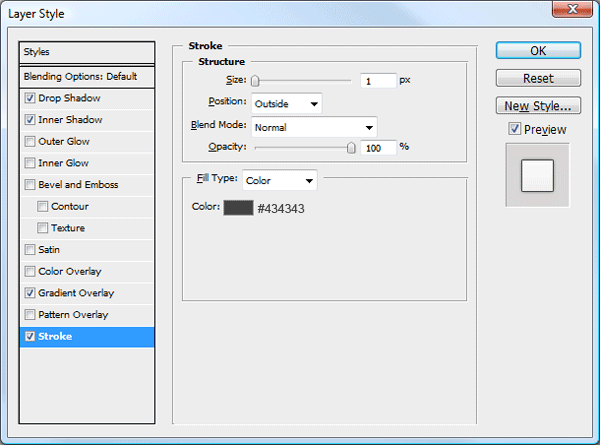

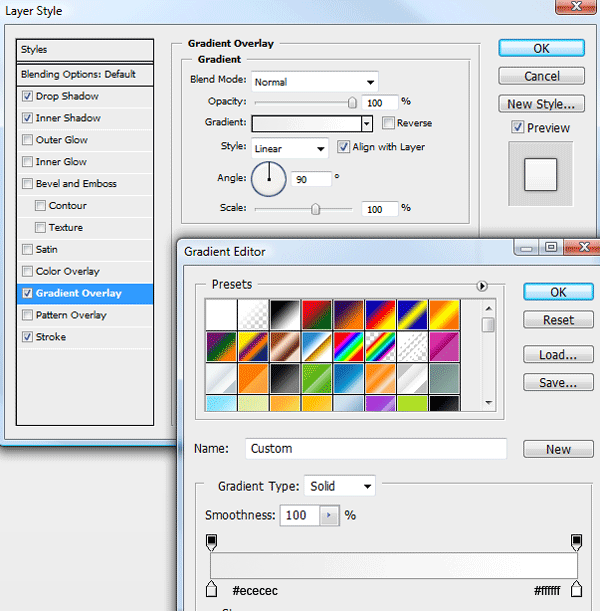

Now add these layer styles to the new inner rectangle.

Software Layout #5 image 20

Software Layout #5 image 21

Software Layout #5 image 22

Software Layout #5 image 23

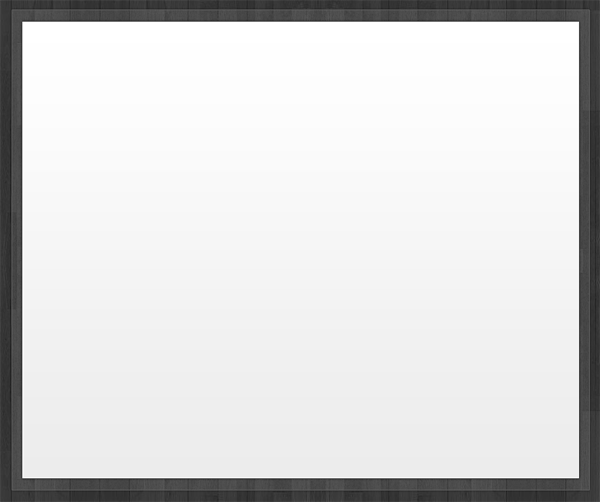

You should have something like this.

Software Layout #5 image 24

Creating The Featured Area

Click the "Inner Content Area" box whilst holding down the CTRL key on the keyboard, this should load a selection around the rectangle. Once the selection is loaded go to "select > modify > contract". Contract the selection by 20pixels then fill the selection with the color white on a new layer. Once filled add a 1 pixel stroke using the color #e4e4e4.

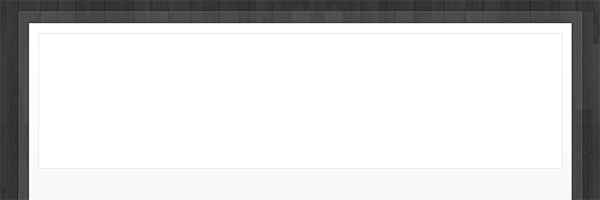

Select the rectangular marquee tool OR your prefered cutting tool, make a selection around the rectangle you just created starting from the bottom. Leave about 200pixels at the top, then hit the delete key. You should be left with a 200 pixel wide box.

Software Layout #5 image 25

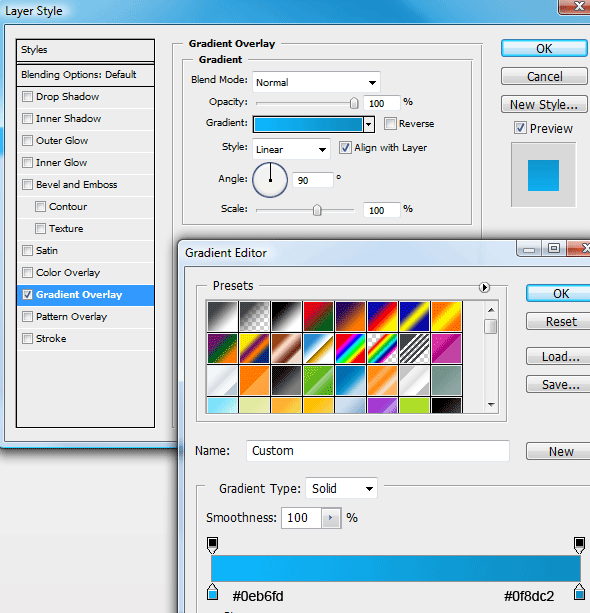

Click the "Rectangle" you just cut whilst holding down the CTRL key on the keyboard, this should load a selection around the rectangle. Once the selection is loaded go to "select > modify > contract". Contract the selection by 5-10 pixels then fill the selection with the color white on a new layer. Once filled add this gradient overlay.

Software Layout #5 image 26

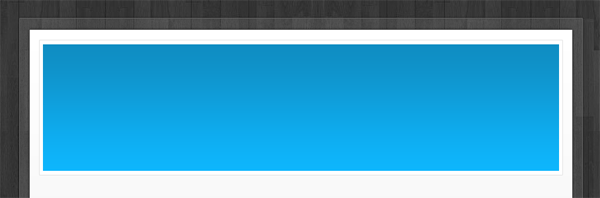

You should have something like this.

Software Layout #5 image 27

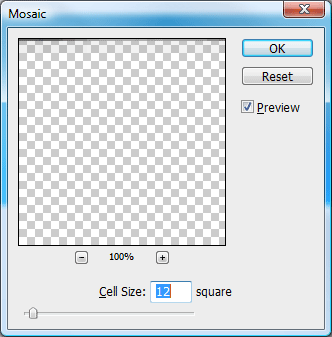

Click the "Rectangle" you just created whilst holding down the CTRL key on the keyboard, this should load a selection around the rectangle. Create a new layer then go to "filter > render > clouds", now go to "filter > pixelate > mosaic" use the settings below.

Software Layout #5 image 28

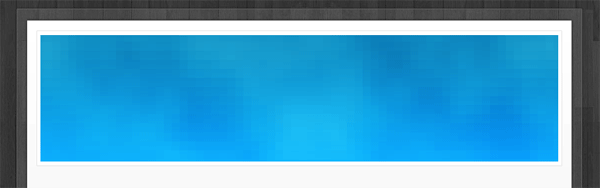

Now set the layer blend mode to "soft light" and opacity to 75%. You should have something like this.

Software Layout #5 image 29

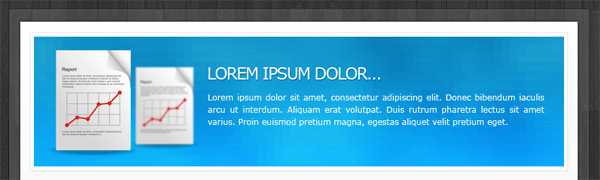

Inside the blue rectangle add some dummy content and maybe an icon of some sort. Im using an icon from one of smashing magazine's icon sets.

Software Layout #5 image 30

Creating The Featured Area Buttons

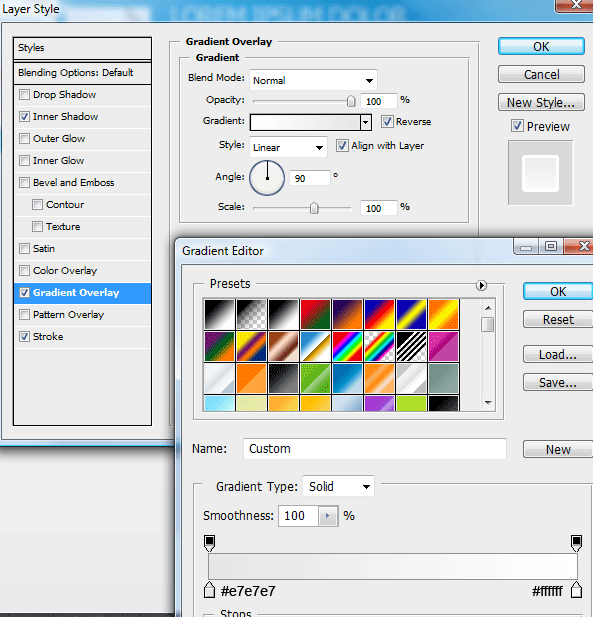

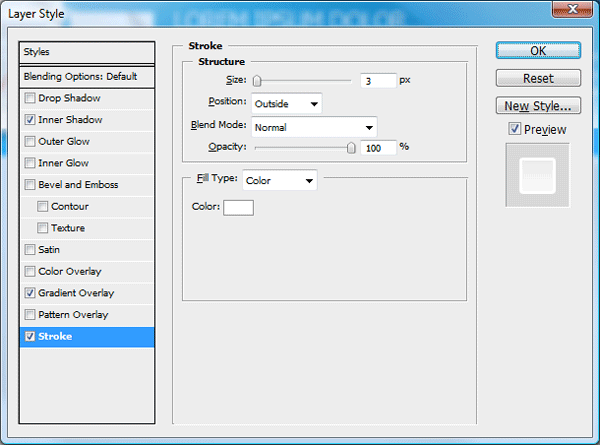

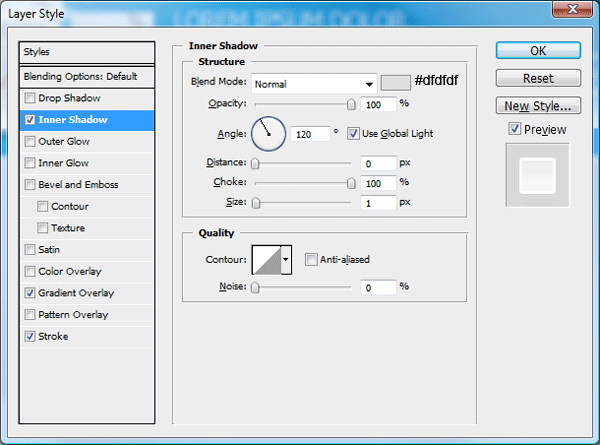

Create two circles either side of the featured area, make the circles small dont make them too big. Once you've created the circles add these layer styles.

Software Layout #5 image 31

Software Layout #5 image 32

Software Layout #5 image 33

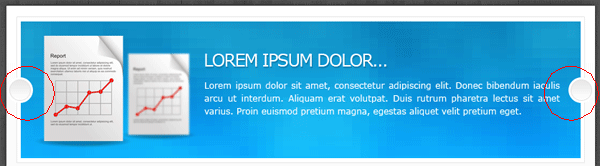

You should have something like this.

Software Layout #5 image 34

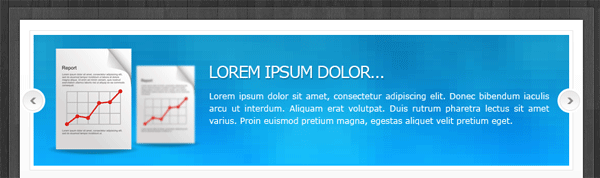

Finish off the little buttons by adding a dark gray arrow to it.

Software Layout #5 image 35

The Dummy Content

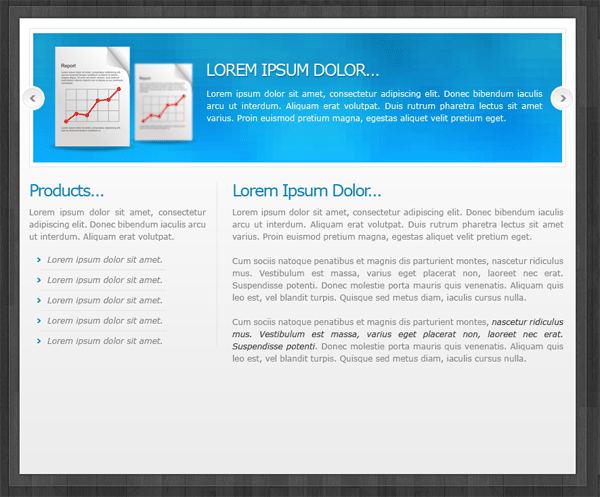

This next part doesnt really need a "step-by-step" as its just all text done with the type tool. Create simple blue headings with subtle gray text underneath, maybe add a list or two to break the layout up abit. Leave an area at the bottom for some additional content.

Software Layout #5 image 36

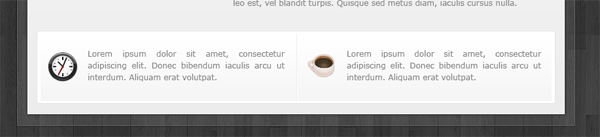

In the area at the bottom create a box in the same way we did our featured area outer box. The layer styles for this new box at the bottom are also the same as the featured area outer box. Fill the outer box with some a dummy paragraph or two and maybe an icon or two. The icons ive used this time are from "wefunction".

Software Layout #5 image 37

Creating The Footer

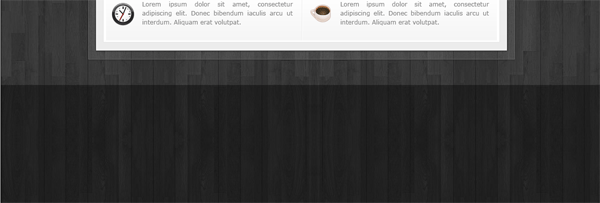

Select the rectangular marquee tool and create a black rectangle across the bottom of the canvas, over the wood texture. Set the fill % of the black box to 40%.

Software Layout #5 image 38

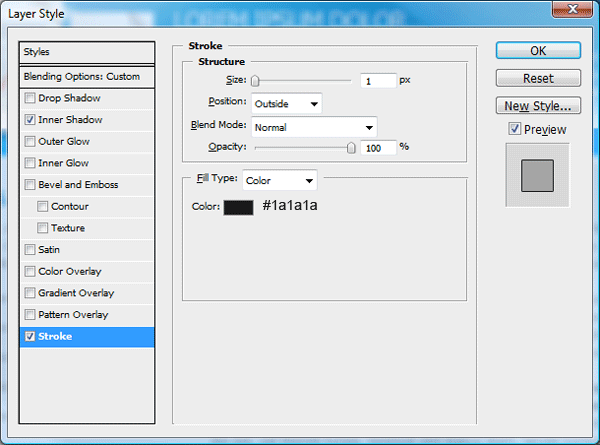

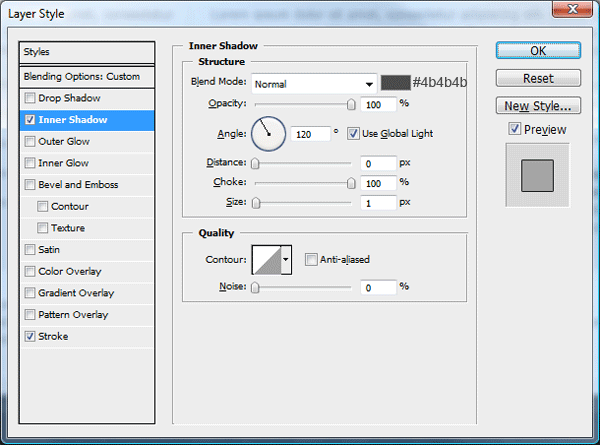

Now add these layer styles to the layer.

Software Layout #5 image 39

Software Layout #5 image 40

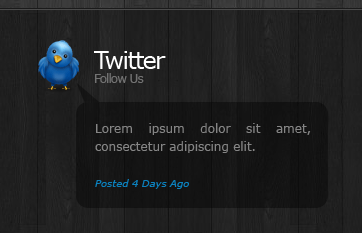

Using a twitter icon and a speech bubble from photoshop's custom shapes libary, create a follow us area on the left side of the footer. The twitter icon ive used is from smashing magazine.

Software Layout #5 image 41

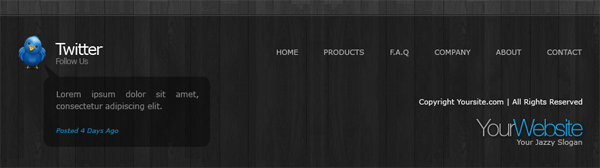

On the right side of the footer add a duplicate of your website title and slogan. Then add your copyright information and any other information you would find inside of the footer area.

Software Layout #5 image 42

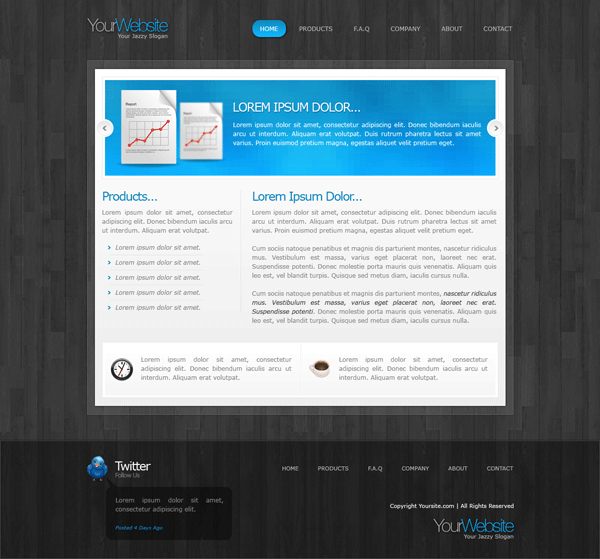

Finished Layout

Software Layout #5 Tutorial: Final Result

Congratulations you've finished the tutorial, hope you found it intresting, thanks for reading.
