In the following Adobe Illustrator tutorial you will learn how to create a detailed web element, a simple drop-down menu. We'll start with a bunch rectangles and simple paths, some basic vector shape building techniques and the Rounded Corners effect. Once we have our starting shapes we'll continue with the colors. We'll use multiple fills and strokes along with the Drop Shadow effect and some simple blending techniques. Finally, we'll add the text. Let's get started.

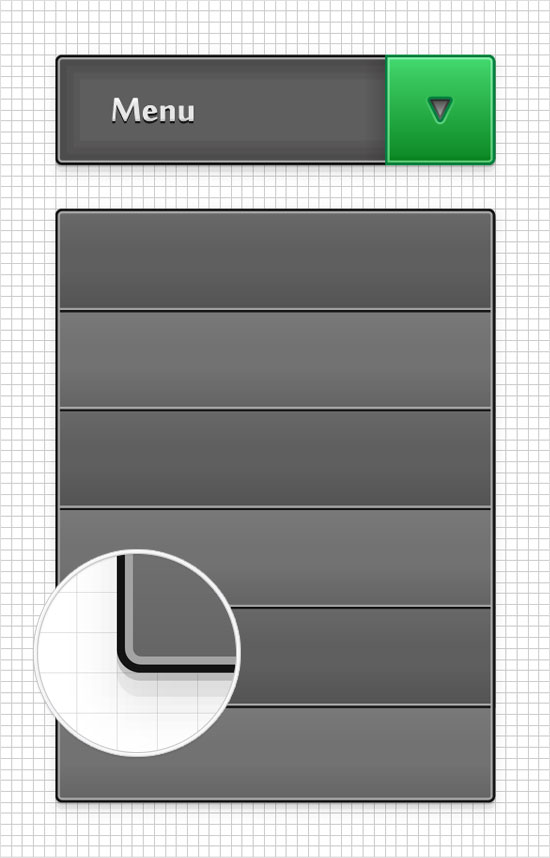

As always, this is the final image that we'll be creating.


Step 1

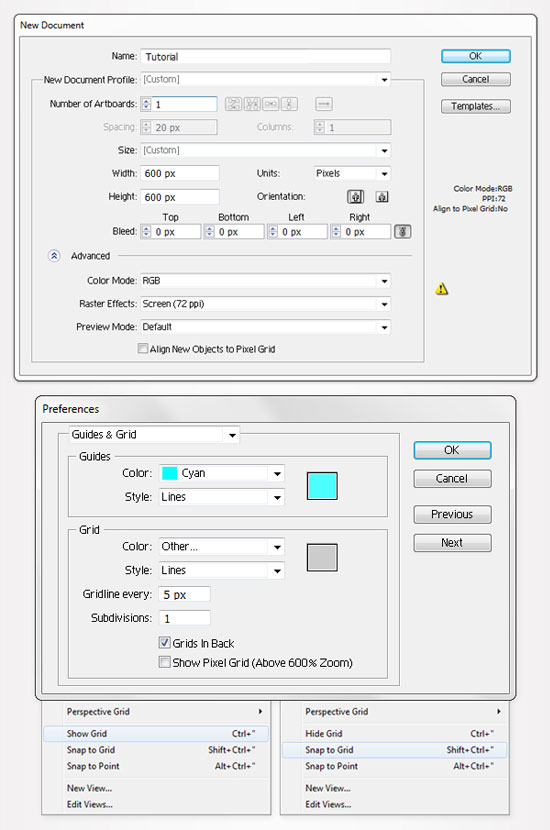

Hit Control + N to create a new document. Enter 600 in the width and height boxes then click on the Advanced button. Select RGB, Screen (72ppi) and make sure that the "Align New Objects to Pixel Grid" box is unchecked before you click OK. Now, turn on the Grid (View > Grid) and the Snap to Grid (View > Snap to Grid). Next, you'll need a grid every 5px. Go to Edit > Preferences > Guides & Grid, enter 5 in the Gridline every box and 1 in the Subdivisions box.

You can also open the Info panel (Window > Info) for a live preview with the size and position of your shapes. Do not forget to set the unit of measurement to pixels from Edit > Preferences > Unit > General. All these options will significantly increase your work speed.


Step 2

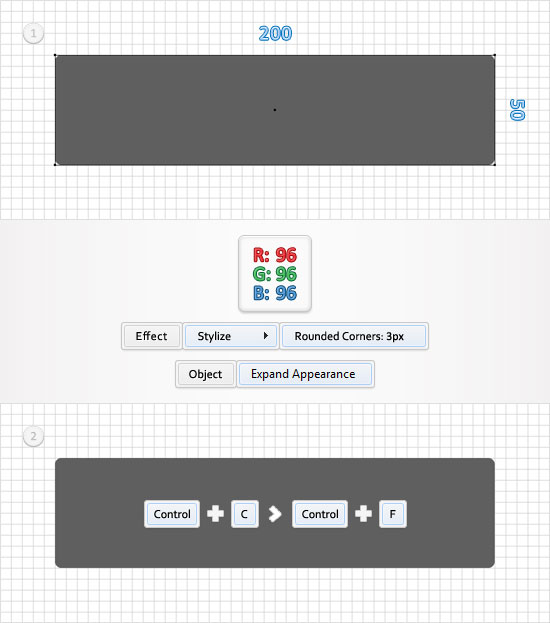

Start with the Rectangle Tool(M), create a 200 by 50px shape, fill it with R=96 G=96 B=96 and go to Effect > Stylize > Rounded Corners. Enter a 3px radius, click OK and go to Object > Expand Appearance. Select the resulting shape and make a copy in front (Control + C > Control + F). You'll need it for the next step.


Step 3

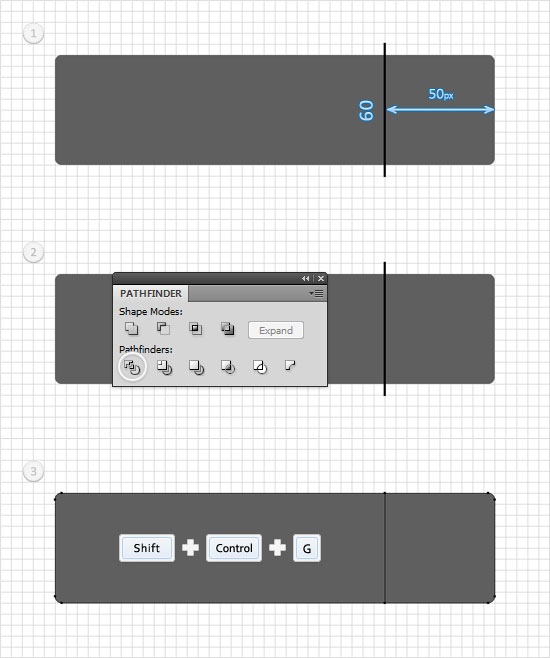

Grab the Pen Tool(P), draw a 60px vertical path and place it as shown in the first image. The Snap to Grid will ease your work. Select it along with the copy of the rounded rectangle created in the previous step, open the Pathfinder panel and click on the Divide button. Move to the Layers panel, select the resulting group of shapes and ungroup it (Shift + Control + G).


Step 4

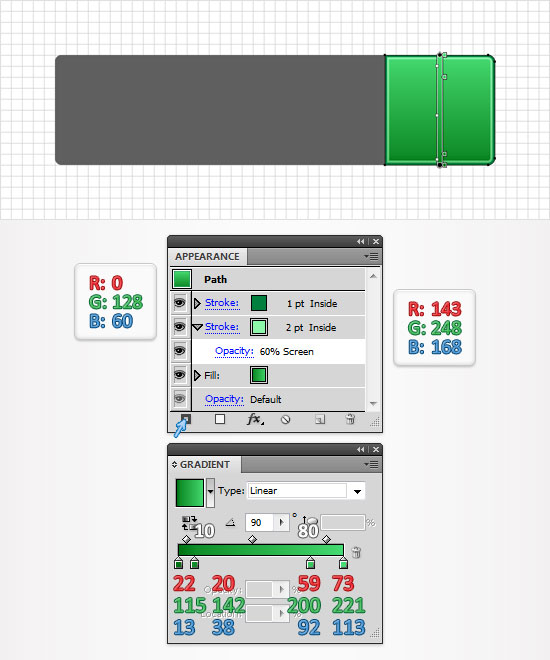

Focus on the right shape created in the previous step. Select it and replace the flat color used for the fill with the linear gradient shown in the following image. Make sure that this shape stays selected, focus on the Appearance panel and add a 2pt stroke. Select it, set its color at R=143 G=248 B=168, align it to inside, lower the opacity to 60% and change the blending mode to Screen.

Keep focusing on the Appearance panel and add a second stroke for your shape using the Add New Stroke button. Select this new stroke, make it 1pt wide, set its color at R=0 G=128 B=60 and make sure that it's aligned to the inside.


Step 5

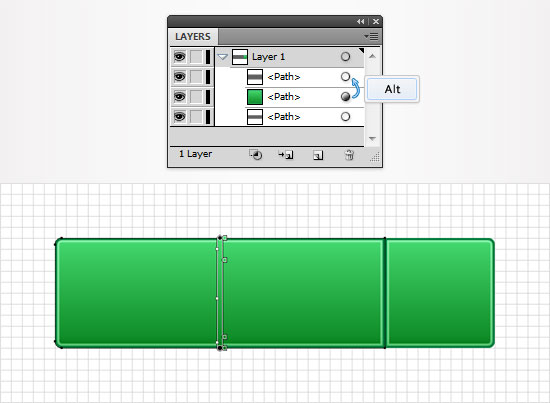

Next, you need to copy the properties used for the shape edited in the previous step and paste them onto the other shape created in the third step. Here is how you can easily do it. Go to the Layers panel, focus on the right side and you'll notice that every shape comes with a little grey circle. It's called a target icon. Hold Alt, click on the target icon that stands for the shape edited in the previous step and drag onto the circle that stands for the second shape created in the third step.


Step 6

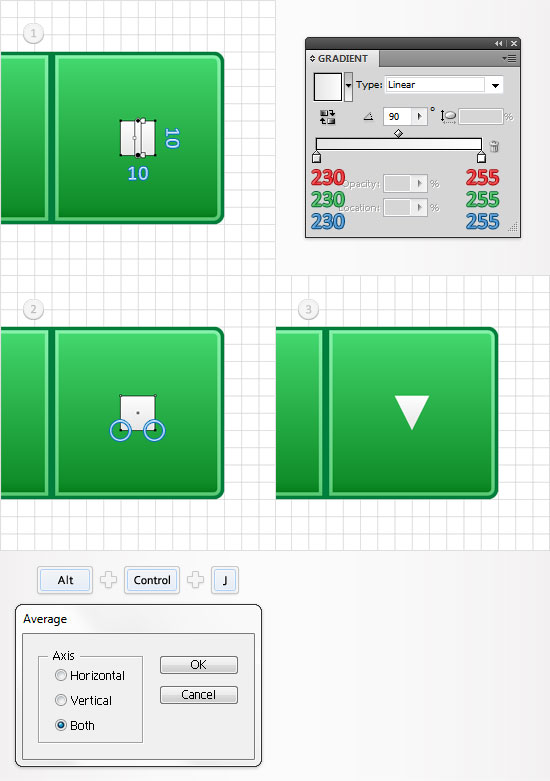

Pick the Rectangle Tool(M), create a 10px square, fill it with the linear gradient shown below and place it as shown in the first image. Focus on this new shape and grab the Direct Selection Tool(A). Select the bottom anchor points and go to Object > Path > Offset Path (Alt + Control + J). Check the Both button and click OK. This should turn your little square into a triangle.


Step 7

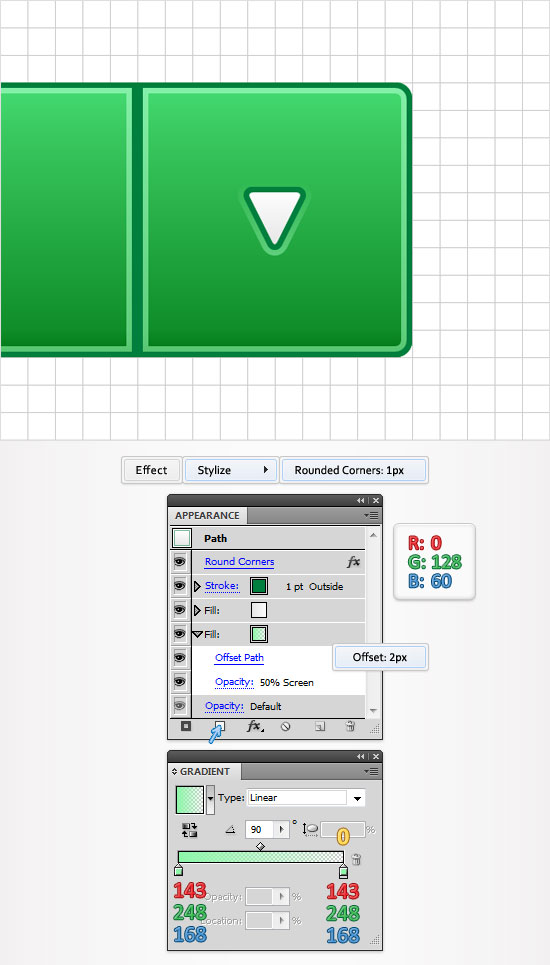

Reselect the triangle created in the previous step and go to Effect > Stylize > Rounded Corners. Enter a 1px radius and click OK. Focus on the Appearance panel and add a 1pt stroke for this shape. Make it 1pt wide, align it to the outside and set its color at R=0 G=128 B=60. Keep focusing on the Appearance panel and add a second fill for this triangle using the Add New Fill button.

Select it, drag it below the existing fill, add the linear gradient shown in the following image and go to Effect > Path > Offset Path. Enter a 2px offset and click OK. The yellow zero from the gradient image stands for opacity percentage. Make sure that this new fill is still selected then lower its opacity to 50% and change the blending mode to Screen.


Step 8

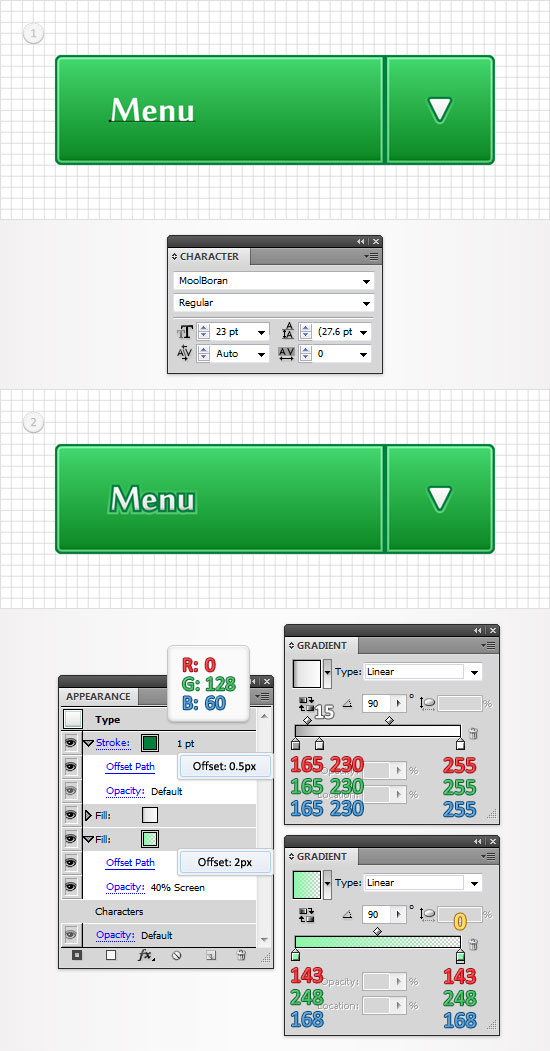

Disable the Snap to Grid (View > Snap to Grid). Pick the Type Tool(T) and add your white "Menu" text. Use the MoolBoran font with the size set at 23pt. Select this text, focus on the Appearance panel and add two fills and a stroke using the Add New Fill and Add New Stroke buttons. Select the bottom fill, lower its opacity to 40%, change the blending mode to Screen and add the bottom linear gradient shown in the following image then go to Effect > Path > Offset Path. Enter a 2px Offset and click OK.

Return to the Appearance panel, select the second fill and use the top linear gradient shown below. Move up in the Appearance panel, select the stroke, make it 1pt wide, set its color at R=0 G=128 B=60 and go to Effect > Path > Offset Path. Enter a 0.5px Offset and click OK.


Step 9

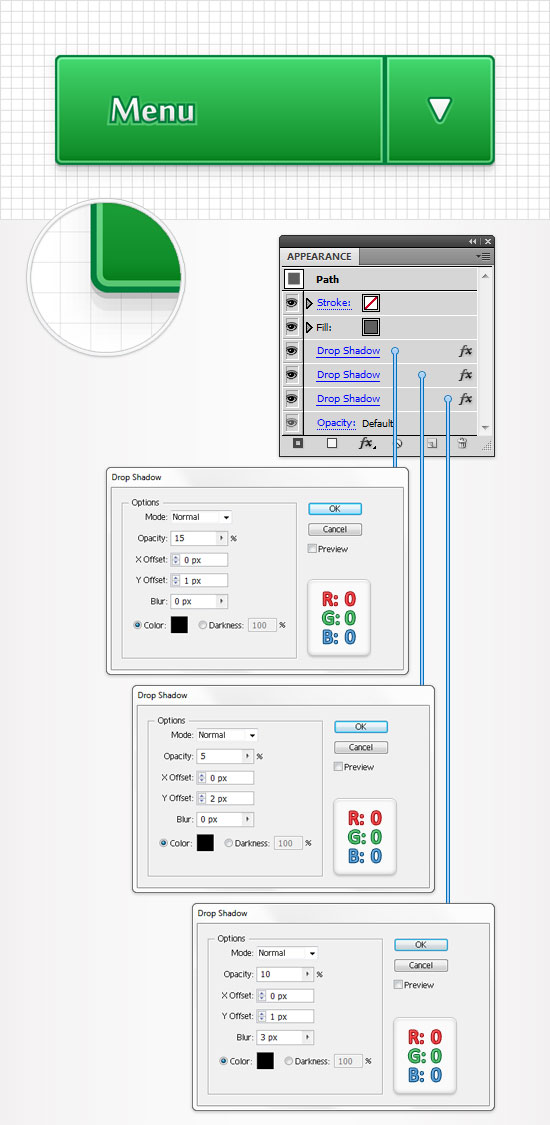

Reselect the grey rounded rectangle created in the second step and go to Effect > Stylize > Drop Shadow. Enter the properties shown in the top window (in the image), click OK and go again to Effect > Stylize > Drop Shadow. Enter the properties shown in the middle window, click OK and go one more time to Effect > Stylize > Drop Shadow. Enter the properties shown in the bottom window and click OK.


Step 10

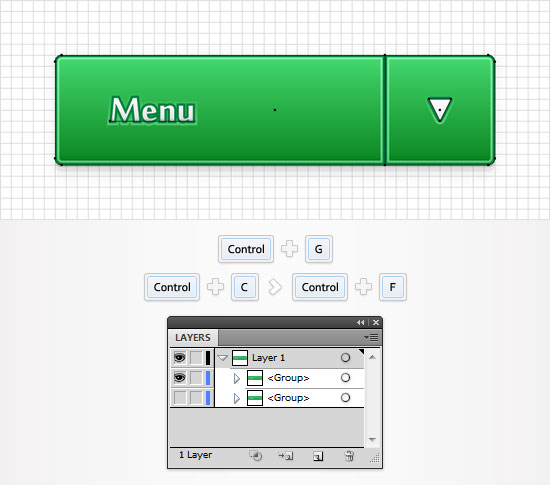

Reselect all the shapes created so far and group them (Control + G). This will be your closed drop-down menu. Make a copy of this group (Control + C > Control + F) then move to the Layers panel and turn off the visibility for the original group by clicking on the little eye icon.


Step 11

Focus on the remaining, visible group created in the previous step. First, select the left, green shape and delete it. Next, focus on the "Menu" text. Select it and move to the Appearance panel. Remove the bottom fill and the stroke then select the remaining fill and replace the existing linear gradient with the one shown in the following image. Also, with this text still selected go to Effect > Stylize > Drop Shadow. Enter the data shown in the following image and click OK.


Step 12

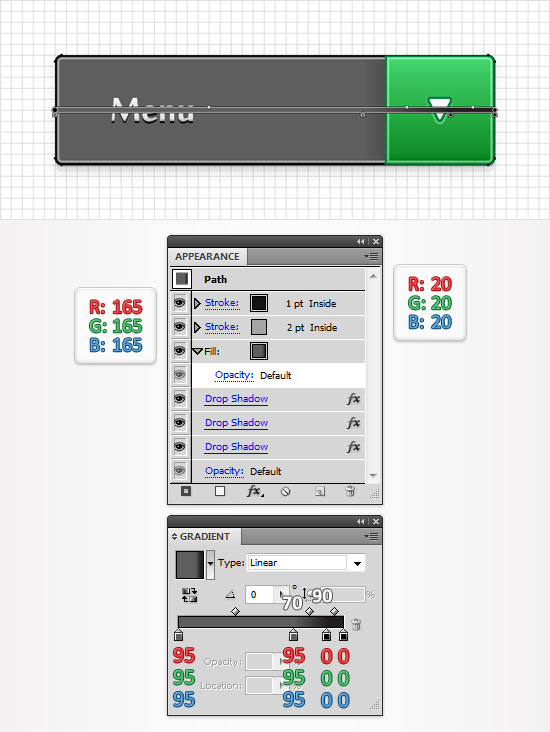

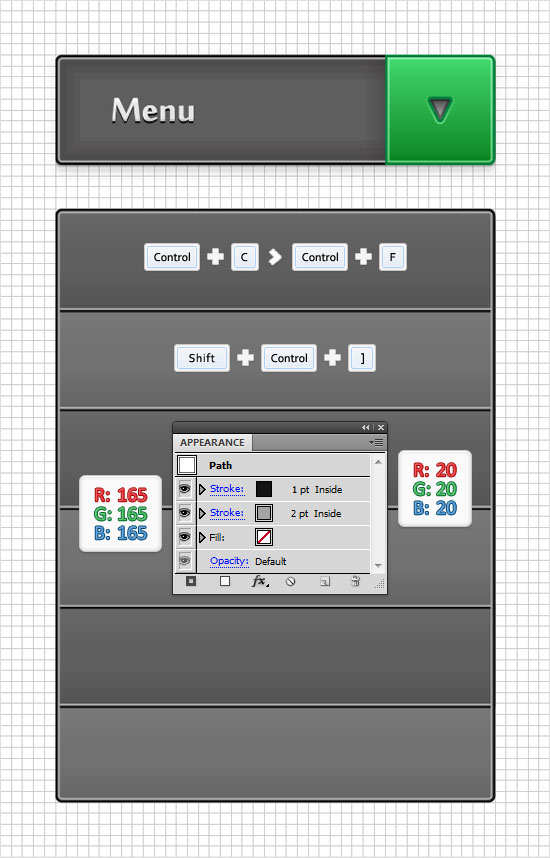

Reselect the grey rounded rectangle and replace the flat color used for the fill with the linear gradient shown in the following image. Add a 2pt stroke for this shape, set its color at R=165 G=165 B=165 and align it to the inside. Focus on the Appearance panel, add a second stroke for this shape, make it 1pt wide, set its color at R=20 G=20 B=20 and align it to the inside.


Step 13

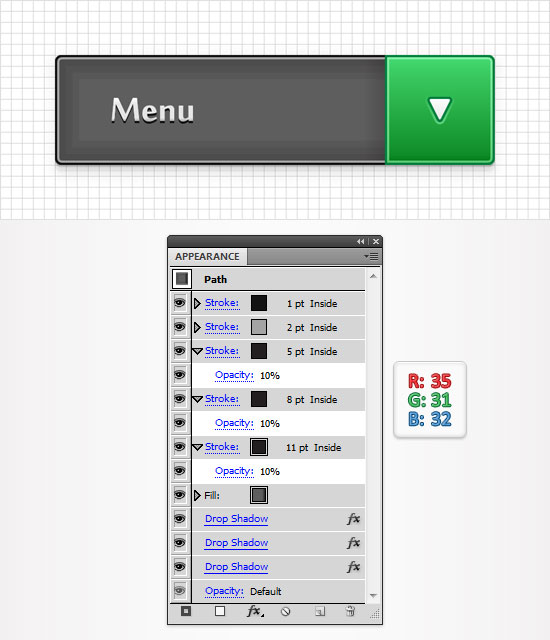

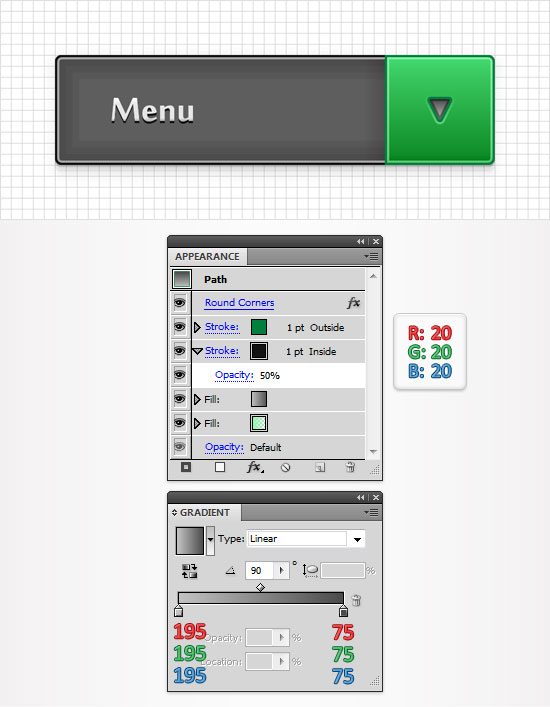

Reselect the shape edited in the previous step and focus on the Appearance panel. Add three new strokes and drag them below the existing ones. Select the bottom one, make it 11pt wide, set its color at R=35 G=31 B=32 and lower its opacity to 10%. Select the middle one, make it 8pt wide, set its color at R=35 G=31 B=32 and lower its opacity to 10%. Select the top one, make it 8pt wide, set its color at R=35 G=31 B=32 and lower its opacity to 10%.


Step 14

Move to the little arrow shape, select it and focus on the Appearance panel. First, replace the linear gradient used for the top fill with the one shown in the following image. Next, add a new stroke and drag it below the existing one. Select it, make it 1pt wide, align it to inside, set its color at R=20 G=20 B=20 and lower its opacity to 50%.


Step 15

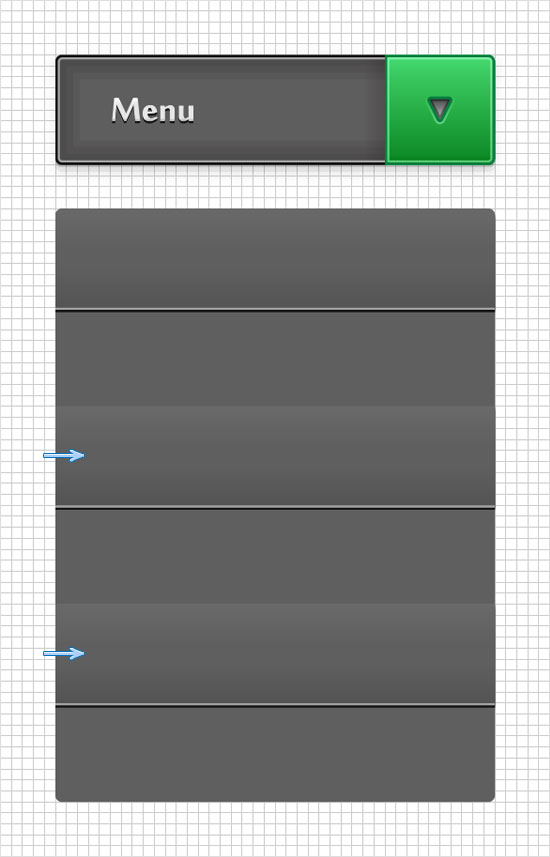

Enable the Snap to Grid (View > Snap to Grid). Grab the Rectangle Tool(M), create a 200 by 270px shape, fill it with R=96 G=96 B=96 and go to Effect > Stylize > Rounded Corners. Enter a 3px radius, click OK and go to Object > Expand Appearance. Select the resulting shape and make a copy in front (Control + C > Control + F).


Step 16

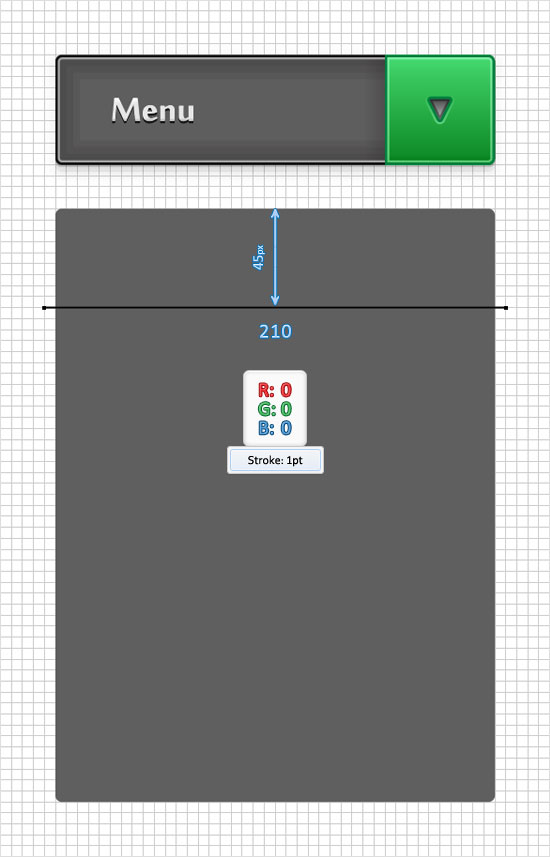

Pick the Pen Tool(P), draw a 210px horizontal path and place it as shown in the following image.


Step 17

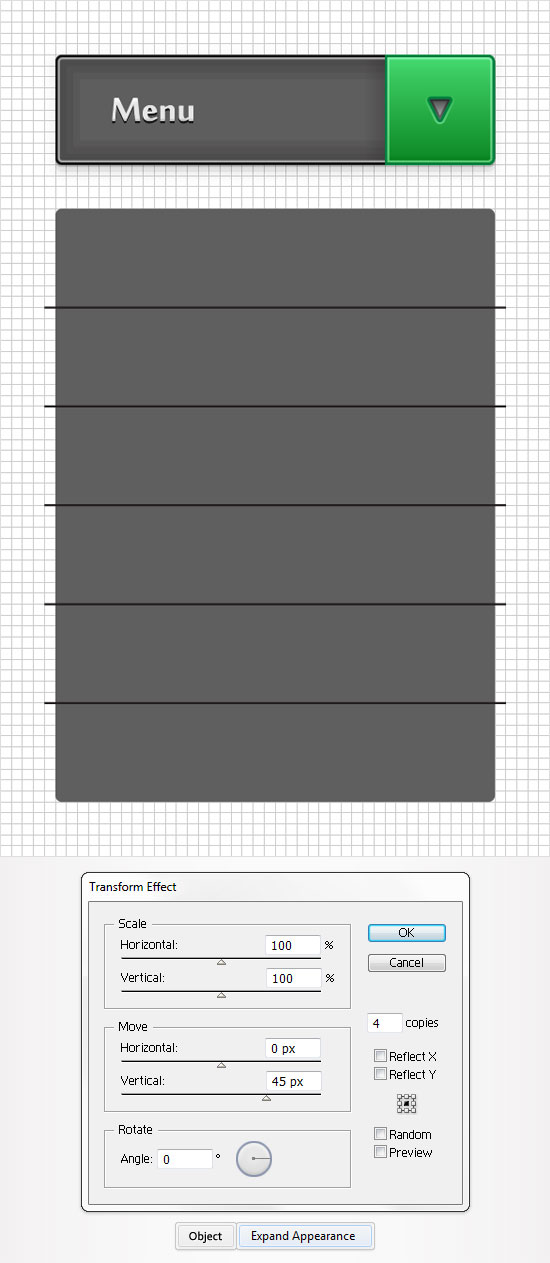

Reselect the path created in the previous step and go to Effect > Distort & Transform > Transform. Enter the properties shown in the following image, click OK and go to Object > Expand Appearance.

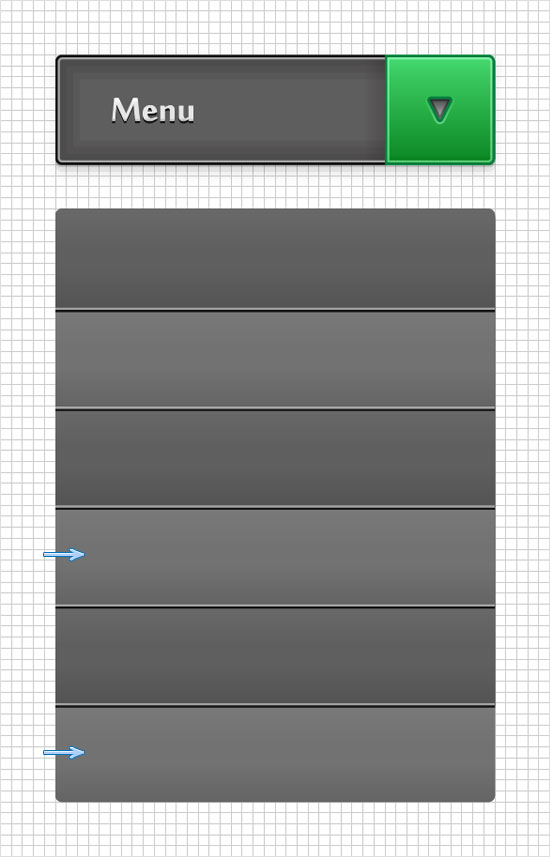

Step 18

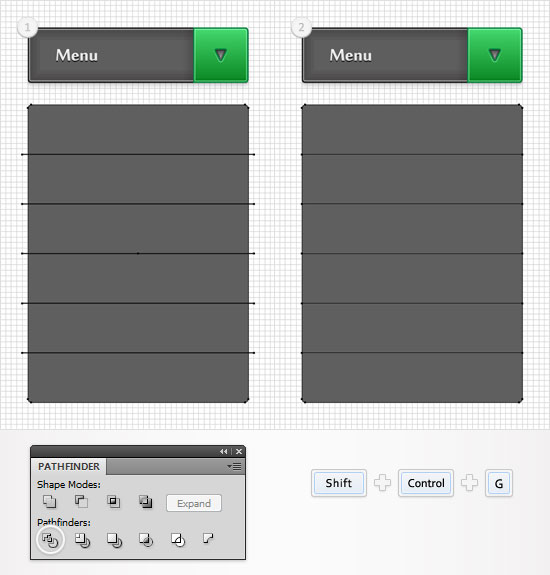

Select the group of paths created in the previous step along with the copy of the rounded rectangle created in the fifteenth step and click on the Divide button from the Pathfinder panel. Move to the Layers panel and ungroup (Shift + Control + G) the resulting group of shapes.


Step 19

Select the top shape created in the previous step, fill it with R=96 G=96 B=96 then add the two Drop Shadow effects shown in the following image. Focus on the Appearance panel and add a second fill for this shape. Select it, lower the opacity to 15% and use the linear gradient shown in the following image.


Step 20

Add the properties mentioned in the previous step for the third and the fifth shapes created in step #18. Simply focus on the Layers panel and use the technique mentioned in the fifth step.


Step 21

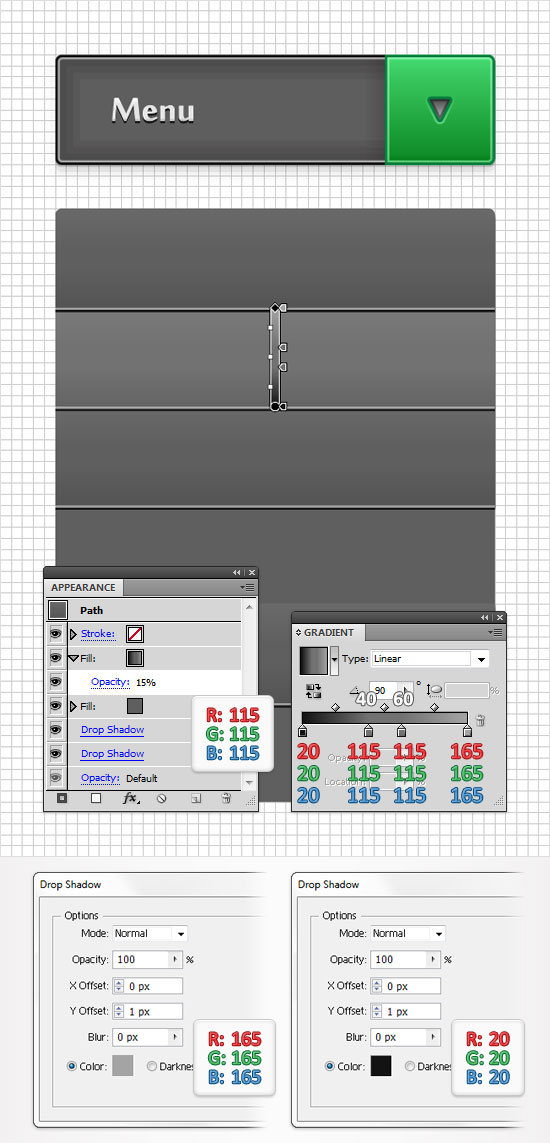

Select the second shape created in step #18, fill it with R=115 G=115 B=115 then add the two Drop Shadow effects shown in the following image. Focus on the Appearance panel and add a second fill for this shape. Select it, lower the opacity to 15% and use the linear gradient shown in the following image.


Step 22

Add the properties mentioned in the previous step for the fourth and the sixth shapes created in step #18. Again, you can use the technique mentioned in the fifth step. Select the bottom shape, focus on the Appearance panel and remove those Drop Shadow effects.


Step 23

Reselect the rounded rectangle created in the fifteenth step, make a copy in front (Control + C > Control + F) and bring it to front (Shift + Control + ] ). Select this new shape and focus on the Appearance panel. Remove the color from the fill and add a 2pt stroke. Align it to the inside and set its color at R=165 G=165 B=165. Add a second stroke for this shape, make it 1pt wide, set its color at R=20 G=20 B=20 and align it to the inside.


Step 24

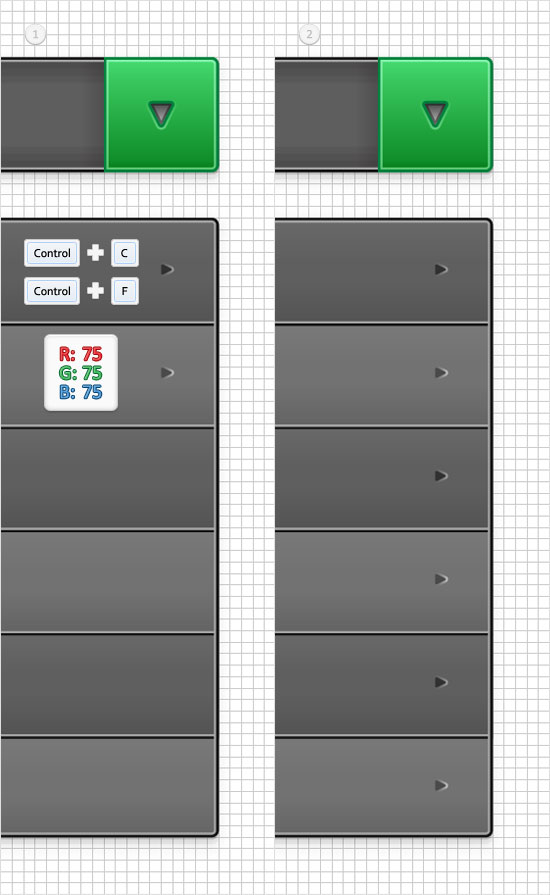

Reselect the rounded rectangle created in the fifteenth step and add the Drop Shadow effects mentioned in the ninth step. Remember that you can easily copy and paste those properties using the target icons.


Step 25

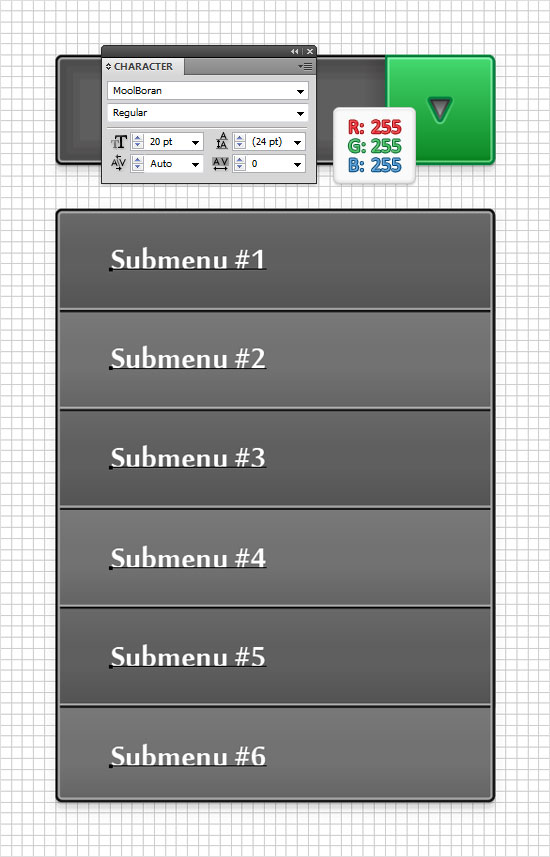

Disable the Snap to Grid (View > Snap to Grid). Pick the Type Tool(T) and add some new, white text as shown in the following image.


Step 26

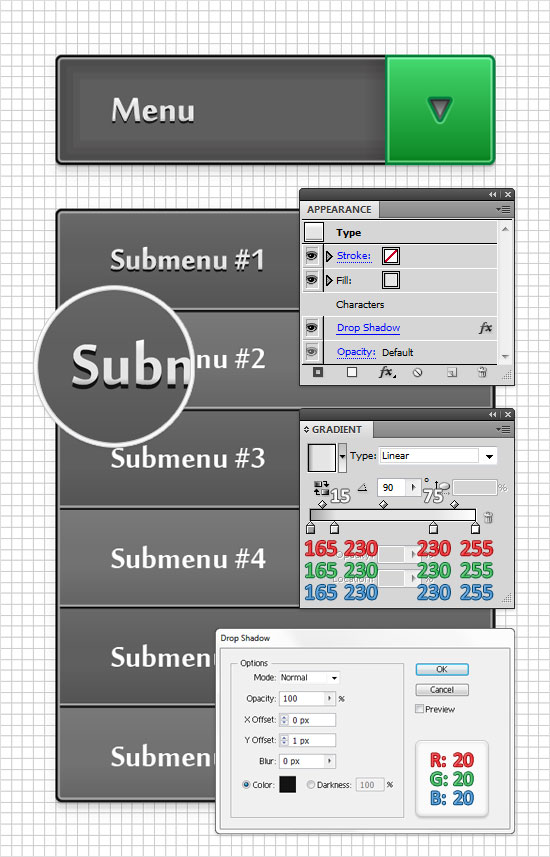

Select the top text added in the previous step, focus on the Appearance panel and add a new fill using the Add New Fill. Select it, use the linear gradient shown in the following image then go to Effect > Stylize > Drop Shadow. Enter the data shown below and click OK.


Step 27

Focus on the rest of the text and add the same properties mentioned in the previous step.


Step 28

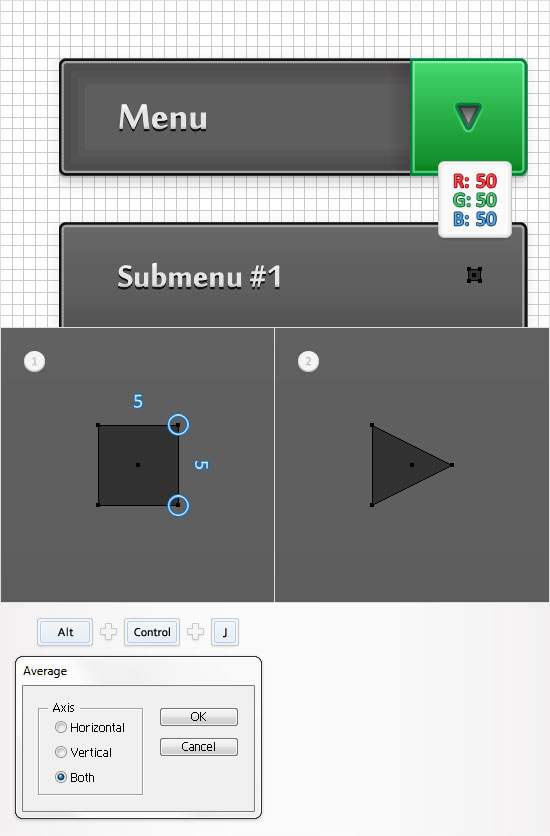

Enable the Snap to Grid (View > Snap to Grid). Pick the Rectangle Tool(M), create a 5px square, fill it with R=50 G=50 B=50 and place it as shown in the following image. Switch to the Direct Selection Tool(A), focus on this new shape, select the right anchor points and go to Object > Path > Average (Alt + Control + J). Check the Both button and click OK.


Step 29

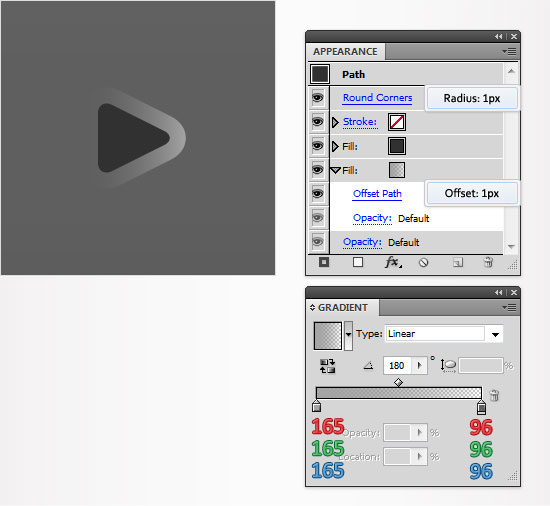

Reselect the triangle created in the previous step and go to Effect > Stylize > Rounded Corners. Enter a 1px radius and click OK. Move to the Appearance panel, add a second fill for this shape and select it. Drag it below the existing fill, add the linear gradient shown in the following image and go to Effect > Path > Offset Path. Enter a 1px Offset and click OK.


Step 30

Reselect the shape edited in the previous step and make a copy in front (Control + C > Control + F). Drag it down and and place it as shown in the first image. Select this copy, focus on the Appearance panel and replace the flat color used for the top fill with R=75 G=75 B=75. Reselect this copy along with the original shape, make two sets of copies and place them as shown in the second image.


Step 31

For the following step you will need a grid every 1px. So, go to Edit > Preferences > Guides & Grid and enter 1 in the Gridline every box. Pick the Ellipse Tool(L), create a 20px circle, fill it with the linear gradient shown below and place it as shown in the following image.


Step 32

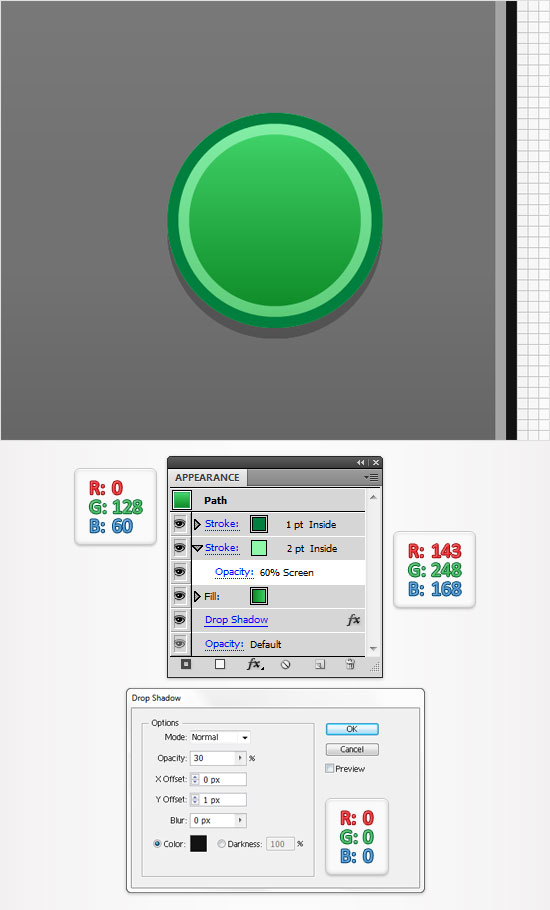

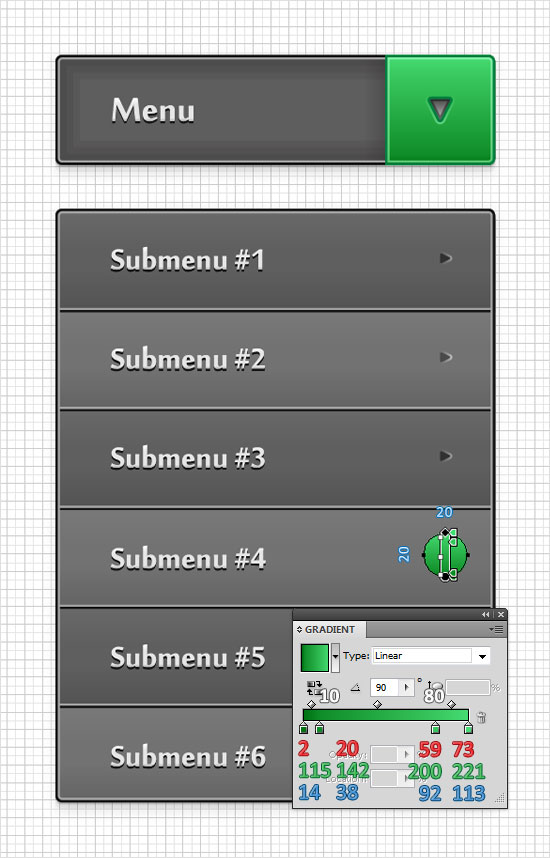

Reselect the circle created in the previous step and go to Effect > Stylize > Drop Shadow. Enter the data shown in the following image and click OK. Make sure that your circle stays selected and focus on the Appearance panel. Add a 2pt stroke, set its color at R=143 G=248 B=168 and align it to the inside. Select it, lower its opacity to 60% and change the blending mode to Screen. Keep focusing on the Appearance panel and add a second stroke for your shape. Make it 1pt wide, set its color at R=0 G=128 B=60 and align it to inside.


Step 33

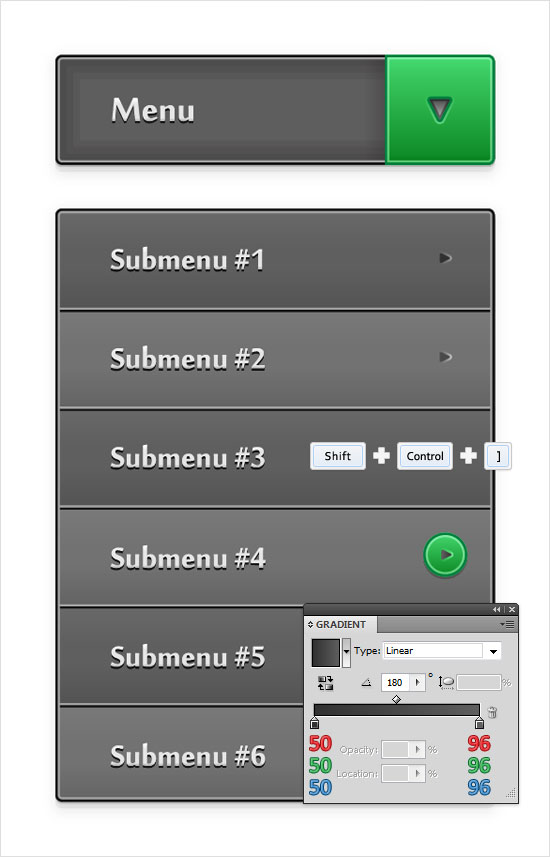

Select the little triangle behind your green circle and bring it to the front (Shift + Control + ] ). Make sure that this shape is still selected, focus on the Appearance panel and replace the flat color used for the top fill with the linear gradient shown in the following image.


Step 34

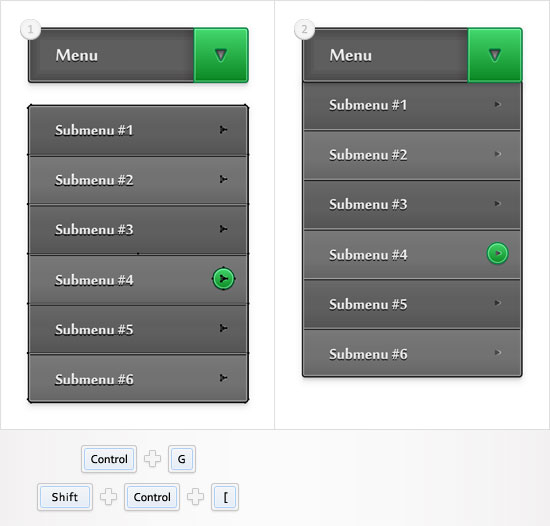

Select all the shapes created in the last nineteen steps and group them (Control + G). Send this new group to the back (Shift + Control + ] ) and move it 22px up using the up arrow from your keyboard. Finally, select all the shapes created in the last nineteen steps and group them (Control + G). This will be your opened drop down menu.


And We're Done!

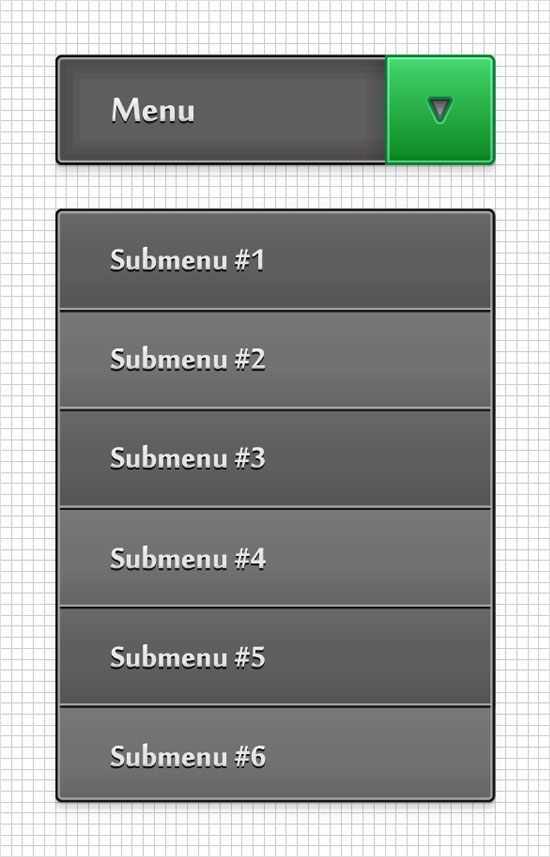

Once more, this is what your final result should look like.


Now that you have finished with this Adobe Illustrator tutorial, feel free to take a moment and share your thoughts with us on it in the comment section. Let us know if you had any issues, or just drop us a link to where you have used to the menu, so we can see your work in action.
