Step 1. Creating Elements
I have decided to create a frame of mosaic which can also be placed around any of the artworks. For this i need to prepare the elements. I started off by creating and drawing simple shapes in a related theme using pencil tool. I Kept the strokes rough and sketchy intentionally.
Step 2. Creating Fame

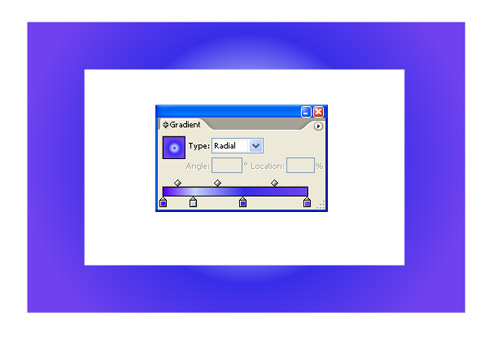

Second element i create is a frame. I created a rectangle frame ie. Created a rectangle placed a new rectangle on top this one of smaller size and use path finder to subtract the top one. Gave it a gradient.
And then exported it as a JPG > here is the frame!
Step 3. Applying filter
I created a new document and imported and embedded the frame into it.
File > Place > Browse to the frame , make sure the Linking is unchecked!
Next apply the filter
- Select the image.
- Choose Filter > Create > Object Mosaic.

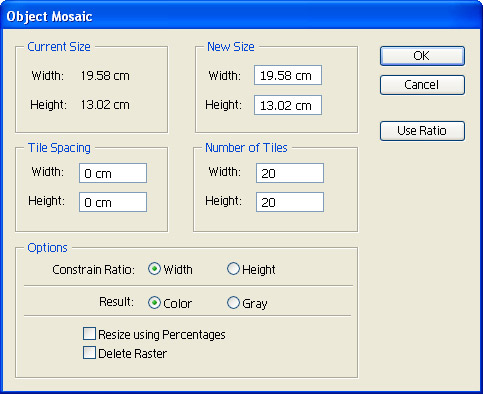

Here is a detail of what options you will find.
If you want to change the dimensions of the mosaic, enter values for New Size.
Set options to control the spacing between tiles and the total number of tiles, along with any other additional options, and click OK:
Constrain Ratio - Locks the width or height dimensions to those of the original bitmap image. Width calculates the appropriate number of tiles to use for the width of the mosaic, based on the original number of tiles for the width. Height calculates the appropriate number of tiles to use for the height of the mosaic, based on the original number of tiles for the height.
Result - Specifies whether the mosaic tiles are color or grayscale.
Resize Using Percentages - Changes the size of the image by percentages of width and height.
Delete Raster - Deletes the original bitmap image.
Use Ratio - Makes the tiles square, using the number of tiles specified in Number Of Tiles. This option is located below the Cancel button.

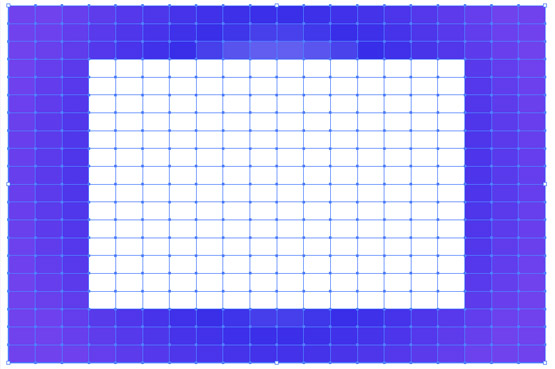

I used the options as shown and got the outcome as
Step 4. Applying Stroke
Now i applied a white stroke to the converted squares.
And placed the other elements that i created randomly over the entire frame.
For the inner squares coloring select a single one go to
Select > same >Fill and Stroke. and give a fill colour of your choice.
Preview!
Here is the final Preview!
