Animated Egyptian Eye

Browse Pages: << < 2  3  4  5  6  > >>

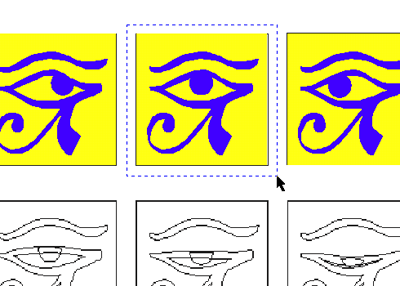

30. Once again, we'll copy the master frame instead of the adjacent frame. Marquee-select frame three.

image 1

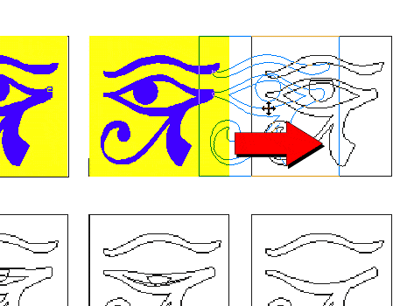

31. Duplicate frame three using Edit > Copy followed by Edit > Paste, then drag the duplicate to the right and position it over the fifth frame in the template.

image 2

32. from here on out be careful to modify only the paths that have motion. in the graphic below reshape only the curves that appear in red. Leave everything else alone!!!

image 3

33. Reshape the curves to match the template.

image 4

34. Next we want to reshape the eyeball but only the portion shown in red below.

image 5

35. Using the same technique as in a previous step, double-click to add two nodes, change them into cusps, then delete the top node and pull the top handles of the two added nodes inwards to reshape the top segment of the eyeball.

image 6

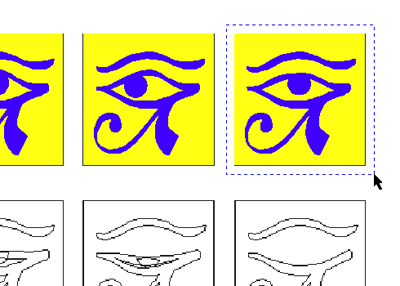

36. The frame is ready to export. Marquee-select it with the Pick Tool then click File > Export....

image 7

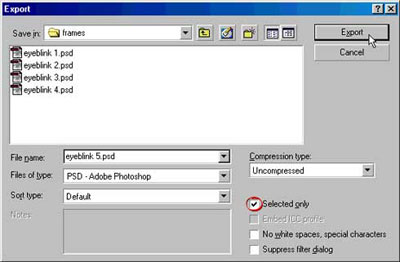

37. Export the frame using the same settings as in a previous step. Give it the same filename as the one before except end it with a "5". Choose "Selected Only (circled below)" then click "Export".

Click to enlarge
Click to enlarge

38. From this point on, we will create all the new frames from the previous ones as you normally would. Duplicate frame five using Edit > Copy followed by Edit > Paste, then drag the duplicate diagonally to the left and position it over the sixth frame in the template (first one on the left in the second row).

image 9

39. Just like the previous frame, be careful to reshape only the curves that appear in red below and leave everything else strictly alone.

image 10



Author's URL: Mike Doughty
Browse Pages: << < 2  3  4  5  6  > >>
