Animated Egyptian Eye

Browse Pages: << < 5  6  7  8  9  > >>

60. Select the eyeball with the Pick Tool.

image 1

61. Drag it downwards, positioning it over the template.

image 2

62. The eyeball has to be reshaped. Using techniques shown previously, edit the shape of the top of eyeball making sure to confine changes to the curves shown in red below. Again, make sure to leave everything else the same.

image 3

63. Reshape the eyeball to match the template.

image 4

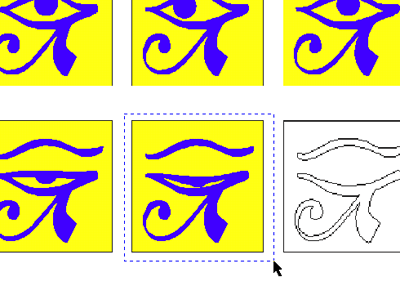

64. The frame is ready to export. Marquee-select it with the Pick Tool then click File > Export....

image 5

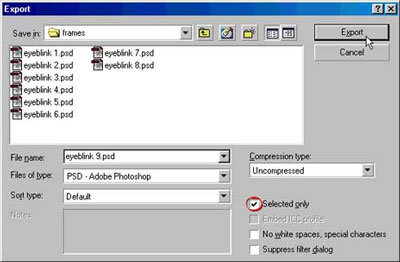

65. Export the frame just like before. Give it the same filename as the one before except end it with a "9". Choose "Selected Only (circled below)" then click "Export".

Click to enlarge
Click to enlarge

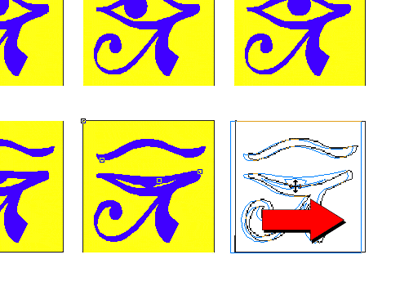

66. One last time, duplicate frame nine using Edit > Copy followed by Edit > Paste, then drag the duplicate to the right and position it over the tenth frame in the template.

image 7

67. Select the eyeball with the Pick Tool.

image 8

68. Press the Delete key to delete it.

image 9

69. Next, select the compound object which forms the eye. Then press Arrange > Break Apart. It must be broken apart first to be able to delete the inner portion.

image 10
