Making a Pen With Polygon Modelling Part 3

13. Now to start making the Body of the Pen. Right click and hold on the vertices and go to "Face". Marquee select the faces on the End of the Cap where the body would begin.

Ok, now to Extrude the faces, go Edit polygons>Extrude Face

Now its time to Scale up the faces, to do this simply hit "r" on your Keyboard and presses the Yellow handle in the middle, and scale to make the Faces Roughly the same size as the body of the Pen. Now Use the move tool ("w") and move the faces towards the Tip of the Pen Slightly. Now extrude again. Now you have the Scale of where the body meets the end on the pen, we will refine this later in the tutorial.

Click to enlarge

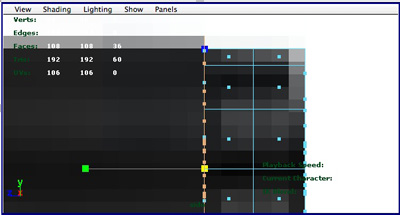

14. Now press "w" on you keyboard and move the Extrude to the End of the Pen Where the Cap Would End. And use the Scale ("r") and move tools ("w") to get it to line up exactly.

Click to enlarge

15. Now Go Edit polygons>Extrude Face and move the faces towards the tip a little bit ("w") And then once you have this Press "r" and Scale the faces Down using the middle Handle. Now go Edit polygons>Extrude Face once again. Now use the Move tool ("w") and move it to the end of there the Tip of the Pen Begins.

Click to enlarge

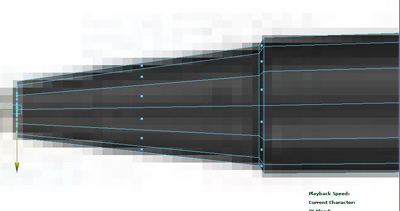

16. Once Again, Go Edit polygons>Extrude Face and move the faces towards the tip a little bit ("w") And then once you have this Press "r" and Scale the faces Down using the middle Handle. Now go Edit polygons>Extrude Face again. Now use the Move tool ("w") and move it towards the Tip again, but this time you have to use the Scale tool at the end before the Metal Part is extruded. So use the Middle handle and follow the reference Picture, and line it up.

Click to enlarge

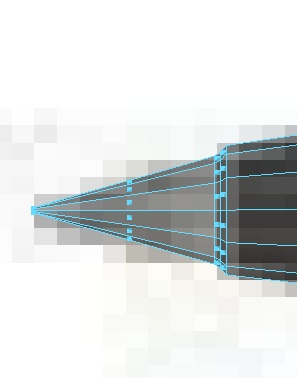

17. Edit polygons>Extrude Face and move the faces towards the tip a little bit ("w") And then once you have this Press "r" and Scale the faces Down using the middle Handle. Now go Edit polygons>Extrude Face again. Now use the Move tool ("w") and move it towards the Ball point of the pen. And use the Move tool and Scale Tool to line it up, not with a perfect point though!
