Making of Ferrari F2003 GA

Frame modelisation

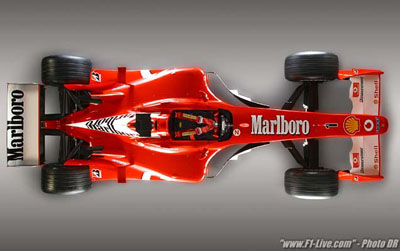

Top view

Click to enlarge

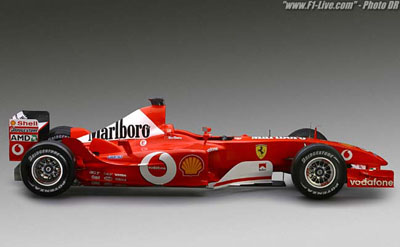

Side view/perspective

Click to enlarge

• First problem, the pattern are not orthographique.

So, i have made a cube with FIA data about lenght, etc the car have to respect.

File exe

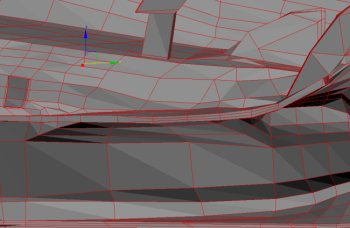

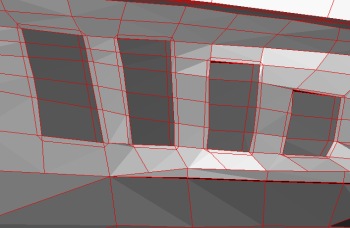

• After, I have just build a basic spline cage, but I advice to use a polygonal modelisation because i had too many poly on air vent.
• Then, with a surface tool (threresold 1), I converted the mesh in editable polygon in order to clean it, trying to have just quadripatch.

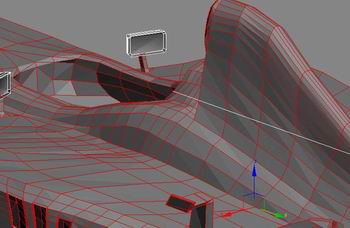

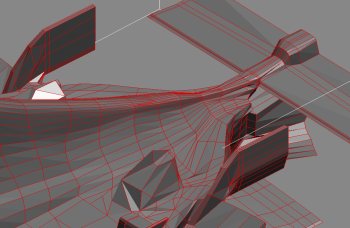

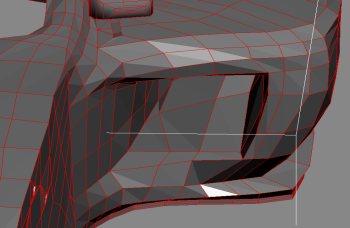

• Next step is just adjusting all vertexes to get the better mesh as possible (N.B: use a reference with a meshsmooth is very useful).



Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Misceleanous Pieces (1/2)

Suspension:

• Upper and low triangle are box extrude
• The balancer is simply a loft with two spline for partern.

Hub:

• Simply a cylinder. two extrude for support the suspension, another cylinder for brake cold tunnel

Disk/Caliper:

• Box deforms by FFD

Tyre/rim:

• A spline I lathe (see picture below), i use a pattern (a cylinder), 25 inches for snapping the pivot

• The rim, a box I lathe to get the good number of part.



Click to enlarge

Click to enlarge

Misceleanous Pieces: (2/2)

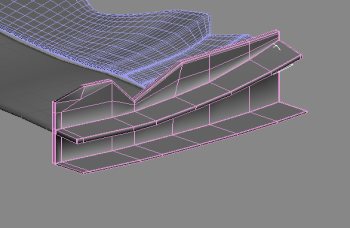

Front and rear wings:

• Box deforms by FFD

Deflector:

• Box deforms by FFD, extrude,meshsmooth +3

Stering wheel :

• Spline I extrude.

Helmet/driver :

• Sphere deforms by FFD,box extrude

Others part :

• Windshield: spline+surface
• Antenna : spline + lathe
