Working in Lightwave

Okay, getting somewhere eh? Get in the Surfaces Panel again and enter the Texture Channel for Diffuse. Use the following settings for the first texture.

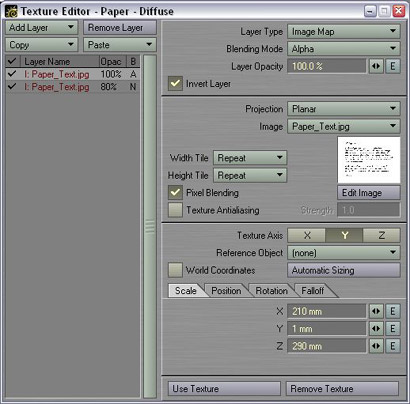

Click Add New Texture when you are done with the first, and use the following settings for this one. We need an Alpha Layer to cut out the white areas.

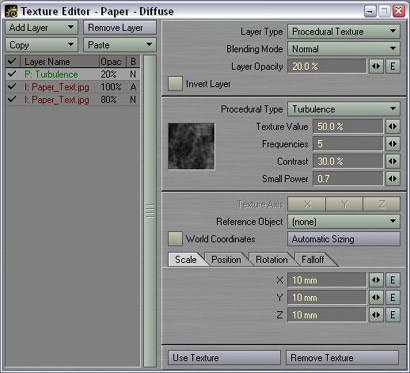

Add yet another Layer with the following settings.

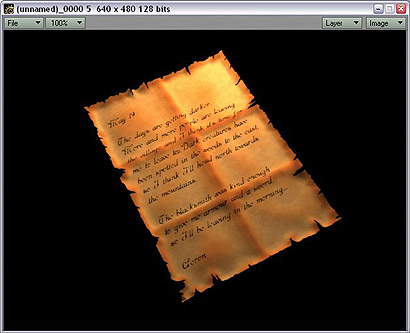

If you render a preview now, it should look something like picture 32.


Okay, we are just going to add a few procedurals in the Bump Map channel now to get the final paper look, and then it’s time for some bones.

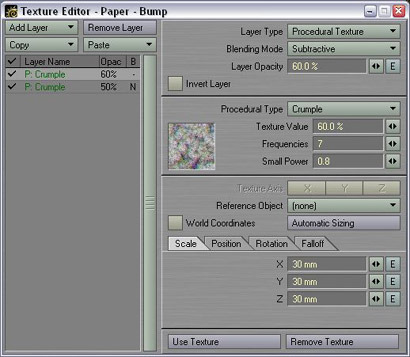

Open up the Bump Map Channel and use the following settings for the first texture.

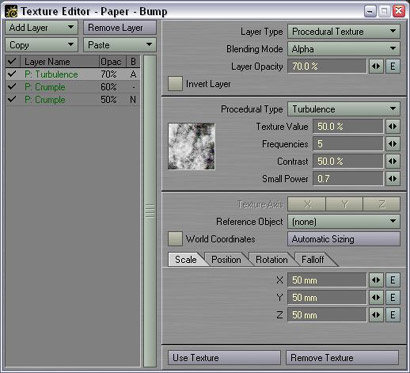

Add another Layer and use the following settings.


Okay, just one more layer and the paper texture is finished.

Add a new layer and use the following settings.


If you hit F9 to do a test render now it should look something like this.


Okay, we are soon finished, but lets add some more geometry to the paper by using a few bones. Switch to Top View and fit the paper in the view.

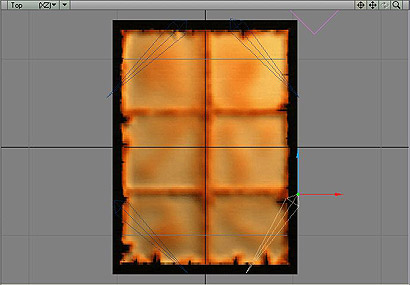

Click the Bones button at the bottom of Layout, and then choose “Add -> Bones -> Draw Bones”. Then Draw 4 bones, one in each corner with an angle of about 45 degrees. Look at picture 37 and you’ll know what I mean.

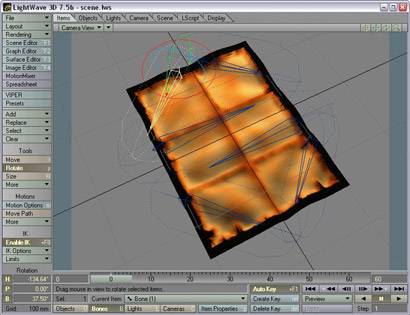

Now select “Bone (1)” in the “Current Item” list at the bottom of Layout and hit “r” on your keyboard to rest this bone, then select Bone 2, 3 and 4 and do the same. Before we start deforming the paper, we need to set a maximum range for these bones, so open up the Item properties panel for the bones. Select “Bone (1)” in the list and click the “Limited Range” button, Keep the Minimum range at 0 and set the Maximum range to 3-5cm. Do the same with the other three bones, you can vary the range between 3cm and 5cm. When you’re done, click close panel. Now it’s up to you how you want to deform the edges of the paper. I simply chose a bone and rotated it using the Right Mouse button (Bank); doing so will curl the edges a bit. I also added two bones in the middle of the paper and curled it a bit there to, and my final scene looks like this.



Now, if you render a test from this it should look something like picture 39.


Okay, use the “File –> Save –> Save All Objects”, then save the scene somewhere to keep the Bones and stuff attached to the paper. All you have to do now is render this in perhaps a higher resolution and with AntiAliasing. I hope you learned something from the tutorial and I wish to thank you for reading it!
