Use FSCommand With the Browser
Level: Experienced Software:
Flash Designer
This tutorial was written for the Flash Designer software, which allows you to create flash animations in a much easier way than by using Macromedia Flash. You may get Flash Designer here.
SYMPTOMS
FScommand doesn't work when the movie plays in a browser. FScommand works only with Macromedia standalone projector.
This tutorial describes how to create a "quit button" and use fscommand to communicate with the browser
SOLUTION
Step 1:
Add the following JavaScript handler to your HTML page:
|
<SCRIPT LANGUAGE=JavaScript> <!-- function flashMovie_DoFSCommand(command, args) { if (command == "quit") { window.opener=self;window.close(); } } //--> </SCRIPT> <SCRIPT LANGUAGE="VBScript"> <!-- Sub flashMovie_FSCommand(ByVal command, ByVal args) call flashMovie_DoFSCommand(command, args) end sub } //--> </SCRIPT> |
Step 2:
Open your Flash Designer project and program the button. Select the button and choose "Item" > "Actions" > "OnClick". To execute FScommand use one of the following methods:

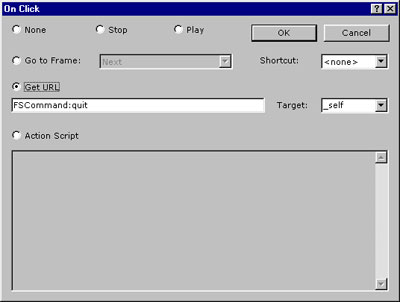

Get URL option

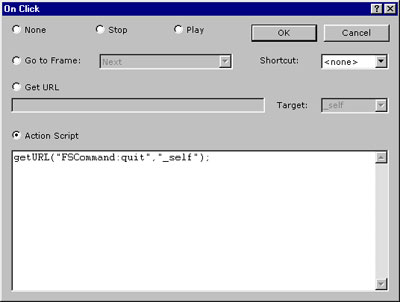

ActionScript option
Step 3:
Export SWF file with "File" > "Export SWF File" command. Choose "File" > "View HTML Code" copy the code and paste it to your HTML page.
Modify the code and add ID (flashMovie) to the OBJECT and EMBED tags and swfliveconnect option to EMBED:
|
<OBJECT CLASSID="clsid:D27CDB6E-AE6D-11cf-96B8-444553540000" ID="flashMovie" WIDTH="640" HEIGHT="480" CODEBASE="http://active.macromedia.com/ flash5/cabs/swflash.cab#version=5,0,0,0"> <PARAM NAME="MOVIE" VALUE="flash.swf"> <PARAM NAME="PLAY" VALUE="true"> <PARAM NAME="LOOP" VALUE="true"> <PARAM NAME="WMODE" VALUE="opaque"> <PARAM NAME="QUALITY" VALUE="high"> <EMBED SRC="flash.swf" WIDTH="640" HEIGHT="480" PLAY="true" LOOP="true" WMODE="opaque" NAME="flashMovie" QUALITY="high" swliveconnect=true PLUGINSPAGE="http://www.macromedia.com/shockwave/ download/index.cgi?P1_Prod_Version=ShockwaveFlash"> </EMBED> </OBJECT> |
NOTE:
In xxxxx_DoFSCommand(command, args) handler "command" will be the string after FSCommand: and "args" is the target argument
Download source project t1041.zip (9 kb)
Creating "Close" button
1. Choose "Frame" > Inset Symbol" command

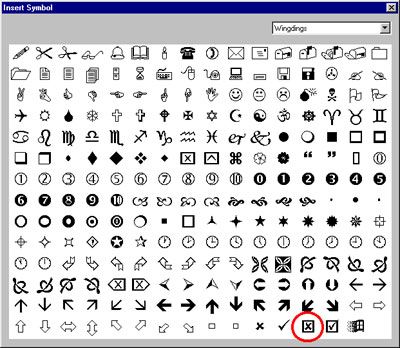

2. Choose the following symbol from "Wingding" list:
3. Choose "Item" > "Actions" > "OnClick"
4. Choose "Get URL" action and enter the code:
| FSCommand:quit |
Click OK
5. Choose "Item" > "Actions" > "On Over Color", uncheck "No Color" and select your favorite color, click OK
NOTE: The button will work in HTML page only. It doesn't work in preview mode because there is no javascript code to communicate with.
