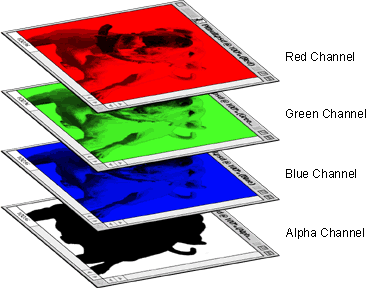

Understanding Channels In Photoshop

Storing a Selection Mask as an Alpha Channel

When you make a selection mask in Photoshop, the mask is an 8-bit grayscale image. When you save a selection in the file, Photoshop has to put it somewhere, so it is stored as a channel.

You can try this yourself. First you need to make a selection with one or more selection tools.

4. In this example we'll use the Magic Wand Tool and select the white background pixels. The "Anti-aliased" checkbox was checked in the Options palette. The selection marquee appears as a row of "marching ants".

RGB image...

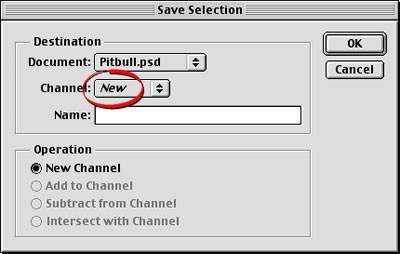

5. Now click Select > Save Selection and click OK in the dialog to save it. Photoshop will save the selection as a new channel by default.

CMYK image...

6. Now the Channels palette shows the new channel. Photoshop assigns the default name of "Alpha 1" to the new channel.

7. Click the "Alpha 1" channel in the Channels palette.

8. Now the document window will display the channel by itself.
