Design Business Forms

Author: Adobetutorialz.com More by this author


Start working with creation of a new file (File>New) that has 1024x768 px and 72 dpi.

Take next the Rectangle Tool (U) to represent the background of the picture we want to have at the end of our work.

image 1

Select the next shown parameters by making a mouse click on the layer we work with on the layers' panel:

Fill 0%

Blending Options>Gradient Overlay

image 2

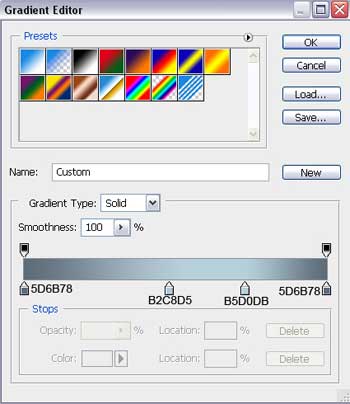

Gradient's parameters:

image 3

image 4

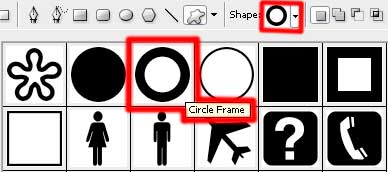

Select after that Custom Shape Tool (U) to represent a circle frame which shape may be changed with the Convert Point Tool, getting the same result as the picture from below shows it:

image 5

image 6

The layer's parameters: Blending Options>Inner Shadow

image 7

Blending Options>Bevel and Emboss

image 8

Blending Options>Gradient Overlay

image 9

Gradient's parameters:

image 10

image 11

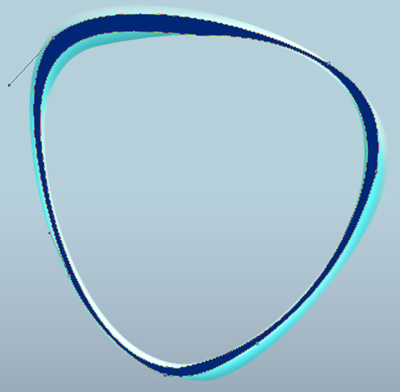

Make a copy of the last made layer and choose again the same tool, Convert Point Tool, to make the corresponding corrections on the copy's layer to get the result from below:

image 12

The layer's parameters: Blending Options>Gradient Overlay

image 13

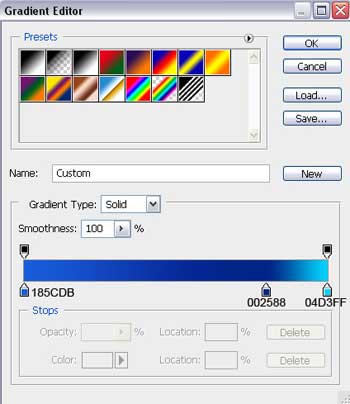

Gradient's parameters:

image 14

image 15

Select now the Pen Tool (P) to represent a flare on the picture, which shapes may be corrected again with the Convert Point Tool.

image 16

The layer's parameters: Fill 0%

Blending Options>Stroke

image 17

image 18

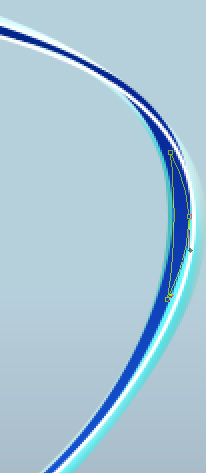

Using the last tools, it's possible to draw a flare on the circle's right side.

image 19

The layer's parameters: Fill 0%

Blending Options>Gradient Overlay

image 20

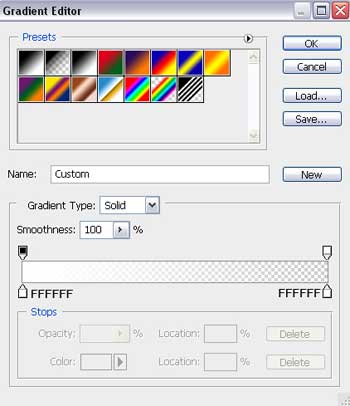

Gradient's parameters:

image 21

image 22

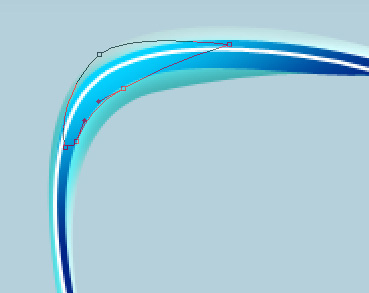

Select the previous tools, Pen Tool (P) and Convert Point Tool, to dark out the top part of the circle frame.

image 23

The layer's parameters: Fill 0%

Blending Options>Gradient Overlay

image 24

Gradient's parameters:

image 25

image 26

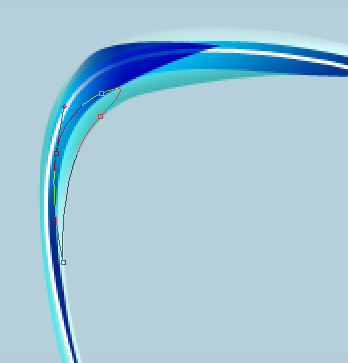

Select again the same instrument mentioned above to represent another flare on the top part of the frame.

image 27

The layer's parameters: Fill 0%

Blending Options>Gradient Overlay

image 28

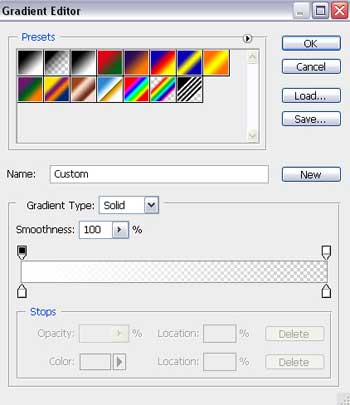

Gradient's parameters:

image 29

image 30

Combine in a group all the layers composing the circle frame (press Ctrl button to mark out the corresponding layers and next we have to hold on the left mouse's button for taking the marked layers on Create a new group option).

Next make a copy of all the layers contained in the circle's group (press again Ctrl button to mark out the necessary layers and hold on the left mouse's button for taking the marked layers on Create a new layer selection).

Merge Down all the layers (press Ctrl button to mark out the layers and press the combination of buttons Ctrl+E). Using Free Transform option it's possible to change a little the new element that we got, placing it as below:

image 31

Make a copy of the earlier made group containing the blue circle. Use again the Free Transform option (Flip Vertical) to turn around the copy, making it a little smaller (by pressing SHIFT button). We should also apply different parameters for the layers.

image 32

The parameters for the first layer: Blending Options>Inner Shadow

image 33

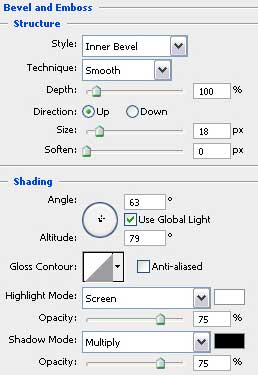

Blending Options>Bevel and Emboss

image 34

Blending Options>Gradient Overlay

image 35

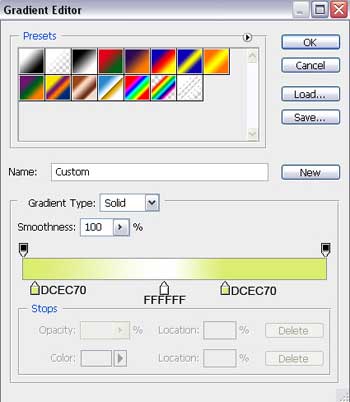

Gradient's parameters:

image 36

The parameters for the second layer: Blending Options>Gradient Overlay

image 37

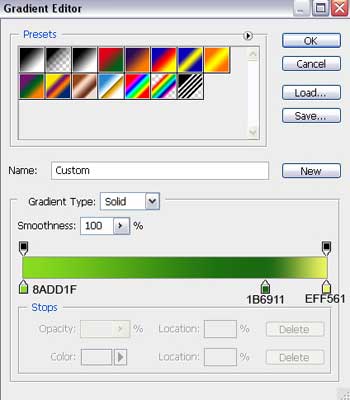

Gradient's parameters:

image 38

The third and the fourth layers should be left the way they are at the moment. The parameters for the fifth layer:

Fill 0%

Blending Options>Gradient Overlay

image 39

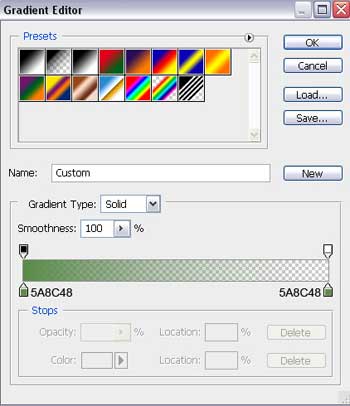

Gradient's parameters:

image 40

The sixth layer doesn't need any change. Now, for our convenience, we shall Combine in a group all the layers composing the green circle (press Ctrl button to mark out the necessary layers and hold on the left mouse's button when taking the marked layers on Create a new group selection).

Using the method described earlier, make a copy of the layers composing the green circle. Merge Down the copies layers and use the Free Transform option to make the changes on the copies' sizes and their placement.

image 41

Make a copy of the made group of the green circle. Choose again the Free Transform option (Flip Horizontal) to turn over the copy, make it smaller (by pressing SHIFT button) and apply different parameters for the layers:

image 42

The parameters for the first layer: Blending Options>Inner Shadow

image 43

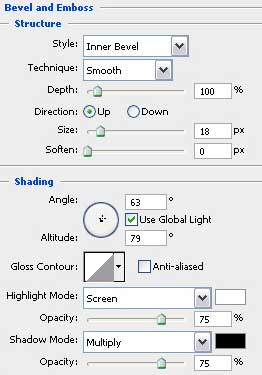

Blending Options>Bevel and Emboss

image 44

Blending Options>Gradient Overlay

image 45

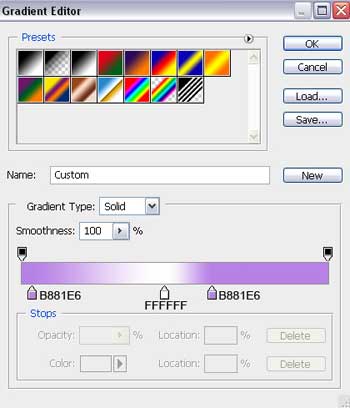

Gradient's parameters:

image 46

The parameters for the second layer: Blending Options>Gradient Overlay

image 47

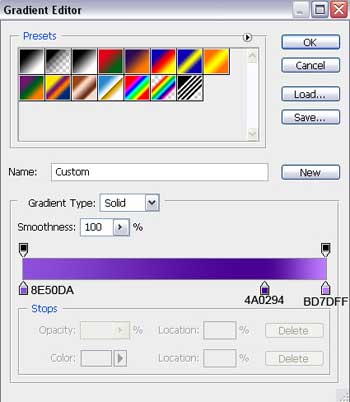

Gradient's parameters:

image 48

The parameters for the third layer: Blending Options>Stroke

image 49

The fourth one doesn't need changes on its parameters: The parameters for the fifth layer: Fill 0%

Blending Options>Gradient Overlay

image 50

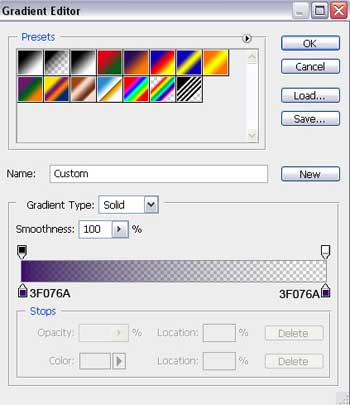

Gradient's parameters:

image 51

The parameters for the sixth layer: Fill 0%

Blending Options>Gradient Overlay

image 52

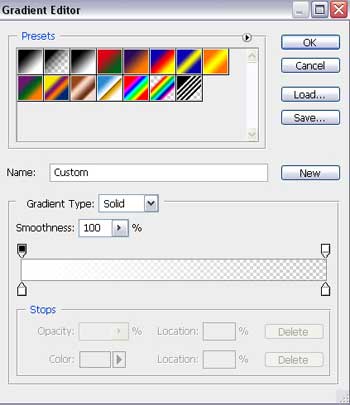

Gradient's parameters:

image 53

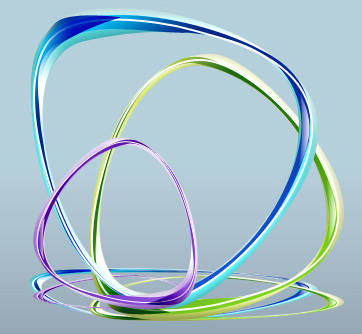

Combine in a group all the layers composing the violet circle (press Ctrl button to mark out the necessary layers and then hold on the left mouse's button to take the marked layers on Create a new group selection). Now we have to make the same operations we did before and make copies of the violet circle's layers, put the copied layers together and use Free Transform option to make the necessary changes on their sizes and their placement on the picture.

image 54

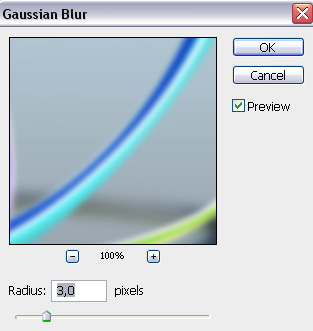

Press again Ctrl button to mark out the layers of the circles' reflections (it should be a single layer) and then we have to press on Ctrl + E to Merge Down in a single layer. Select also the next parameters for the new result: Filter>Blur>Gaussian Blur

image 55

image 56

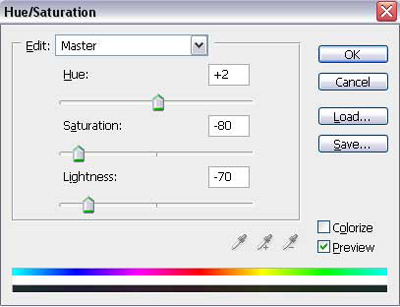

Press on the same layer the combination of buttons from here: Ctrl +U

image 57

Design Business Forms Tutorial: Final Result (Click to enlarge)
Click to enlarge

Finished!
