| Here's a
detailed walk-through to simulate an ocean mist scenery using Photoshop
CS 'Fibers' filter and varying Gradients combined with alternating
Blending Modes. First, start a new document, I used an equal size preset of 500x500. Create a new empty Layer (Shift + Ctrl + N (Mac: Shift + Command + N)), just above the default document background Layer. Next, set the Foreground Color to a variant of blue (I used #7AA6E8) and set the Background Color to Black #000000. Next, go to 'Filter/Render/Clouds' to that your first effect is similar to what I have captured below.

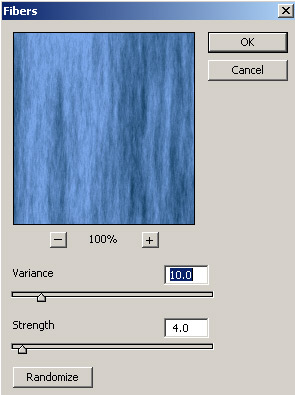

![]() Next, go to 'Filter/Render/Fibers' and select a setting that your comfortable with, so that you can see (though in vertical direction) varying crests of waves within the render. (My settings are captured below)

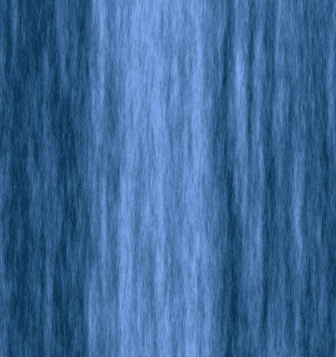

![]() Your document preview should look like the below. (Ultimately, adjusting the 'Fibers' Variance' level is up to you)
![]() Here is what the Layers Palette should look like!
![]() Next, we need to revert the direction of the water to a horizontal position. So, simply, go to 'Image/Rotate Canvas. 90 CW' to position the image as I have captured below. (This is why I used an equal size preset so that there would be no further resizing or positioning!)
![]() Looking good so far! From here it's simply a matter of adjusting varying color and adding some gradient layers for sky and mist effects. First, lets tone down the contrast in this image by duplicating the water Layer 1, and change the 'Blending Mode' to 'Screen', and bump down the 'Opacity' level to one that you are comfortable with. Here is the Layers Palette thus far.

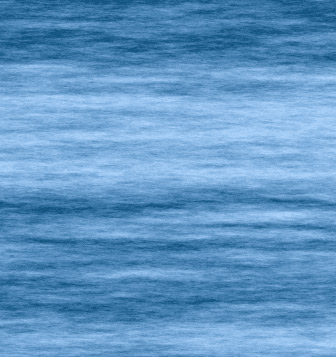

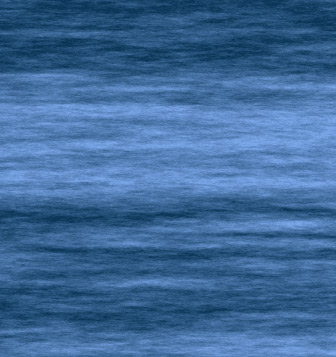

![]() And here is the improved water texture.
![]()
Now, on with the mist and sky effect.
Create a new empty Layer, (should auto name to 'Layer 2' at this point)
directly above Layer copy 1. (Shift + Ctrl + N (Mac: Shift + Command +
N))

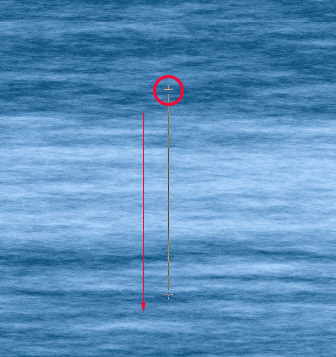

Select the 'Linear Gradient Tool' With the new empty 'Layer 2' (that we created above) active and the 'Gradient Tool (G)' still selected, click and drag the just beyond the midway area of your water texture (red circle).

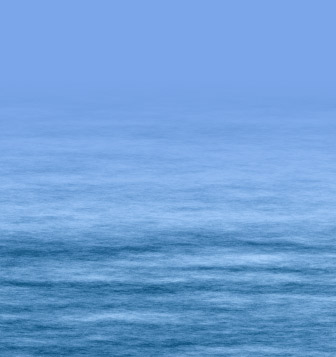

![]() And this is the result.
![]() Here is the Layers Palette thus far.
![]()
Create a new empty Layer, (should auto name to 'Layer 3' at this point)
directly above Layer 2. (Shift + Ctrl + N (Mac: Shift + Command + N))
Set the Foreground Color to White (#ffffff), Background Color to Black (#000000). Then select the
'Gradient Tool (G)'

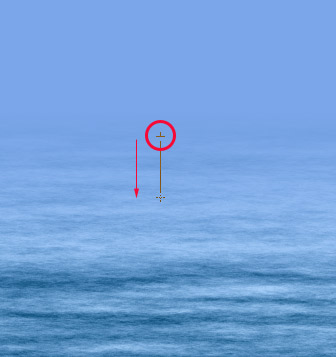

Except, this time change the gradient style to 'Reflected Gradient'

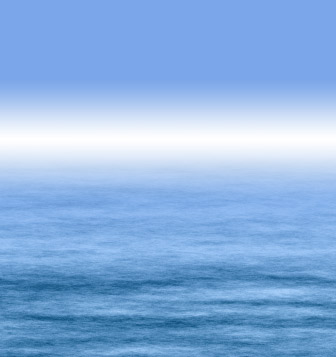

![]() To produce the below result.
![]() I nudged the Layer 3 mist Layer downward a few notches with the Down Arrow key, and knocked its Opacity Level down to 66%. (Ultimately, you adjust to what your happy with!)

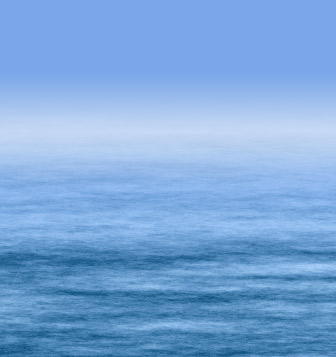

![]() Here's how it looks thus far.
![]()
This and of itself is fine, but just another step to add clouds to the skyline.
![]() Ctrl + Click (Mac: Command + Click) on that Layers Thumbnail (encased in red below) to select it.
You should now see a marquee selection around that Layer. (Layer 2 copy)
Finally, set the Foreground Color to the Blue we used earlier (#7AA6E8) & Background Color to Black (#000000).
![]() A little harsh, so to compensate, simply set that Layers (Layer 2 copy) 'Blending Mode' to 'Overlay', and bump down it's Opacity Level to one that your most compfortable with. (I used 70%)

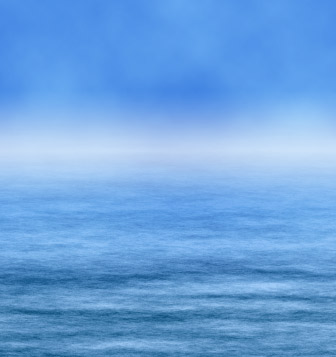

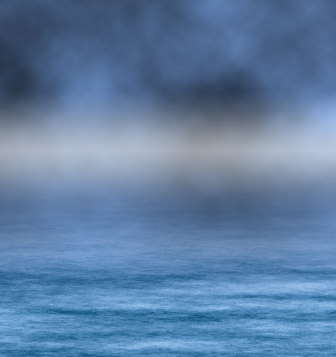

![]() And here is the final result.
![]() |
