Filter Rock Effect

Step 1.

Create a new document in photoshop of any size. For this tutorial I will be working with a 300x300 document.

Step 2.

Set your foreground color to: #9B926B, and your background color to: #293C36

Step 3.

Go to Filter->Render->Clouds.

Press Ctrl + F on your keyboard until you get a good contrast in colors, such as I have done here:

Step 4.

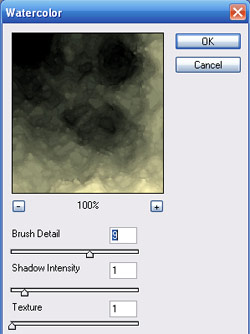

Go to Filter->Artistic->Watercolor, and apply the following settings:

Result:

Step 5.

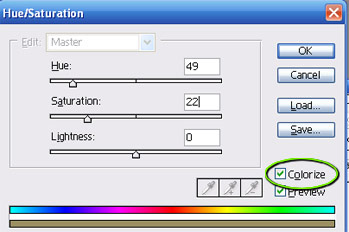

Go to Image->Adjustments->Hue/Saturation (or press Ctrl + U on your keyboard) to open up the Hue/Saturation Utility. Apply the following settings:

Note: Make sure the "Colorize" box is checked

Result:

Step 6.

Press Ctrl + J on your keyboard to duplicate this layer. Name the new layer "Rock".

Double click this layer, and apply the following options:

Pattern Overlay:

Result:

Step 7.

Press Ctrl + J on your keyboard, and name this new layer "Shadow Color":

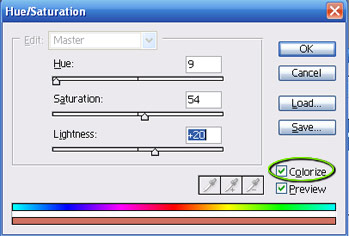

Press Ctrl + U on your keyboard to open up the Hue/Saturation Utility, and apply the following settings:

Result:

Go to Edit->Transform->Flip Vertical.

Result:

Step 8.

Click back on the original "Rock" layer to select it.

Press Ctrl + J on your keyboard to duplicate this layer once again.

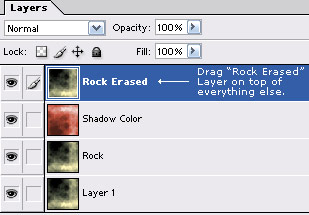

Name this new layer "Rock Erased", and drag it on top of all other layers in your layer pallet as I have done here:

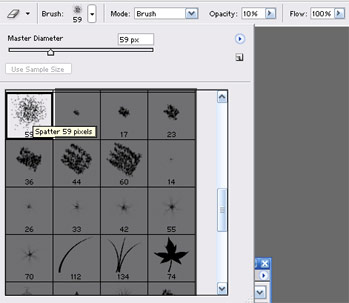

Get out the Erase tool ( ) and set it up as I have done here:

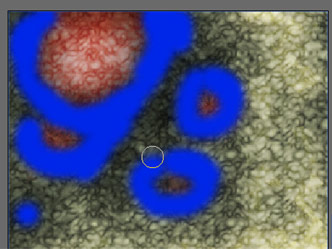

Using the Eraser Tool, erase the darker spots on the canvas, to reveal the Reddish color below. Here is the the areas that I erased (shown in blue):

Here is how mine came out after a little erasing:

Step 9.

Finally we're going to just enhance the 3d effect a bit. Go ahead and get out the Burn Tool ( ), and set it up as I have done here:

With this tool, circle around the edges of the areas that we erased in the previous step on the "Rocky Erased" layer. Below is the areas that I brushed with the Burn Tool (shown in blue):

Result:

And here is how my final result turned out:

As you can probably guess, the key is to experiment with different colors, and layer styles ~ but needless to say you can come up with nearly endless different effects and combinations using these easy steps, and techniques.
