Symmetrical Patterns

Author: pagecurve.com More by this author


1. Start by creating a new document (400x400 - white background) now press ‘D’ to set your foreground and background colors to black and white.

2. Now click on filter > render > clouds.. now filter > render > difference clouds, hold ‘Ctrl’L and hit ‘F’ 5 times, now press ‘Ctrl’ & ‘I’ (this will invert the colors)

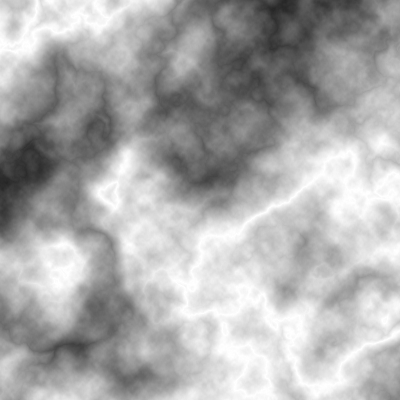

image 1

3. Click image > adjust > equalize (this should darken the image) now we need to create a zoom effect, so.. click filter > blur > radial blur, settings should be: (amount: 100, blur method: zoom, quality: best) now click ok.

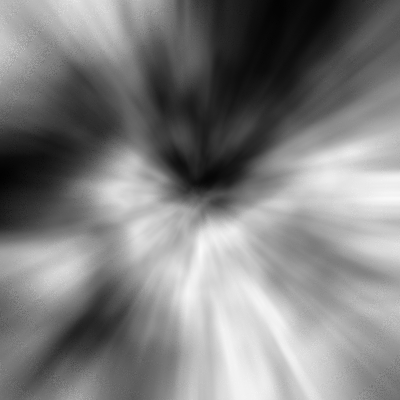

image 2

4. Lets add some color to this, so click image > adjustments > hue/saturation.. (i used these settings:) But you can pick whatever color you wish.

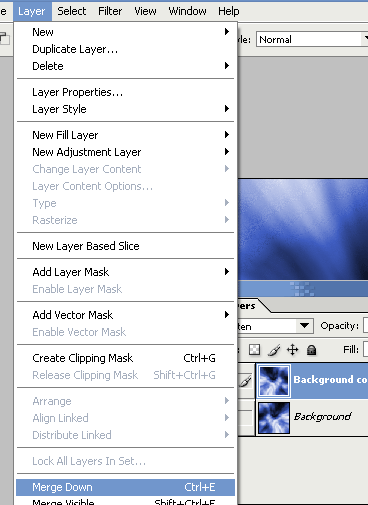

image 3

5. Duplicate the layer and set the mode to lighten, now click edit > transform > flip horizontal. Now merge the layers.. this can be done by clicking layer > merge down, as seen in the example below:

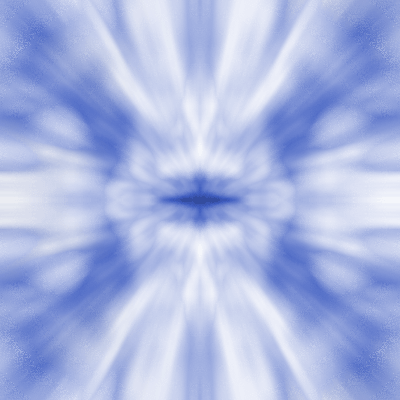

image 4

6. Duplicate the layer, and set the mode to lighten (again) click edit > transform > flip vertical and merge.

image 5

7. Once again.. duplicate your layer and set the mode to lighten. This time click filter > distort > pinch and set the number around 40%, click ok and merge the layers.

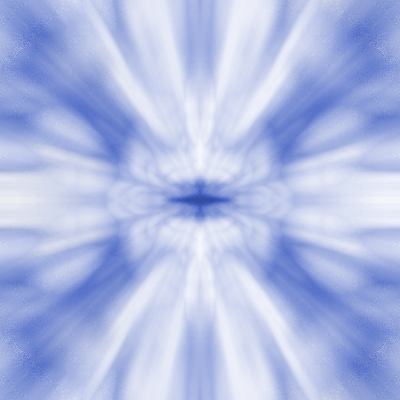

image 6

8. Duplicate your layer and set it to lighten (last time).. click filter > other > offset, use the settings: (200px 200px) hit ok and merge.

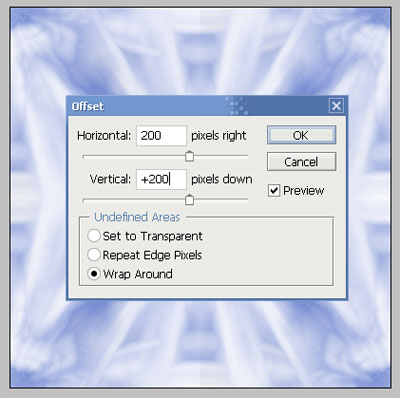

image 7

9. The final result:

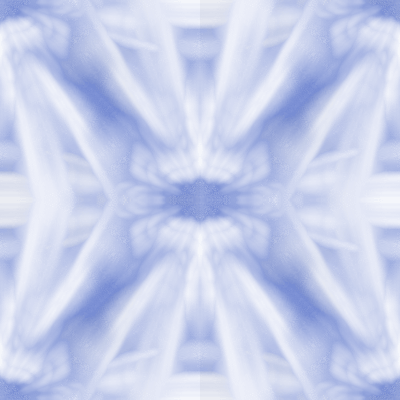

Symmetrical Patterns Tutorial: Final Result

Optional: you can play around with the colors of this.. by clicking: image > adjustments > hue/saturation.



Author's URL: www.pagecurve.com
