Making a Web Page

Author: SweDesignz.com More by this author


1. Begin with a new file, 700x600 and with #686868 as your background color. Then create a new layer in the layers palette, now take the Polygonal Lasso Tool and make a shape similar to the one below. ( Click for larger view )

image 1

2. Go to Select>Modify>Expand and set the Expand By to 8 pixels. Then select the Gradient Tool and make a gradient as the image below shows.

image 2

3. Now when you have made the gradient shown above draw the gradient from top to bottom. ( Click for larger view )

image 3

4. Create a new layer, then go to Select>Modify>Contract and set the Contract By to 4 pixels. Then go to Edit>Fill and apply this settings.

image 4

image 5

5. Then once again create a new layer and go to Select>Modify>Contract but this time set the Contract by to 7 pixels. Then take the Gradient Tool and make a gradient like the image below.

image 6

6. Now draw the gradient from top to bottom. ( Click for larger view )

image 7

7. Then go to Layer>Layer Style>Stroke and apply the settings shown on the image below.

image 8

8. Apply the same settings shown above on layer 1. Then create a new layer, move that layer below layer 1, now take the Rectangular Marquee Tool and draw out a rectangle like this. ( Click for larger view )

image 9

9. Now fill the rectangle with black, then right click on the layer and choose Blending Options, then apply this settings.

image 10

image 11

And now should it look something like this. ( Click for larger view )

image 12

10. Create a new layer, then take the Polygonal Lasso Tool and make a shape similar to the one below. ( Click for larger view )

image 13

11. Now go to Select>Modify>Expand and set the Expand By to 8 pixels. Then take the Gradient Tool and use the same gradient shown in step 2, draw the gradient from top to bottom. Then create a new layer go to Select>Modify>Contract and set the Contract By to 4 pixels. Then go to Edit>Fill and use the same pattern as we did in step 4. Then once again create a new layer, go to Select>Modify>Contract and this time set the Contract By to 7 pixels, then right click inside the shape and choose Fill, fill the shape with #C3C3C3. Then repeat step 7 on layer 6 and layer 8. ( Click for larger view )

image 14

12. Then duplicate the shape you did in the previous step and use the Move Tool to move the shape in position. Now time to make the content box, create a new layer, take the Polygonal Lasso Tool and make a shape like this.


13. Then repeat step 11. And now should it look something like this.


The only thing that's left now is to add some text. This is what I came up with. ( Click for larger view )

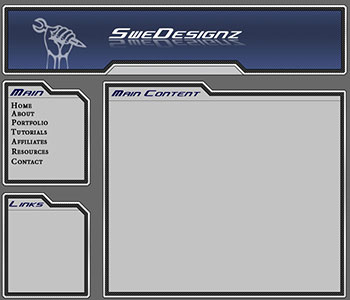

Web Page Tutorial: Final Result
