Tutorial Layout

Author: Hv-Designs.co.uk More by this author

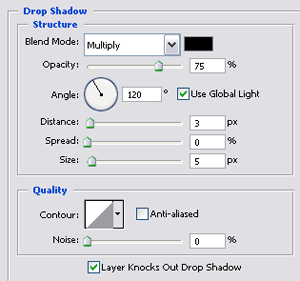

Create a new document 900x900 pixels, Select 2 shade of dark gray as your background/foreground, select the "rectangular marquee tool" and draw out a rectangle at the top of your canvas, fill it with a linear gradient dragging from the top to the bottom. Now add these layer styles to your rectangle.

image 1

image 2

Heres how it looks so far.

image 3

Select your type tool and type out your sites title and slogan.

image 4

Add this layer style to your "title".

image 5

Click to enlarge
Click to enlarge

Select the "rounded rectangle" tool and draw a small rectangle underneath your header.

image 7

Add these layer styles to your little rectangle.

image 8

image 9

image 10

image 11

Your little rectangle should now look like a nice button.

image 12

Duplicate this button as many time as needed and place along side the bottom of your header, you might also want to label your buttons.

Click to enlarge
Click to enlarge

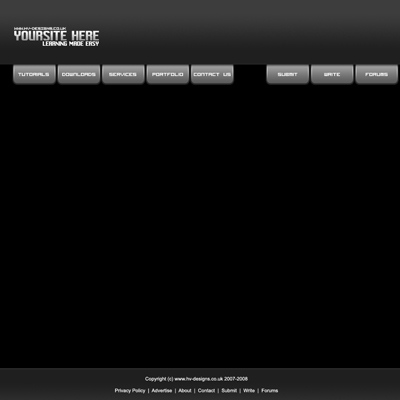

Duplicate your header then goto "edit > free transform > flip vertical" and position the duplicated layer at the bottom of your canvas this shall be the footer. Select the type tool and add your footer information.

Click to enlarge
Click to enlarge

Now lets create a our content boxes. Select the "rectangle marquee tool" and draw out 2 separate boxes.

image 15

Add these layer styles to both boxes.

image 16

image 17

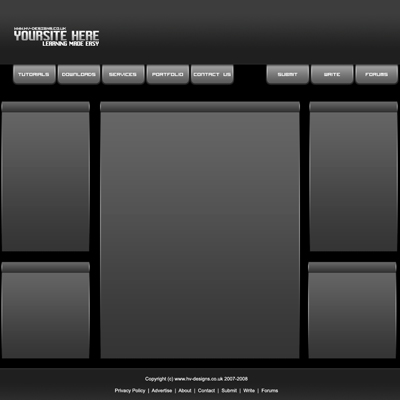

Position the boxes on top of one another. You should have something like this.

image 18

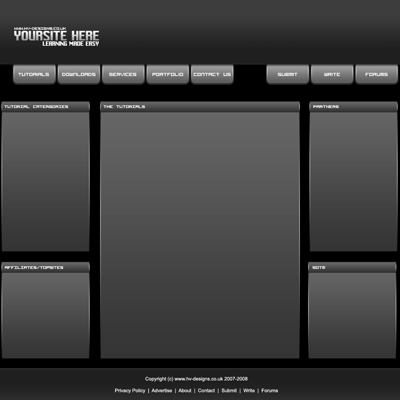

Now duplicate both boxes and create individual content boxes.

Click to enlarge
Click to enlarge

Label all your content boxes.

Click to enlarge
Click to enlarge

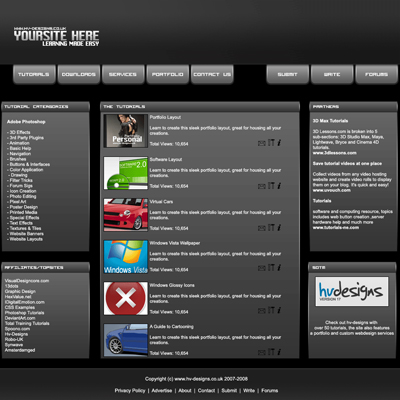

Thats it all done, and with some content it shall look similar to this.

Tutorial Layout Tutorial: Final Result (Click to enlarge)
Click to enlarge


Author's URL: www.hv-designs.co.uk
