Create a Colourful Abstract Wavy Ribbon

Author: Blog.SpoonGraphics More by this author

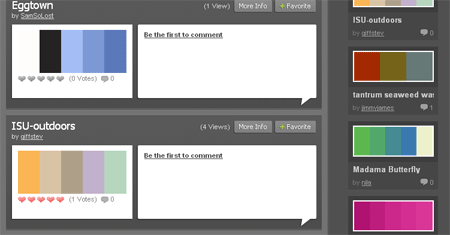

First of all, select your palette of colours. Maybe like me you have just bought a new belt with a cool combination of stripes that you can pinch the colours from, otherwise head over to ColourLovers and pick out a trendy selection.

Create a Colourful Abstract Wavy Ribbon image 1

Create a Colourful Abstract Wavy Ribbon image 2

Create a Colourful Abstract Wavy Ribbon image 3

Create blocks of your chosen colours in Illustrator to eye drop the colours from later.

Create a Colourful Abstract Wavy Ribbon image 4

Draw a long thin rectangle on the artboard and fill with your first colour swatch.

Create a Colourful Abstract Wavy Ribbon image 5

Create a Colourful Abstract Wavy Ribbon image 6

Duplicate the rectangle and butt the copy to the bottom of the original. One quick method here is to Move (Enter Key) the shape vertically using the same number as the height of the shape. Then Copy (Ctrl/CMD + C), Paste in Front (Ctrl/CMD + F) then Transform Again (Ctrl/CMD + D) to repeat the movement. Replicate this last step over and over with each new shape until you have a block of perfectly aligned stripes.

Create a Colourful Abstract Wavy Ribbon image 7

With all your stripes selected go to Object > Envelope Distort > Make With Mesh.

Create a Colourful Abstract Wavy Ribbon image 8

Enter 4 in the Rows and Columns boxes, you may want to experiment with higher numbers to allow more complex shapes.

Create a Colourful Abstract Wavy Ribbon image 9

Use the Direct Selection Tool to select a vertical line of points from the Mesh, use the Scale Tool whilst holding Shift to enlarge the end points proportionally.

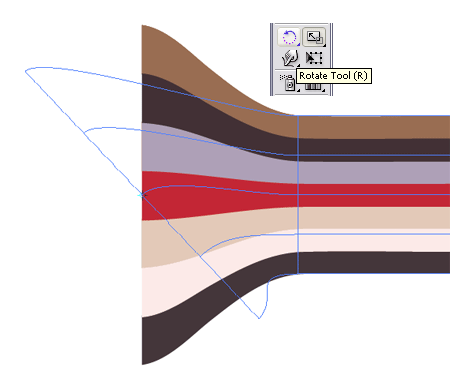

Create a Colourful Abstract Wavy Ribbon image 10

Use the Rotate Tool to add an angle to the line of points.

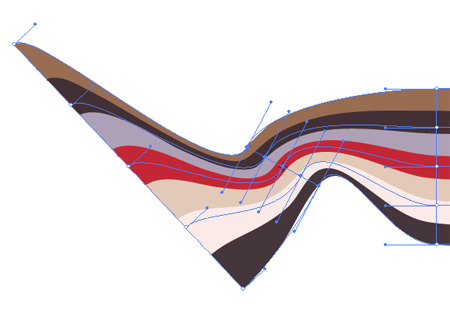

Create a Colourful Abstract Wavy Ribbon image 11

Repeat the step on the next set of points, this time scaling down slightly.

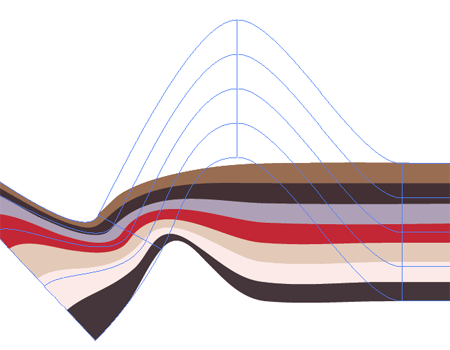

Create a Colourful Abstract Wavy Ribbon image 12

Onto the third line, use the Direct Selection Tool to move the points around as well as Scaling and Rotating them. Aim to generate flowing curves without any tight kinks.

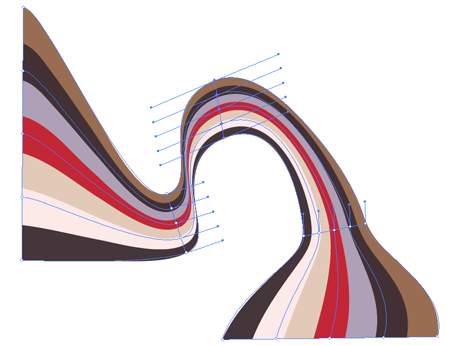

Create a Colourful Abstract Wavy Ribbon image 13

Fine tune each line of points in turn with all three tools to finalise your abstract stripes.

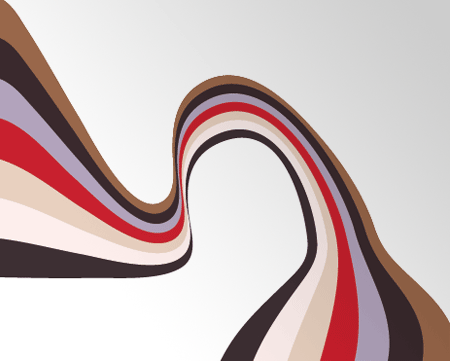

Create a Colourful Abstract Wavy Ribbon Tutorial: Final Result

Go ahead and experiment with more Rows and Columns in the Envelope Mesh options.
