Animated Egyptian Eye

Author: Mike Doughty More by this author
Browse Pages: << <  1  2  3  4  5 > >>

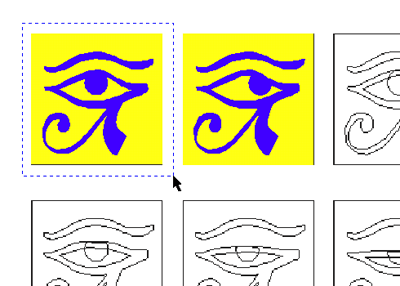

20. Normally we would copy the adjacent frame, but in this case we'll copy the first one because it is the exact same frame. Marquee-select frame one then duplicate it using Edit > Copy followed by Edit > Paste.

image 1

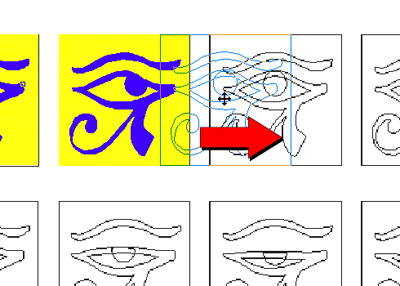

21. Drag the duplicate frame to the right and position it over the third frame in the template.

image 2

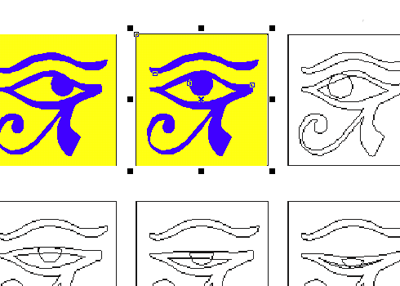

22. The frame is ready to export. Click File > Export... just like before.

image 3

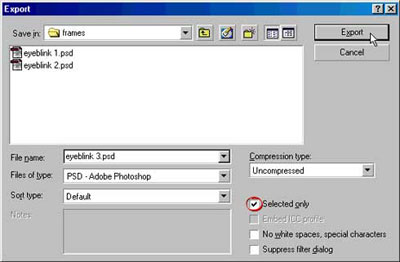

23. Once again, export the frame using the same settings as in a previous step. Give it the same filename as the one before except end it with a "3". Remember to choose "Selected Only" (circled below).

Click to enlarge
Click to enlarge

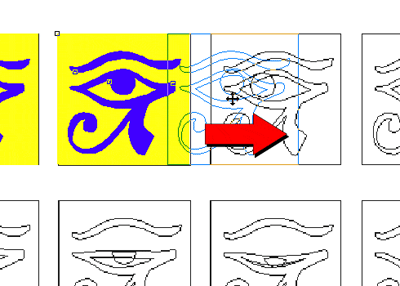

24. Duplicate frame three using Edit > Copy followed by Edit > Paste, then drag the duplicate to the right and position it over the fourth frame in the template.

image 5

25. All that needs to be done in this frame is to reposition the eyeball. Switch to wireframe view and use the Pick Tool to select the eyeball.

image 6

26. Drag it to downwards and to the left as shown below.

image 7

27. When you have positioned it over the template, the frame is ready to export.

image 8

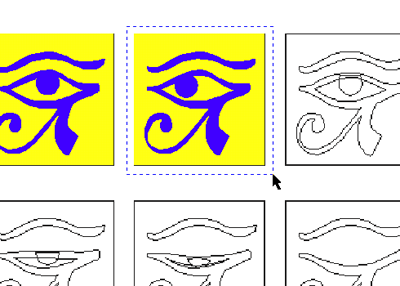

28. In normal view, marquee-select the frame with the Pick Tool then click File > Export....

image 9

29. Again, export the frame using the same settings as in a previous step. Give it the same filename as the one before except end it with a "4". Don't forget to choose "Selected Only" (circled below).

Click to enlarge
Click to enlarge


Author's URL: www.sketchpad.net
