Animated Egyptian Eye

Author: Mike Doughty More by this author
Browse Pages: << <  5  6  7  8  9 > >>


70. Now select the inner portion of the eye with the Pick Tool and press the Delete key to delete it.

image 1

71. The eye should look like the graphic below.

image 2

72. Finally, the eyelid needs to be reshaped one more time. Confine changes to the curves in red below and leave everything else alone.

image 3

73. Reshape the eyelid to match the template.

image 4

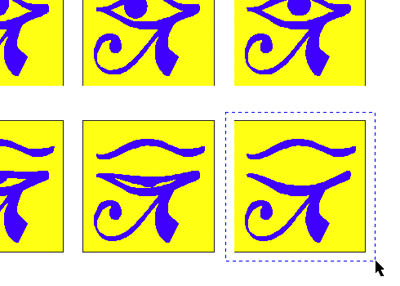

74. The last frame is ready to export. Marquee-select it with the Pick Tool then click File > Export....

image 5

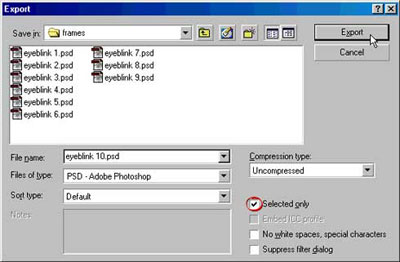

75. When exporting the last frame give it the same filename as the one before except end it with a "10". Choose "Selected Only (circled below)" then click "Export".

Click to enlarge
Click to enlarge

76. Shown below is a view of the completed document with all the frames. Save the document and quit CorelDRAW.

image 7

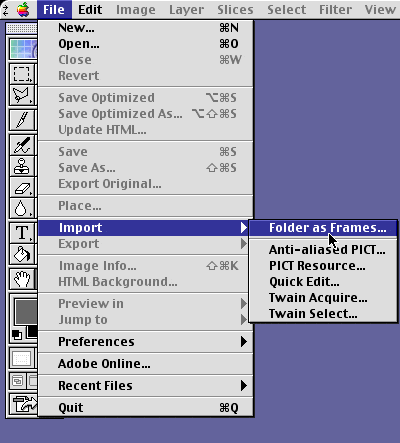

77. Launch Adobe® ImageReady™ and click File > Import > Folder as Frames.

image 8

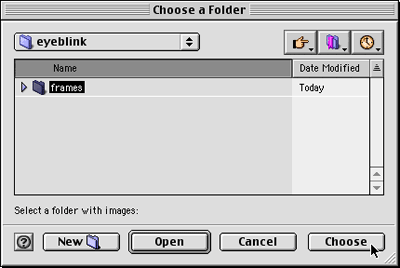

78. Navigate to the folder containing the frames and click "Choose" on the Mac®...

image 9

or "OK" on a Windows® system.

image 10

79. You will see the first frame in the document window.

image 11

80. The Animation palette will display the 10 frames. In this case frame number 10 was placed as frame number 2 (according to the order of the filenames). No problem. Simply click on frame 2...

image 12

81. Then drag it all the way to the right and drop it.

image 13

82. The frames renumber to compensate.

image 14
