3D Text Shatter Effect

mediamilitia Text Effects Oct 08, 2010

Step 1: Creating the basic text

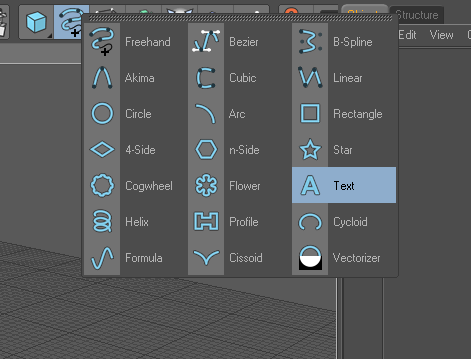

Open up Cinema 4D and make a text object

image 1

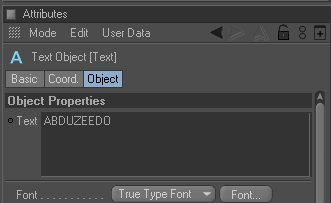

Write "Media Militia" in the text object

image 2

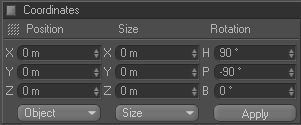

Now rotate your text object: 90* on the X axis and -90* on the Y axis

image 3

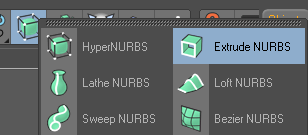

Create an Extrude NURBS object

image 4

And drop your text in it

image 5

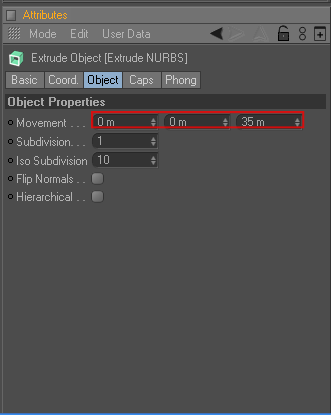

Change the object properties of the Extrude NURBS to 0 / 0 / 35

image 6

Now take your ExtrudeNURBS object and hit "C" (this makes your object editable)

image 7

Open this object and select everything (Ctrl+A) then right click your object and press "Connect"

You can now delete your old object that you just "Connected"

image 8

Rename your object "Media Militia"

Take the polygon tool and the Rectangle Selection tool, make sure to un check the "only select visible elements" box

image 9

image 10

image 11

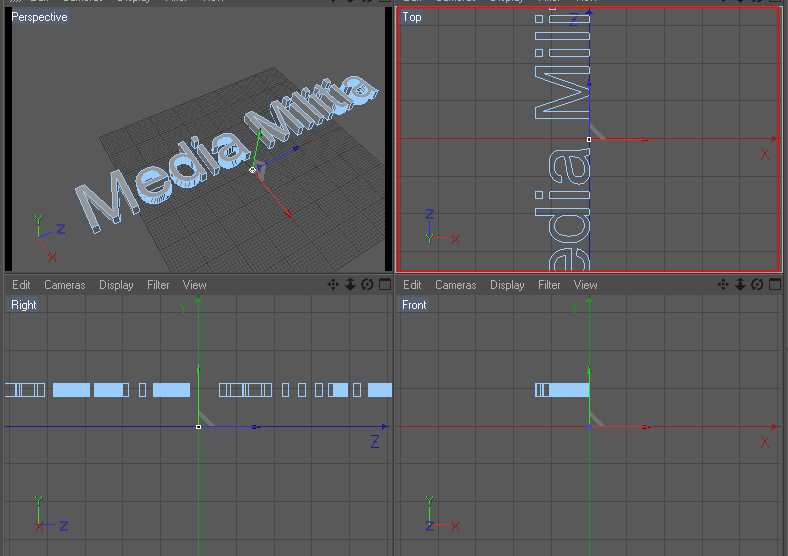

Now with the scroll button of your mouse click on your "canvas" and you will see that four different views just opened up, we will be using the top view

image 12

So middle click on the top view to make that view bigger, and select the first "M" letter of Media Militia right click on it and press "Split"

image 13

This creates a new object with just the "M" now delete the selection you have selected, this will delete the "M" from Media which leaves you with an "M" object and a "edia Milita" object. Rename the object you just split to "M"

image 14

Now go back to your "Media Militia" object and select and split the "t", just as we did with the "M". Delete the "t" from your Media Militia object and rename the "t" you just split to "t"

image 15

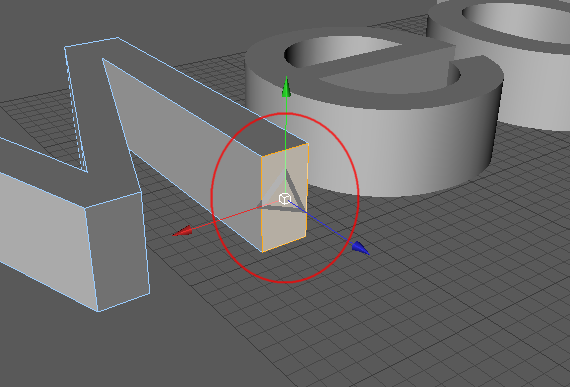

Middle click on your screen and go back to perspective view. Take the Live Selection tool and on your "M" object select the shown polygon:

image 16

image 17

Right click on your screen and select "Extrude"

image 18

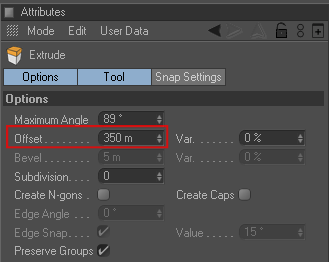

Add 350 to the offset

image 19

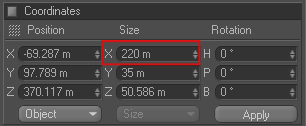

Go into Top View and select your "t" object, press Ctrl+A (to select all the polygons) then take your Scale Tool and scale up the X axis (or the red axis) to 220

image 20

image 21

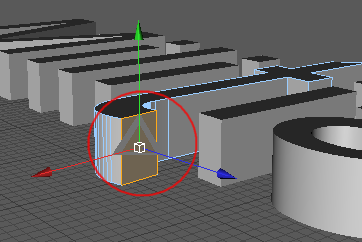

Go back to Perspective View and select the shown polygon with the Live Selection tool

image 22

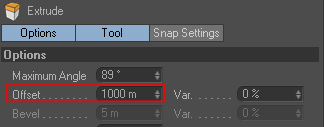

Right click on your screen and select Extrude and add 1000 m in the Offset

image 23

Take your Use Model tool and the Live Selection tool

image 24

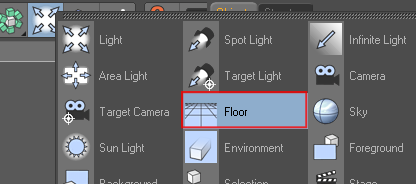

Make a floor

image 25

Go into Right View, select your three text objects and move them right on top of your floor

image 26

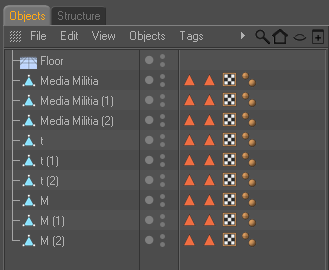

Now make two copies of each text object, and place each copy underneath it's original, name each object as shown below

image 27

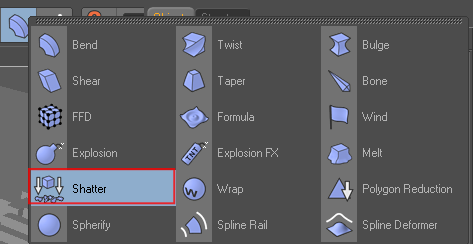

Create a Shatter Object and copy it, name one shatter object "Shatter 1" and the other one "Shatter 2"

image 28

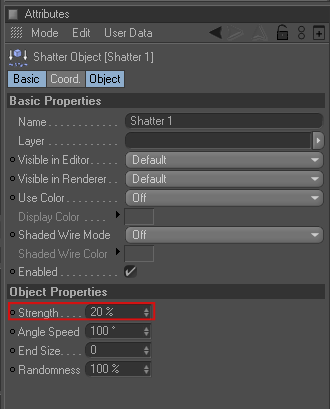

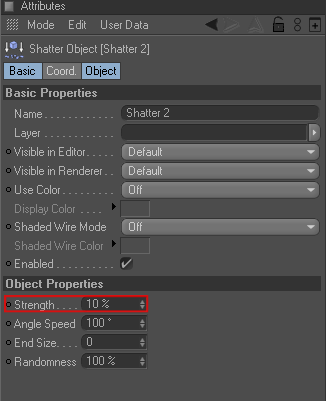

Change the strength of the "Shatter 1" object to 20 %, and the strength of the "Shatter 2" object to 10%

image 29

image 30

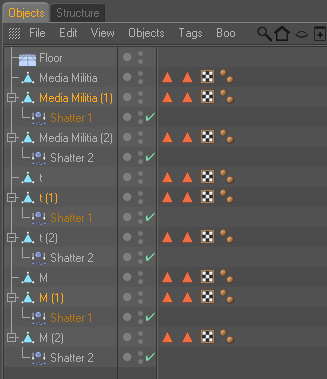

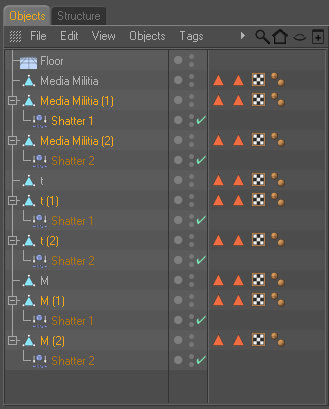

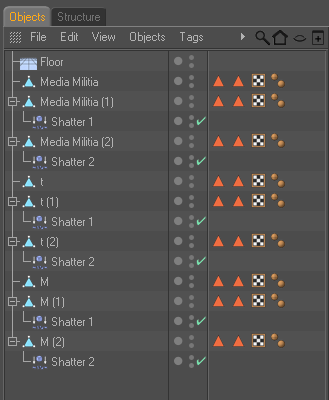

Select both Shatter objects and copy them twice, now place a Shatter object in each copied text object (match them up according to their number as shown)

image 31

Now select all of your text objects ending with either a 1 or a 2 and take the Live Selection tool

image 32

image 33

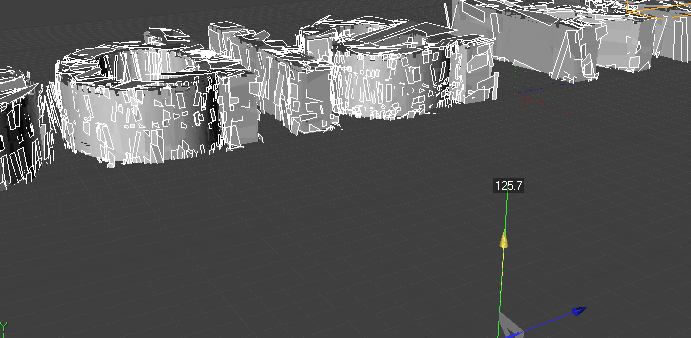

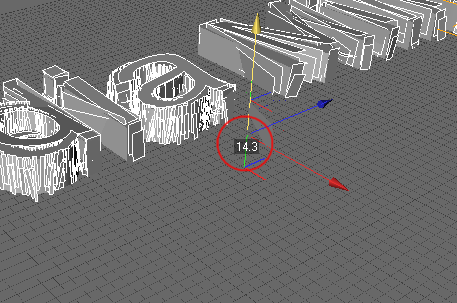

And move the "green axis" up 14.3 points, so that it is on top of the original text object

image 34

Go into top view, take your Polygon tool and select all your text objects ending with "1"

image 35

image 36

Make sure you have no polygons selected (left click anywhere on your canvas to de-select any polygons you might have selected)

Right click on your canvas and select "Knife" (make sure the visible only is checked)

image 37

image 38

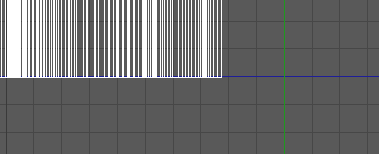

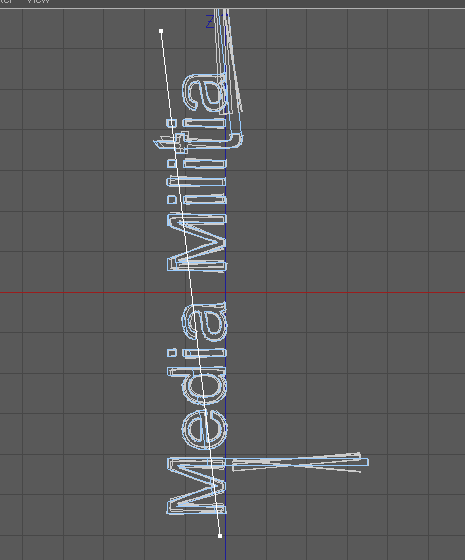

Now start randomly cutting from one side of your text to another, do this around 30-60 times (this will make the shattered pieces smaller)

Make sure you don't leave any long polygons like the extruded M and T uncut

image 39

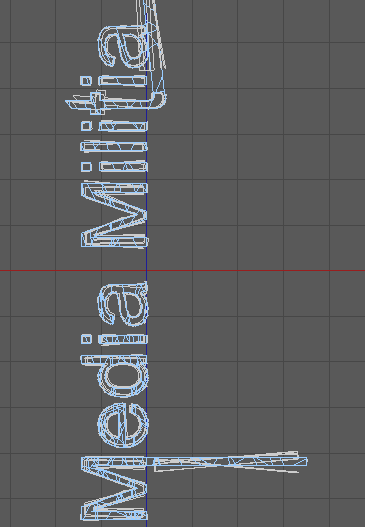

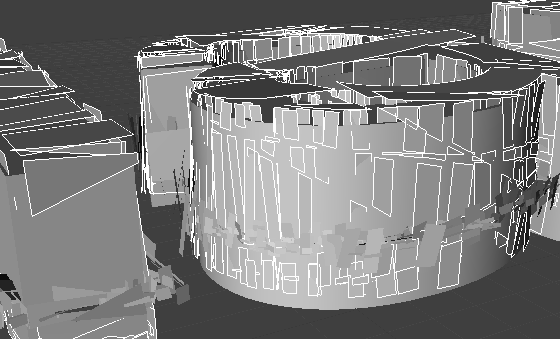

Keep cutting until you have something like this

image 40

Now do the same for the text objects ending with "2"

After that go into side view and start cutting up the text objects ending with 1 and 2 just as we did earlier (make sure to un check the "Visible Only" box)

image 41

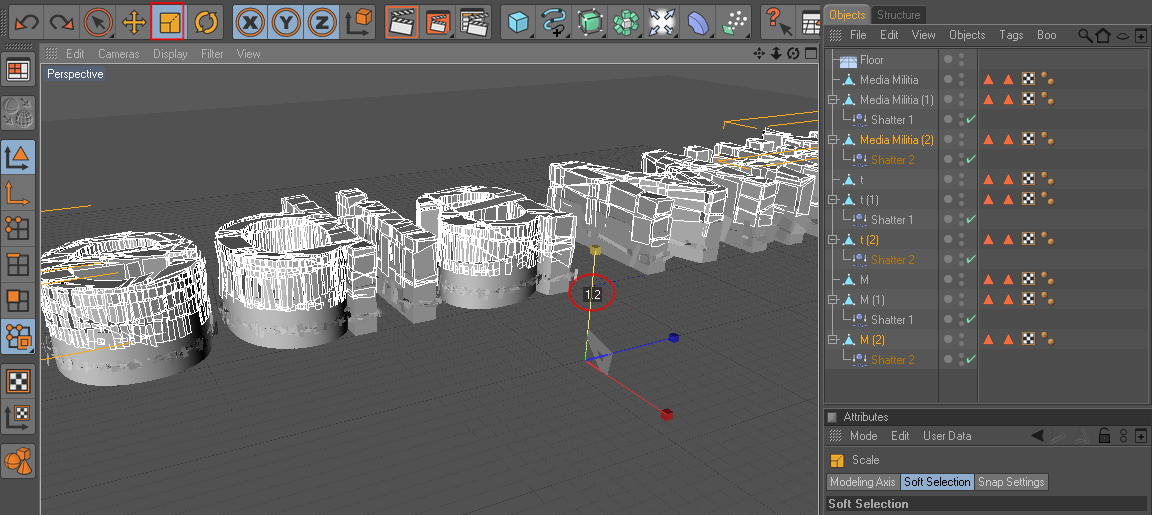

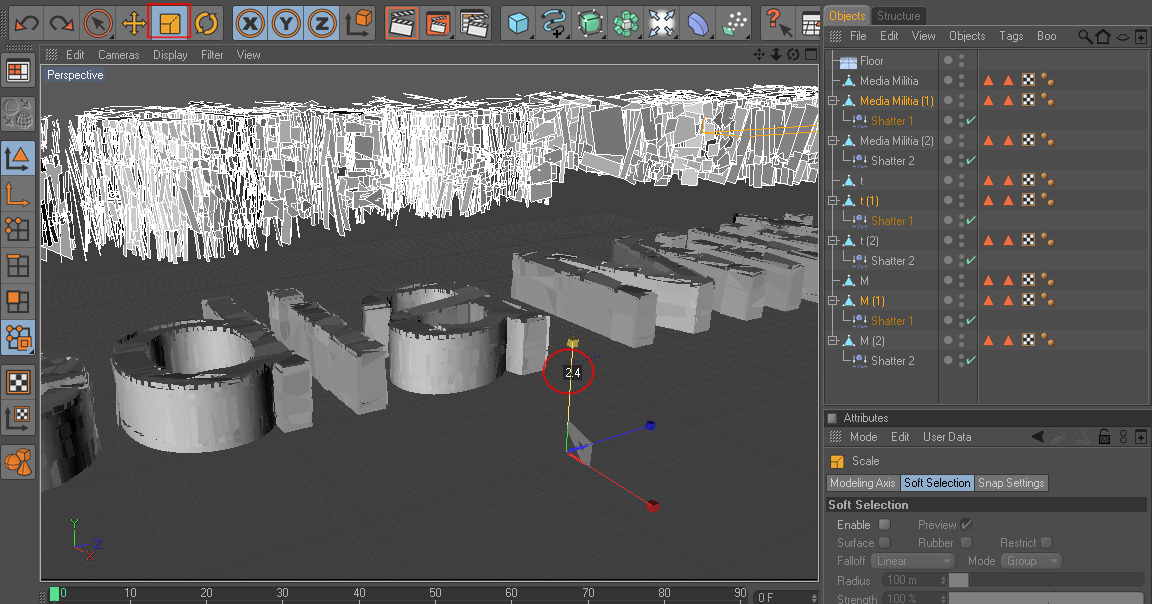

Now select all your "2" text objects and scale up the green axis using the scale tool

image 42

Then move it down, so that the top of the letters are slightly on top of your original text

image 43

Now take all the "1" text objects and scale them up as well

image 44

Then as we did before move them down, so that the top is a little higher then the original text

image 45

Step 2: Adding Light and textures to our image

image 46

Make a basic light

Make three copies of it, and name them 1, 2, 3, 4 accordingly

image 47

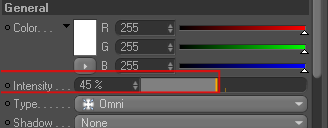

Change the Intensity of the first three light objects to 45% and change the intensity of the 4th light to 70%

image 48

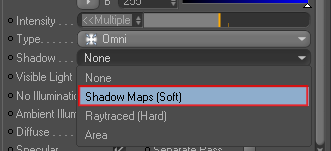

Now select the 2nd 3rd and 4th light objects and change the shadow to "Shadow Maps (Soft)"

image 49

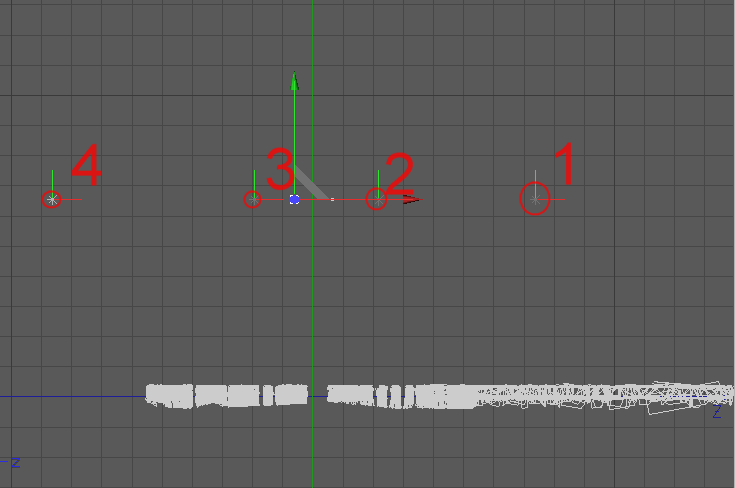

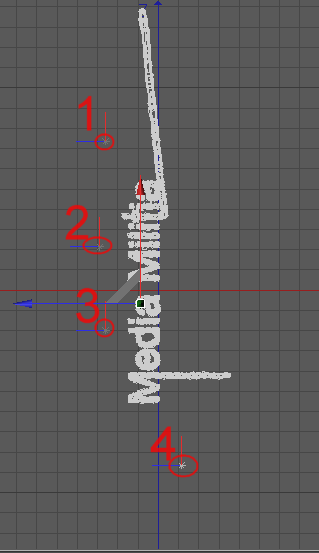

Now go into top view and move each light as shown below

image 50

Go into side view, select all your lights and move them up a bit as shown

image 51

Now we are going to make the materials for our floor and for our text

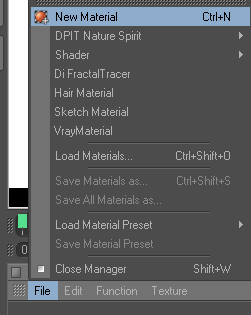

Start by making a new material

image 52

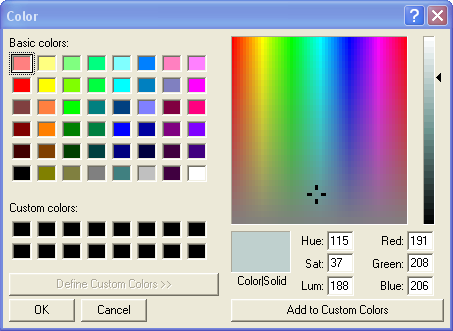

Double click on the material (to open the material editor) and change the color to the following

image 53

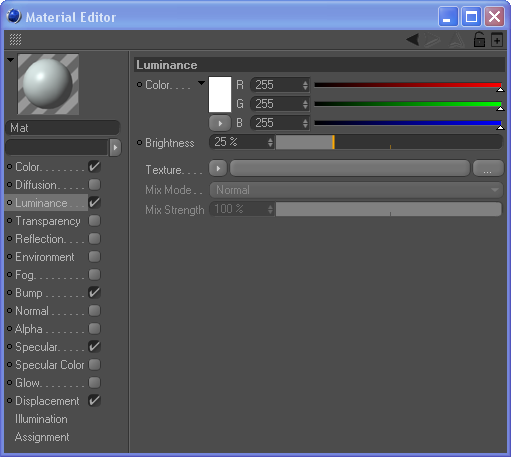

Now check the boxes for Luminance, Bump, Specular, and Displacement

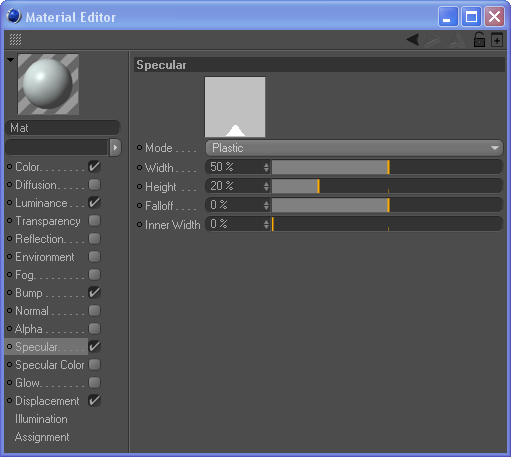

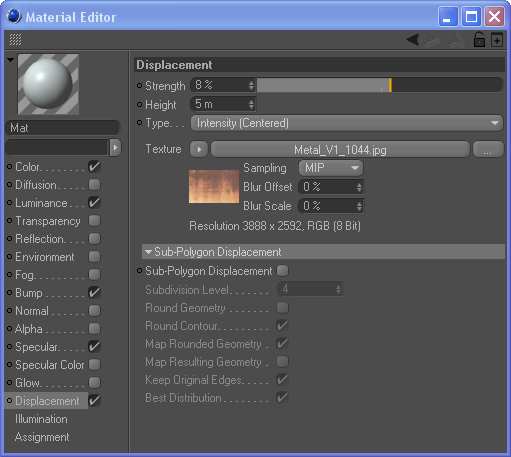

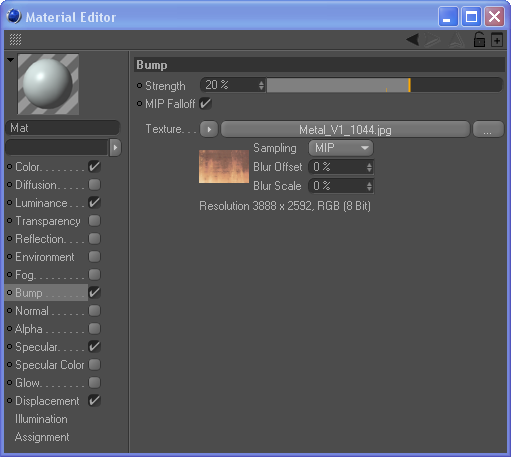

Change the settings to the settings shown in the screen shots below (In the bump and displacement options you will have to load in the metal texture image)

image 54

image 55

image 56

image 57

Now close the material editor, and drop the material onto the floor

image 58

This next part isn't necessary but it gives your text a nice touch, it does take longer to render though.

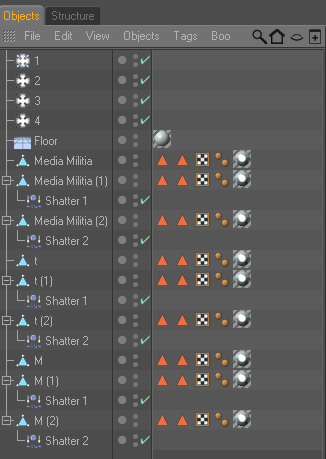

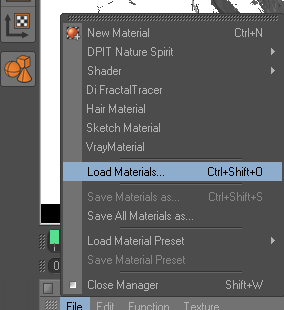

We are going to load our downloaded material and place it on all of our text objects

image 59

image 60

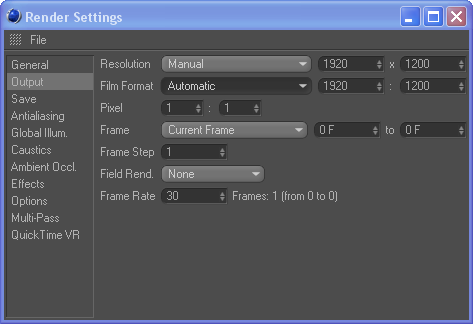

Go into the render settings, and change the Output to the following

image 61

image 62

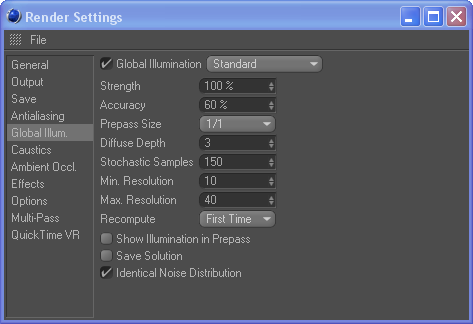

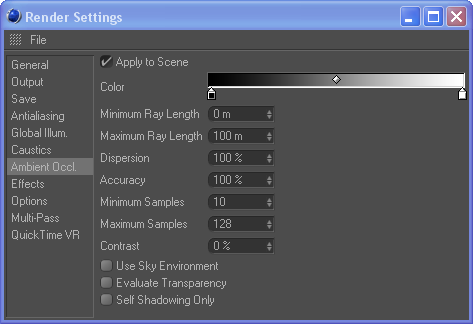

Then we are going to put on Global Illumination and Ambient Occlusion (just click the check box on the top, leave all the other settings on default)

image 63

image 64

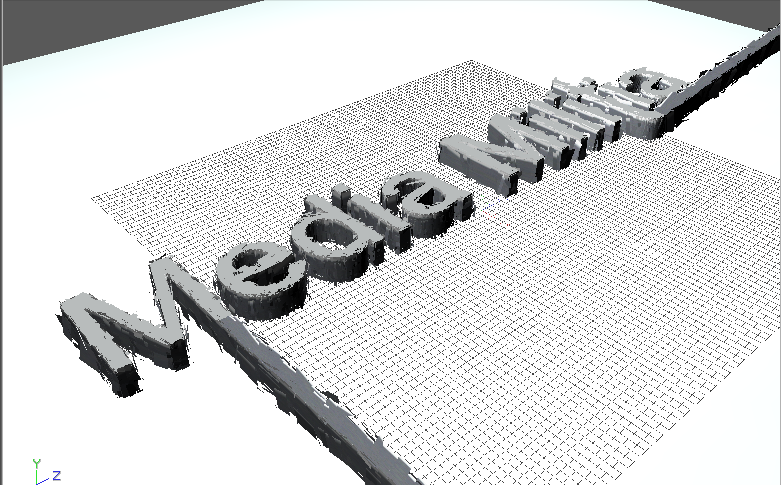

Before we render our scene we are going to set our perspective view on a nice angle, I put my picture on this angle

image 65

Now hit the render button

image 66

This can take quite a while, depending on how strong your computer is, but after that we are done with Cinema 4d and we will go play in photoshop

Once it is finished rendering save it as a jpg format, and 300 dpi (dots per inch)

Step 3: Editing the picture in photoshop

Open your image in photoshop

Double click your layer and name it "Base"

Make a new layer under your base layer and fill it with white

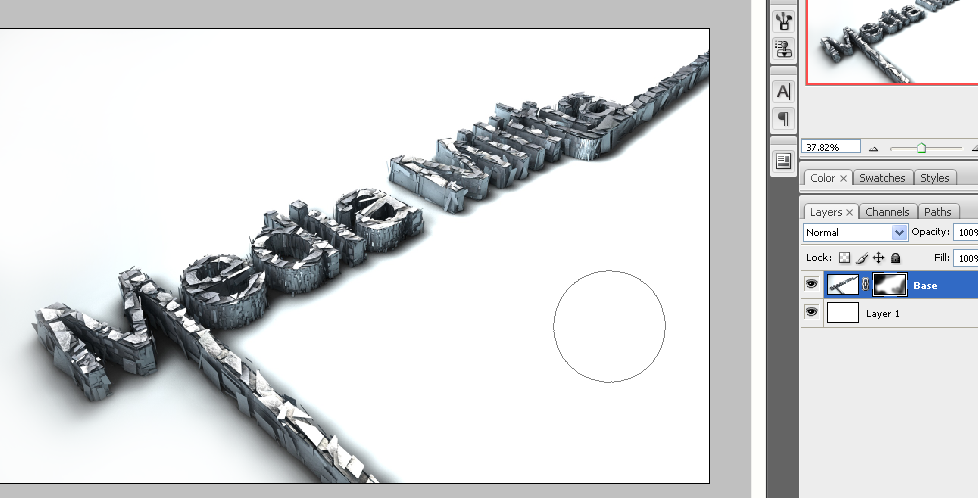

Now add a white mask to your "Base" and with a large soft black brush (bring the opacity of your brush down to 50%) start masking out the colored edges

image 67

Now import your metal texture and resize it so that I covers the entire media militia text, desaturate the texture and change the blending mode to overlay.

Take your eraser tool and delete any harsh exteriors

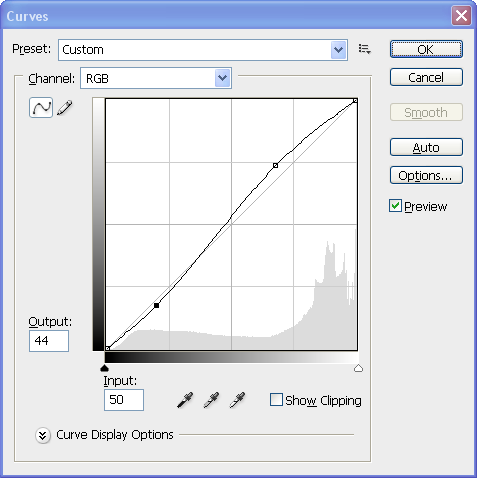

Take your base layer and go to Image>Adjustment>Curves and change the settings to something like the following

image 68

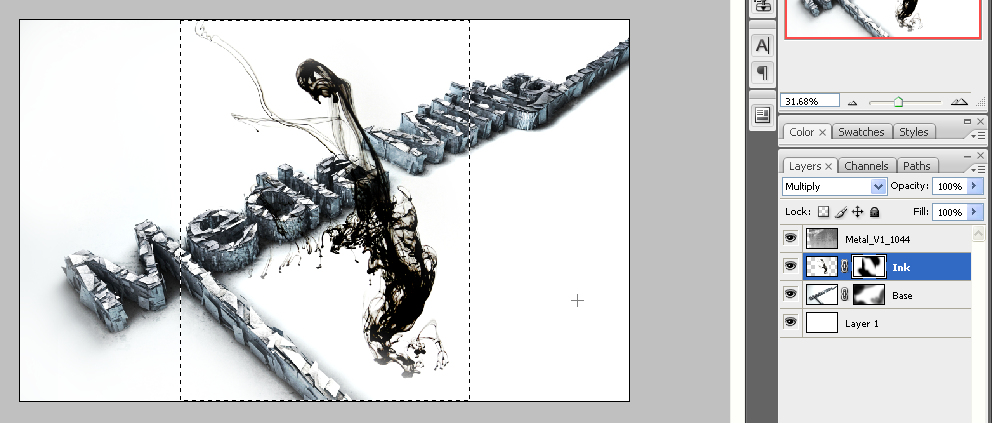

Now import your ink texture, rasterize it, and name it Ink. Make sure you place it underneath the metal texture

Change the blending mode to multiply

Add a mask to the layer and get rid of all the dark areas surrounding the actual ink

image 69

Now duplicate this layer and hide the original, rotate and move your copy so that it is on top of the text, then with a very soft brush mask out the parts that stick out from the text.

Then after that change the transparency to 5%-50% (change it around so that you get a random look) and with a small brush start brushing the edges of the ink that is on top of your text

image 70

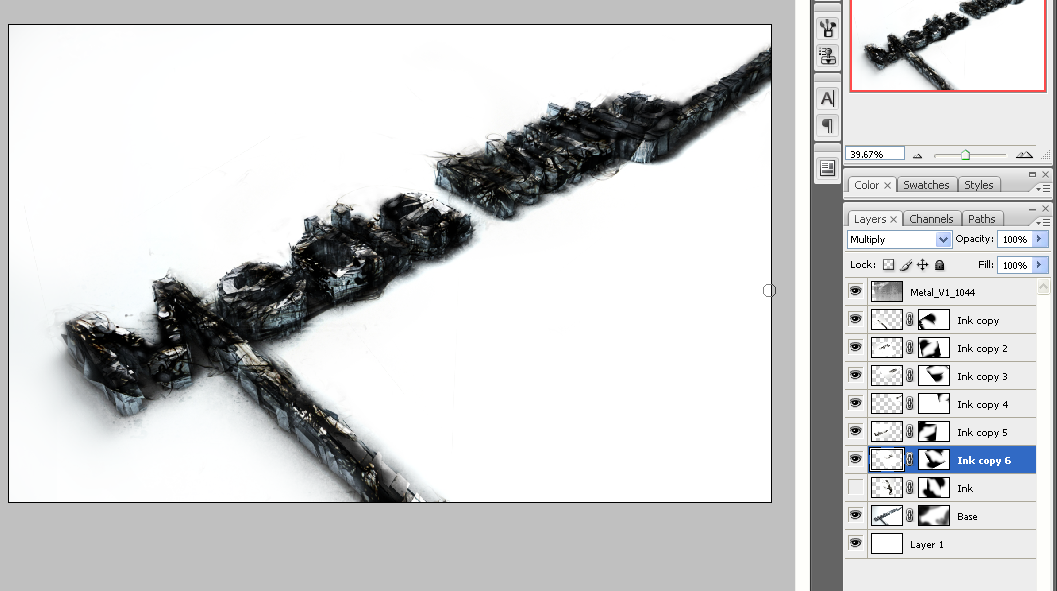

Duplicate your original ink texture and cover another part of the text and repeat the same process as with the other ink texture. Do this until all your text is covered with ink textures.

image 71

Now select all your ink layers and add them to a group, name the group Ink.

Change the opacity of your ink group to 40%

Now make a new layer, name it Shadow, and with a black color and a soft, big brush add a line around the text as shown:

image 72

Add a Gaussian Blur, 17 px, and bring down the opacity to 30 percent. Now delete any parts of the shadow that you don't like with a big soft brush

3D Text Shatter Effect  Tutorial

And we are pretty much finished
