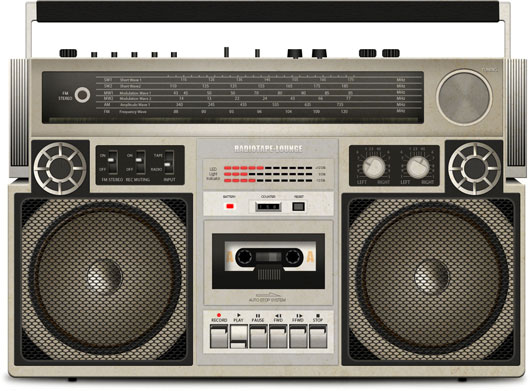

Step 1-Base

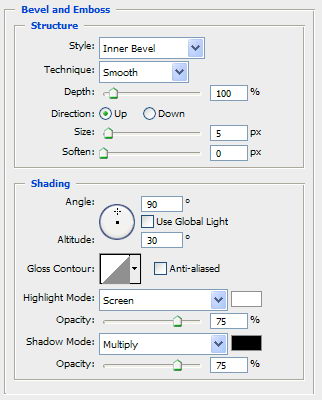

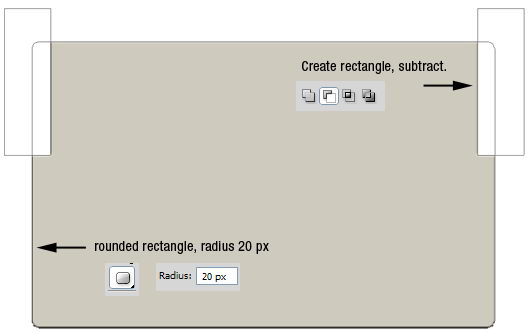

We'll start by creating base for this radiotape's body. Create a rounded rectangle with radius 20 px. In both side, draw two rectangle and choose subtract. Add Bevel and Emboss to this shape.
Step 2

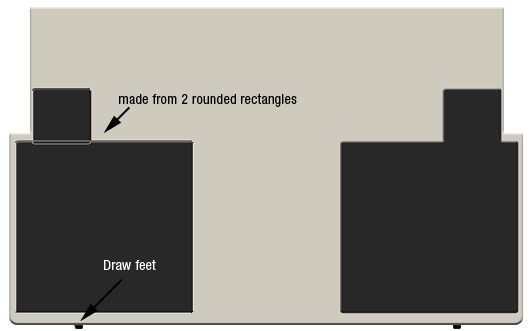

Using rounded rectangle tool draw two base for speaker. For its feet, just draw two small rectangle on the bottom.
Step 3

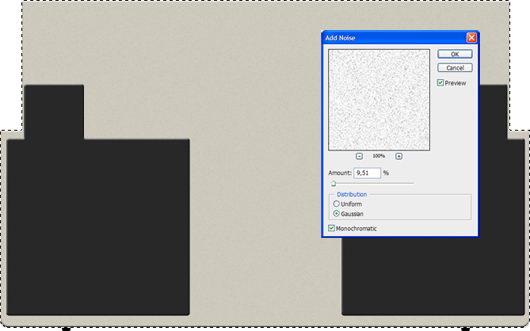

Ctrl+click the base. Create new layer, fill it with white, and changee blend mode to Multiply. Click Filter > Noise > Add Noise. Use small Amount and select Monochromatic. This small step will add a bit of texture to the body.
Step 4

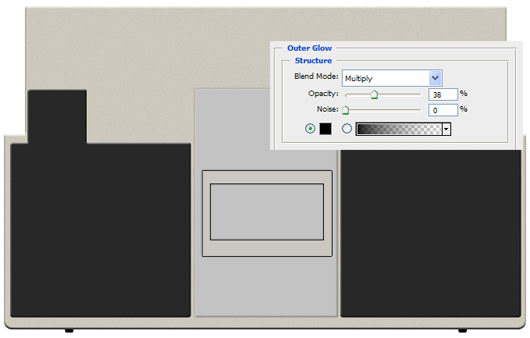

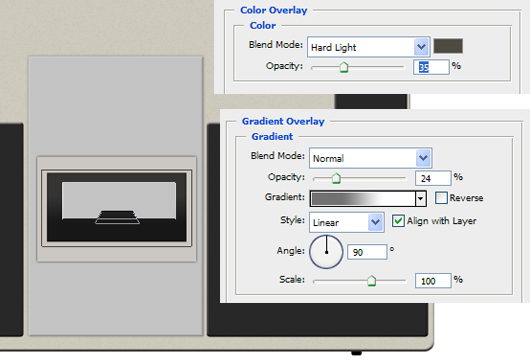

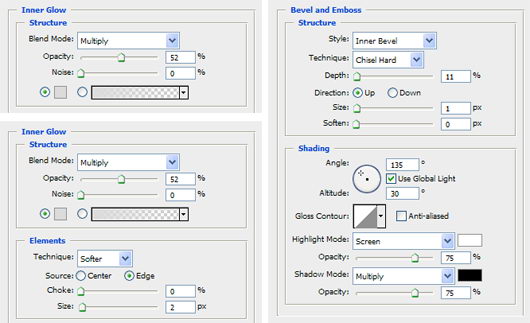

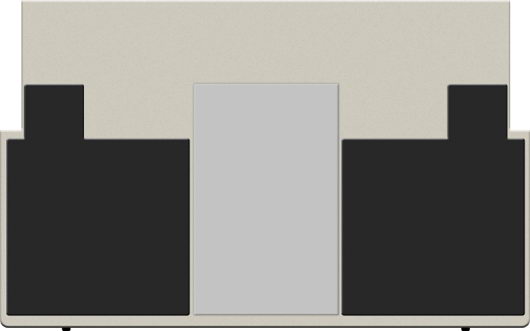

Draw a rectangle in the middle. This will be the base for tape deck. Add some layer styles.
Step 5-Create Tape Deck
For tape deck, draw a rectangle. Duplicate the rectangle and make it smaller, from the option bar choose subtract to create hole on the bigger rectangle.
Step 6
Under tape deck, draw another rectangle and add a poligon.
Step 7

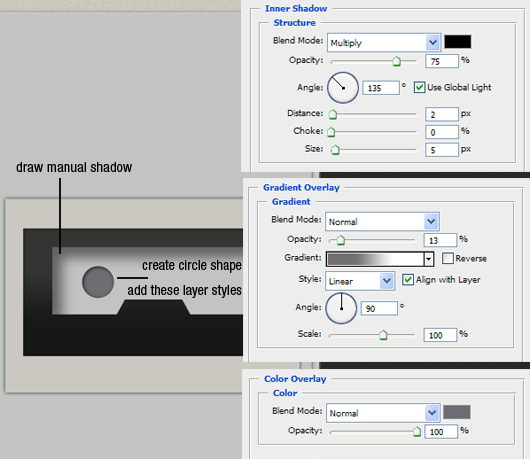

Manually draw shadow inside the tape deck. Create circle shape and add these layer styles.
Step 8

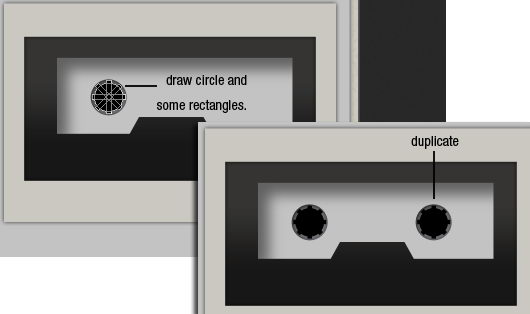

Draw smaller circle and add some rectangles. Duplicate these shape until we have the tape inside.
Step 9

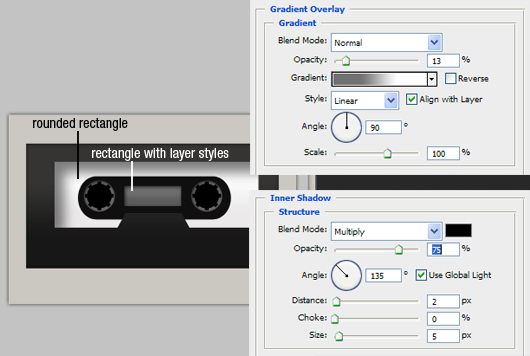

Draw a reounded rectangle behind the tape's circle. Between the two circles draw a rectangle.
Step 10

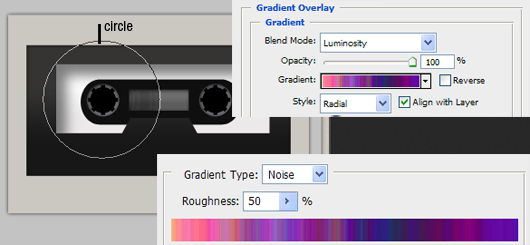

Draw a circle shape, change it to clipping mask until it gos inside the rectangle. Add gradient overlay with type Noise and use blend mode Luminosity. This circle with gradient will be the magnetic tape.
Step 11

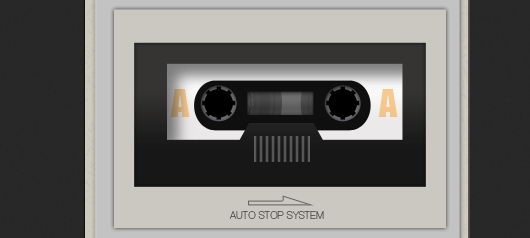

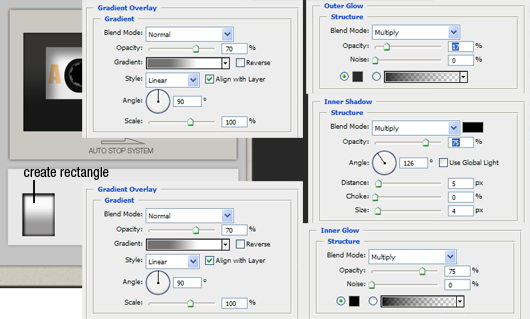

Duplicate the magnetic tape and resize it. Add some detail like the tape side (A or B) and Auto Stop System sign.
Step 12-Create Tape Control
Now, we'll create the tape's controller. Draw a rectangle under the tape deck. Add these layer styles.
Step 13-Create Tape Controller

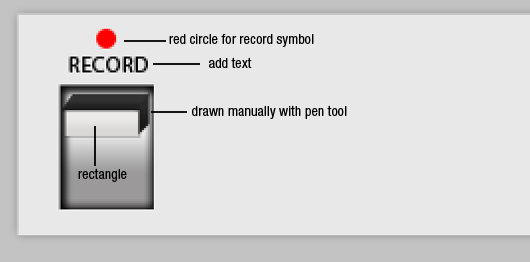

Draw a rectangle and a poligon behind it. Add some detail like record symbol, text.
Step 14

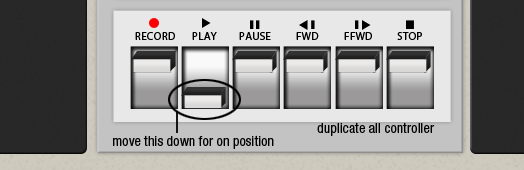

Duplicate this tape controller for other function. Move the play button down to add a realistic look.
Step 15-Draw Battery Indicator and Counter

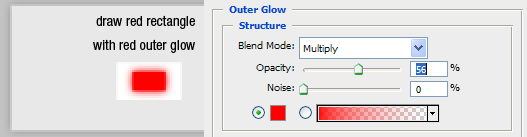

For battery indicator draw a red rectangle with red outer glow.
Step 16

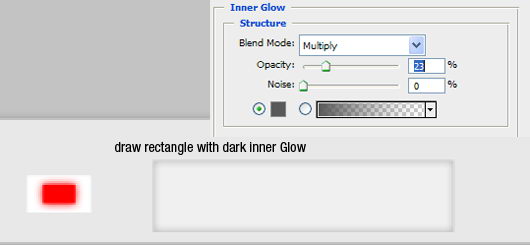

Next, create a rectangle with dark inner glow.
Step 17

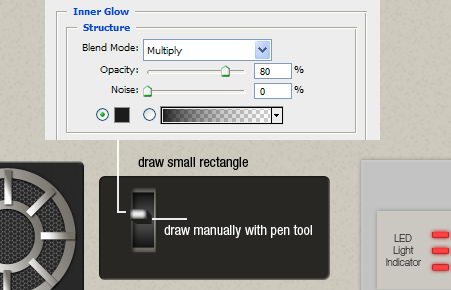

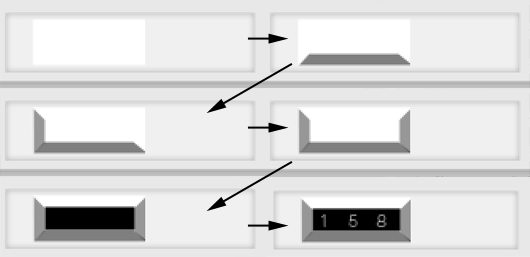

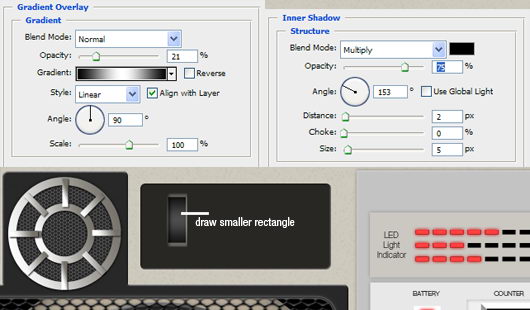

Inside the rectangle draw small box. Using pen tool draw some polygons as shown below.
Step 18

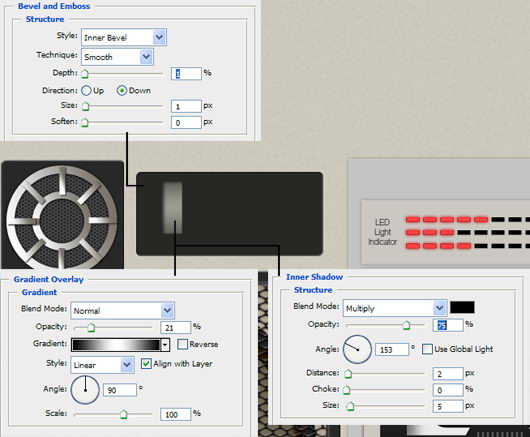

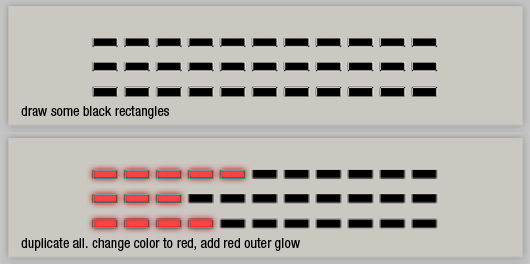

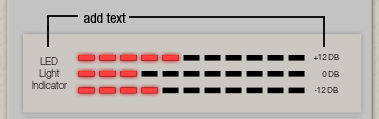

For the equalizer indicator, draw some black rectangles. Duplicate all and change its color to red. Add red Outer Glow and delete some of them so only a few lights is on.
Step 19

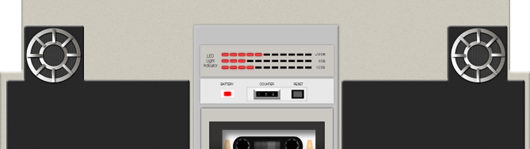

Add some details.
Step 20
I hope you're still with me. Here's what we have so far.
Step 21-Small Speakers

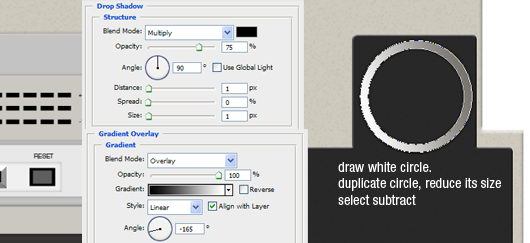

Draw a ring by creating a big circle. Duplicate it and make it smaller. Select subtract from the option bar.
Step 22

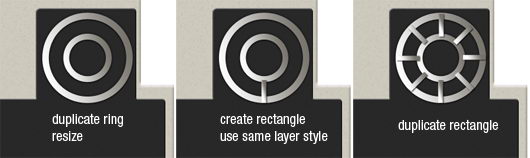

Dulicate the ring and resize it. Create some rectangles surrounding both rings.
Step 23

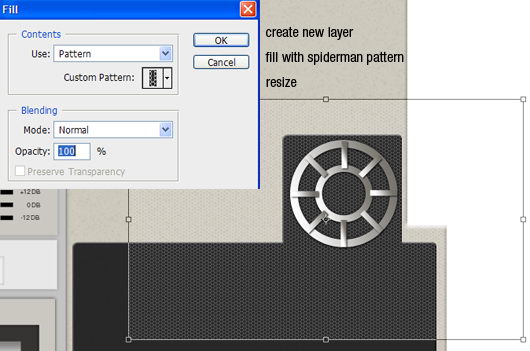

Create new layer. Click Edit > Fill. Load spiderman pattern from brusheezy. Resize the pattern.
Step 24

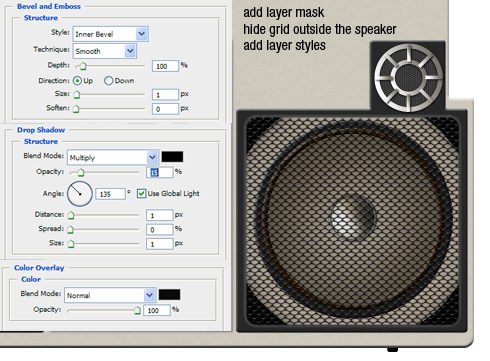

Add layer mask and paint pattern outside the speaker with black to hide it. Duplicate the small speaker and put it on the other side.
Step 25-Big Speakers

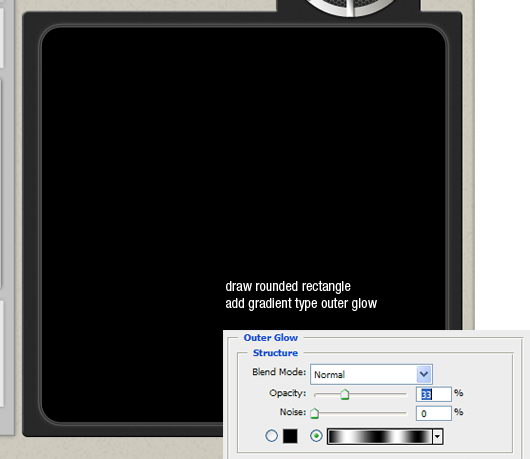

Start by creating a big rounded rectangle for the speaker's base. Add outer glow styles to give it a 3D look.
Step 26

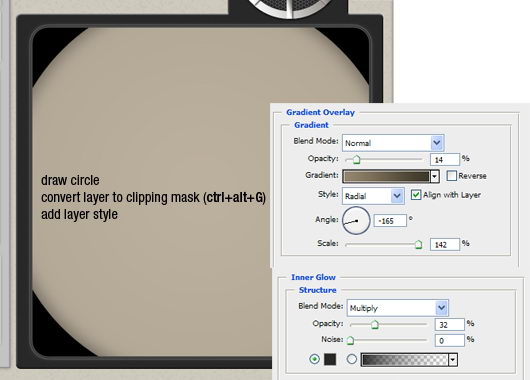

Draw a big circle. Hit ctrl+alt+G to convert layer to Clipping Mask.
Step 27
Add smaller circle.
Step 28

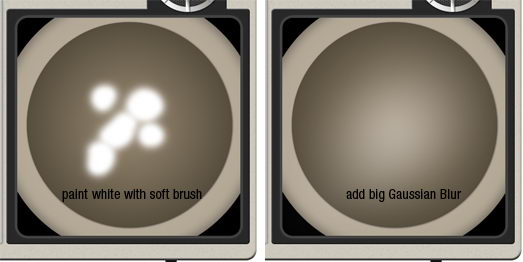

Paint some white on top of the circle and give it Gaussian Blur with big radius.
Step 29

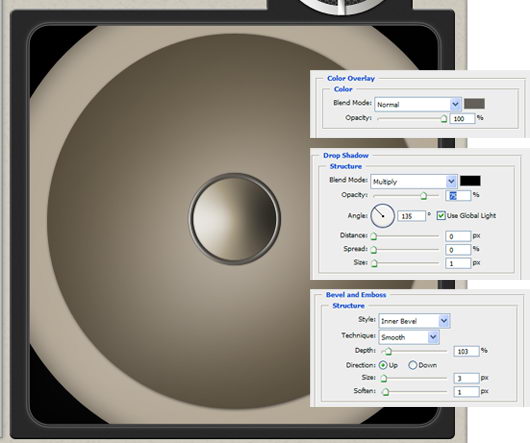

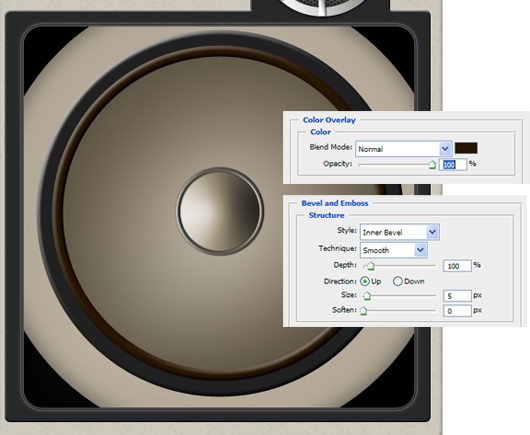

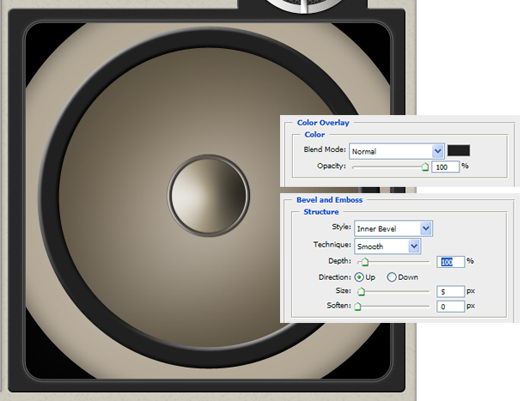

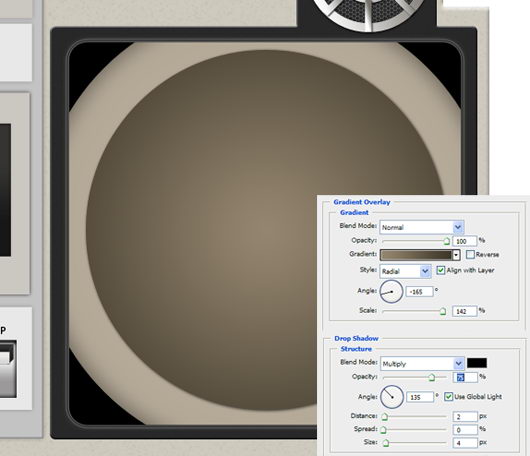

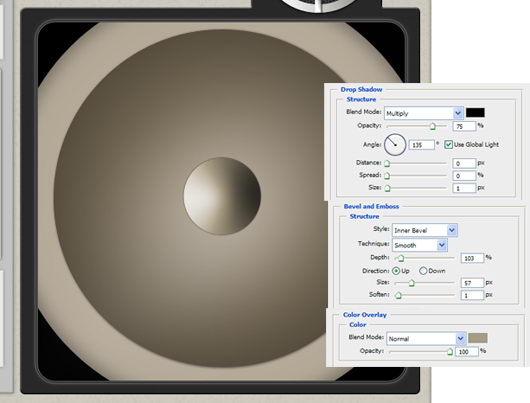

Create smaller circle. Add these layer styles.
Step 30
Create ring shape above this circle and some layer styles.
Step 31
Create bigger ring shape with these layer styles.
Step 32
Create a smaller ring above the previous ring.
Step 33

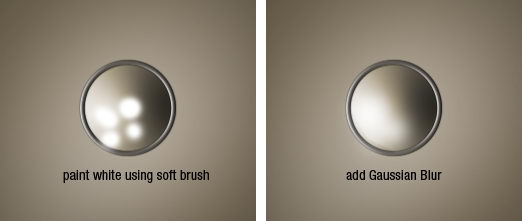

We need to add some reflection on center of the speaker. Paint with white and add Gaussian Blur.
Step 34
We need another pattern to cover the big speaker. Create new file, 800x600 px, background transparent, and fill it with metal pattern from bittbox.

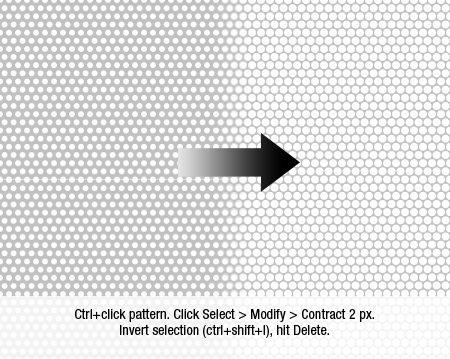

We need bigger hole in this pattern. To do this, ctrl+click the pattern to select it. Click Select > Modify > Contract and select 2 px. Hit ctrl+shift+I to invert the selection and hit Delete.
Step 35

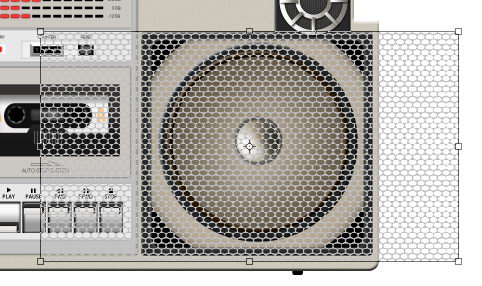

Paste the pattern on top of our big speaker. Resize it and add layer mask to hide unneeded pattern. Add layer styles shown below to give the pattern a metalic look.
Step 36-Input Selector
Draw a rounded rectangle for the selector's base. Add smaller rectangle with these layer styles.
Step 37
Again, draw smaller rectangle inside the previous one.
Step 38
Create the selector by drawing a small rectangle first then add poligons behind it.
Step 39

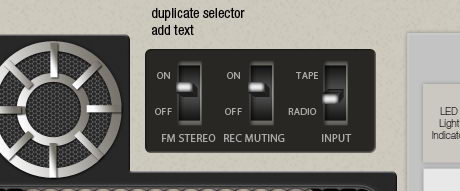

Duplicate the selector and add some details.
Step 40-Another Selector

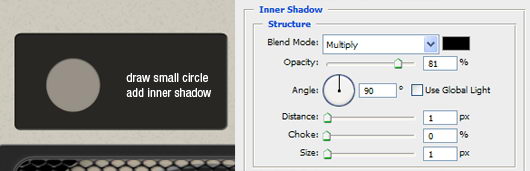

We'll add a circle shape selector. Draw a small circle and add inner shadow.
Step 41

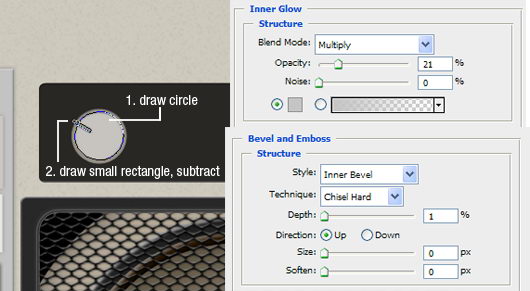

Draw smaller circle and inside it draw small rectangle. From the option bar select subtract.
Step 42

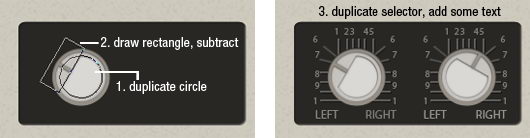

Duplicate circle and resize it. Draw another rectangle and choose subtract. We're done with the first selector. Duplicate it and add some details.
Step 43-Radio

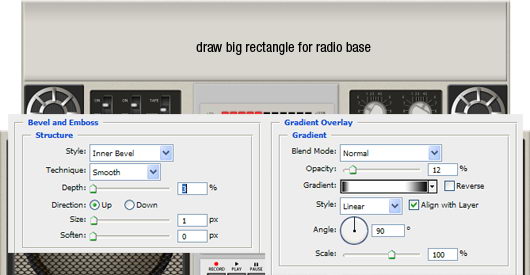

Draw a big rectangle.
Step 44

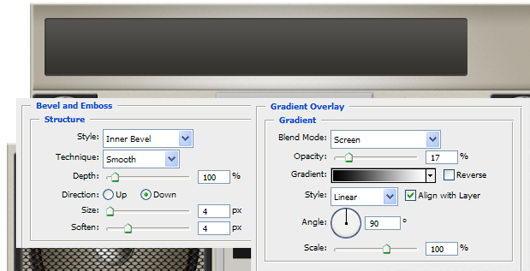

Inside the rectangle draw rounded rectangle.
Step 45

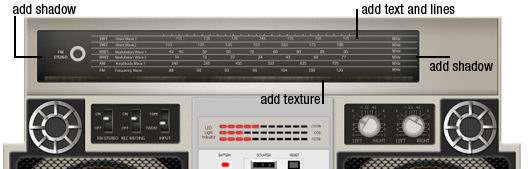

Add shadow and some text.
Step 46

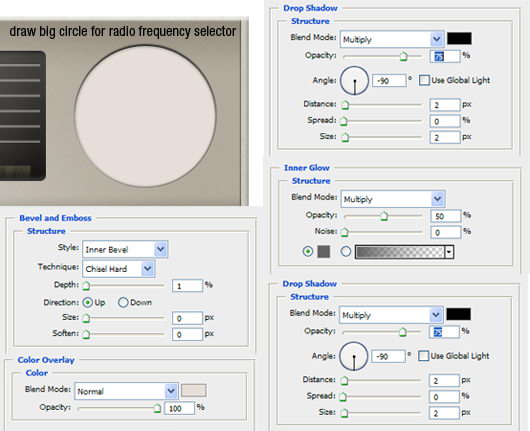

Now for the radio frequency selector, draw big circle.
Step 47

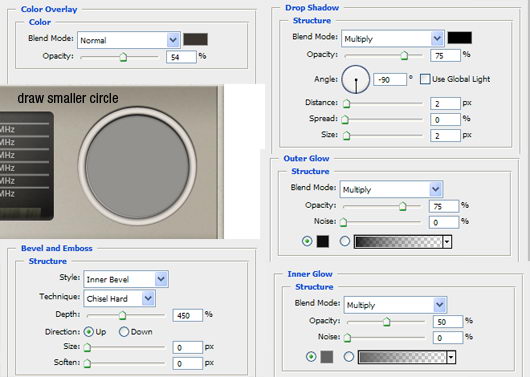

Inside the circle draw another smaller circle.
Step 48

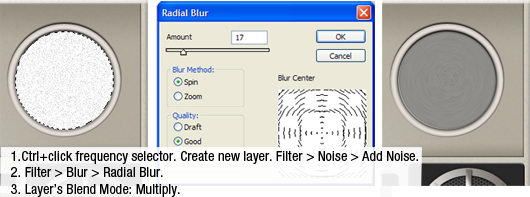

Ctrl+click the frequency selector to select it. Create new layer, click Filter > Noise > Add Noise. Click Filter > Blur > Radial Blur. Change layer's blend mode to Multiply.
Step 49

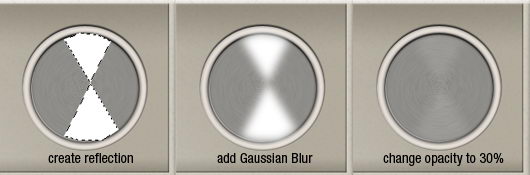

To add reflection to the selector, draw a poligon and fill it with. Add Gaussian Blur and change its opacity to 30%.
Step 50-Top Button

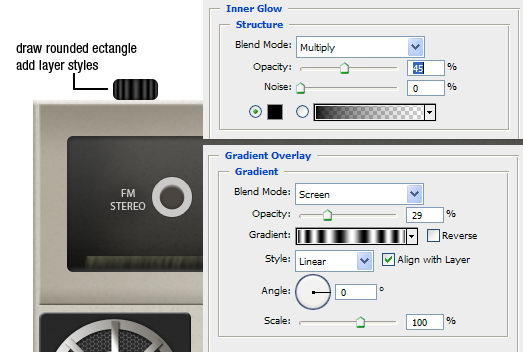

Add button on top of the radiotape by drawing a small rounded rectangle and add these layer styles.
Step 51
For push button, draw a rectangle and a Gradient Overlay.
Step 52-Add 3D Look

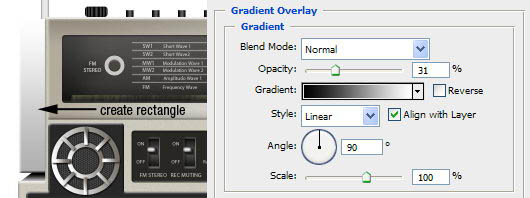

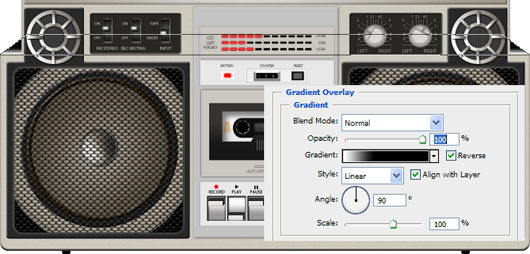

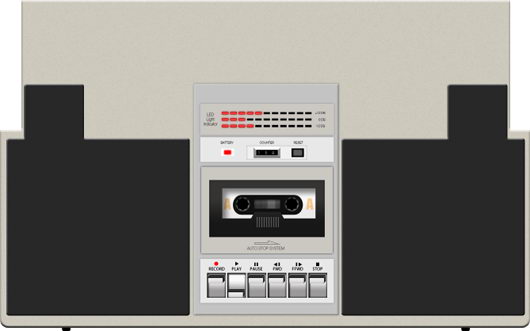

Create this shape behind the radiotape and add gradient overlay. This will add depth to the radiotape's body and make it looks 3D.
Step 53-Handle

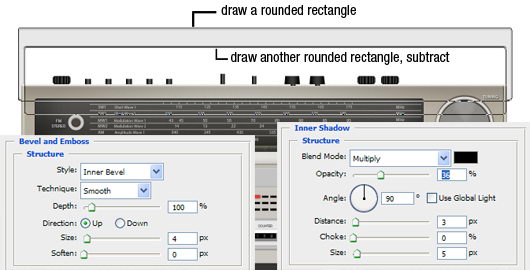

Draw a rounded rectangle on top. Draw another rectangle inside it and choose subtract.
Step 54
Draw black rounded rectangle for hand handle.
Step 55

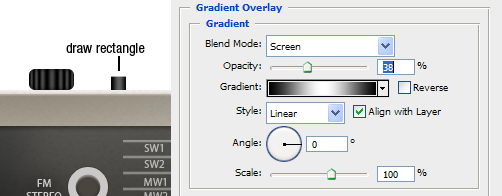

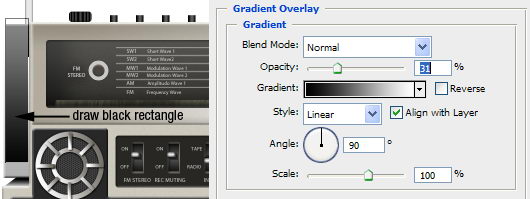

Next to the handle draw a rectangle and add Gradient Overlay.
Step 56
Draw smaller rectangle inside previous rectangle.
Step 57

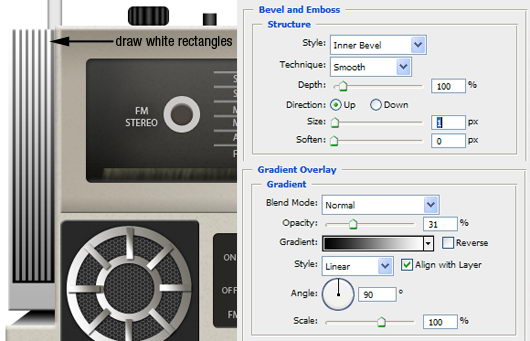

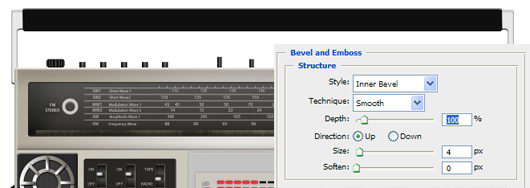

Add few small rectangles with these layer styles. Duplicate all this handle and put it on the other side.
Step 58-Adding Shadow

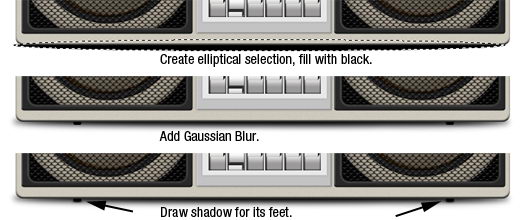

Create new layer underneath every layers. Create elliptical selection and fill it with black. Add Gaussian Blur to soften it. Don't forget to add small shadow on the feet.
Step 59
This radiotape is too clean. I want to make it looks olsd. So, I download a grunge texture and put it on top of this radiotape and change its blend mode to Multiply.
