Magic Flying of the Butterfly


Create firstly a new file (File>New) of 1280x1024 px and 72 dpi. This layer needs to be fill with the color #280025, for this operation we'll choose the Paint Bucket Tool (G).

Magic Flying of the Butterfly image 1

Next step select the Line Tool (U) and represent seventeen lines with 1 px distance between them as in the example below.

Magic Flying of the Butterfly image 2

Mark out all these layers on the layers' palette by pressing Shift button and then pressing Ctrl+E (Merge Down). This way we put together all the layers that we did.

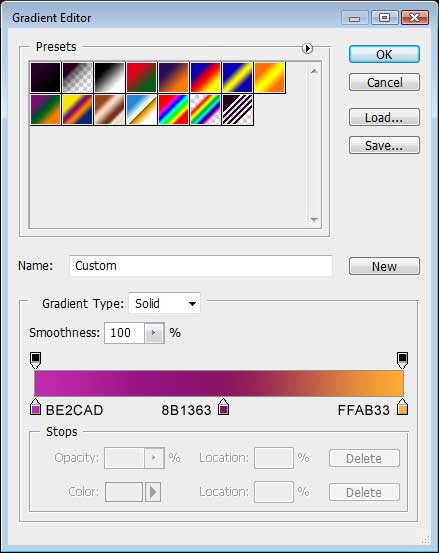

Next select Blending Options>Gradient Overlay by making a mouse click on the layer we work with on the layers' palette. Set the next demonstrated gradient's colors as in the example below.

Magic Flying of the Butterfly image 3

We'll get the result from below. Then we have to create a new layer which needs to be processed the same way described above in putting together the lines' layers.

Magic Flying of the Butterfly image 4

Using the option Free Transform (right click on the picture) we'll twist on the lines, choosing the Skew selection.

Magic Flying of the Butterfly image 5

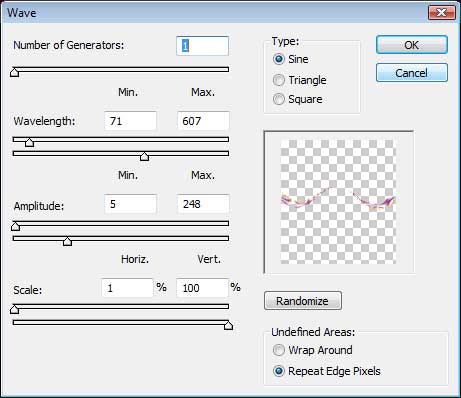

Next select the option from here: Filter>Distort>Wave… out of the top panel and set everything the same way demonstrated next table.

Magic Flying of the Butterfly image 6

We'll get a wavy line like the next one:

Magic Flying of the Butterfly image 7

Combining and transforming these lines, we may get an ornament like the one shown next image:

Magic Flying of the Butterfly image 8

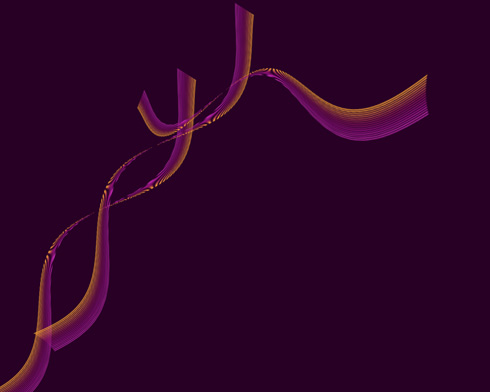

Using the Eraser Tool (E), it's possible to erase the unnecessary elements on the lines' edges.

Magic Flying of the Butterfly image 9

We'll get the next result:

Magic Flying of the Butterfly image 10

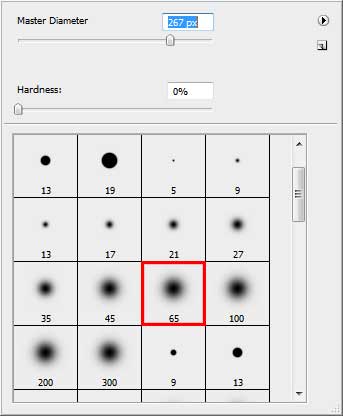

Select now the Brush Tool (B) and its adjustments indicated below:

Magic Flying of the Butterfly image 11

Let's draw on a new layer a kind of haze as in the picture below, having the color #8C1C6E

Magic Flying of the Butterfly image 12

Now it's time to start representing several so-called chromatic spheres. Firstly try to make a circle, applying the Ellipse Tool (U).

Magic Flying of the Butterfly image 13

Set the appropriate Blending Options - Inner Shadow.

Magic Flying of the Butterfly image 14

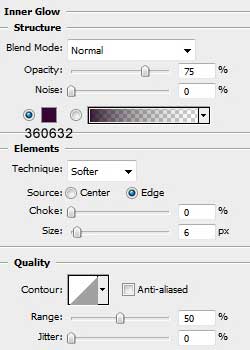

Blending Options - Inner Glow

Magic Flying of the Butterfly image 15

Blending Options - Gradient Overlay

Magic Flying of the Butterfly image 16

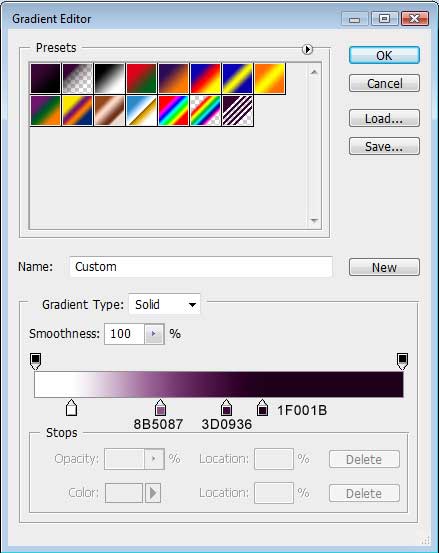

Gradient Editor

Magic Flying of the Butterfly image 17

Blending Options - Stroke

Magic Flying of the Butterfly image 18

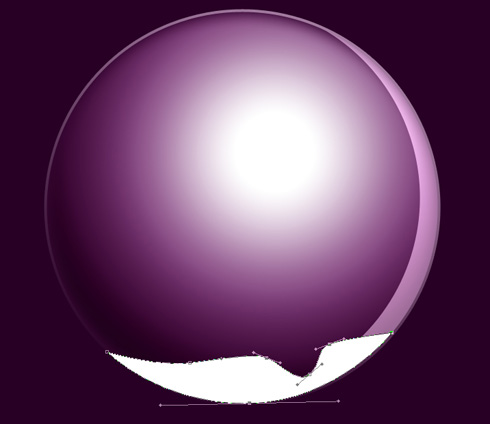

Start drawing the reflexes on the made sphere by choosing the Pen Tool (P) and create kind of figure as the next picture shows it.

Magic Flying of the Butterfly image 19

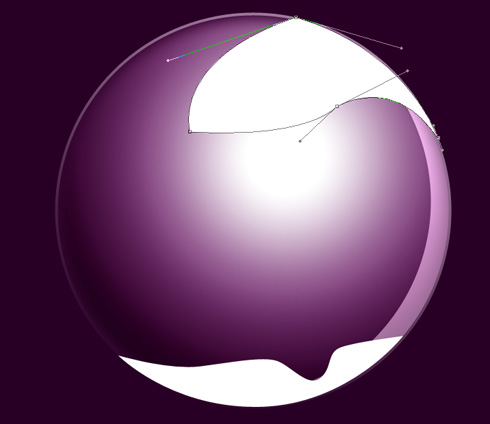

…and another one…

Magic Flying of the Butterfly image 20

Set the fill's value for the top figure.

Magic Flying of the Butterfly image 21

We'll get the next result on this stage.

Magic Flying of the Butterfly image 22

We need to set the next Blending Options - Gradient Overlay values for the lowest figure.

Magic Flying of the Butterfly image 23

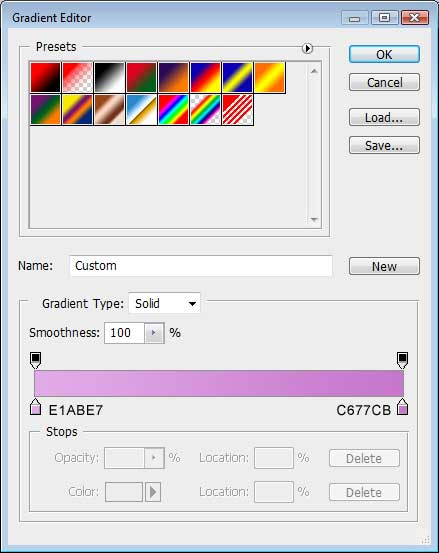

Gradient Editor

Magic Flying of the Butterfly image 24

Set the Opacity also, choosing the same value shown below:

Magic Flying of the Butterfly image 25

The next picture shows the result we need to get:

Magic Flying of the Butterfly image 26

Create a new layer again, picturing on it white highlights with the Brush Tool, getting the same picture from below.

Magic Flying of the Butterfly image 27

Change for the layer the Blending mode - Soft Light.

Magic Flying of the Butterfly image 28

This is the sphere that we must get:

Magic Flying of the Butterfly image 29

Now it's time to position correctly the spheres on our picture. Making the spheres smaller, we may get the effect of the space's deepness.

Magic Flying of the Butterfly image 30

Create another new layer and situate it under the layers containing the spheres. Using the Brush Tool (B), try to make the contour around the spheres, choosing the color #954782

Magic Flying of the Butterfly image 31

Find in Internet a pink butterfly and cut it out of the original picture, applying the Eraser Tool (E).

Magic Flying of the Butterfly image 32

Place it on our picture the way demonstrated next image:

Magic Flying of the Butterfly image 33

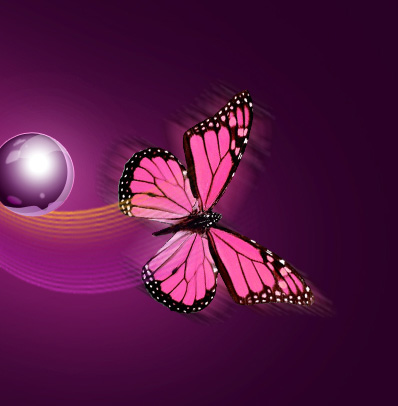

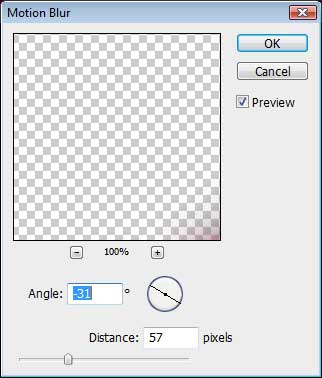

Make a copy of this layer and select the next filter for the copied layer: Filter>Blur>Motion Blur.

Magic Flying of the Butterfly image 34

Magic Flying of the Butterfly image 35

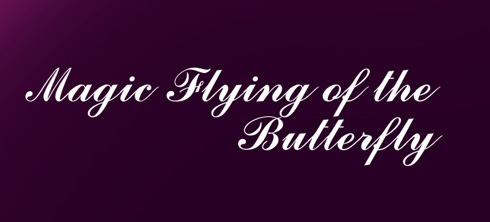

Now we have to write a text:

Magic Flying of the Butterfly image 36

… applying the demands from here for the text we want to insert:

Magic Flying of the Butterfly image 37

Set the next Blending Options - Outer Glow:

Magic Flying of the Butterfly image 38

Magic Flying of the Butterfly Tutorial: Final Result (Click to enlarge)
Click to enlarge

Finished!
