Making a Fancy Pop Style Poster


Make your Photoshop file

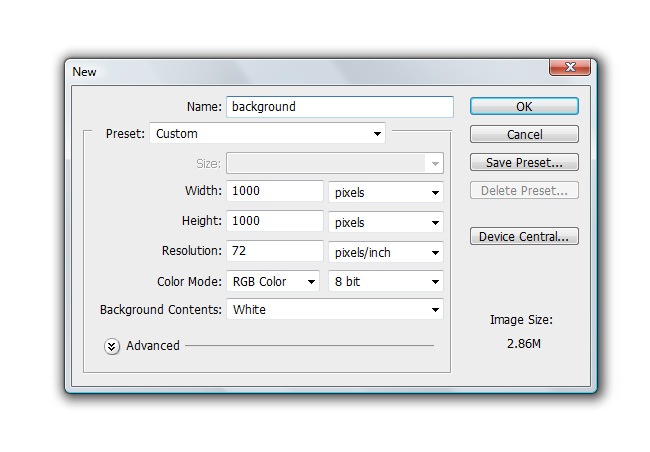

First of all we need to create our PS file, go to File>new or hit Ctrl + N to display the "New" window, then set up a 1000 x 1000 pixels canvas, 72 dpi and RGB color mode.

image 1

Start making our background

The first thing that you need to know is that we're going to work a lot with gradients and masks, so it's important that you become friends with the pen tool and layers panel. Make click on the new fill button and choose gradient.

image 2

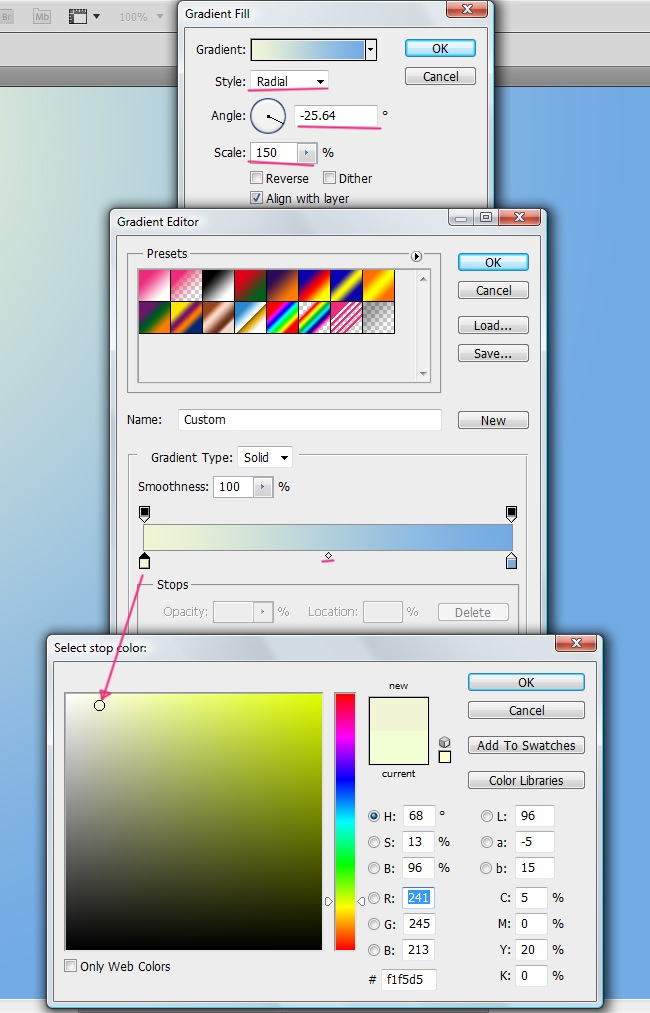

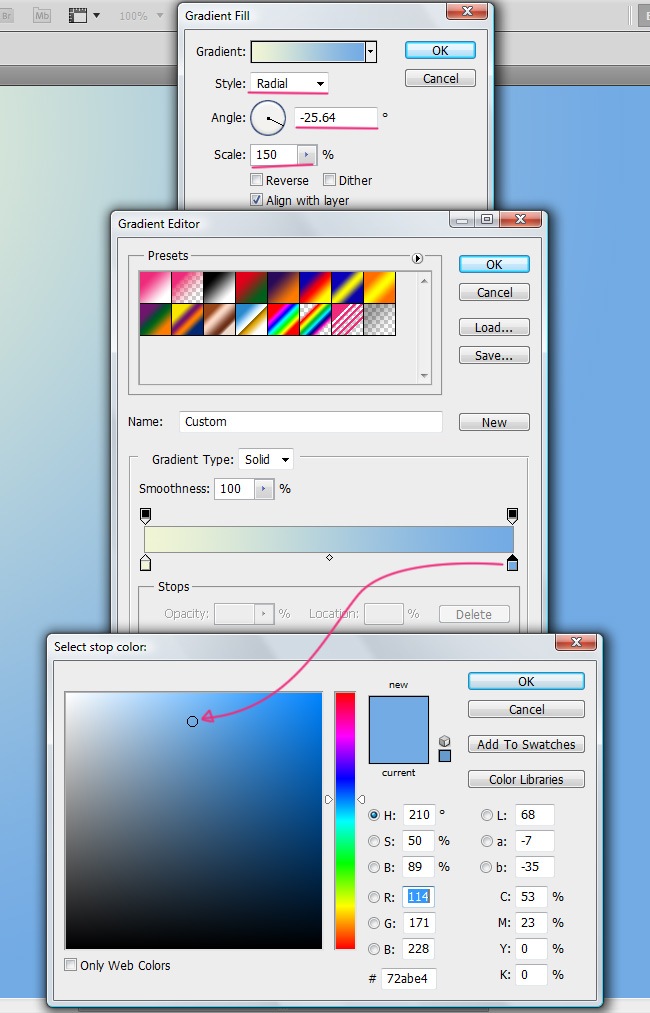

And now adjust your gradient according to the following screenshot:

image 3

image 4

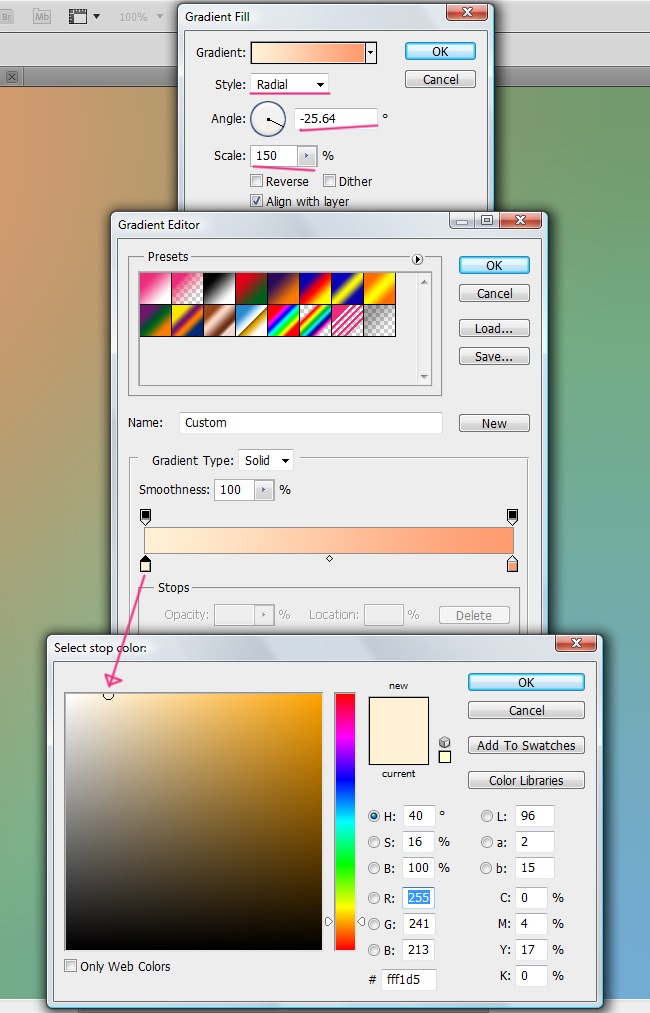

Let's add a new gradient layer in top of this one and set it up according to the following parameters.

image 5

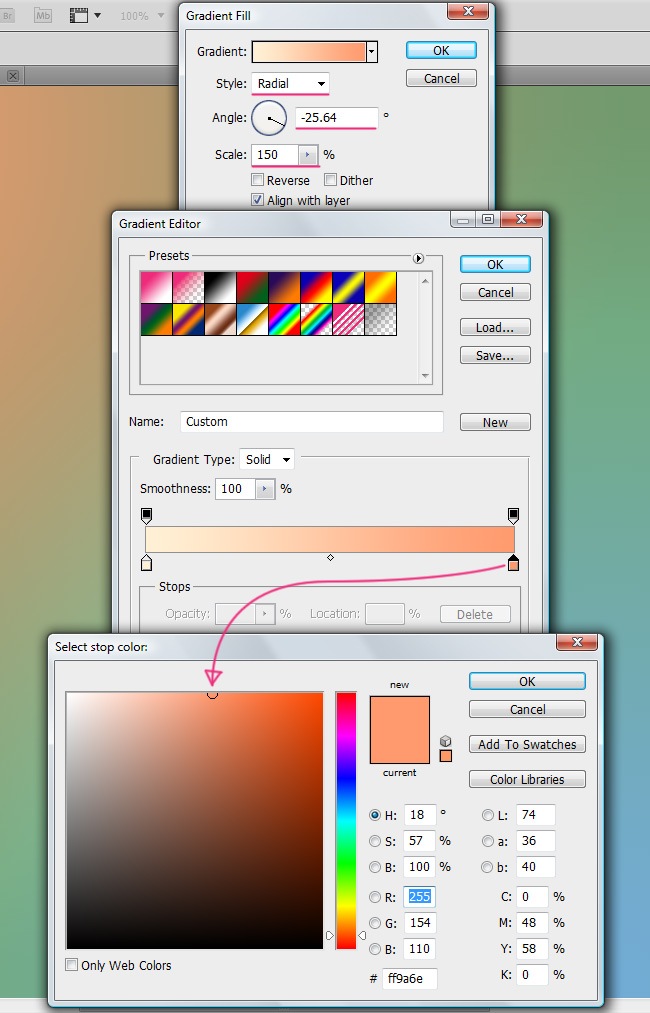

Make sure that your screen shows the same thing that the screenshots do.

image 6

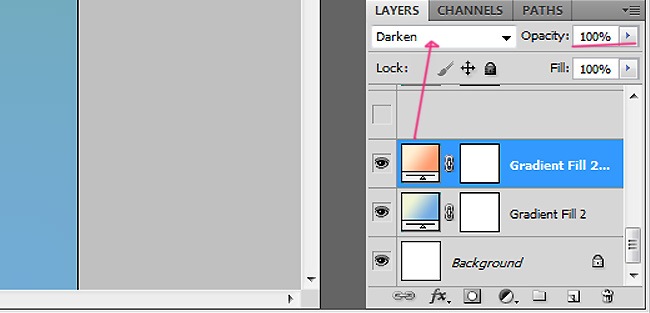

And to make it look nicer, switch its blending mode to darken.

image 7

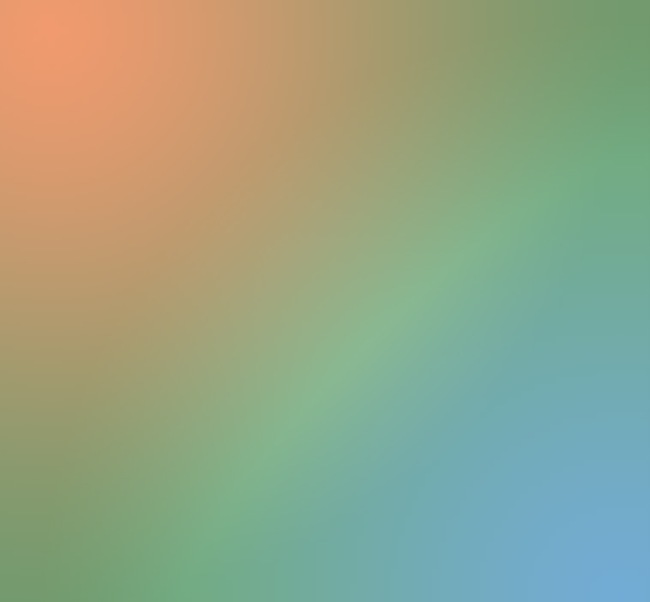

With these two gradients we have established the main tone of our background.

image 8

Create the halftone texture

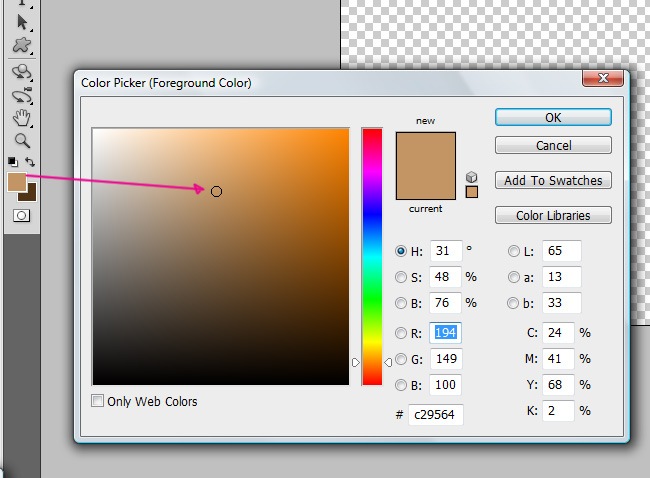

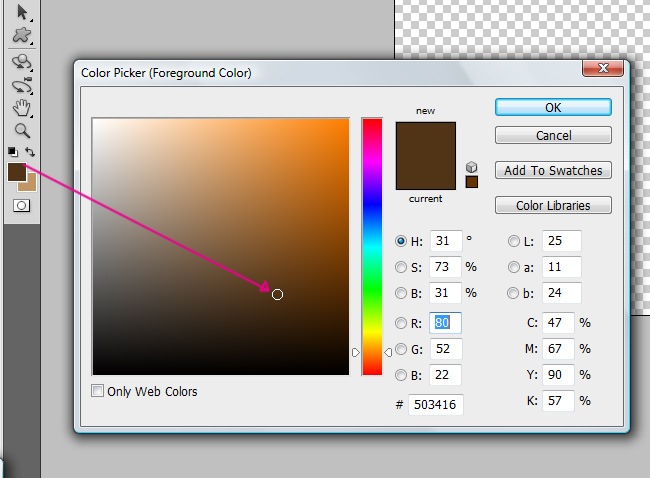

Making textures is one of the most amusing things to do in Photoshop, because with such amount of filters, effects and brushes, the possibilities are just gigantic. On this case we made a fancy halftone texture to place on top of the two gradients that we previously created. For start, let's make a new layer and then change the default colors at the toolbar.

image 9

image 10

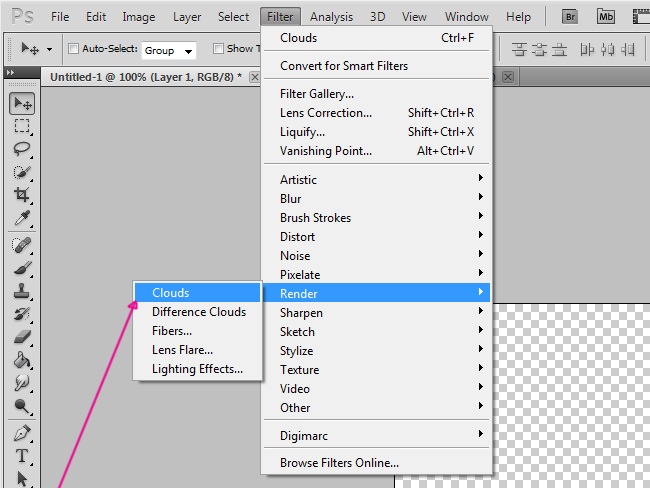

And now we add some clouds to begin our texture, you need to go to Filter>Render>Clouds.

image 11

And there you have them, some fancy clouds that will make the start of our texture.

image 12

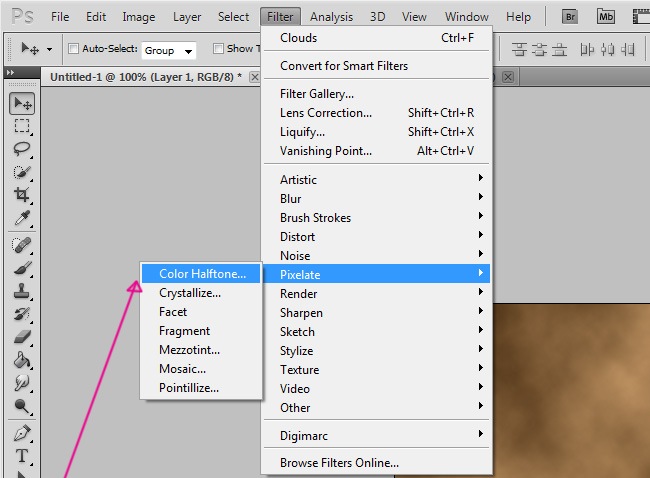

Then we need to experiment a little with filters, look for Filter>Pixelate>Color Halftone.

image 13

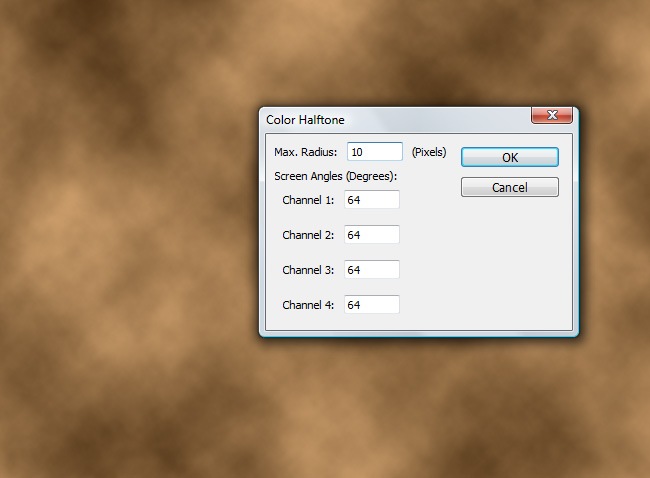

In our background's case, we decided to leave the values exactly like the following screenshot:

image 14

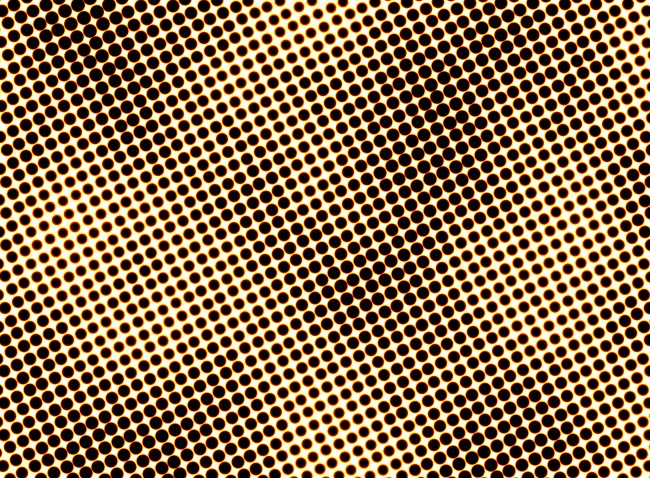

And this is what we obtained:

image 15

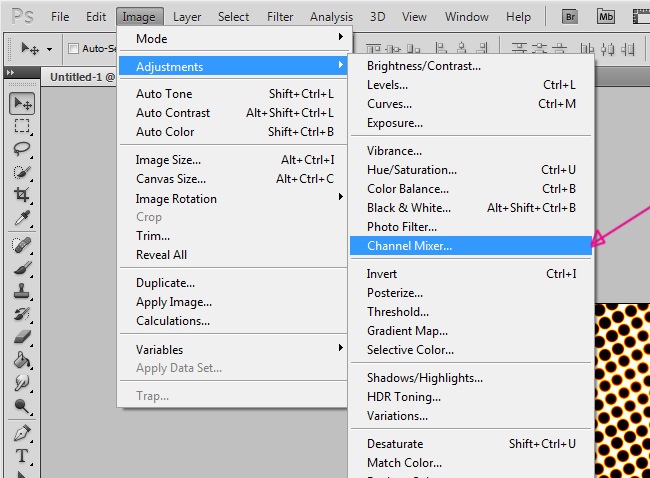

Having the layer selected, go to Image>Adjustments>Channel Mixer to make it black and white.

image 16

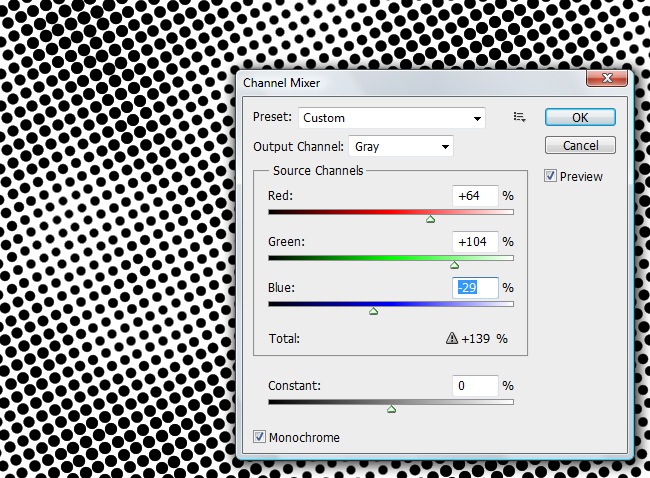

Check the monochrome field and then play a little bit with the handlers to set up the maximum contrast possible.

image 17

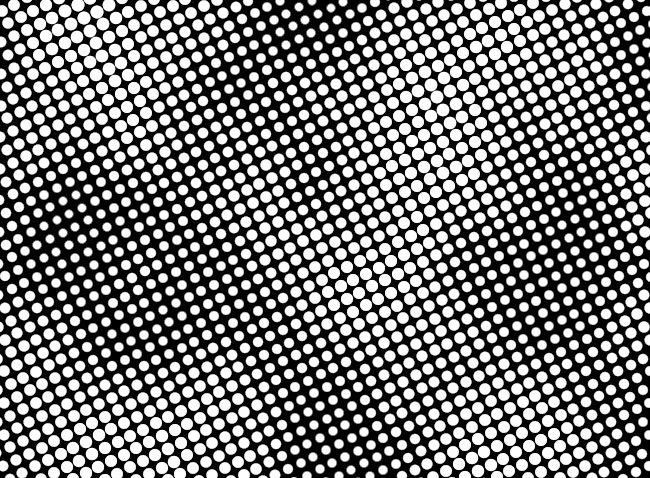

Good, now we need to select the layer and go to Image>Adjustments>Invert or simply click Ctrl + I.

image 18

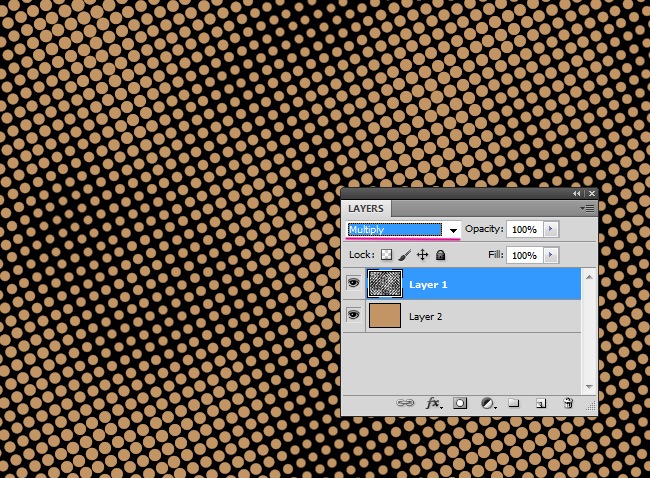

Because we already had our basic color palette established, just create a new layer behind the halftone and fill it using the paint bucket, then select the halftone layer and switch its blending mode to multiply.

image 19

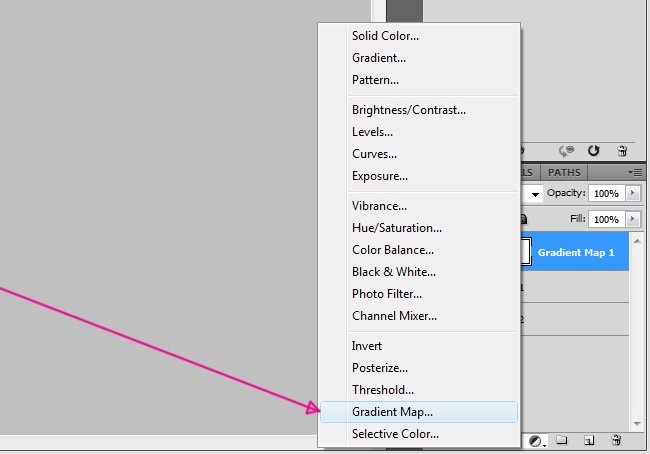

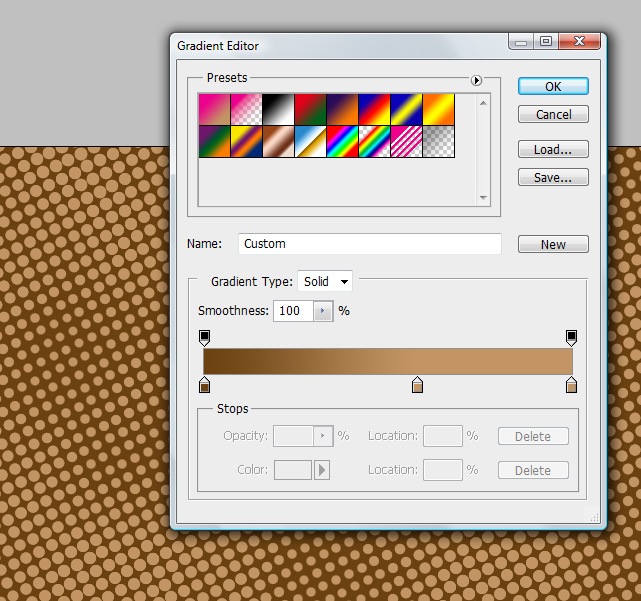

If you want to add a little extra definition to our halftone, you can add a gradient map adjustment layer and configure it according to these parameters:

image 20

image 21

Great, now you can flatten all the layers that we used to create the texture.

image 22

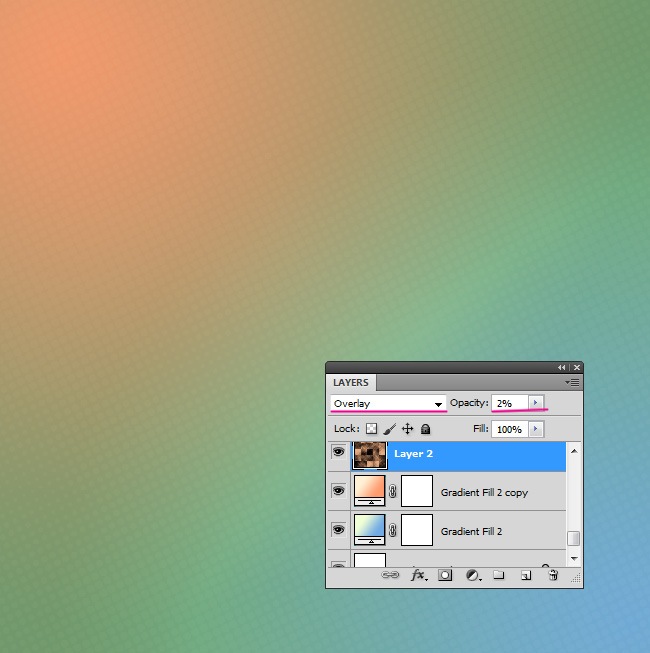

Finally you need to switch the blending mode to Overlay and then reduce the opacity to 2 %.

image 23

Beautiful isn't it?, having this texture done we can continue with the remaining elements of our background. The upcoming element is a new gradient fill.

image 24

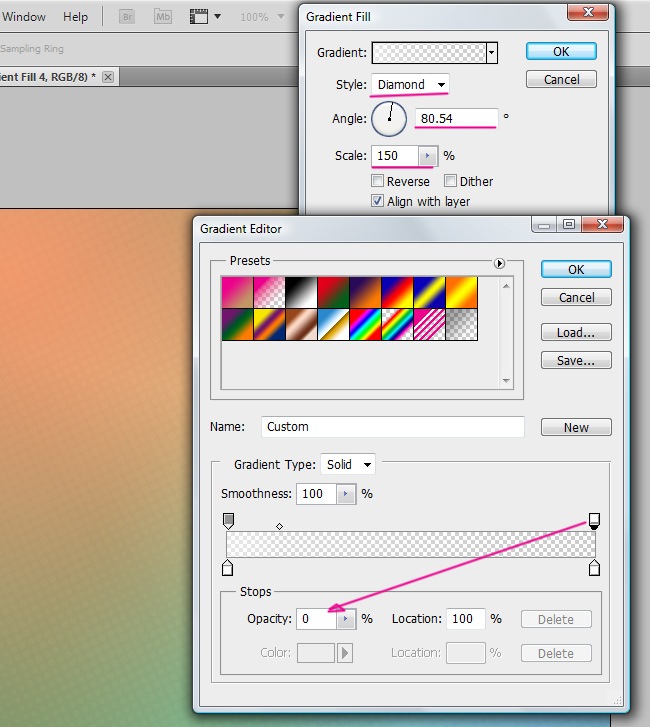

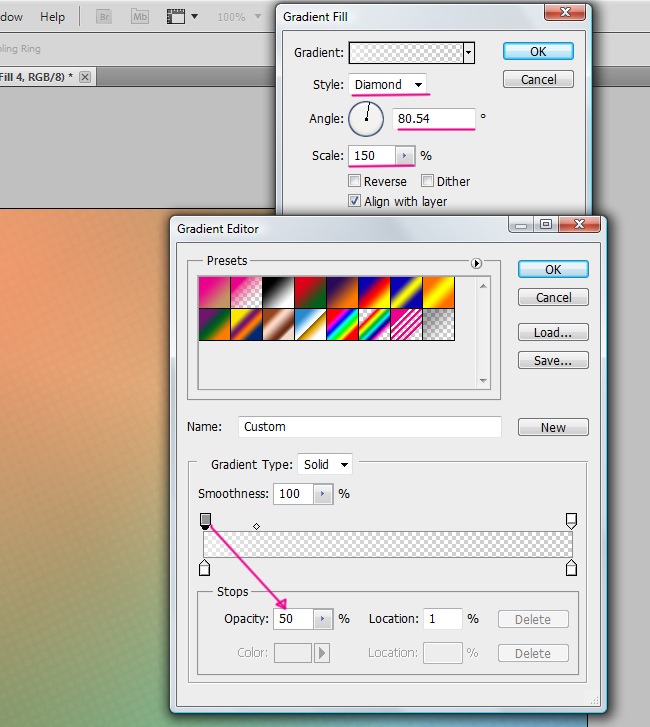

It's important to set the gradient type to diamond and mostly pay a lot of attention to the opacity values.

image 25

You need to be wise when using gradients, many times the most subtle element can hardly affect an entire artwork.

image 26

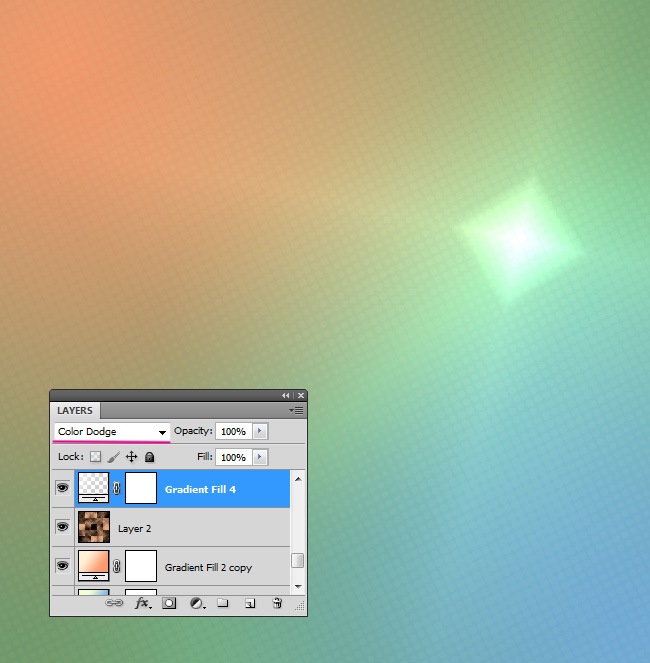

The last step before finishing this fill is switch the blending mode to color dodge.

image 27

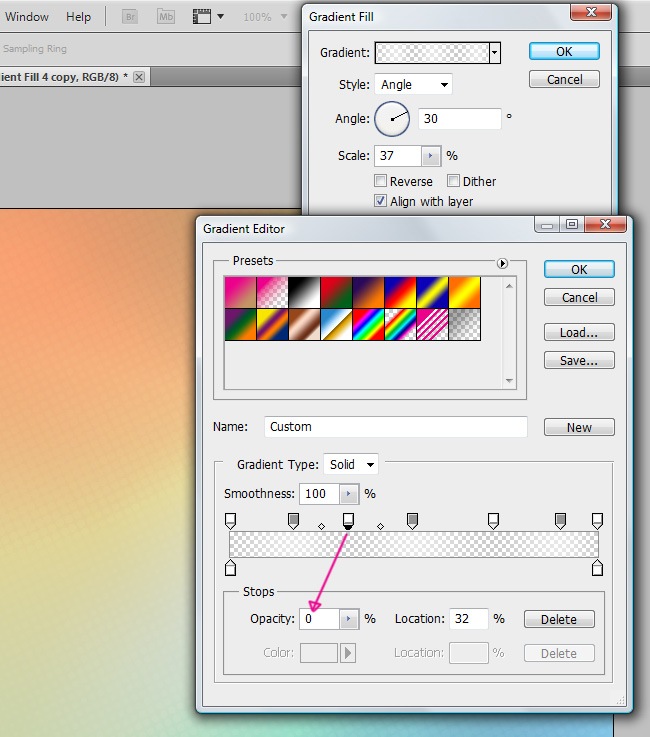

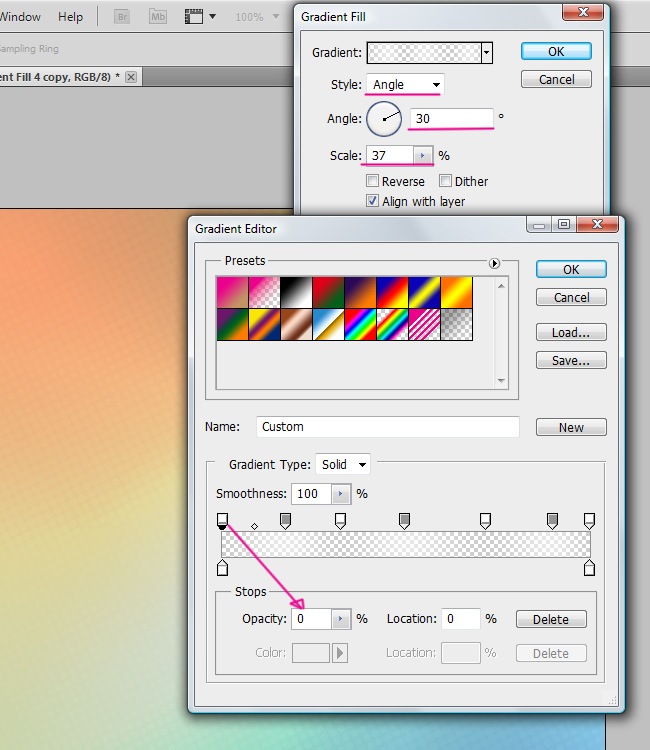

Another fill goes in top of this, let's see what this is about.

image 28

image 29

image 30

image 31

image 32

image 33

image 34

image 35

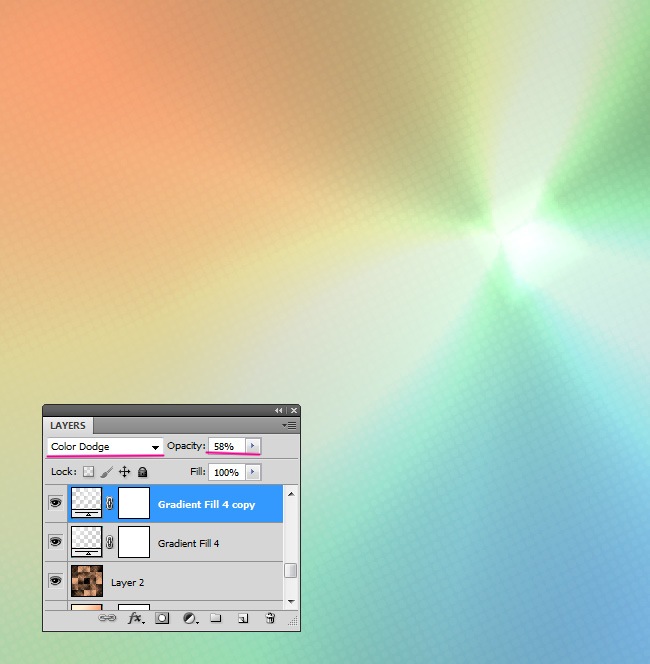

Having the gradient set, proceed by switching the blending mode to color dodge and then reduce the opacity to 58 %.

image 36

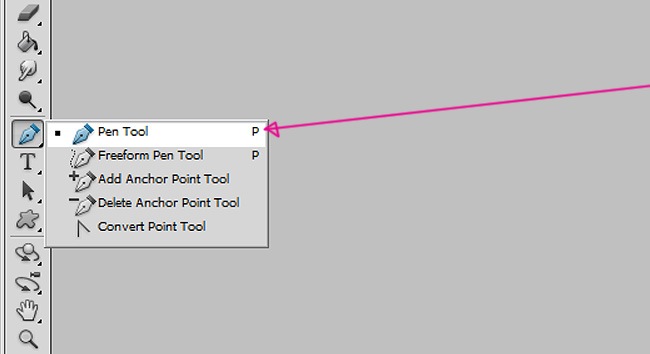

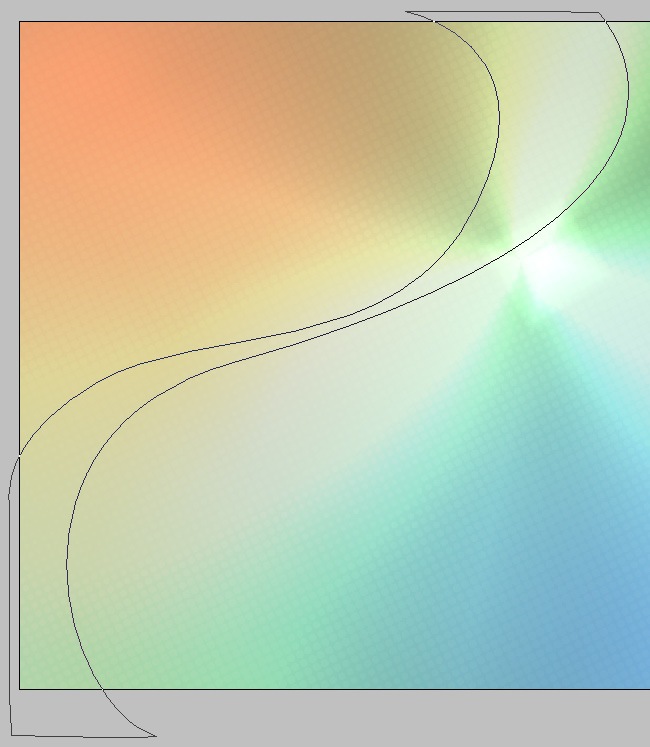

Using the pen tool, let's trace the following path in a new layer.

image 37

image 38

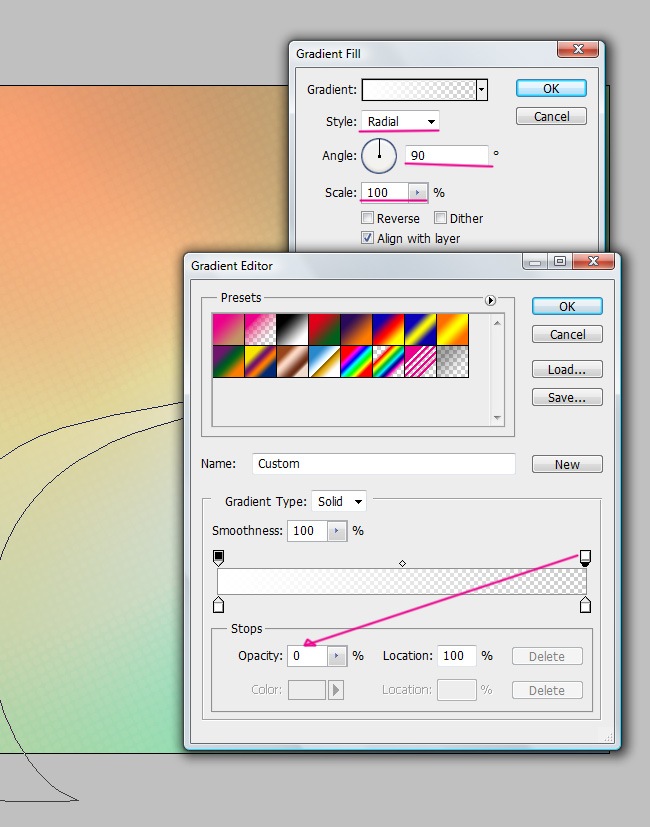

And now enter a new gradient fill, you will see how it gets masked within the path that we just did.

image 39

image 40

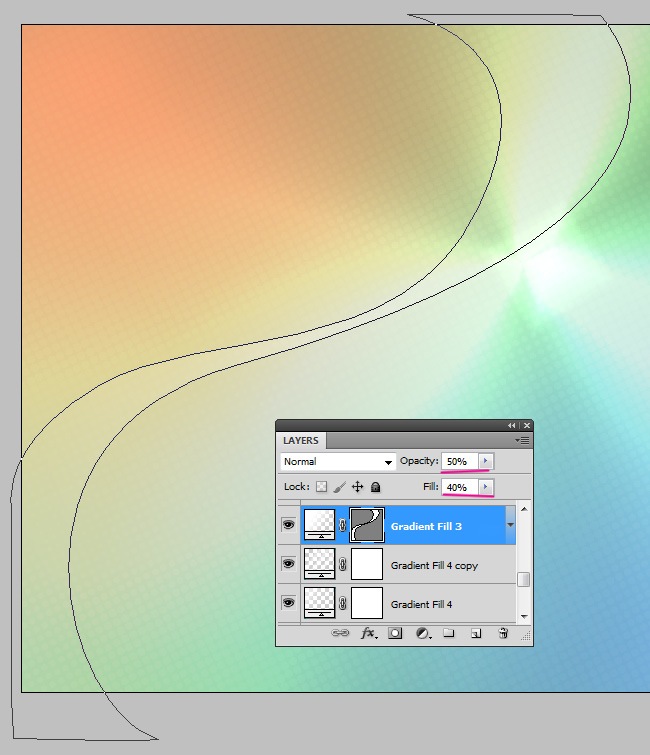

Reduce its opacity to 50 % and the fill to 40 % to make it look nicer and more subtle.

image 41

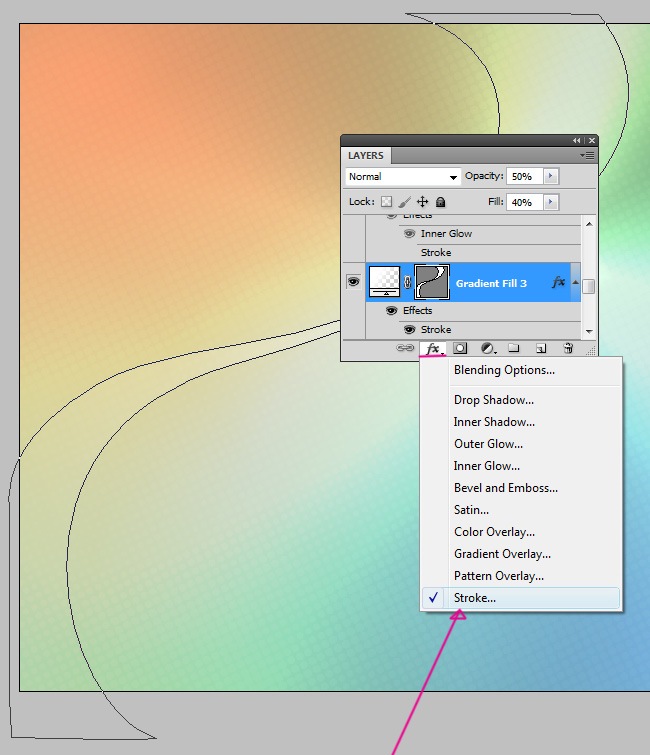

Click on the "fx" button at the layer menu to add a new effect, on this case it's going to be stroke.

image 42

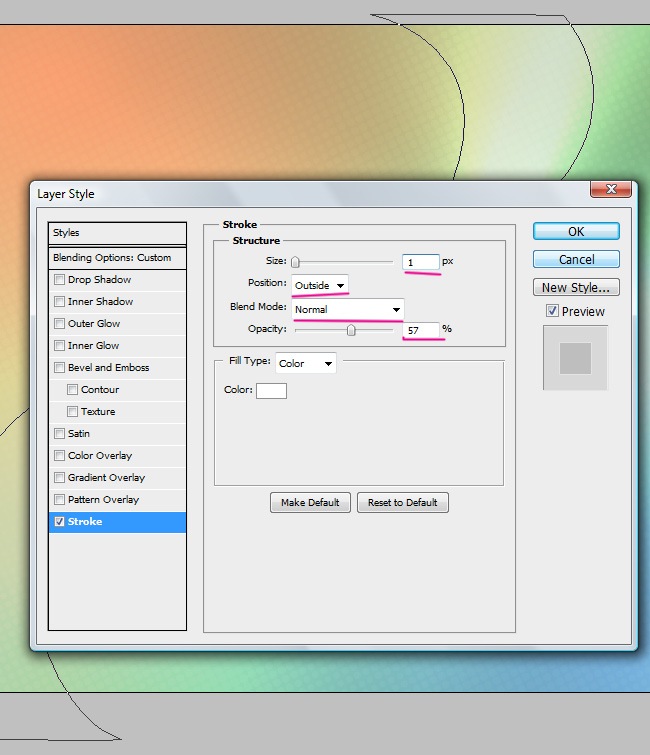

And adjust the properties according to the next screenshot:

image 43

Look how great our object looks, a simple effect such as stroke can add a lovely touch to our gradient.

image 44

Grab the pen tool one more time to create the following shape:

image 45

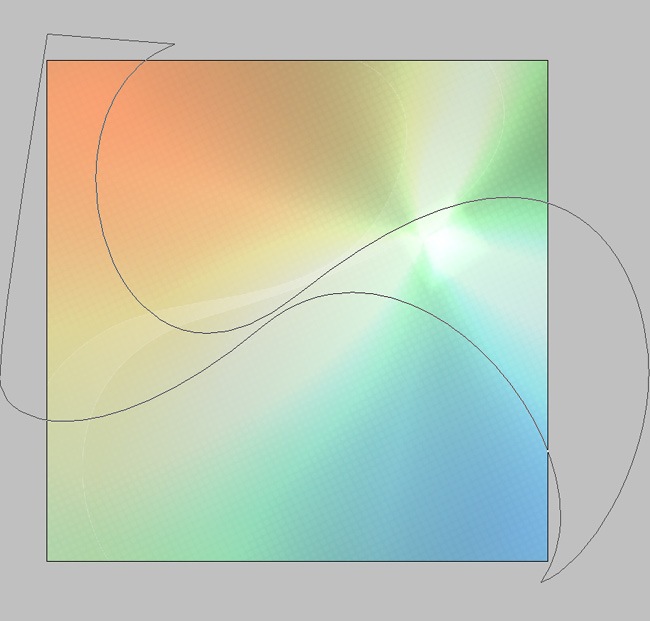

We trace them beyond the canvas' boundaries to make sure that nothing gets outside the wished area.

image 46

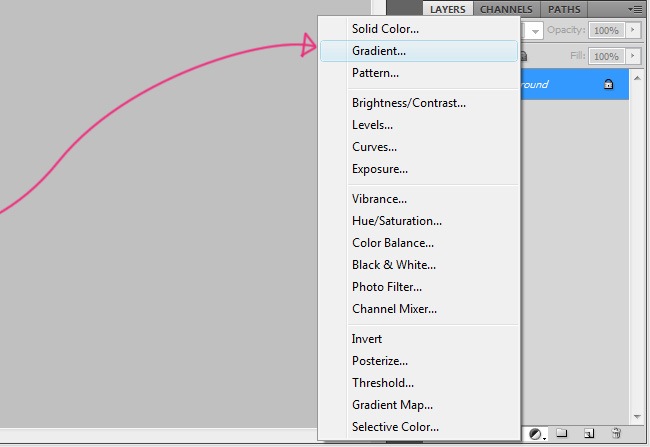

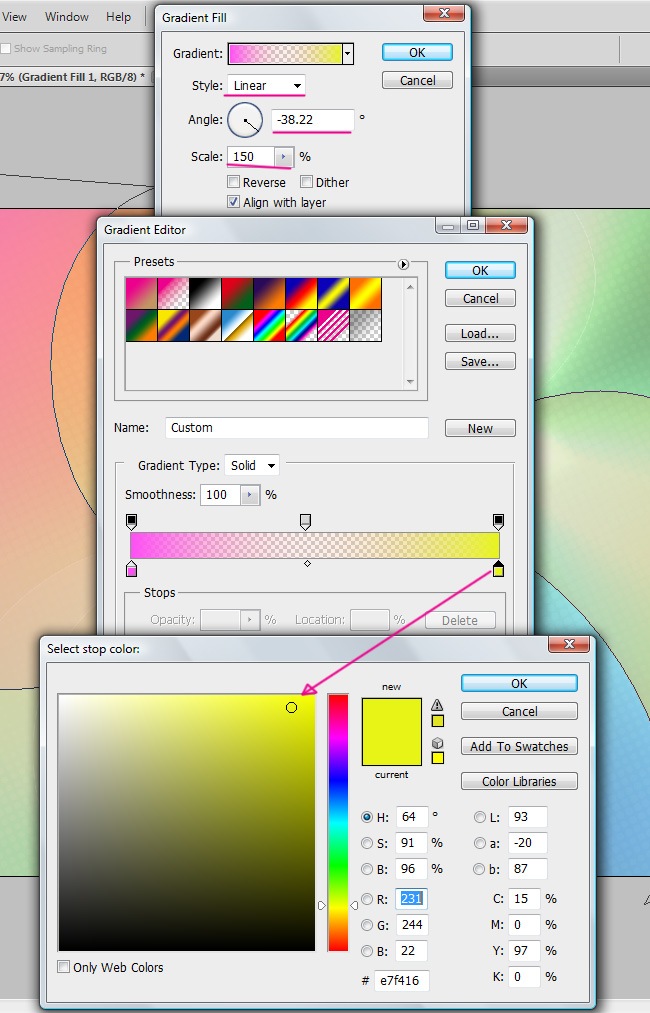

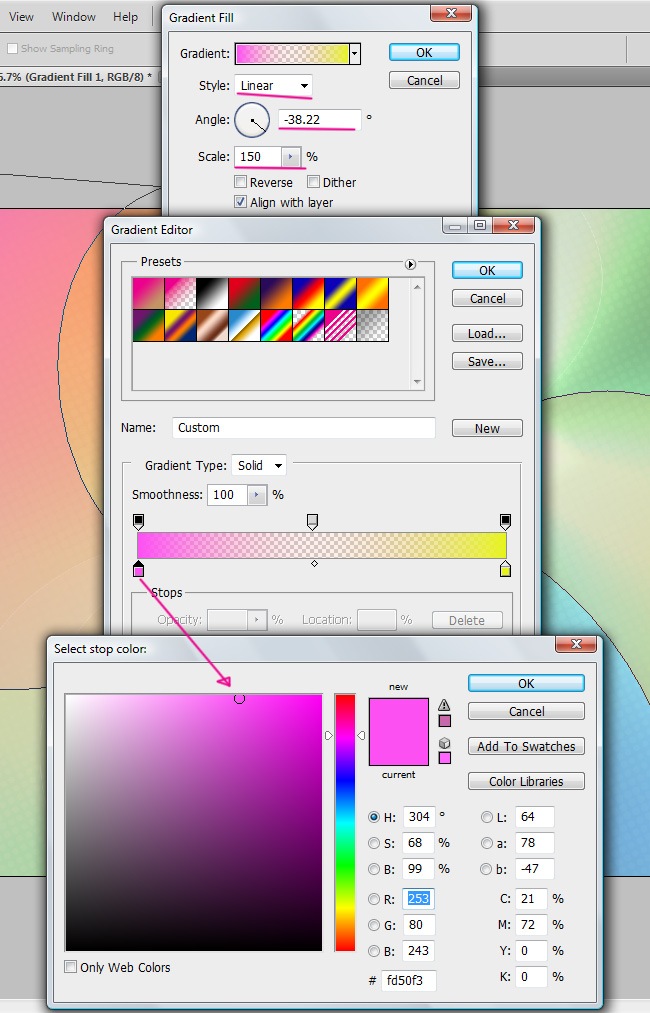

Then we go to the layers window and insert a new gradient fill, pay attention to the upcoming screenshots to see how you need to proceed.

image 47

image 48

image 49

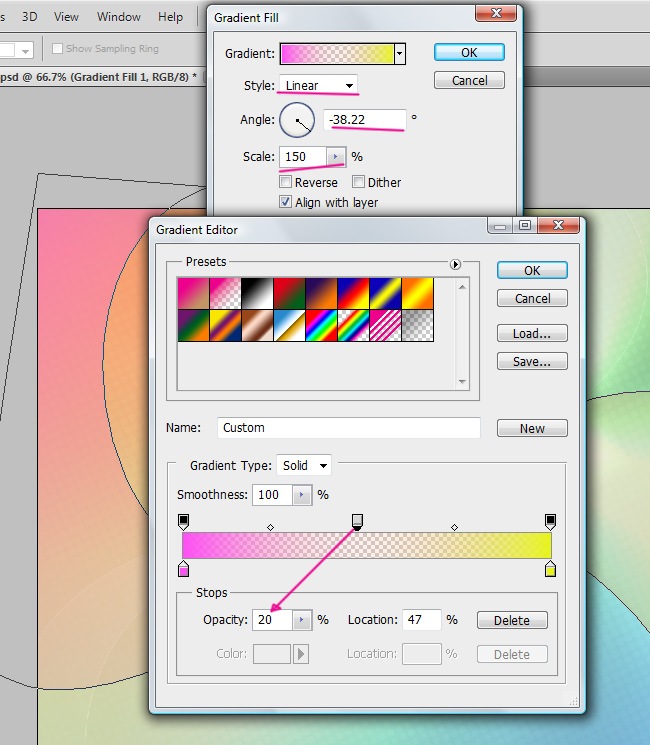

And in the middle zone of the gradient we add an extra handler with 20 % opacity.

image 50

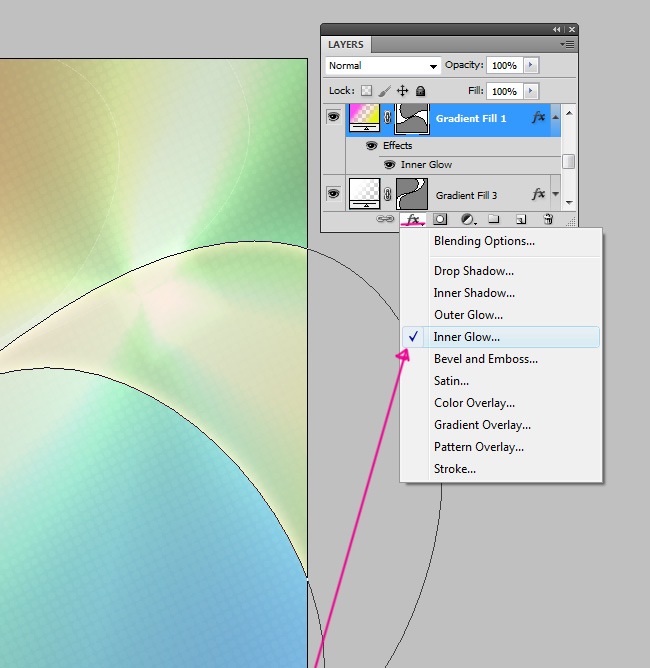

One more thing, let's go back to the layers window and add a new effect, on this case it's going to be inner glow.

image 51

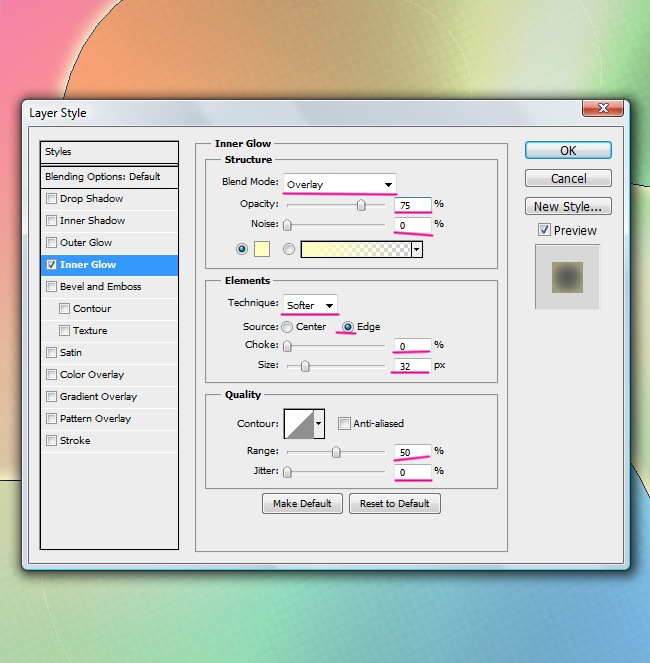

The inner glow properties will be customized exactly like the following screenshot:

image 52

Look how brilliant our background is turning into, how would imagine that it was this easy to do.

image 53

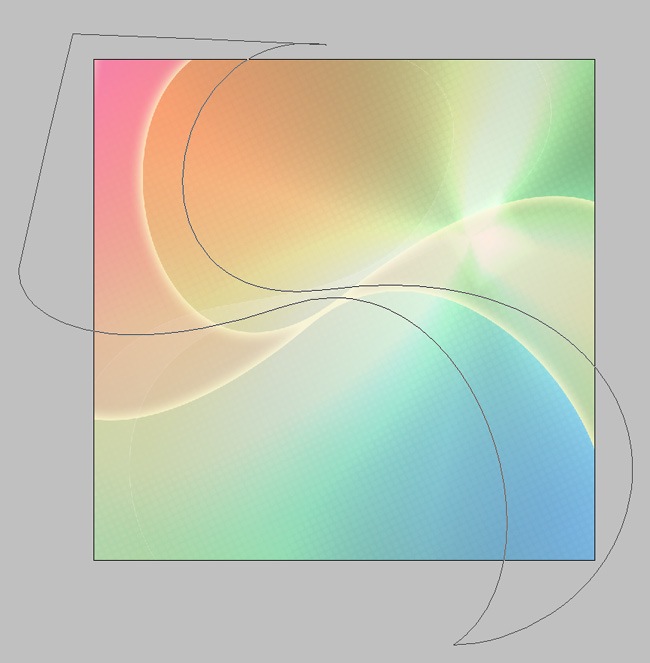

We're getting closer, don't remember to always have a cup of coffee (or a glass of orange juice if you don't like caffeine) to keep hydrated during this Photoshop marathon, now we're ready to draw the next shape.

image 54

image 55

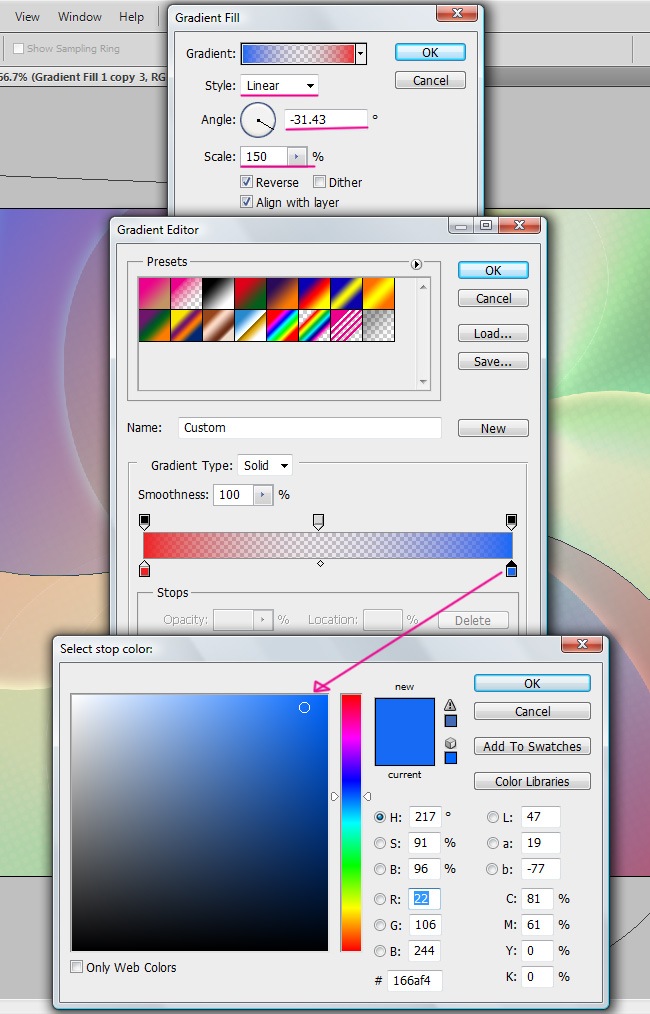

And then as usual, we continue by adding a gradient to be masked within the path.

image 56

image 57

image 58

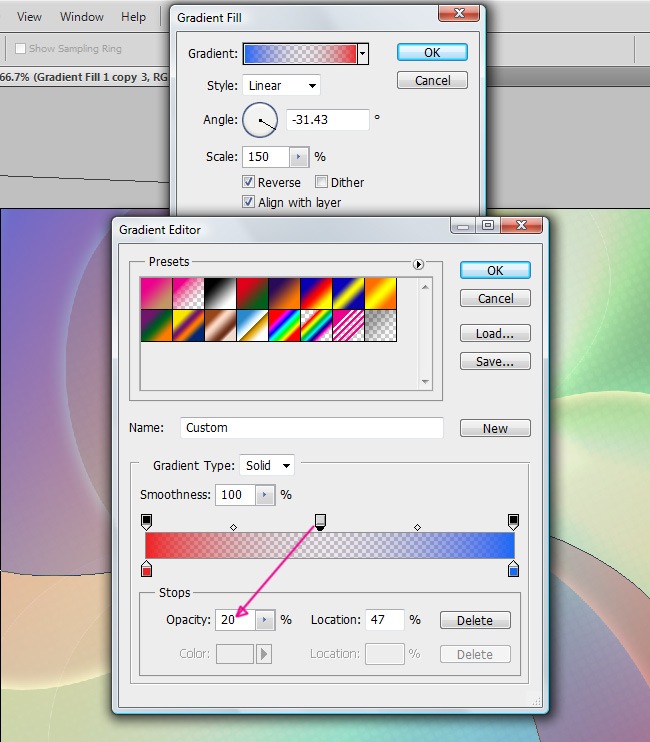

And just like we did on a previous background, insert an additional handler with a reduced opacity value.

image 59

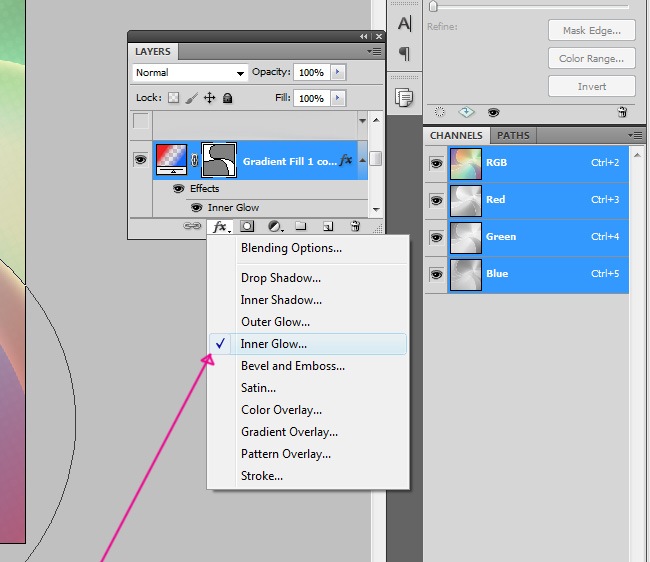

Good, then as we did before, let's add an inner glow effect to our object.

image 60

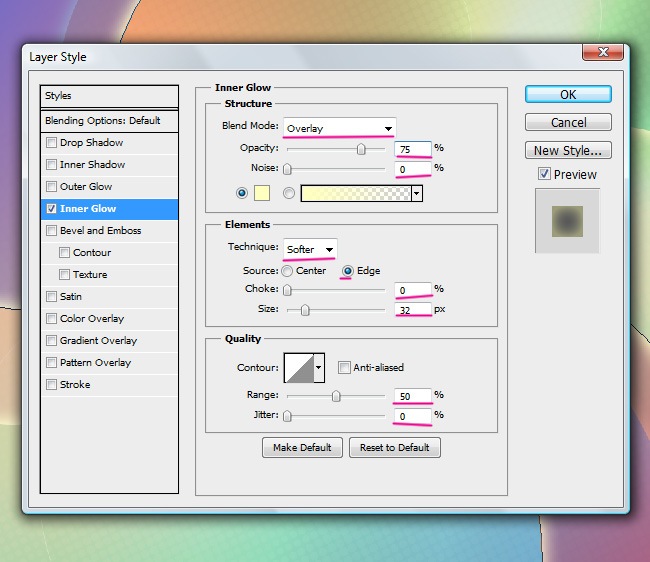

Check out the values that we established for this inner glow effect:

image 61

Take a look to the results, we're doing a neat job, just a few more details and our design will be complete.

image 62

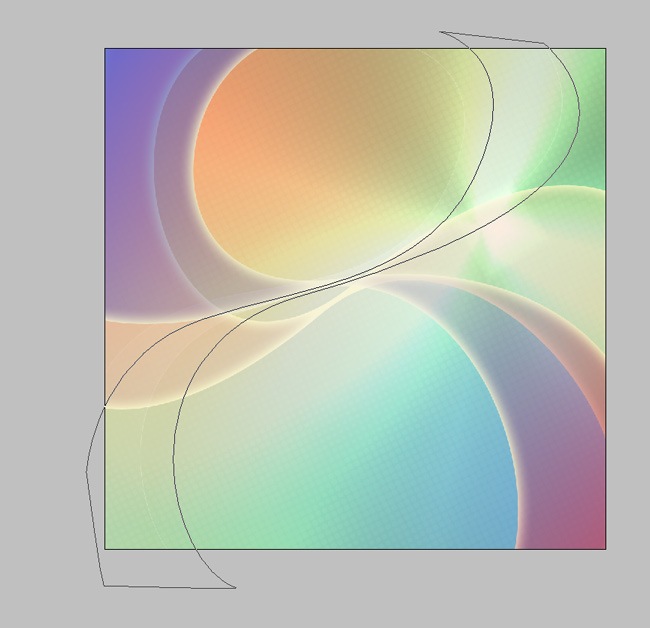

Keep it up, this is how the next path is going to look, grab your pen tool and start drawing.

image 63

image 64

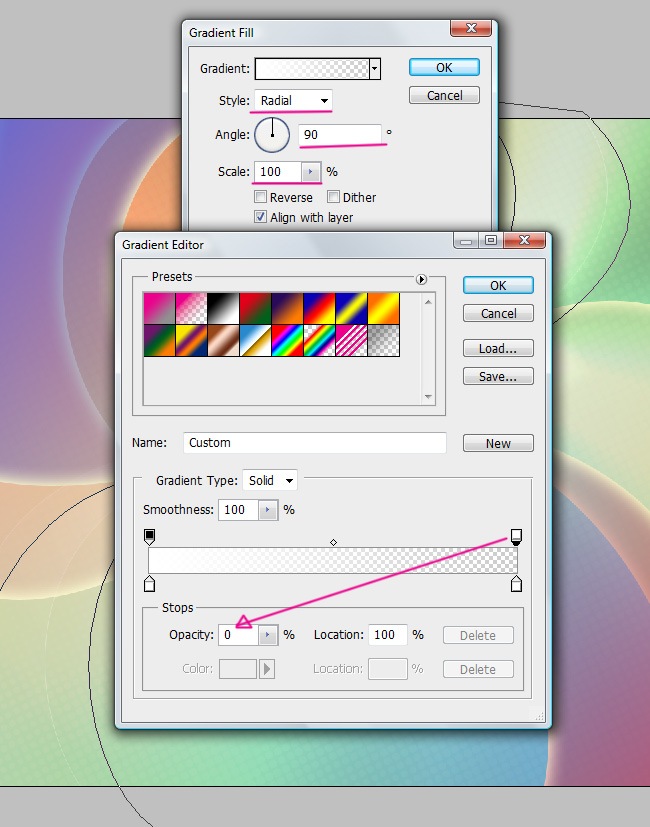

You know what to do, it's time to add a new gradient, so it's time to get down to business.

image 65

image 66

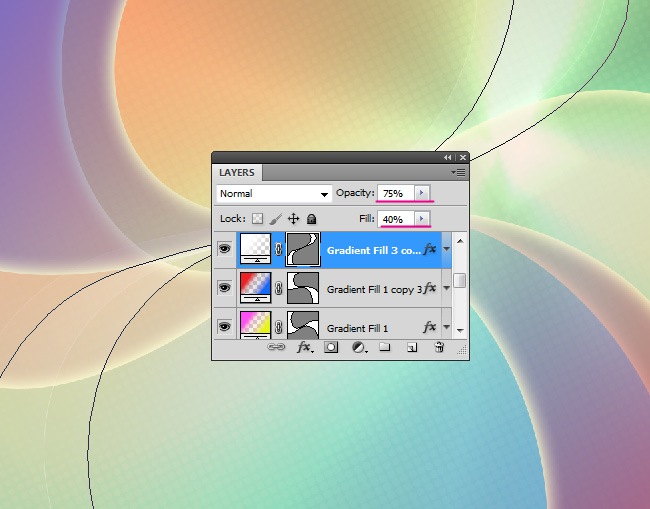

And having this part completed, select the layer and then reduce the opacity value to 75 % and the fill to 40 %.

image 67

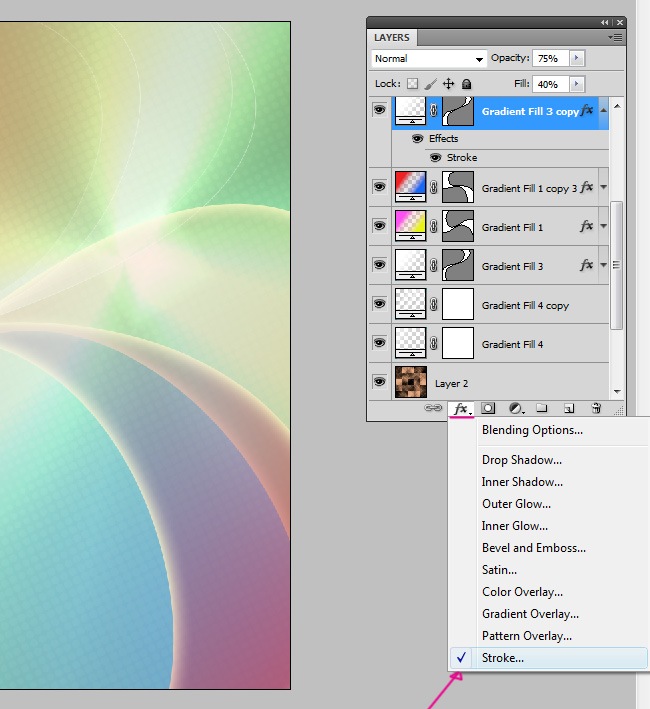

The final part before completing this element is add a stroke effect, which you can do directly from the layers window.

image 68

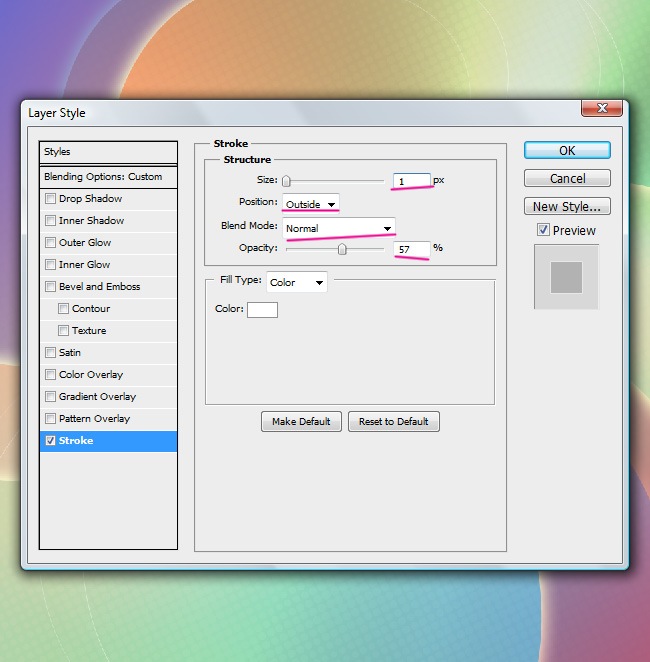

These are the parameters that you need to follow regarding this effect:

image 69

Awesome, with every object that we complete our design is getting nicer and more eye-catching.

image 70

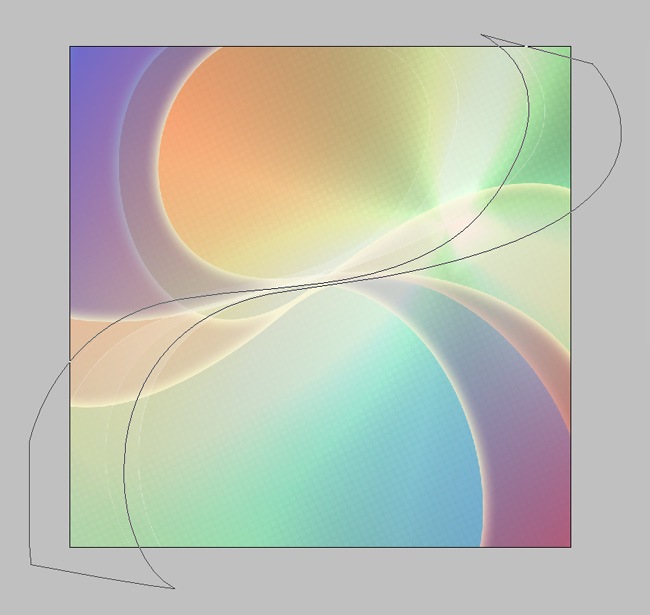

Now we're getting closer to the end of this tutorial, the next path to trace is the following:

image 71

image 72

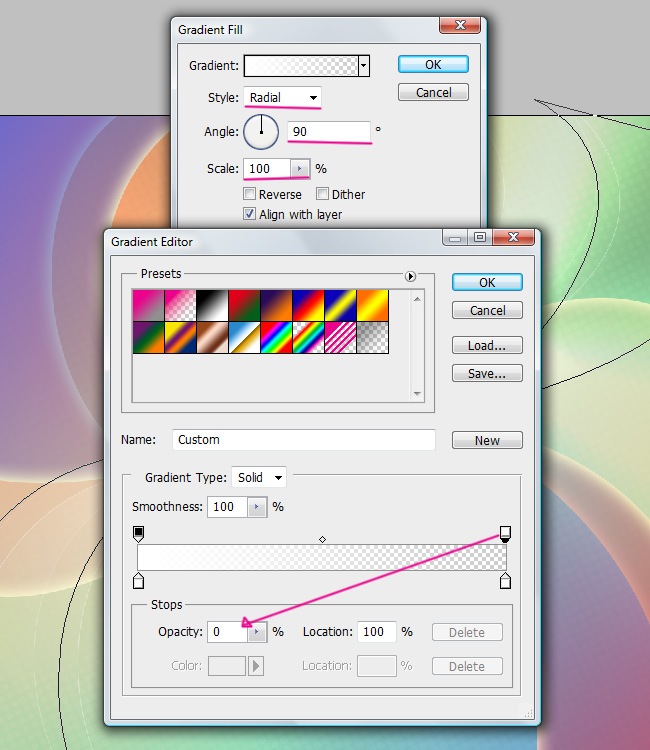

And the gradient fill that goes inside this path is the following:

image 73

image 74

Note: If you find a screenshot of just one opacity handler and there's no trace of the other, it means that the missing handler has a 100 % opacity.

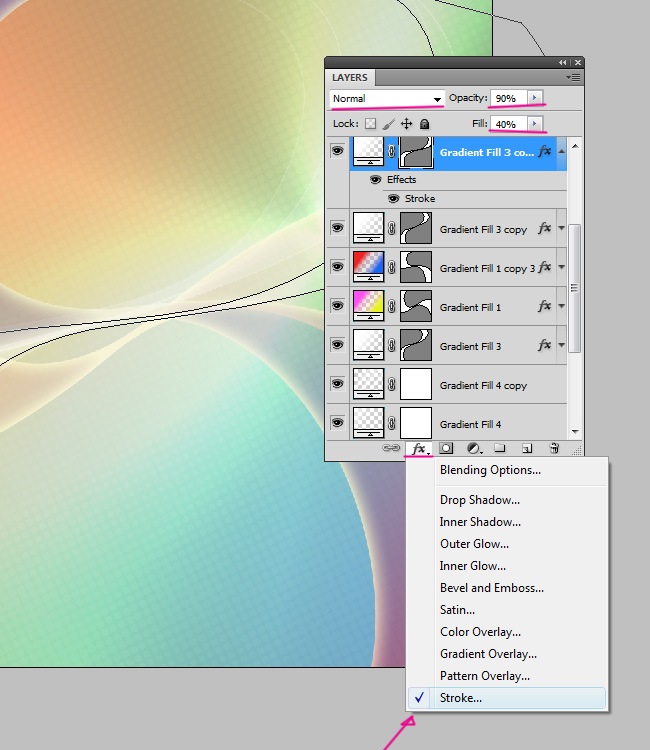

Having the gradient finished, select the layer and reduce the opacity value to 90 % and the fill to 40 %, then look for the add effect button and insert a new stroke effect to the element.

image 75

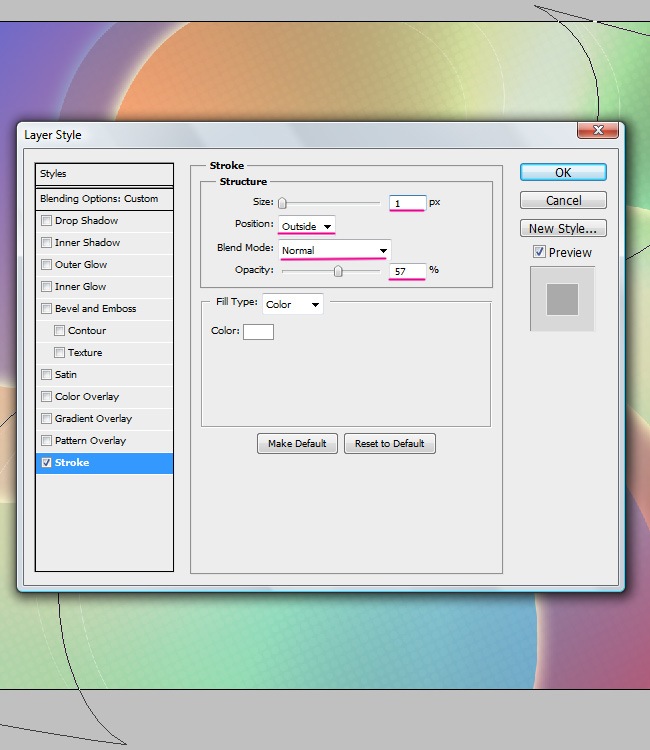

These are the parameters under which you need to configure the stroke effect on this case:

image 76

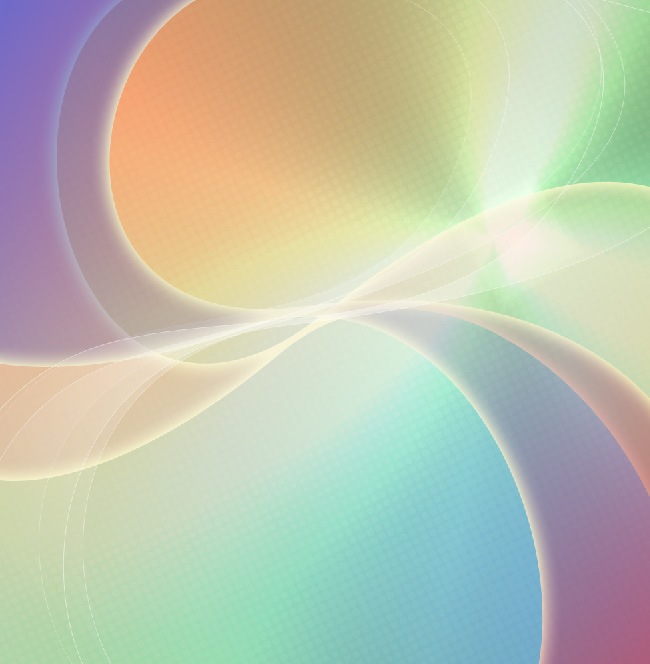

Notice how our design is looking so far, if there's something clearly different being showed at your screen, then we suggest you to review the whole tutorial to see what mistake you have possibly committed.

image 77

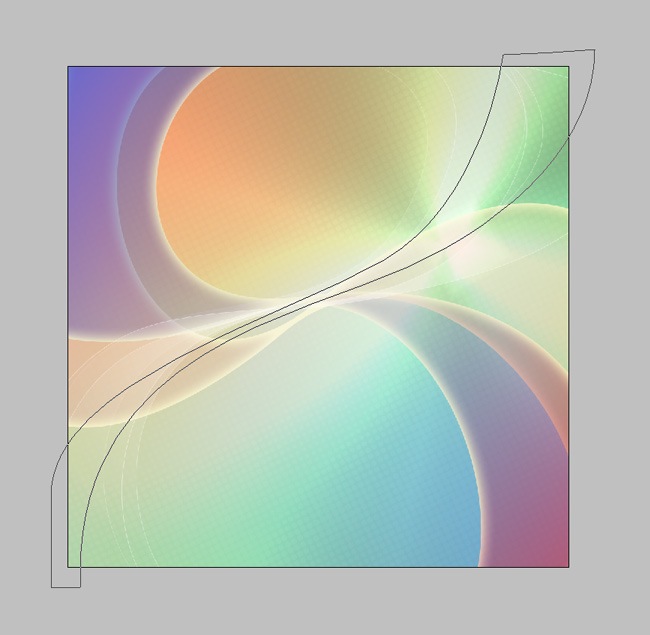

Just two more elements before we start adding the little details, one more time. it's time to use the pen tool

image 78

image 79

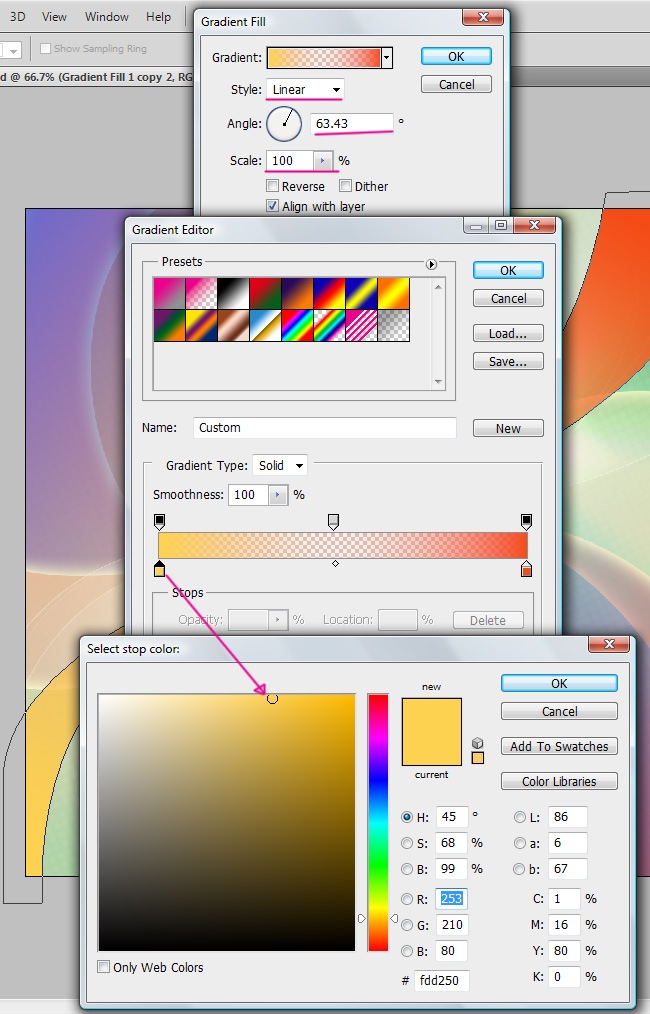

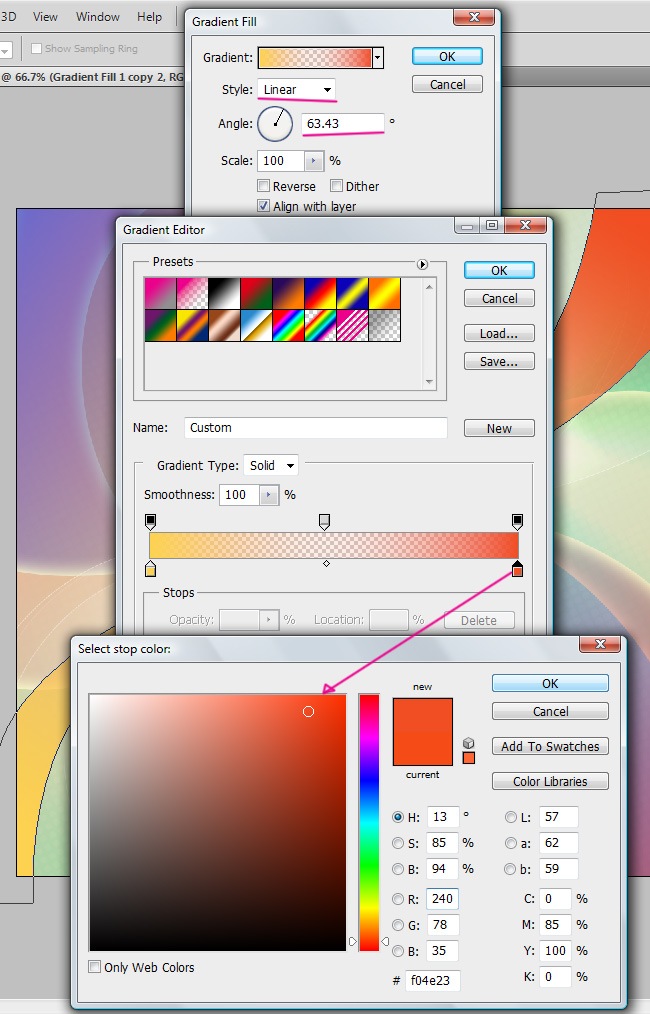

Fill the path using the following gradient:

image 80

image 81

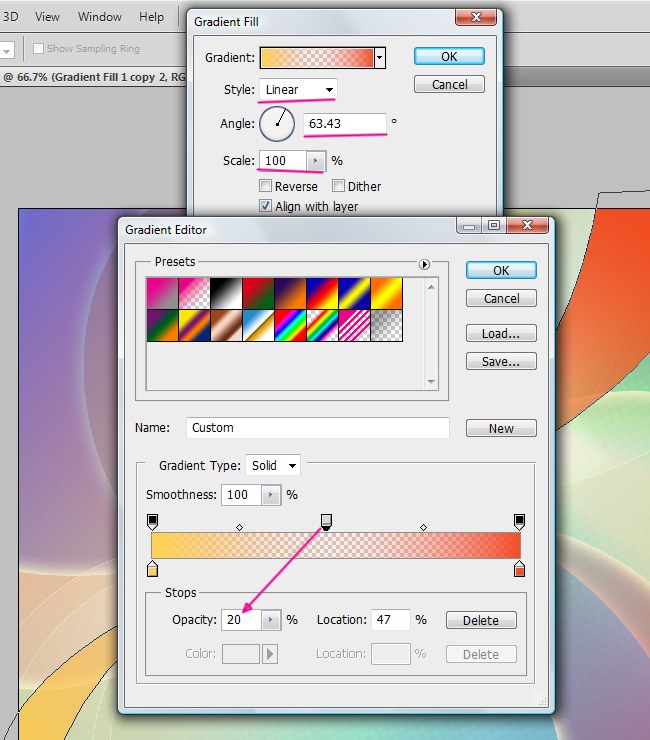

As we did before, an extra handler goes in the middle of the gradient with a reduced opacity value.

image 82

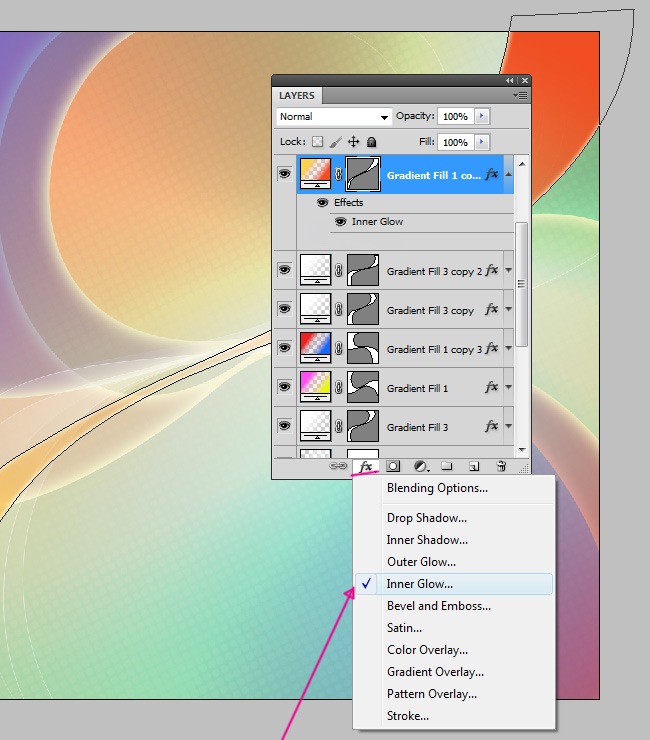

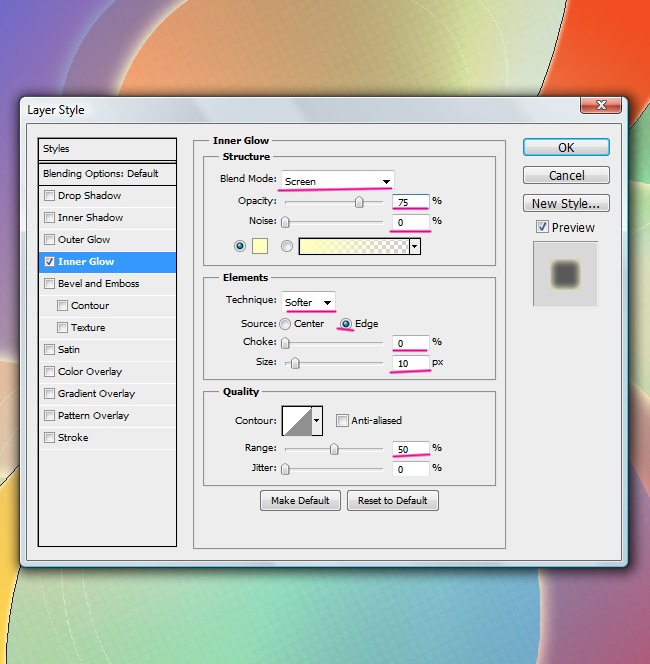

This element has both the stroke and inner glow effect, so let's see how to adjust them.

image 83

image 84

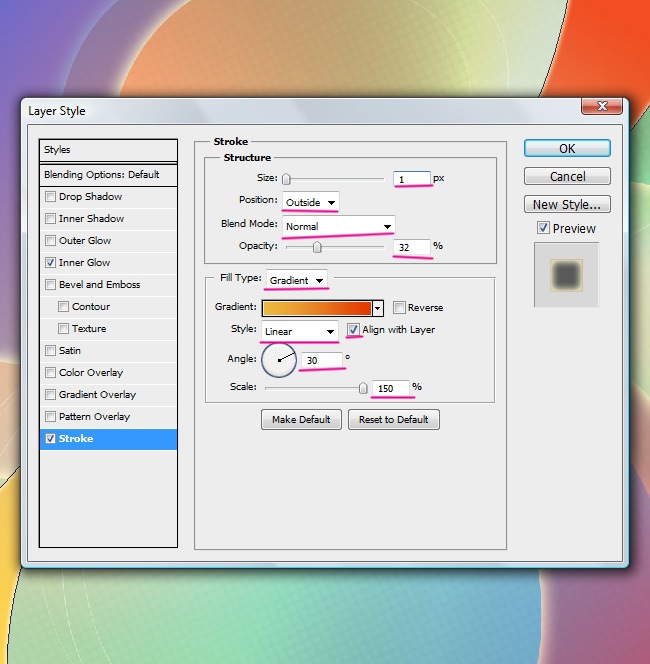

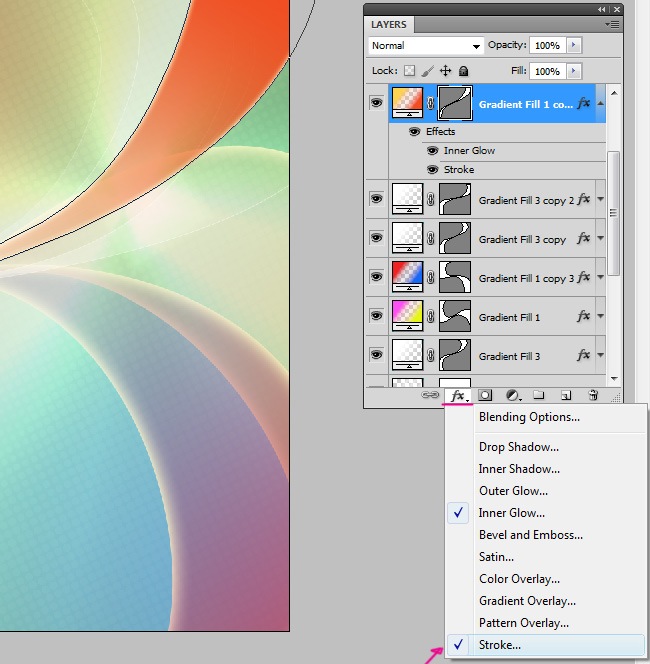

That was inner glow, the deal with stroke is different and goes this way:

image 85

image 86

We're done with this elements, let's zoom out and take a look to our art piece.

image 87

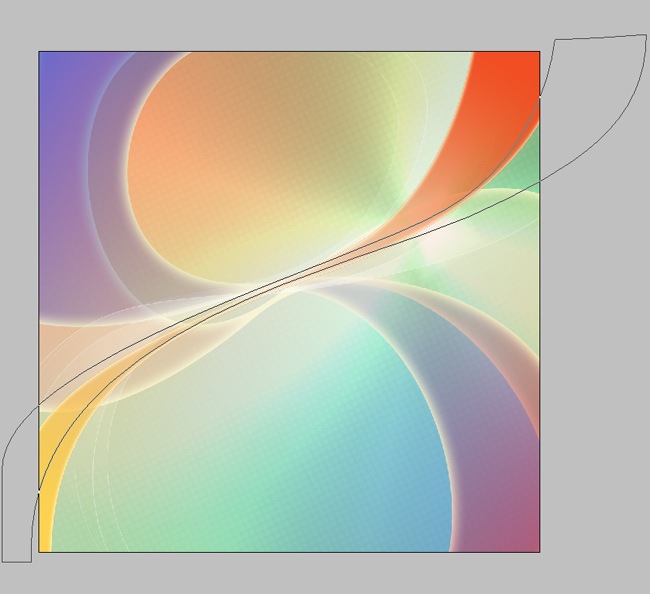

And finally, the last gradient element, first of all draw the path using our famous pen tool.

image 88

image 89

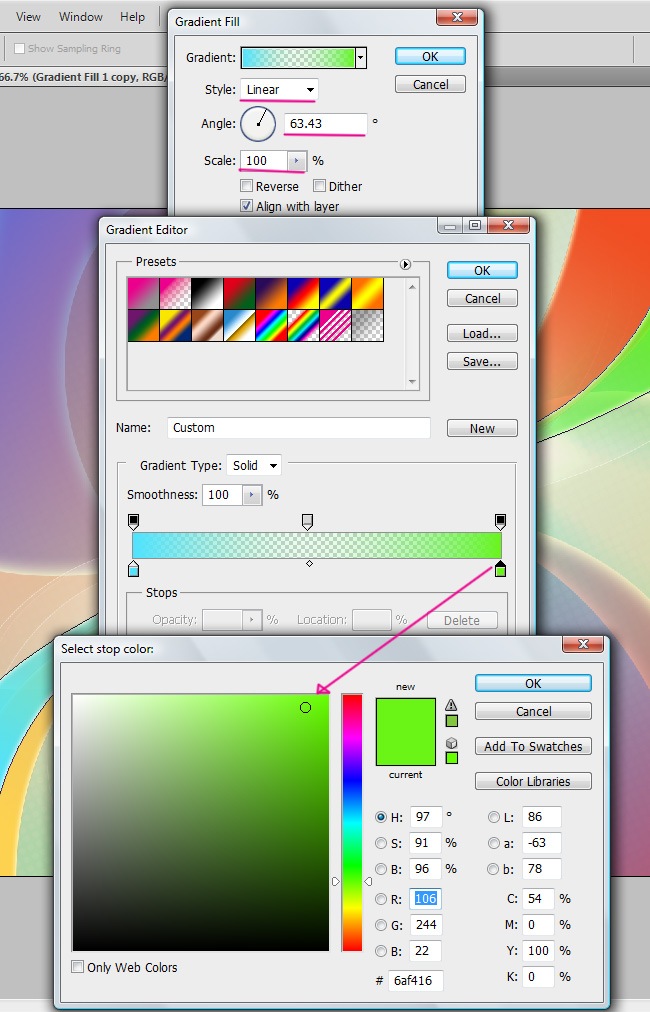

What color may look good in our design?, let's try with a blue/green gradient and see how that turns out.

image 90

image 91

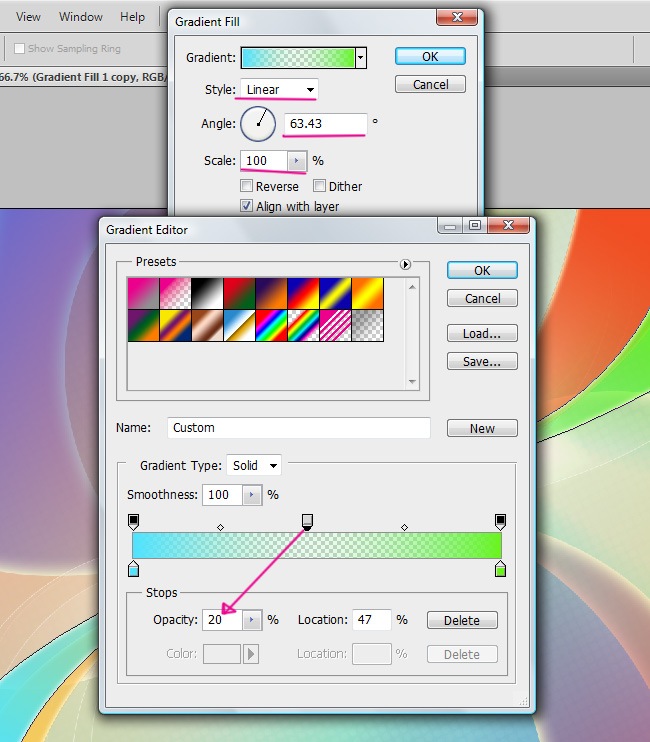

Great, now the middle handler to reduce the opacity, then some effects and we're done with this object.

image 92

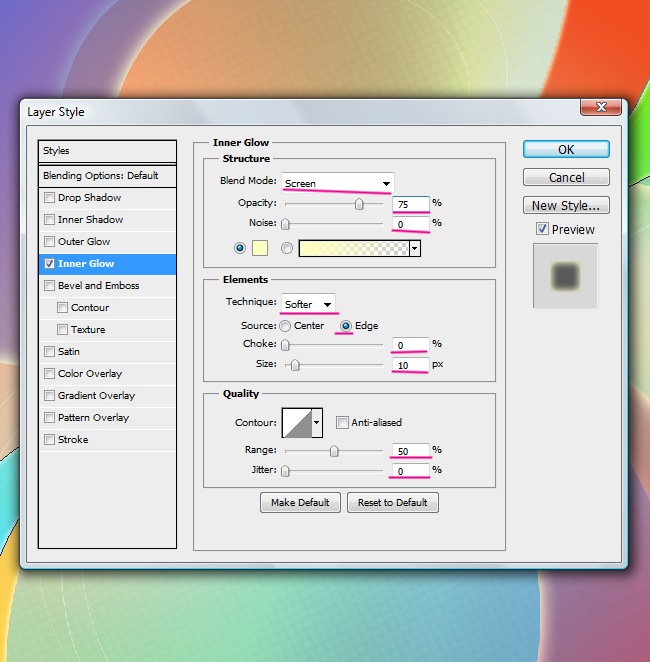

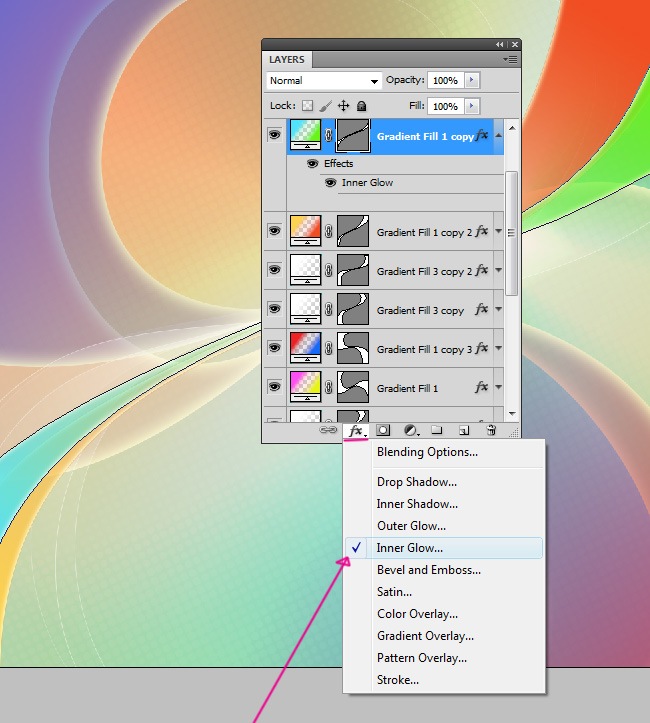

As we told you, just a couple of effects before finishing this element, let's begin with inner glow.

image 93

image 94

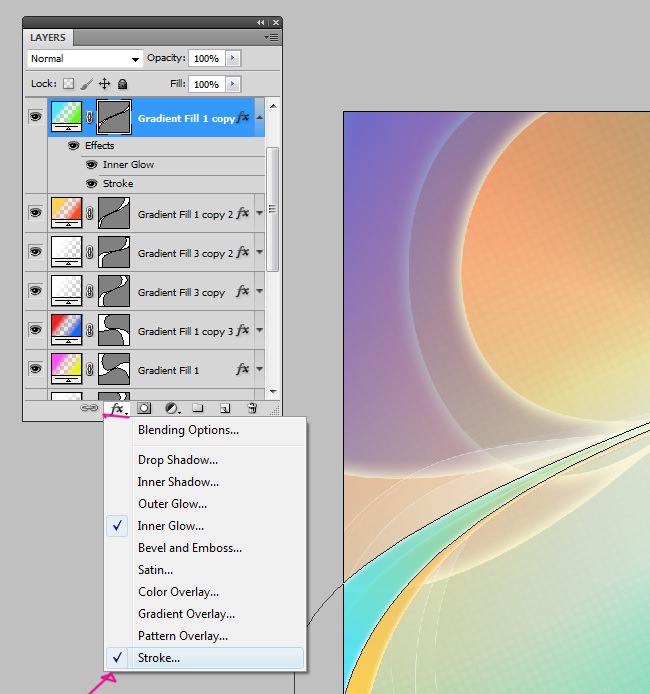

And the other effect is going to be stroke, let's see how it works:

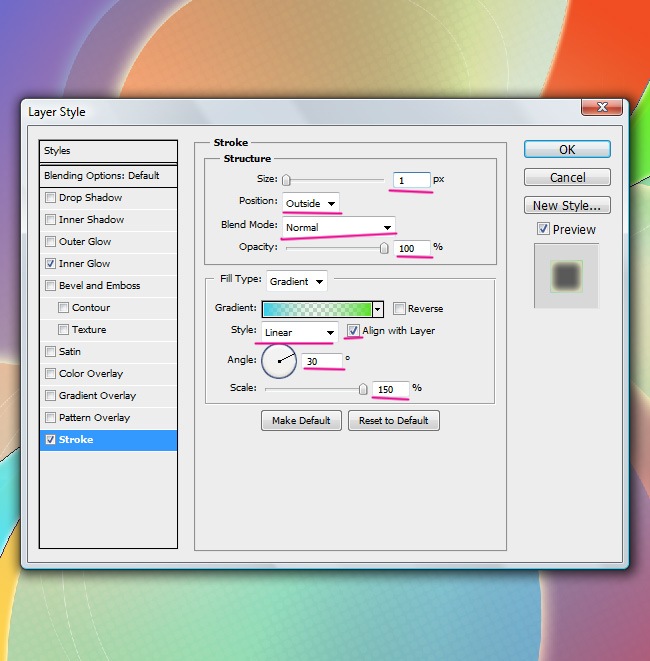

image 95

image 96

Awesome, we have finished making gradients, let's take a look to our fancy background.

image 97

The only thing left to do is add a couple of lens flare elements to add some nice details to our design. We launched a nice tutorial a while ago where we showed you how to create your own lens flare brush in Photoshop, you can visit the tutorial and then add a couple of lens flare elements to the design.

image 98

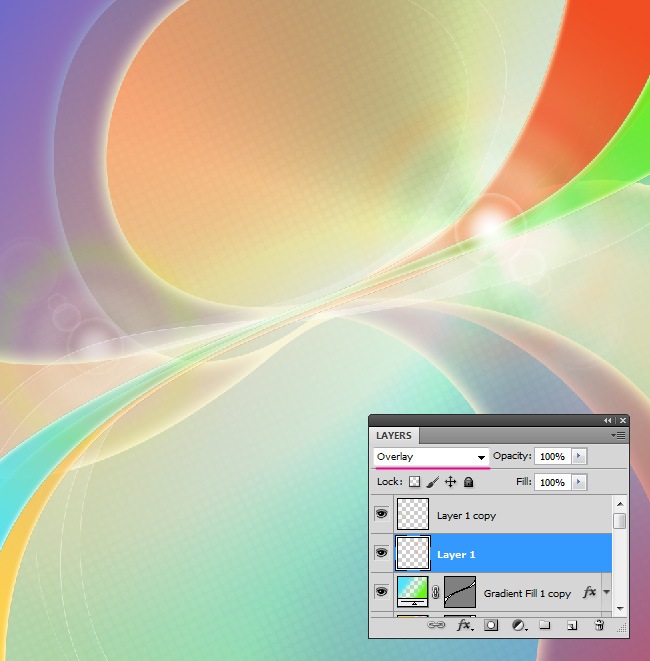

It's preferable to place each lens flare element on independent layers, select them both and switch the blending mode to overlay, with this adjustments we have completely our background, let's take a look to it.

image 99

Sorry, that layers menu is blocking us for looking the whole design, but that's for you to remember that final adjustment, here's a proper preview of the background:

image 100

Finally, we took a great text effect from one of our previous tutorials (visit our "Stylish text effect tutorial using Illustrator") and placed it on top of our background, additionally we adjust its hue a little bit to integrate it a little bit more with the design.

image 101

To insert the text, simply copy paste it from Illustrator, make sure that's inserted as a Smart Object so it keeps all its editability properties. Finally add some outer glow to it and the text is done. Now we may want to place a fancy character to make our design look very pop-like. You may want to take a loot at WordPressThemeShock's gallery, where you will find some awesome characters and web designs.

Making a fancy Pop style poster

OK now we have finished our background design, hopefully this has provided you some inspiration and technical tips that you can now implement in your own designs, feel free to leave us a comment so we can read your thoughts regarding our articles, thanks for visiting Tutorialshock.
