Vector Style Earth

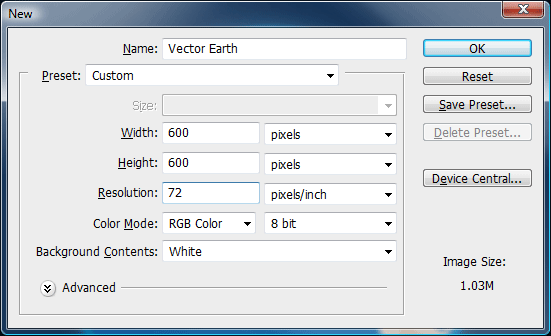

Creating a New Document

Were going to start off with a canvas size of 600 x 600 pixels for the purpose of this tutorial, feel free to make your canvas much bigger if you require the image in a bigger size, the results should be the same.

Vector Style Earth image 1

The Background

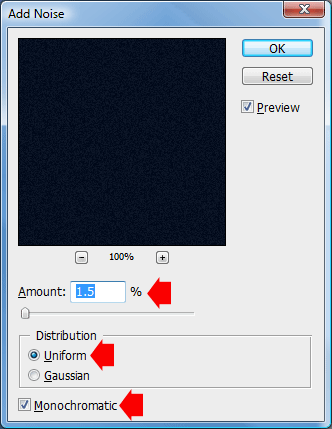

For the background il be using something relivantly simple, fill your background layer with a dark blue color the color code i used is #081122. Were now going to add some minor noise, go to "filter > noise > add noise", use the settings below.

Vector Style Earth image 2

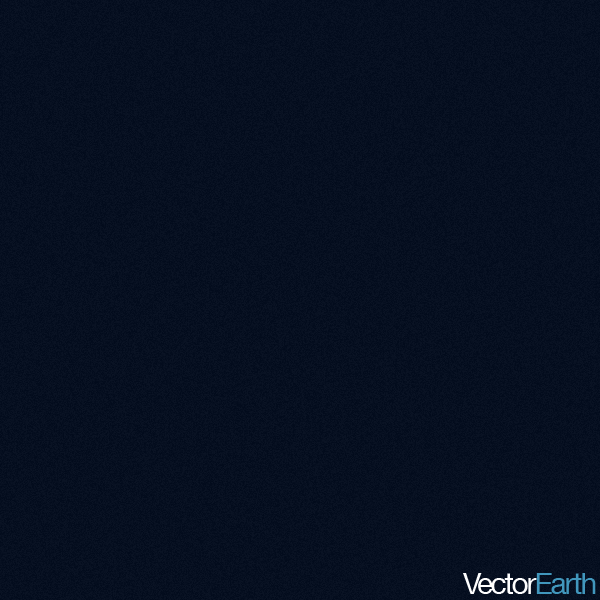

You should have something like this.

Vector Style Earth image 3

Creating The Globe

Select the circle tool or the elliptical marquee tool and create a circle covering most of the canvas. TIP: Holding the shift key whilst dragging will ensure the circle is the right aspect ratio.

Vector Style Earth image 4

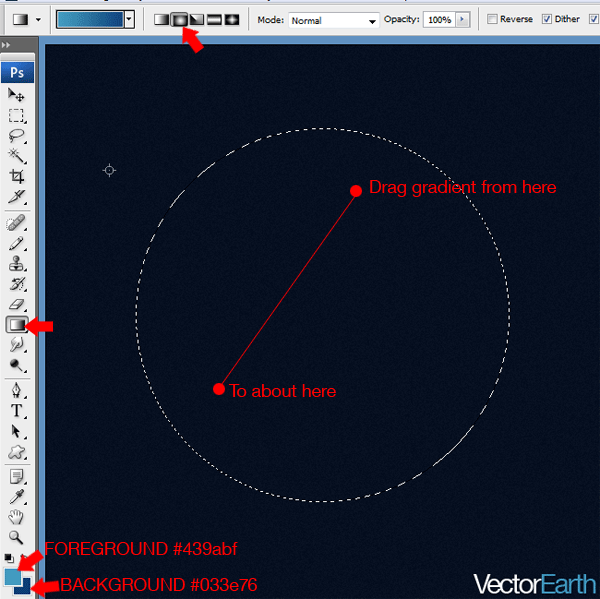

Dont fill your circle just yet, first select the gradient tool with a radial gradient. Set your foreground color to #439abf and your background color to #033e76, drag the radial gradient from the top right corner of the circle down diagonally towards the bottom left.

Vector Style Earth image 5

You should have something like this.

Vector Style Earth image 6

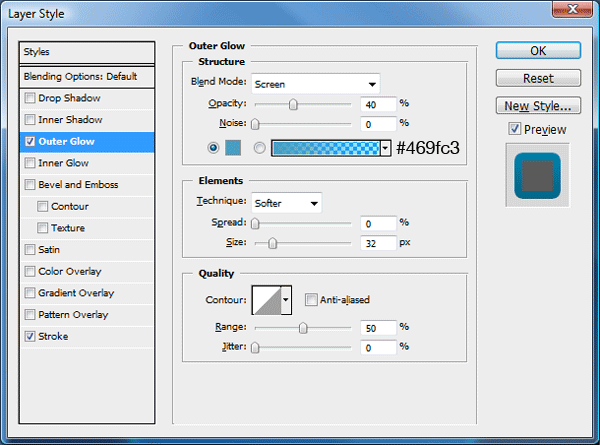

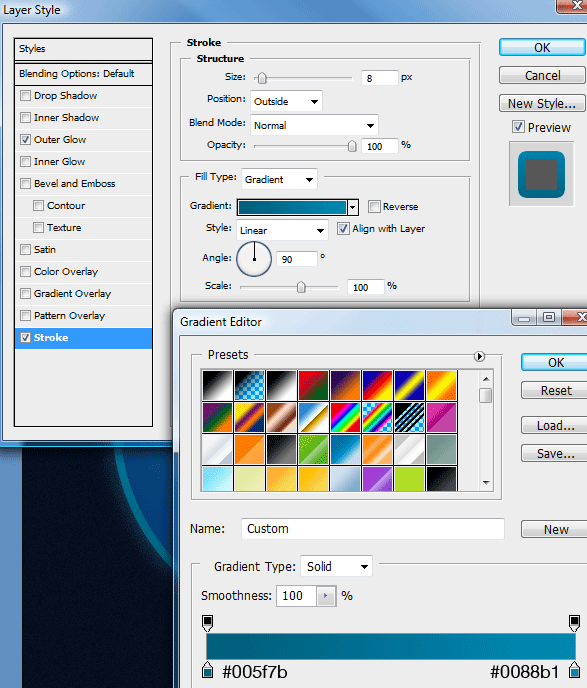

Now add these layer styles to your globe.

Vector Style Earth image 7

Vector Style Earth image 8

You should now have something like this.

Vector Style Earth image 9

Creating The Islands

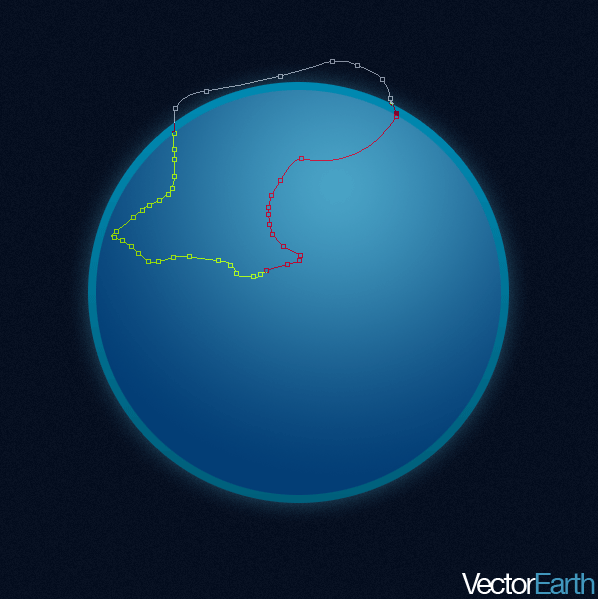

Select the pen tool and randomly create the points that make up your first of two islands.

Vector Style Earth image 10

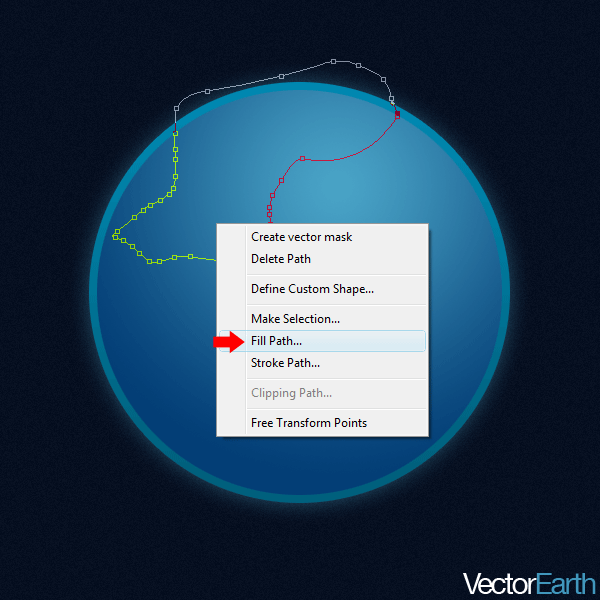

Once you've closed your last anchor point right click inside the island with the pen tool and go to "fill path".

Vector Style Earth image 11

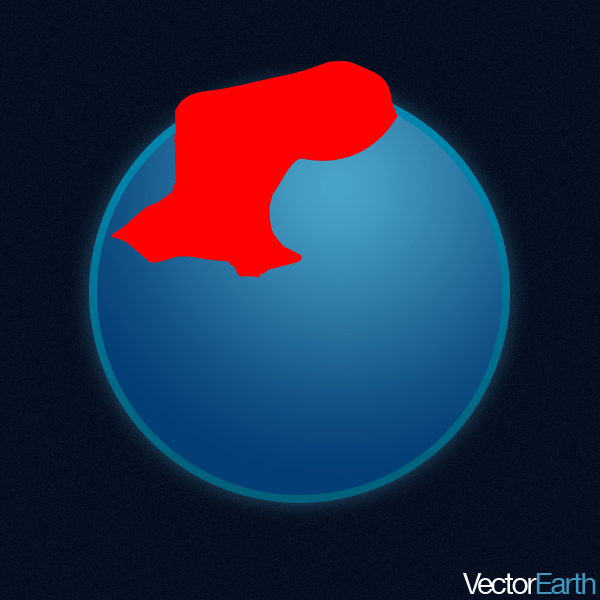

You should have something like this.

Vector Style Earth image 12

We now need to cut into the island so it wraps inside our globe. Click your globe layer whilst holding down the Ctrl key. This should load a selection around your globe, select your island layer while the selection is active. Now go to "select > inverse" and hit the delete key.

Vector Style Earth image 13

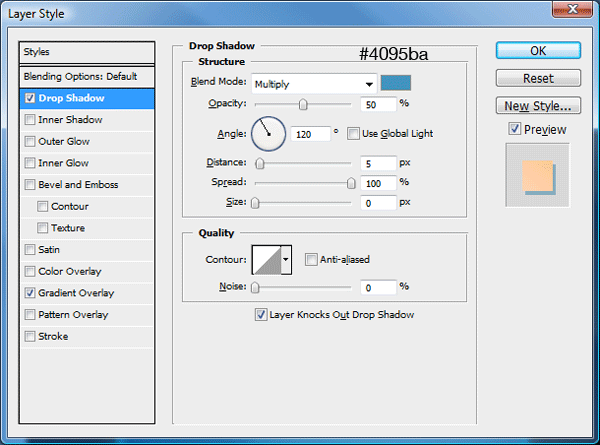

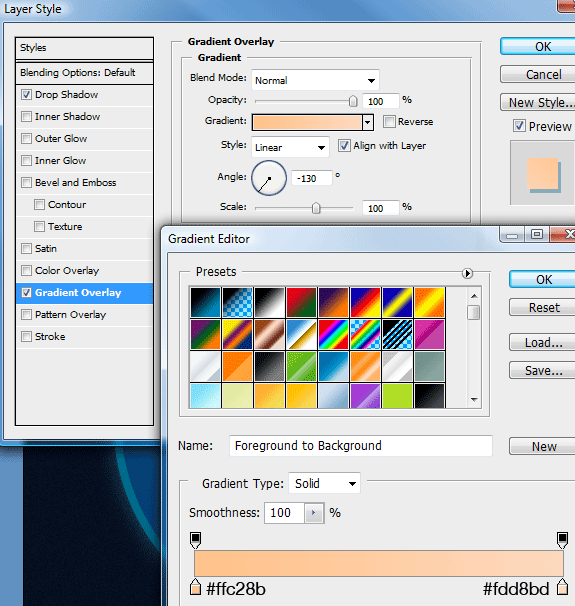

Now add these layer styles to your top island.

Vector Style Earth image 14

Vector Style Earth image 15

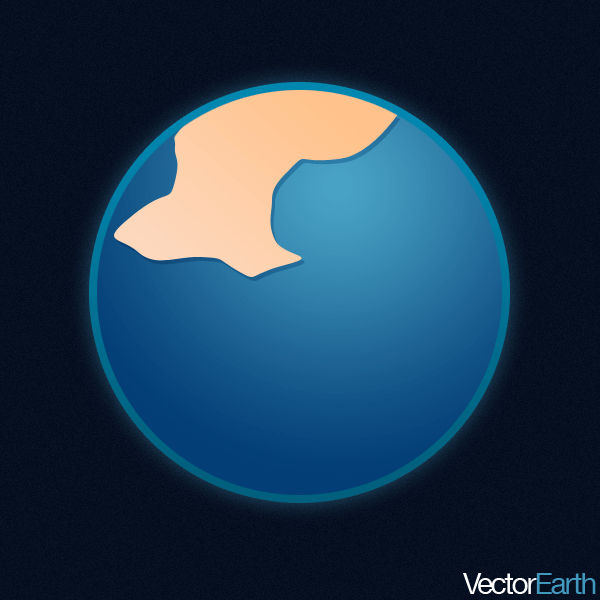

You should have something like this.

Vector Style Earth image 16

Using the pen tool once again create another island inside the island you just created, fill the inner island with the color #f5b47a.

Vector Style Earth image 17

Creating The Second Island

Using the same methods listed above and create another island somewhere on your globe. When adding the island layer styles leave off the drop shadow.

Vector Style Earth image 18

Adding Smaller Islands

Using the pen tool create some smaller islands dotted around the globe. The islands at the top fill with a darker shade of blue, the small islands at the bottom fill with a lighter shade of blue. Finally set the small islands layer opacity to about 20%.

Vector Style Earth image 19

Creating The Globe Shines

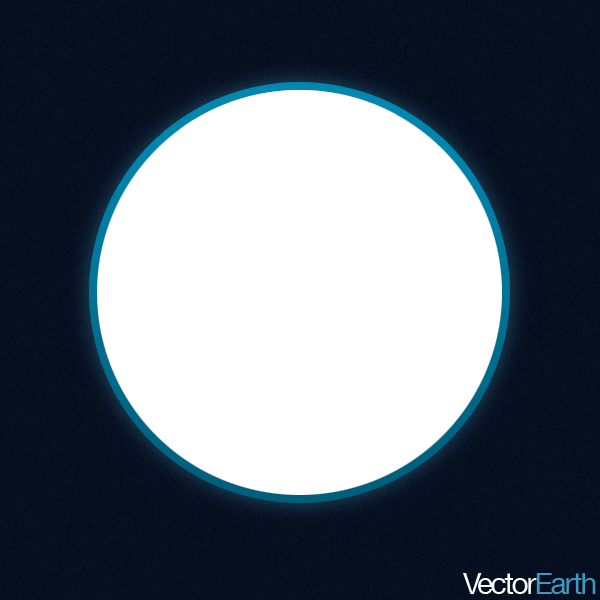

Select your globe layer whilst holding down the Ctrl key, this should load a selection around your globe. Create a new layer above everything and fill the selection with the color white.

Vector Style Earth image 20

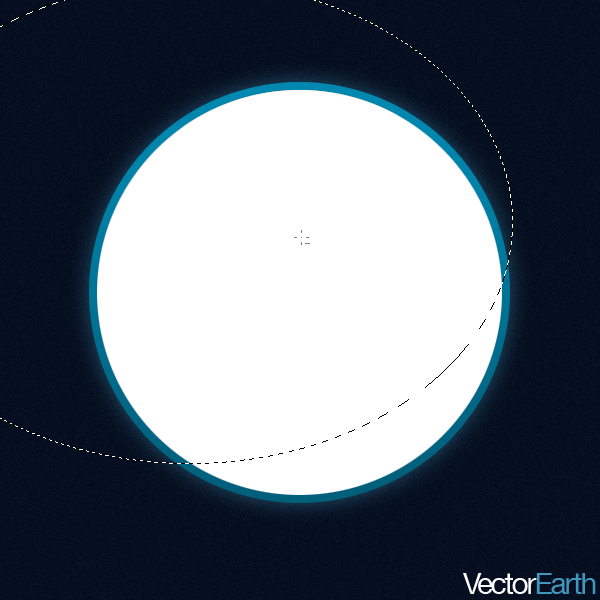

Using the elliptical marquee tool make a selection like the image below.

Vector Style Earth image 21

Once you've made the selection hit the delete key. Now set the layers opacity to 2%.

Vector Style Earth image 22

Repeat the steps above a couple of times, ive done it 4 times, 2 shines at the bottom and 2 at the top.

The Finished Result

The finished result looks something like this.

Vector Style Earth Tutorial: Final Result

Many thanks for reading.
