Zoom Player Skin Design

Browse Pages: << < 1  2  3  > >>

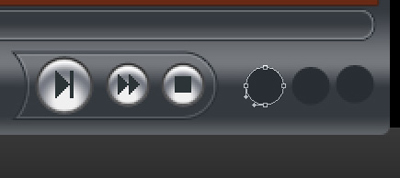

Now we should represent several special buttons exactly the way we have represented the system buttons on the top part of the player. Select the Ellipse Tool (U) for this operation and the color #282D33

image 1

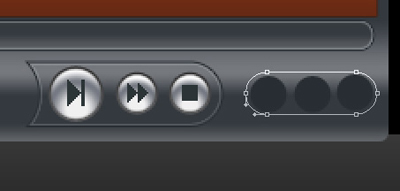

All those special buttons should be combined in a certain frame, made with the Rounded Rectangle Tool (U) and a radius of 15 px.

image 2

The layer's parameters: Fill 0%

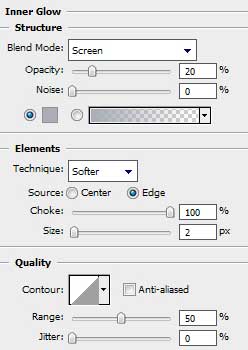

Blending Options>Inner Glow

image 3

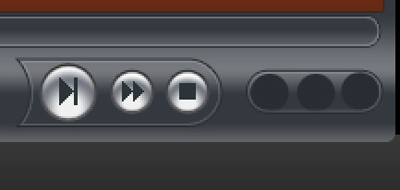

Blending Options>Stroke

image 4

image 5

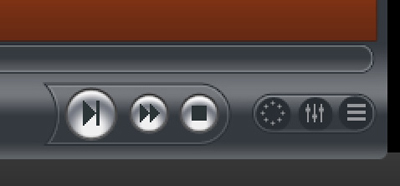

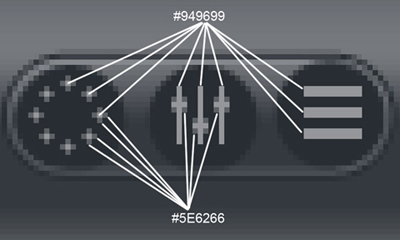

Create again a new layer (Create new layer) on which we'll use the Pencil Tool (B) (brush of 1 px) to draw the symbols on the buttons.

image 6

image 7

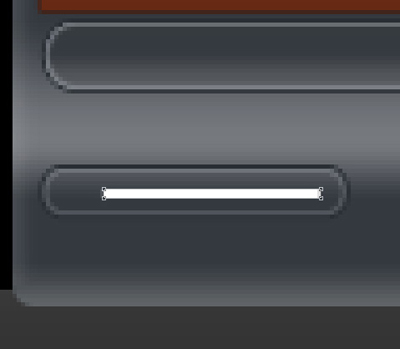

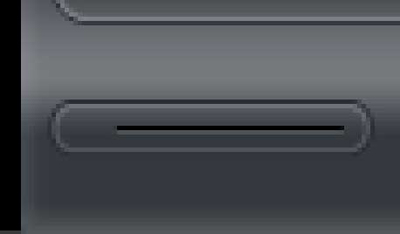

Get back to the panel, containing the sound button and create an opening for motion regulator. The instrument used in these cases is Rectangle Tool (U).

image 8

The layer's parameters: Blending Options>Gradient Overlay

image 9

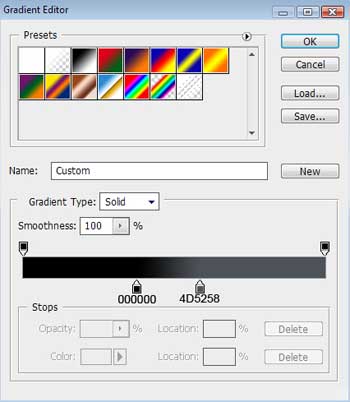

Gradient's parameters:

image 10

image 11

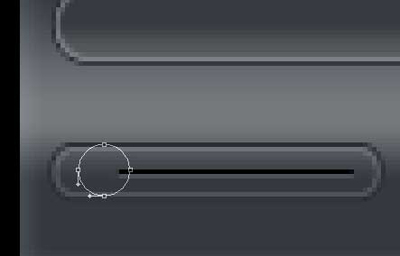

The Ellipse Tool (U) will be helpful in representing the sound's regulator:

image 12

The layer's parameters: Fill 0%

Blending Options>Gradient Overlay

image 13

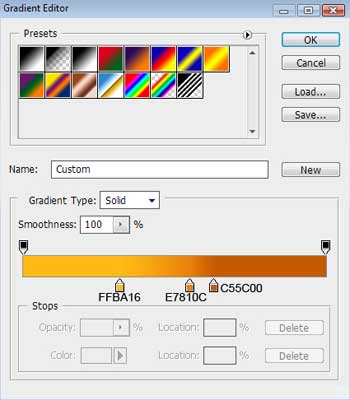

Gradient's parameters:

image 14

image 15

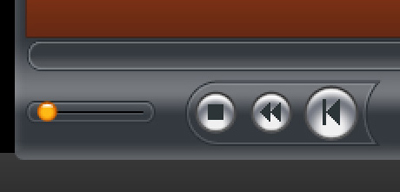

Take again the Ellipse Tool (U) to draw a highlight on the sound's regulator.

image 16

The layer's parameters: Fill 0%

Blending Options>Gradient Overlay

image 17

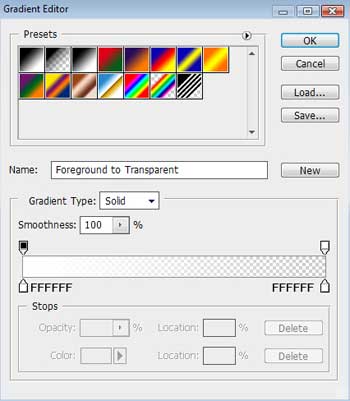

Gradient's parameters:

image 18

image 19

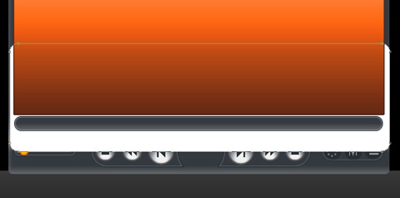

Applying the Rounded Rectangle Tool (U) with a radius of 15 px and white color, it is possible to draw a highlight on the player itself and on its buttons. But this layer should be positioned under the layers containing the screen and the play button.

image 20

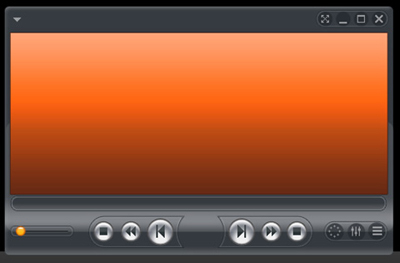

The layer's parameters: Fill 10%

image 21

Try to make now the central player's button with the Ellipse Tool (U).

image 22

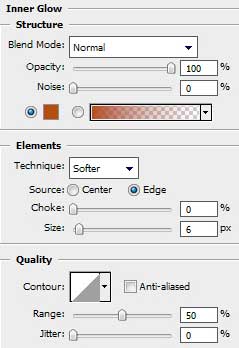

The layer's parameters: Blending Options>Inner Glow

image 23

Blending Options>Gradient Overlay

image 24

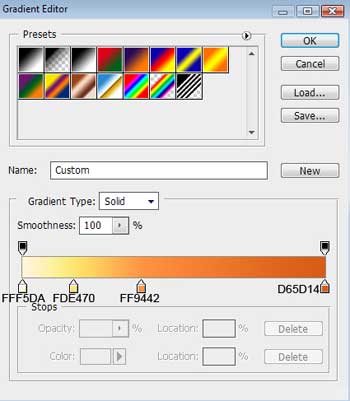

Gradient's parameters:

image 25

Blending Options>Stroke

image 26

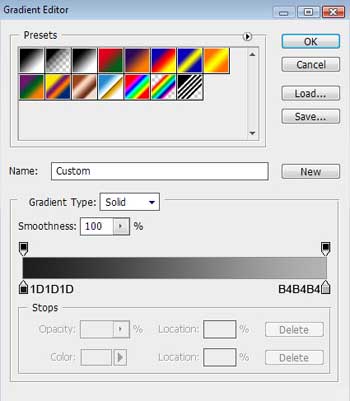

Gradient's parameters:

image 27

image 28

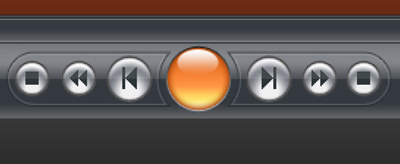

Using the Ellipse Tool (U), it's possible to draw a highlight on the button demonstrated below:

image 29

The layer's parameters: Fill 0%

Blending Options>Gradient Overlay

image 30

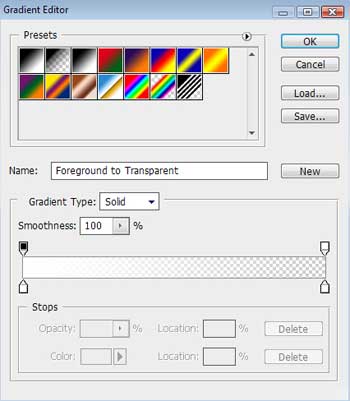

Gradient's parameters:

image 31

image 32

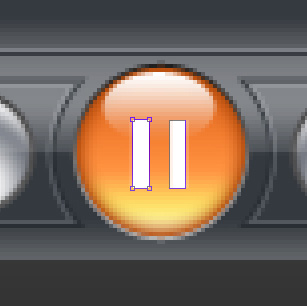

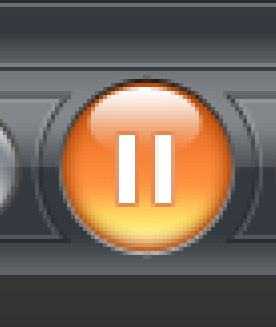

The symbol on the button from below is done with the Rectangle Tool (U), by holding the Shift button. The color is white.

image 33

The layer's parameters: Blending Options>Stroke

image 34

image 35

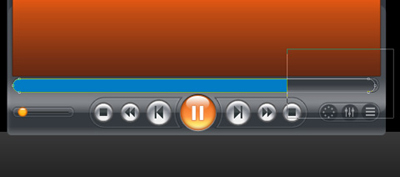

On the play button's panel we'll introduce the indicator itself, colored with #017CC5, made with the Rounded Rectangle Tool (U) with a radius of 10 px and then press Alt button while applying the Rectangle Tool (U) to make a cut on the right side.

image 36



Author's URL: Adobetutorialz.com
