Create the Image Below

mysitemyway Text Effects Aug 12, 2010

Step 1

First you will need to download the two textures below and convert them into photoshop patterns for later. To do this simply open each image then go to EDIT >> DEFINE PATTERN in the menu. Alternatively, if you've downloaded the source files at the end of this post, simply install the pattern set entitled reflective-brushed-metal-tut.pat by double clicking on it.)

image 1

Brushed Metal Texture
image 2  tutorialsetc-brushed-metal-texture.zip

image 3

Blue Abstract Watery Waves
image 4  tutorialsetc-abstract-water-smudge.zip

Step 2

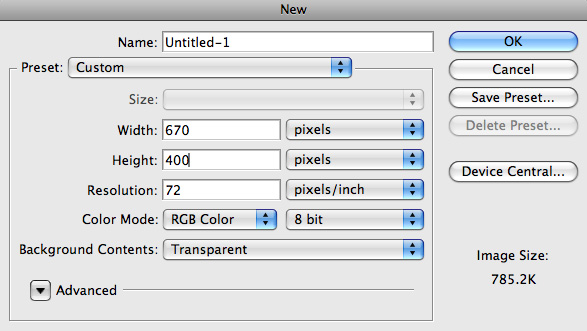

Create a new transparent document 670px * 400px at 72dpi as seen below.

image 5

Step 3

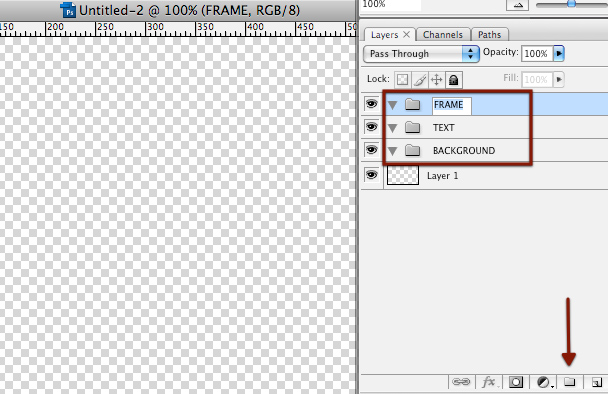

To keep our psd file organized first click on the folder icon in the layer pallet 3 times to create three folders and name them FRAME, TEXT, and BACKGROUND respectively.

image 6

Step 4

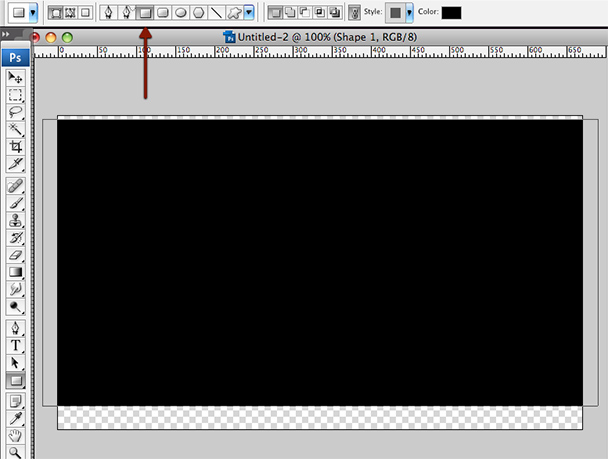

Create a new layer within the FRAME folder and name it frame. Activate the shape tool by typeing U, make sure the rectangular shape tool is selected, then draw out a square similar to the one below, leaving a little room on the top and bottom.

image 7

Step 5

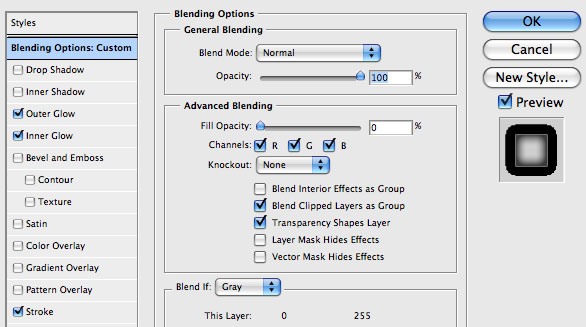

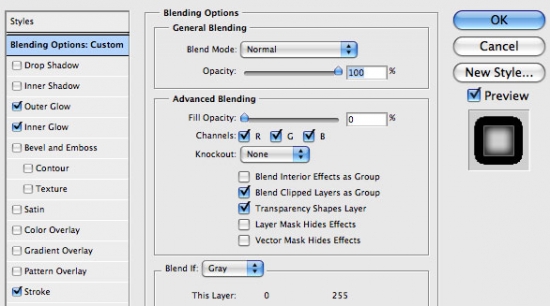

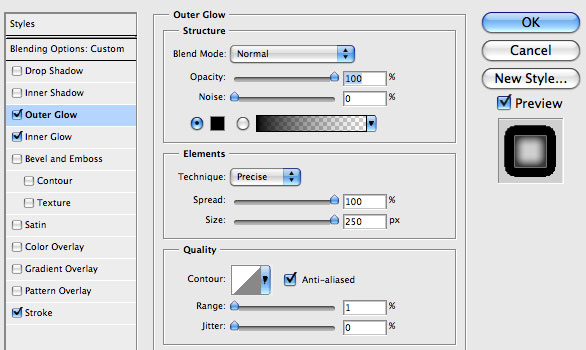

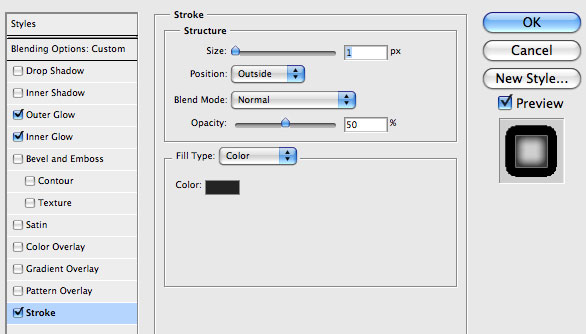

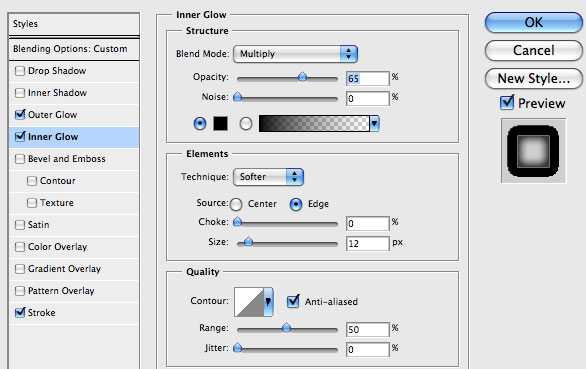

Activate the layer styles dialog box on your shape layer by double clicking on it or by going to LAYER >> LAYER STYLE >> BLENDING OPTIONS in the menu. Then enter the settings below.

image 8

image 9

image 10

image 11

Step 6

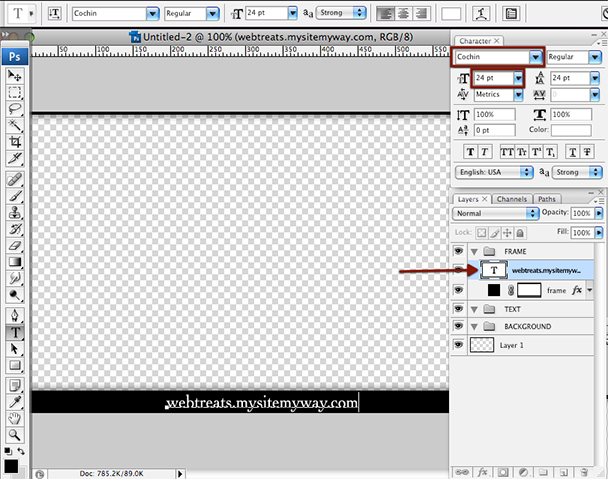

Create a new layer above the frame layer by going to LAYER >> NEW >> LAYER in the menu, activate the text tool by typeing T, then type in your title using the settings below.

image 12

Step 7

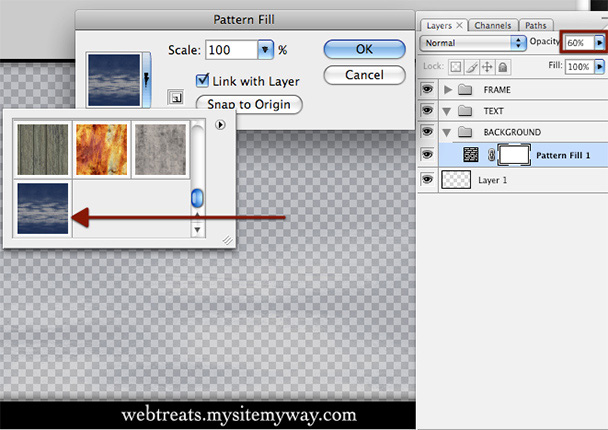

Within the BACKGROUND folder create a new pattern fill layer by going to LAYER >> NEW FILL LAYER >> PATTERN in the menu and choose the abstract water pattern you either installed or created in Step 1 as seen below. Then set the layer opacity to 60%

image 13

Step 8

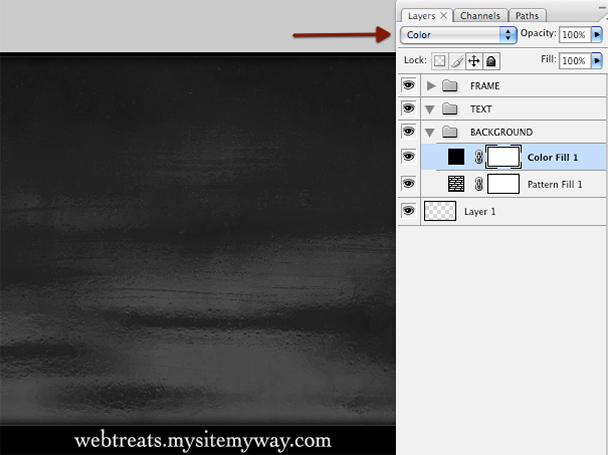

Above the water layer create a color fill layer by going to LAYER >> NEW FILL LAYER >> COLOR in the menu. Chose #000000 for the color theen set the layer blend mode to Color as seen below.

image 14

Step 9

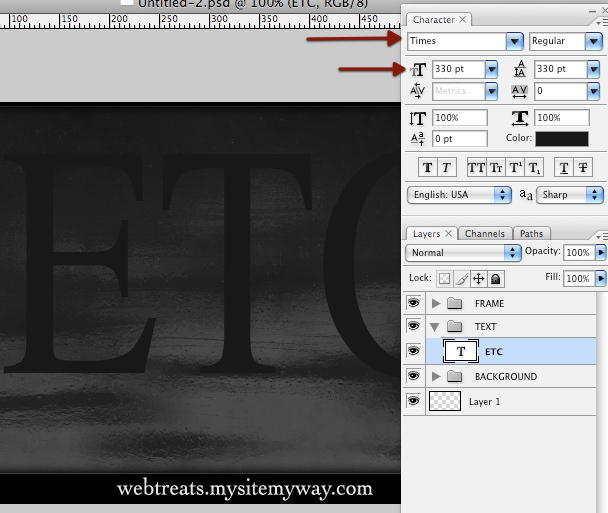

Within the TEXT folder now, create a new layer by going to LAYER >> NEW >> LAYER in the menu, activate the text tool by typeing T and type in some text using the Times at 330pt as seen below.

image 15

Step 10

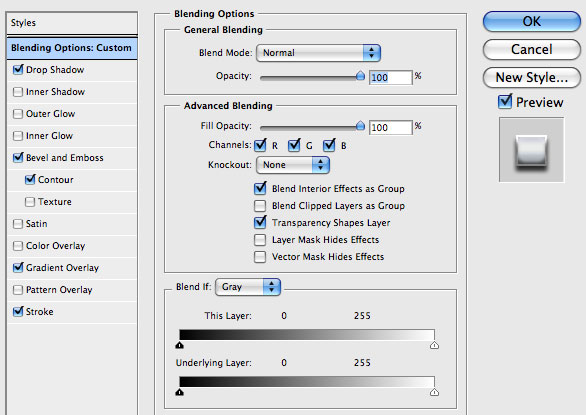

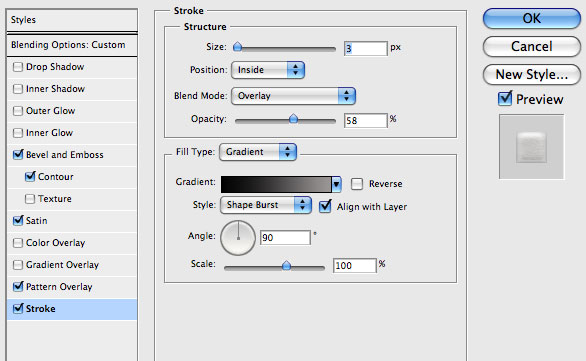

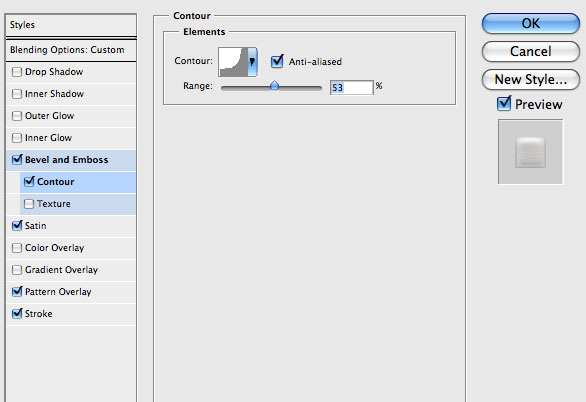

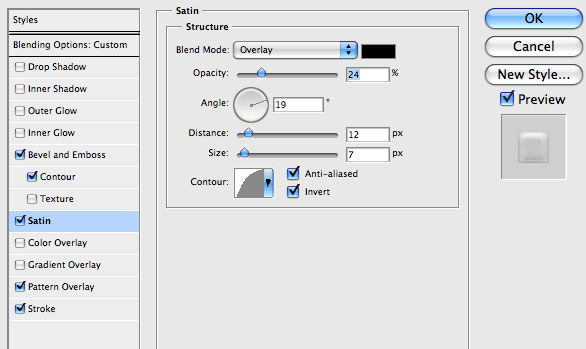

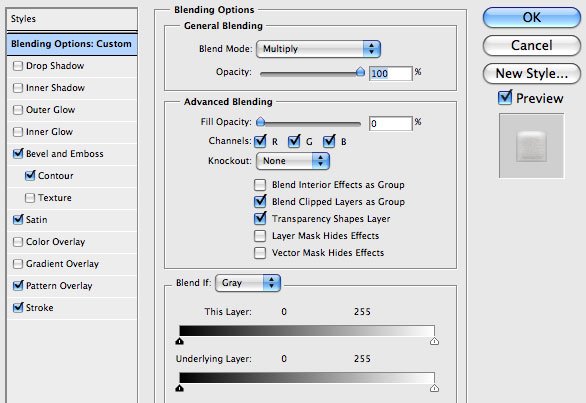

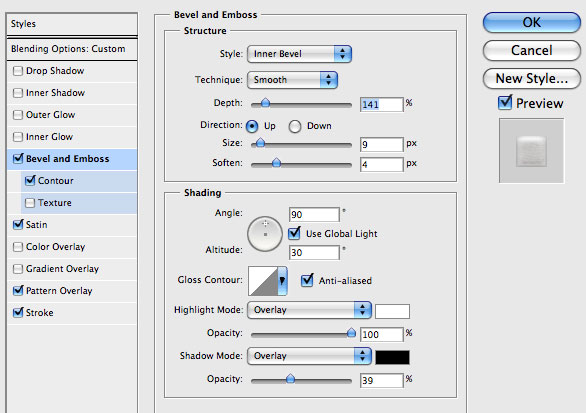

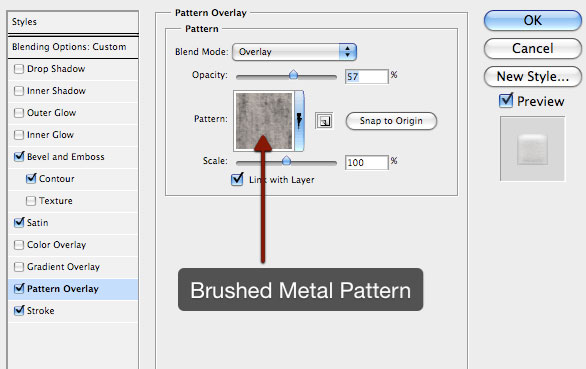

Duplicate the text layer you just created by going to LAYER >> DUPLICATE LAYER then open up the layer styles pallet on the top text layer by going to LAYER >> LAYER STYLE >> BLENDING OPTIONS in the menu and enter the settings below.

image 16

image 17

image 18

image 19

image 20

image 21

Step 11

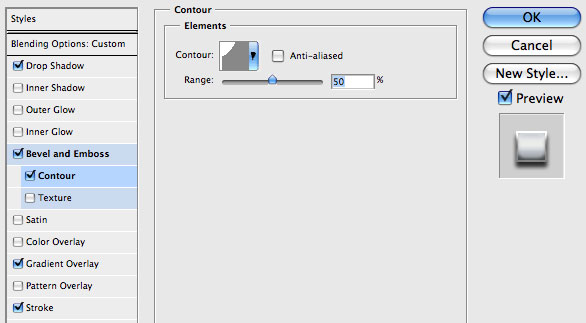

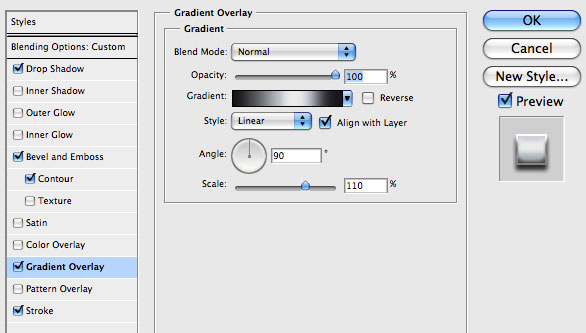

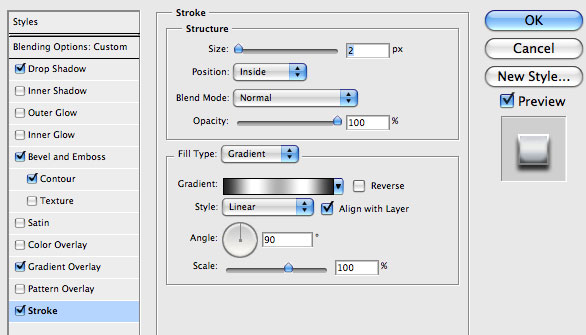

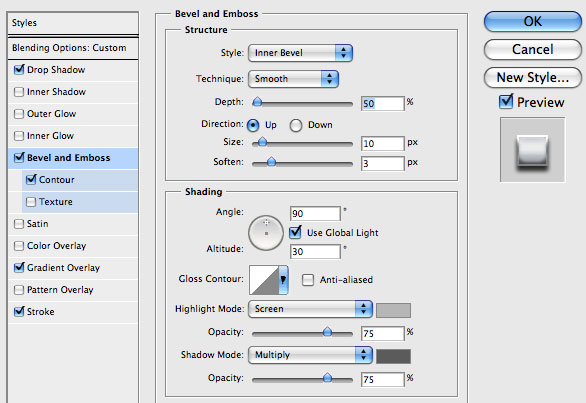

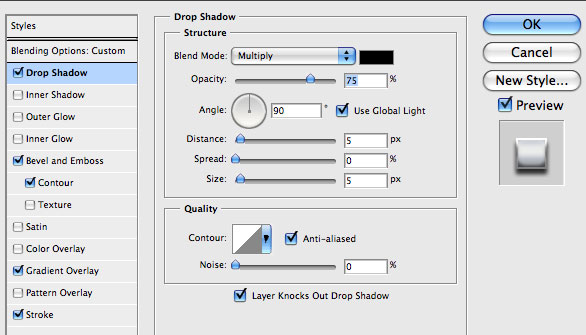

Open up the layer styles pallet by going to LAYER >> LAYER STYLE >> BLENDING OPTIONS in the menu on the bottom text layer and enter the settings you see below.

image 22

image 23

image 24

image 25

image 26

image 27

Step 12

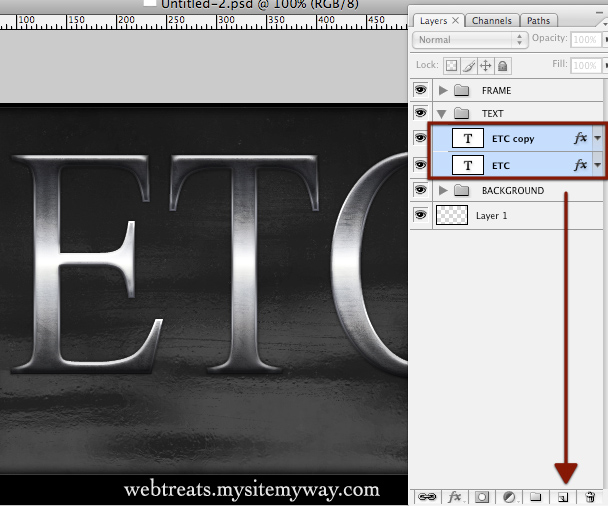

Select both text layers and drag them down to the new layer button to duplicate them, then merge the resulting layers by going to LAYERS >> MERGE LAYERS in the menu then name the merged layers "Reflection".

image 28

Step 13

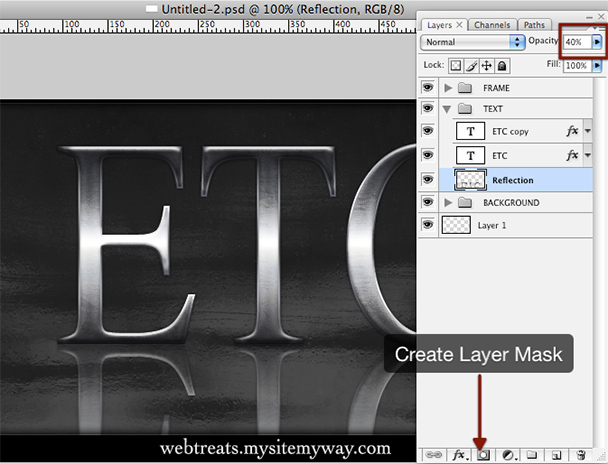

Flip the reflection layer vertically by going to EDIT >> TRANSFORM >> FLIP VERTICAL in the menu. Then activate the move tool by typeing V and drag the reflection layer down until it lines up with the base of your text as seen below. Bring the layer opacity down to 40% and then create a layer mask.

image 29

Step 14

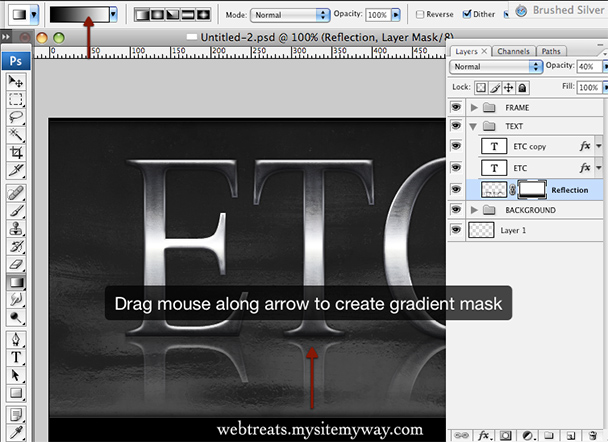

Activate the gradient tool by typeing G, make sure the default black to white gradient is selected and that the gradient tool in in linear gradient mode, then drag the mouse as seen below to make the reflection fade out gently.

image 30

Step 15

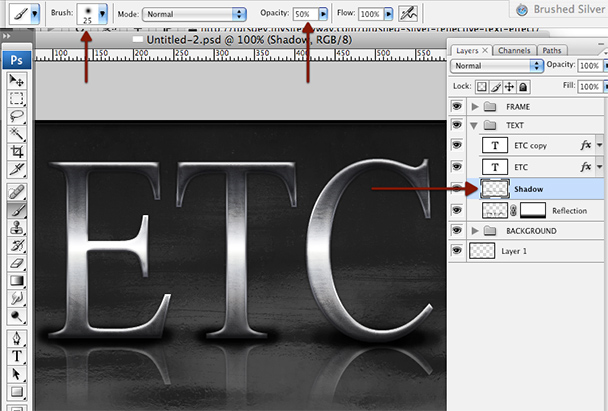

Above the Reflection layer create an new layer and name it "Shadow". Then activate the brush tool by typeing B , selct a basic round brush with opacity 50% and size 25px then draw along the base of each letter as seen below.

image 31

Step 16

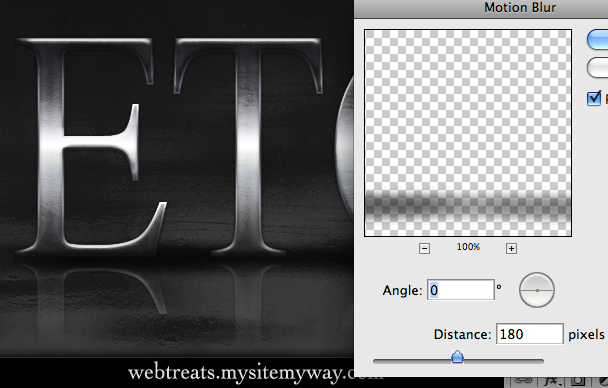

To clean up the shadow use the motion blur filter by going to FILTER >> BLUR >> MOTION BLUR in the menu and enter the settings below.

image 32

Step 17

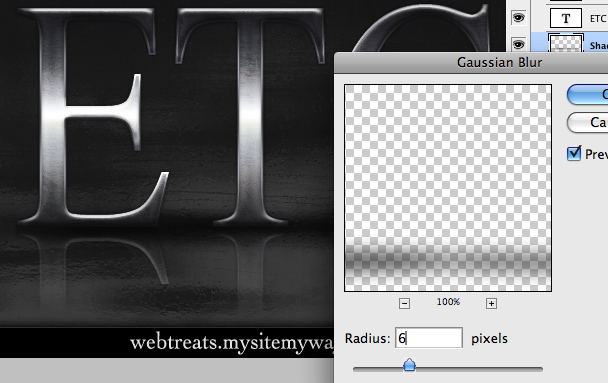

To clean up the shadow further use the gaussian blur filter by going to FILTER >> BLUR >> GAUSSIAN BLUR in the menu and enter the settings below.

image 33

You should now have something that looks like what you see below.

image 34

Step 18 (Optional Spotlight)

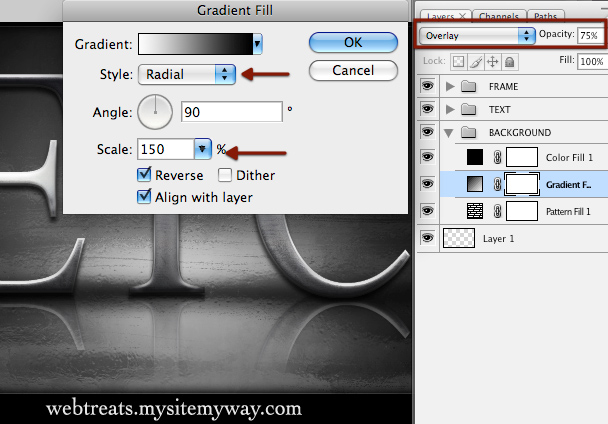

To punch up the effect a little more create a new gradient fill layer by going to LAYER >> NEW FILL LAYER >> GRADIENT in the menu beneath the color fill layer and use the setings seen below.

image 35

Thats it!

You should now have something that looks like what you see below.
