Design an Animated Banner in Photoshop

grafpedia Web Layout Jun 07, 2011

This is the banner that we will create.


And here is another version with a different size.


Note: For this tutorial I used the Animation (Timeline) panel, which is available only in Photoshop Extended.

Step 1

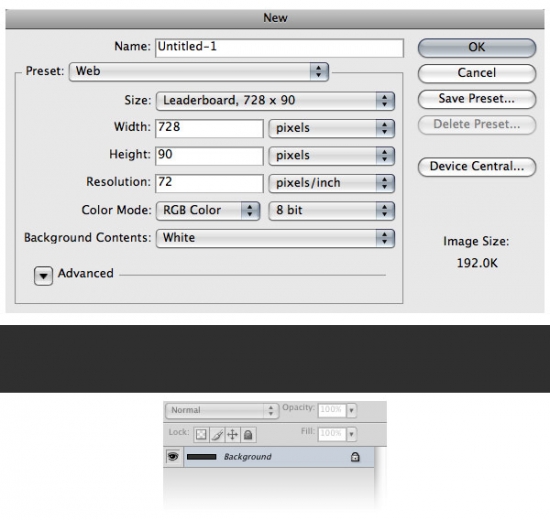

Create a new document in Photoshop with the leaderboard size (728 x 90px). Grab the Paint Bucket Tool (G) and fill the background with the color #2f2f2f.


Step 2

Go to the top of the Grafpedia homepage and make a print screen (or copy this image). We want to capture the stars so we can use them in our banner.

Open a new document in Photoshop and paste the screen capture (Ctrl/Cmd + V). Then grab the Rectangular Marquee Tool (M) and make a selection of the stars like you see in the following image. Hit Ctrl/Cmd + C to copy what you have selected.


Step 3

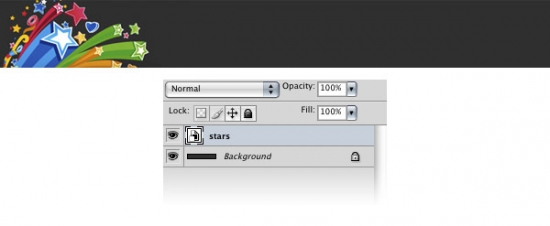

Go back to your first document and hit Ctrl/Cmd + V to paste your selection. Name this layer "stars", right-click on it and select Convert to Smart Object. Then go to Edit - Free Transform (Ctrl/Cmd + T), change the size of this layer, rotate it and put it in the left side of your image.


Step 4

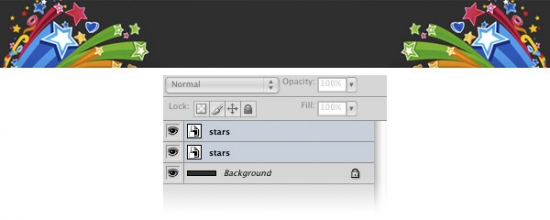

Duplicate the "stars" layer (Ctrl/Cmd + J). Then go to Edit - Transform - Flip Horizontal and move this layer in the right side of your banner.


Step 5

Select the Type Tool (T) and write the words 'Find only on' in the top middle area of your image using the color #aca6a6 and the font Myriad Pro. Double-click on your text layer and use the settings from the following image for Drop Shadow. Hit Ctrl/Cmd + G to put this layer inside a group. Name the group "info".


Step 6

Use the Type Tool (T) to write the word 'Grafpedia' underneath the first line of text using the color #ebe5e5. Double-click on this text layer and use the settings from the image below.


Step 7

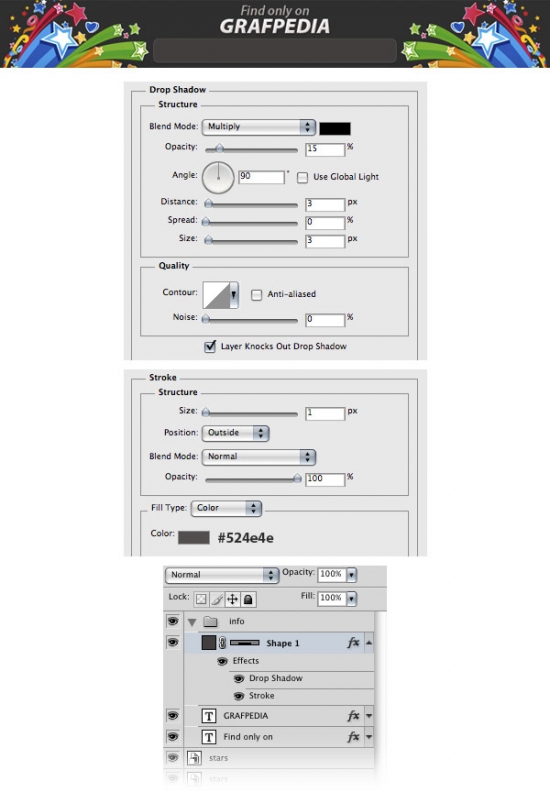

Select the Rounded Rectangle Tool (U), set the radius to 6px and create a rounded rectangle underneath the text using the color #413e3e. Double-click on this layer and use the settings from the following image.


Step 8

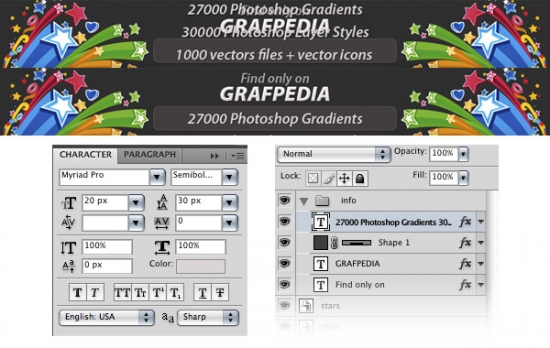

Select the Type Tool (T), copy the following text and paste it into your Photoshop document. Set the color of this text layer to #dad5d5 and center it. Then open the Character panel (Window - Character) and use the settings from the following image. I used the font Myriad Pro Semibold Italic with the size 20px and the space between text lines of 30px.

27000 Photoshop Gradients
30000 Photoshop Layer Styles
1000 vectors files + vector icons
PSD Layouts for each tutorial
Stock images + Textures
Swatches + 1000 PS Brushes

Use the Move Tool (V) to put the first text line in the middle of your rounded rectangle. Now if you hold down the Shift key and hit the up arrow three times the text will move up with 30px and the second line of text will be in the middle of the rectangle.


Step 9

When we will create the animation, we will make the text that is inside the rounded rectangle to move up. However, we want the text to appear only inside the rectangle.

To do this, first hit Ctrl/Cmd + G to put your text layer inside a group. Name the group "text". Then hold down the Ctrl/Cmd key and click on the vector mask of the "Shape 1? layer to select the rounded rectangle. Make sure that the "text" group is active and go to Layer - Layer Mask - Reveal Selection. Now if you move the text layer around you will notice that it doesn't appear outside the rounded rectangle.

Make sure that the first line of text is in the middle of your rectangle.

Step 10

Hide the "info" group for the moment. Then create a new group and name it "call-to-action".

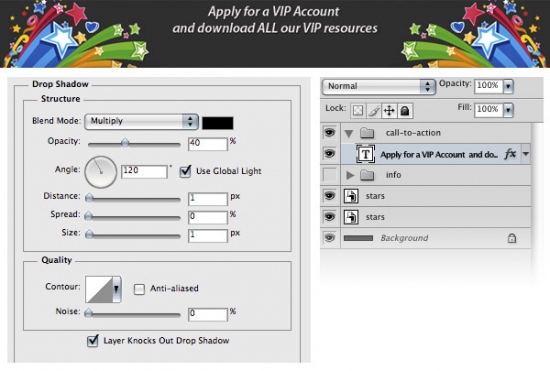

Select the Type Tool (T) and write a call-to-action text using the color #f1eaea. Add a shadow to this layer using the settings from the following image.


Step 11

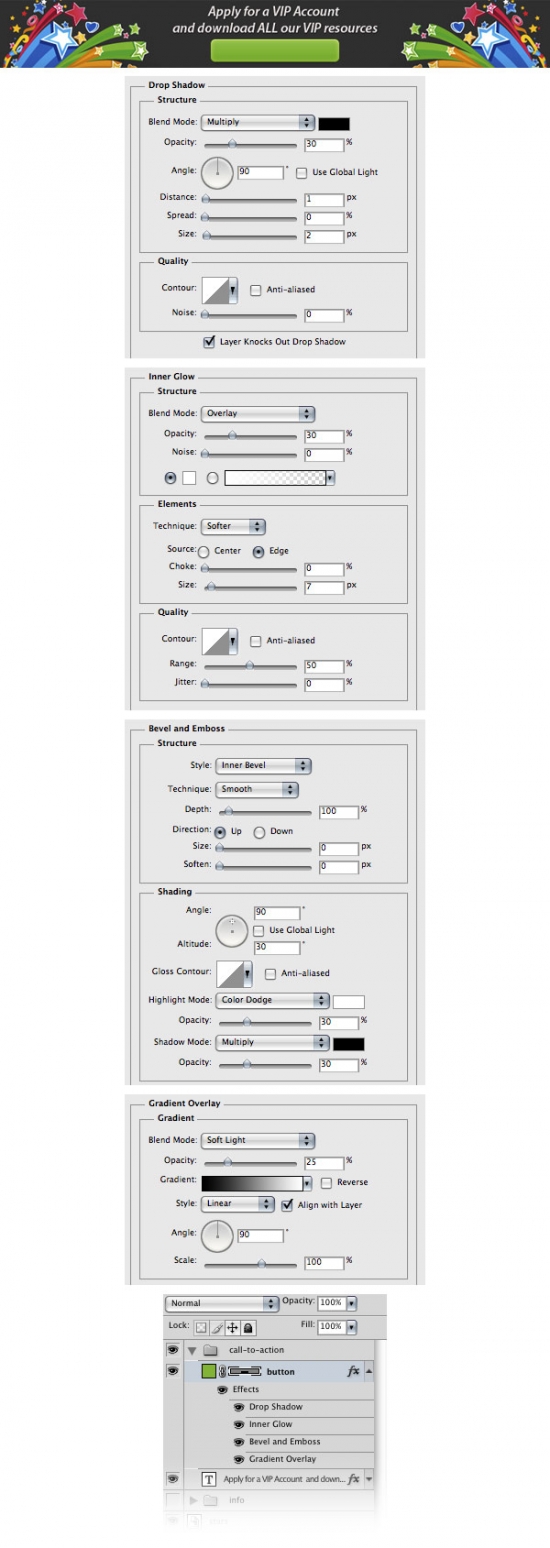

Select the Rounded Rectangle Tool (U) and create a rounded rectangle using the color #82b437. Double-click on this layer and use the settings from the following image. Name this layer "button".


Step 12

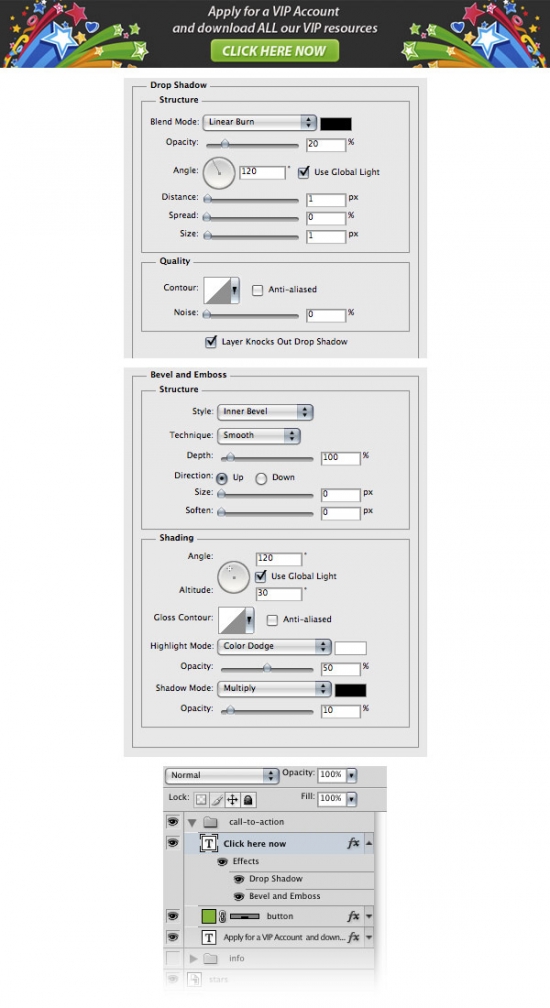

Select the Type Tool (T) and write the words "Click here now" on your button using the color #e7f3d5. Double-click on this text layer and use the settings from the following image.


Step 13 - Animating the banner

We have finished creating all the layers. Now we can start creating the animation.

First, open the Animation panel (Window - Animation). I will use the Timeline Animation panel (and not the frame animation). It is available only in Photoshop Extended. Then make sure that your both groups from the Layers panel are visible and set their opacity to 0%.

In the image below I explained some of the features of the Animation panel.


Step 14

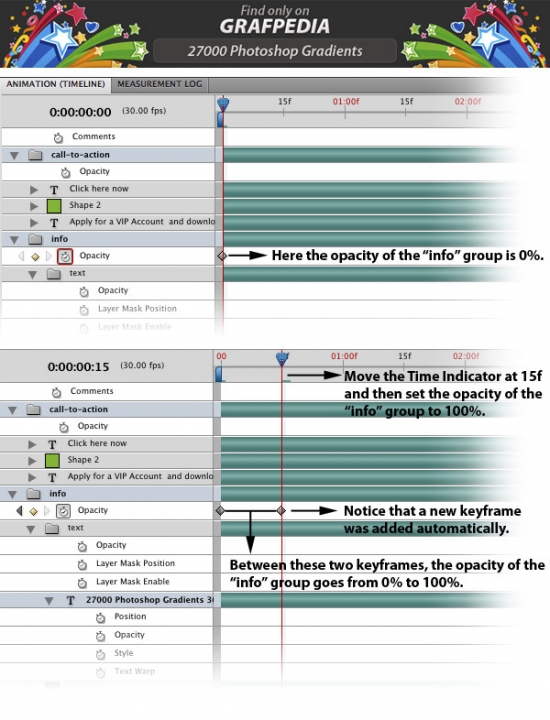

Go to the "info" group from the Animation panel and click on the Opacity stopwatch to add the first keyframe. The opacity of the "info" group is 0% at the moment. Now move the Time Indicator at 00:15f and set the opacity of the "info" group to 100% from the Layers panel. A new keyframe will be added automatically because you have changed the settings of this property.

Now if you play the animation, the opacity of the "info" group will gradually go from 0% to 100%.


Step 15

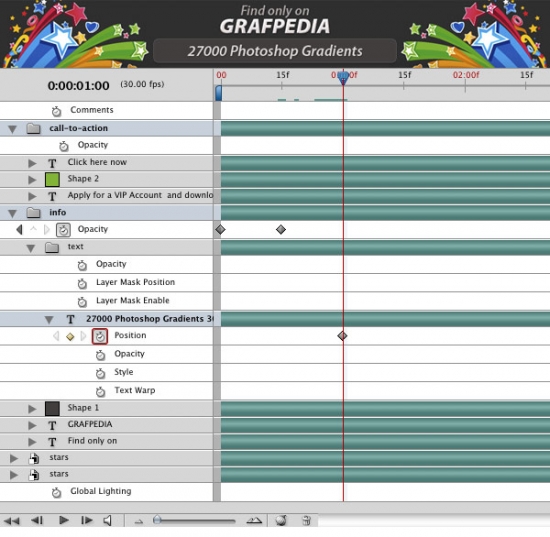

Move the Time Indicator at 01:00f and click on the Position stopwatch of the text layer from the "text" group to add a new keyframe.


Step 16

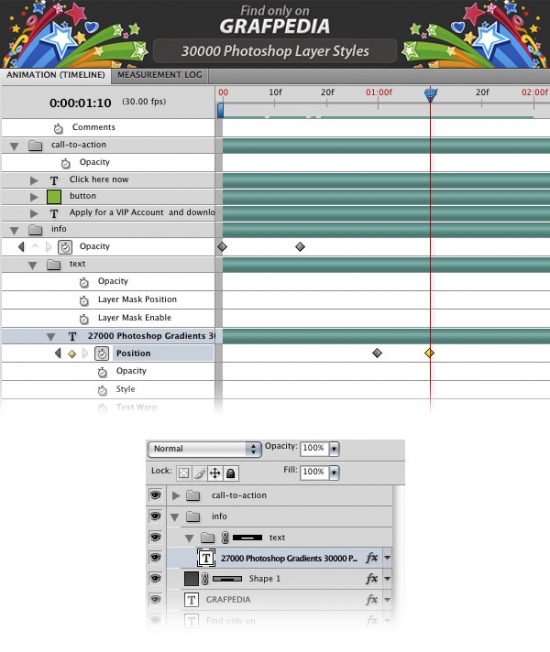

Move the Time Indicator at 01:10f. Then make sure that the text layer from the "text" group is active. Select the Move Tool (V), hold down the Shift key and hit the up arrow three times to move the text 30px up. A new keyframe will be added automatically.


Step 17

We want the text to stand still for a period of time before it moves again. To do this, move the Time Indicator at 02:00f and click on the keyframe button from the left side of the Position stopwatch to add a new keyframe. Now the position of the text will not change between 01:10f and 02:00f.


Step 18

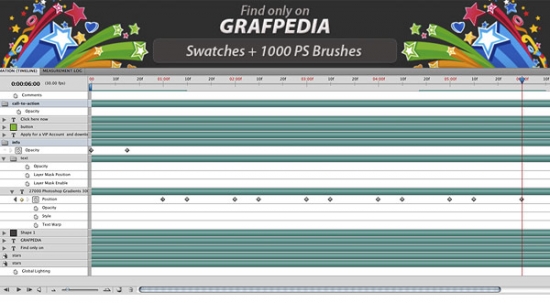

Repeat the previous three steps to change the position of your text layer until you get to the last line of text. You can see in the following image how my Animation panel looks so far.


Step 19

Move the Time Indicator at 06:10f and click on the keyframe button from the Opacity property of the "info" group to add a new keyframe. Then move the Time Indicator at 06:20f and set the opacity of the "info" group to 0%.


Step 20

Now we want to make the "call-to-action" group visible. Make sure that the Time Indicator is at 06:20f and click on the Opacity stopwatch to add a new keyframe.

Move the Time Indicator at 07:00f and set the opacity of the "call-to-action" group to 100%.


Step 21

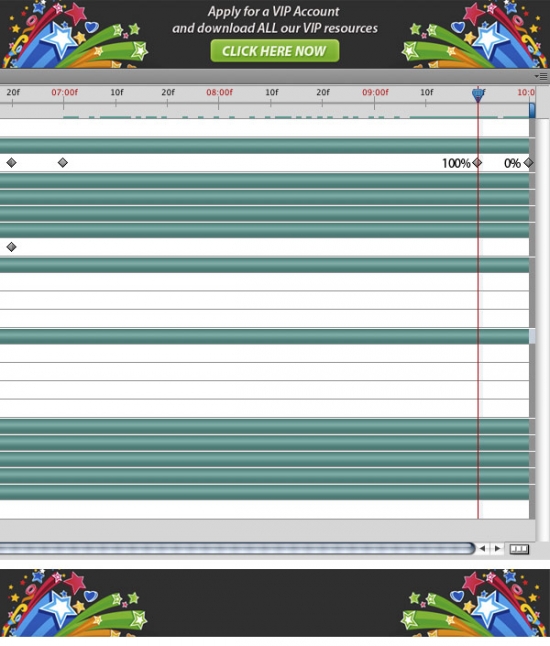

Move the Time Indicator at 09:20f and click on the keyframe button of the "call-to-action" group. The opacity of this group will remain 100% until it reaches this keyframe.

Now move the Time Indicator at 10:00f and set the opacity of the "call-to-action" group to 0%.


Step 22 - Saving the animation

We have finished our animation. You can click on the Play button to see it.

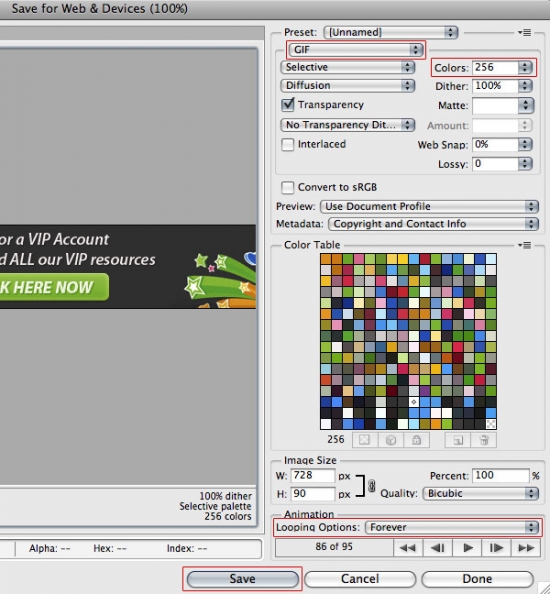

To save our banner and use it on the web, go to File - Save for Web and Devices. Then use the settings from the following image and click on the Save button.


Final Result


Here is the final result of this tutorial. I hope you enjoyed it and you learned some new things.



Creating banners with different sizes

You can use the same technique that I presented in this tutorial to create banners with all kind of dimensions. Bellow you can see another banner that I created with the size 200 x 125px.
