Gaming Layout #4

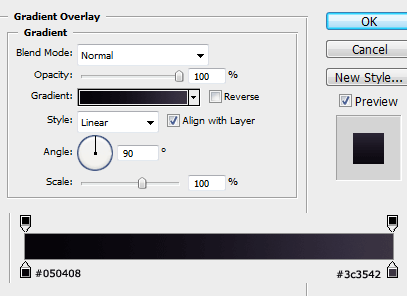

Create a new document 850 x 850 pixels, fill your background layer with the color #27252a. Select the rectangular marquee tool and create a rectangle the width of your canvas and about 120pixels in height. Fill with any color then add this gradient overlay.

Gaming Layout #4 image 1

You should have something like this.

Gaming Layout #4 image 2

Next select the rounded rectangle tool and create a rectangle, dont make it the whole width of the canvas, leave about 30-40 pixels either side. Also chop off tjhe bottom half so the bottom half the rectangle isnt rounded. The rectangle itself need to align perfectly with the bottom of the 1st rectangle we created.

Gaming Layout #4 image 3

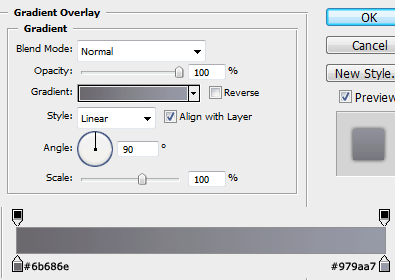

Add these layer styles to your rounded rectangle to match mine above.

Gaming Layout #4 image 4

Gaming Layout #4 image 5

Add your website title, logo and slogan to your header part of the website, the logo ive used is a shape from adobe's custom shape libary. To the far right of the header add a simple search field with a search button.

Gaming Layout #4 image 6

On the header text add this drop shadow.

Gaming Layout #4 image 7

Select the rectangular marquee tool again and create a thinner rectangle underneath the 1st rectangle we created, also make sure the layer is underneath all other layers apart from background layer obviously.

Gaming Layout #4 image 8

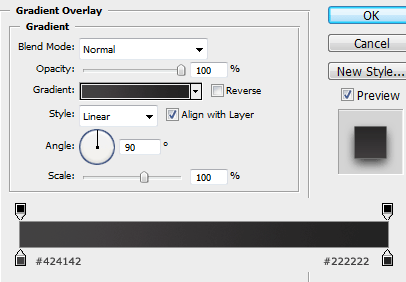

Add these layer styles to complete the effect.

Gaming Layout #4 image 9

Gaming Layout #4 image 10

Gaming Layout #4 image 11

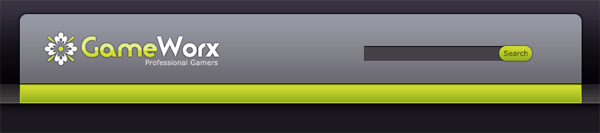

You image should now match mine. On a layer above the one you just created create another rectangle using the rectangular marquee tool, make it the same width as the header, and same height as the rectangle we just created.

Gaming Layout #4 image 12

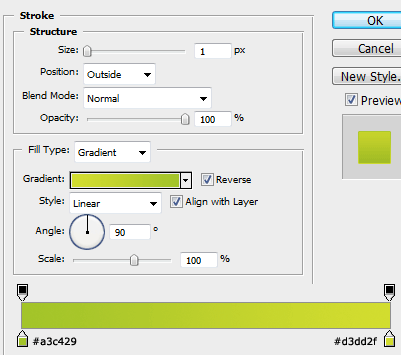

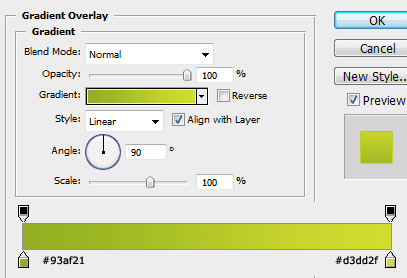

Add these layer styles to complete the effect.

Gaming Layout #4 image 13

Gaming Layout #4 image 14

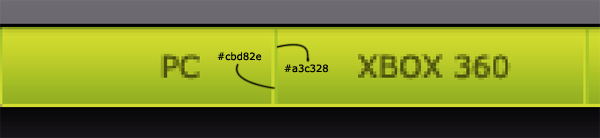

Add your navigation items to your nav bar, then add a divider between each item. The divider is made with two 1pixel lines next to each other.

Gaming Layout #4 image 15

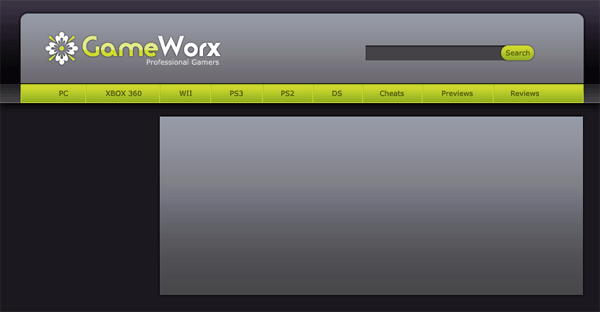

Now were to create our content boxes, the first one we'l create will be a featured box where there will be a featured game. Select the rectangular marquee tool, on a new layer create a big rectangle underneath everything eles.

Gaming Layout #4 image 16

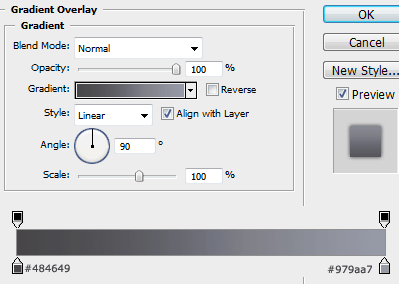

Add these layer styles to your content box.

Gaming Layout #4 image 17

Gaming Layout #4 image 18

Add your featured game, im going to be using GTA4. Add these layer styles to your featured image.

Gaming Layout #4 image 19

Gaming Layout #4 image 20

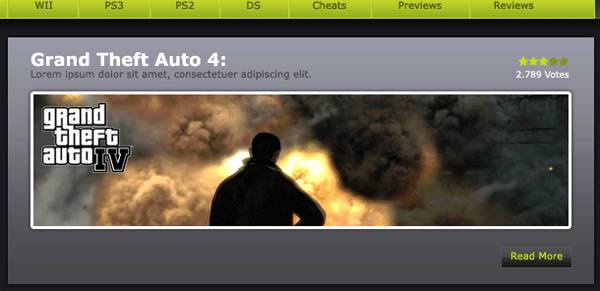

Crop your image to fit inside your box, also add your game header and some descriptive text. Ive also added a readmore button and a star rating system.

Gaming Layout #4 image 21

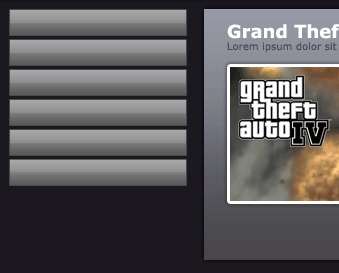

On the left side of the featured box create 6 smaller rectangles, these will be our side bar menu buttons.

Gaming Layout #4 image 22

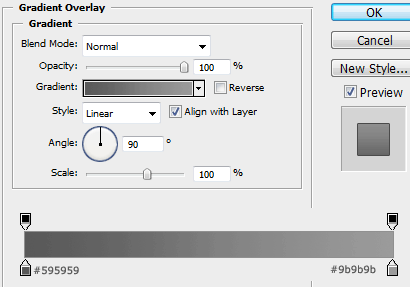

Use these layer styles for your menu buttons.

Gaming Layout #4 image 23

Gaming Layout #4 image 24

Once you've added your layer styles make them glossy by adding a smaller white rectangle over the top with an opacity of 12%.

Gaming Layout #4 image 25

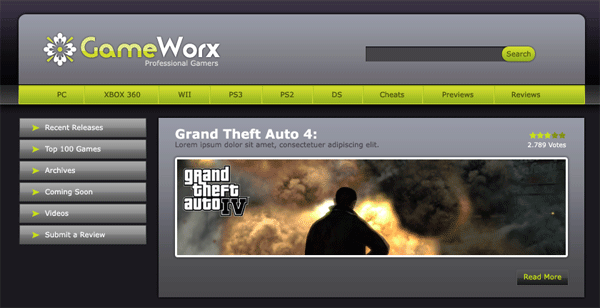

Using a little arrow shape from adobe's custom shapes libary, add the arrow to the menu buttons also add your menu text. The color of the arrows is #cee01f.

You should have something like this.

Gaming Layout #4 image 26

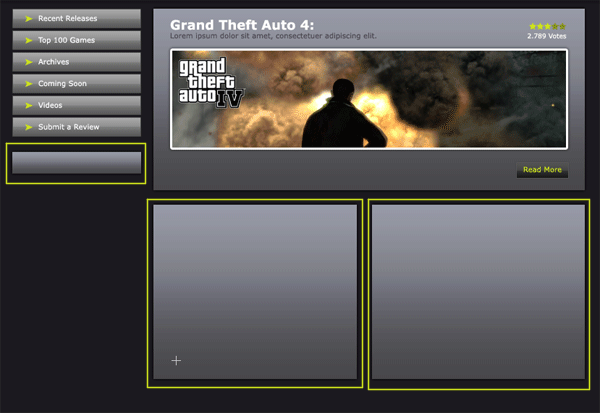

Using the rectangular marquee tool create three more boxes (shown in green), add the same layer styles as your featured box.

Gaming Layout #4 image 27

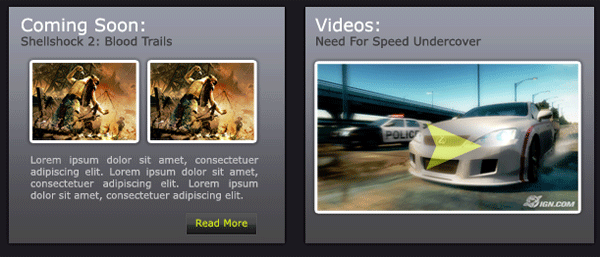

Label them using the type tool. The two boxes underneath your featured box are going to display videos and upcoming releases. Add your content to these two boxes.

Gaming Layout #4 image 28

The little box that we created on the left under our menu items will be our news and articles. Create a box with the color #19171c underneath the box you previously created. Add this drop shadow.

Gaming Layout #4 image 29

Then add your news and articles.

Gaming Layout #4 image 30

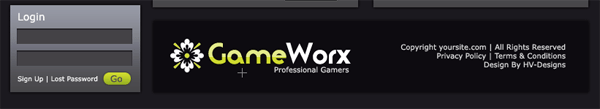

Using the same tecniques and layer styles mentioned above, complete the layout with two more boxes, a login box and your footer.

Gaming Layout #4 image 31

You should have something like this.

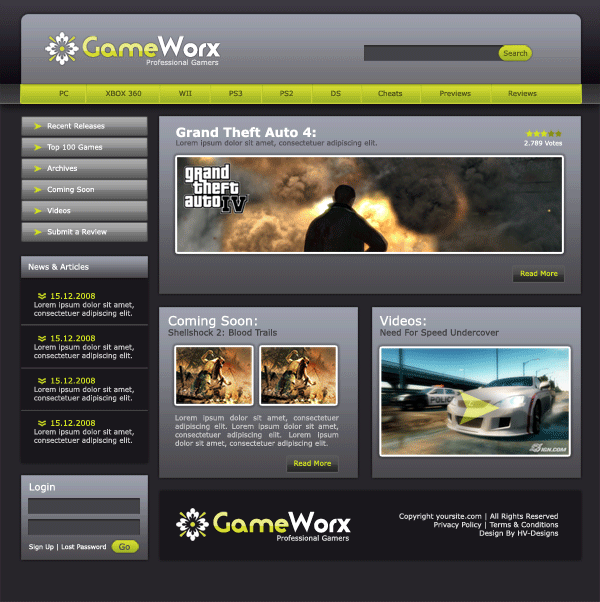

Gaming Layout #4 Tutorial: Final Result



Author's URL: Hv-Designs.co.uk
