Hosting Layout #2


Setting Up The Background

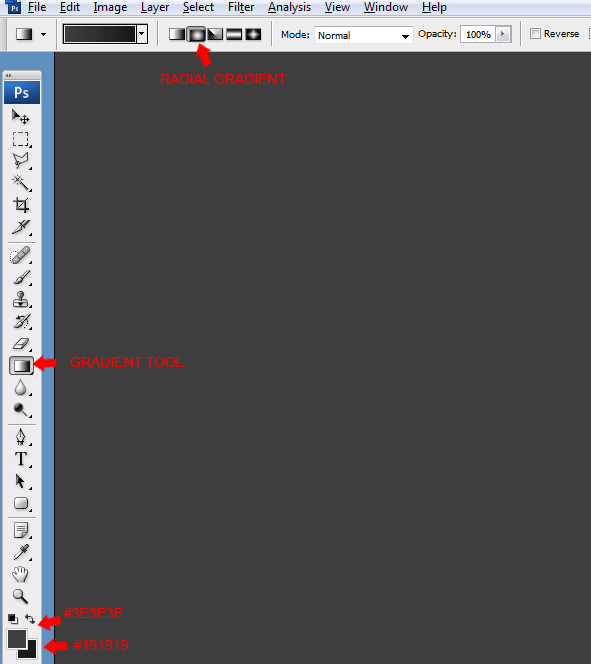

Create a new document 1200 x 1200 pixels, set your foreground color to #3e3e3e and background color to #191919. Select the gradient tool with a radial gradient.

Hosting Layout #2 image 1

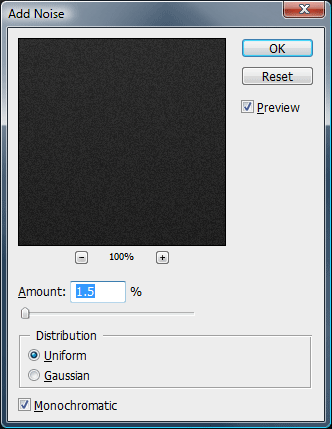

Once you have the radial gradient selected, start from the top middle of the canvas then drag downwards about halfway down. Now go to "filter > noise > add noise", use the settings below.

Hosting Layout #2 image 2

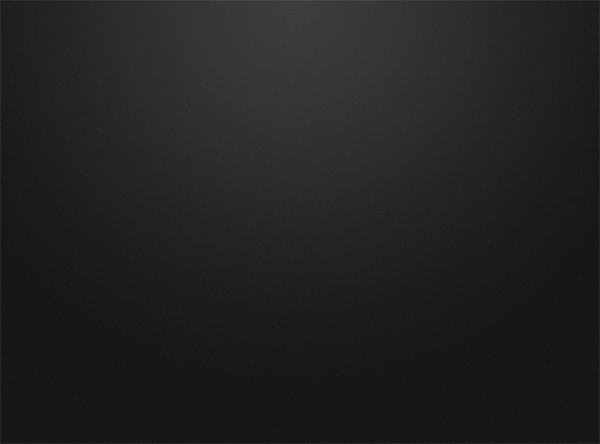

You canvas should now look something like this.

Hosting Layout #2 image 3

Creating The Website Title

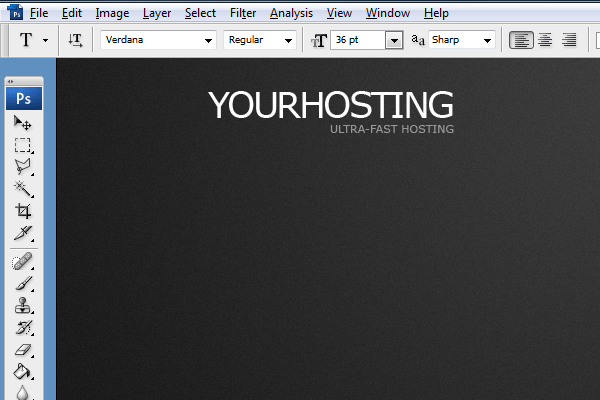

Select the type tool then add your website title to the canvas. I used the font verdana and a font size of 36pt.

Hosting Layout #2 image 4

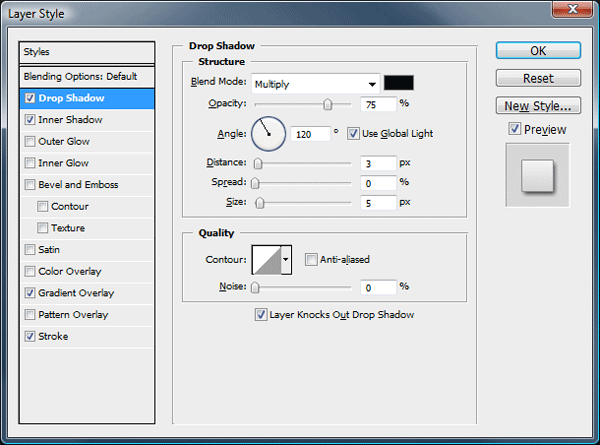

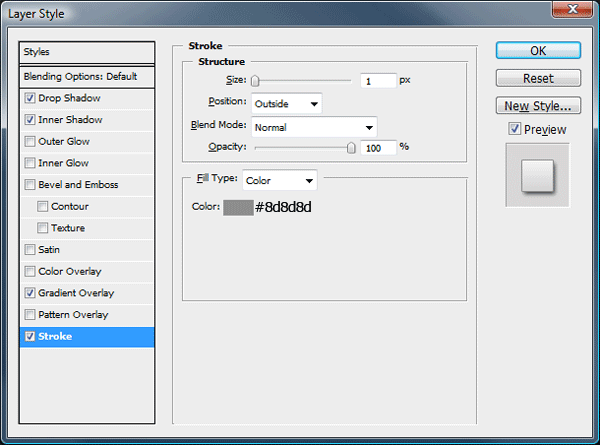

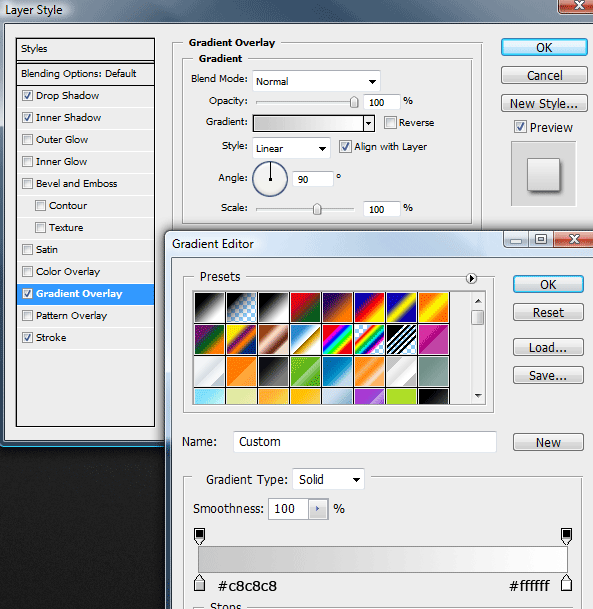

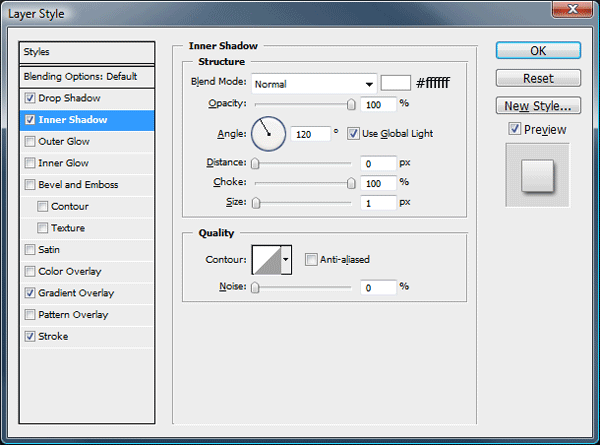

Add these layer styles to your website title text.

Hosting Layout #2 image 5

Hosting Layout #2 image 6

Hosting Layout #2 image 7

Hosting Layout #2 image 8

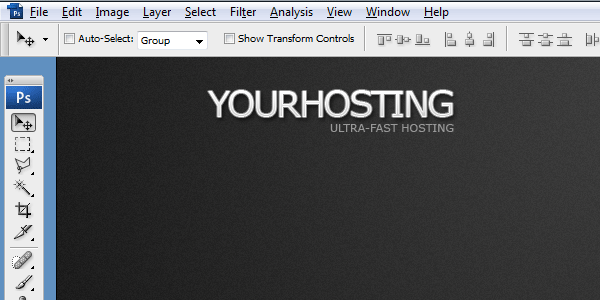

You should have something like this.

Hosting Layout #2 image 9

Creating The Navigation Bar

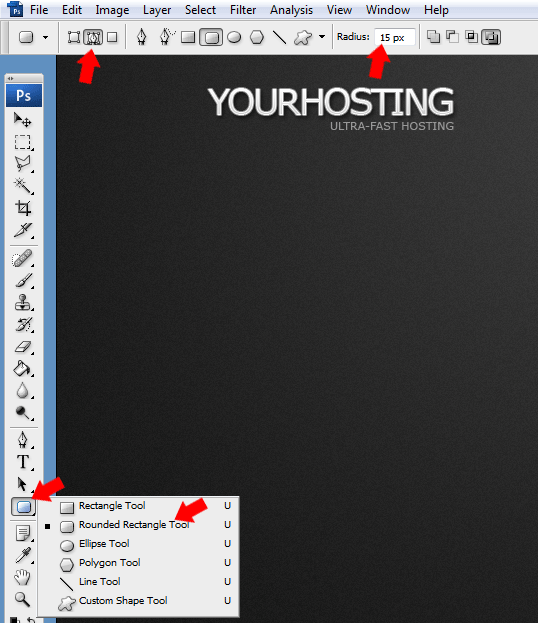

Select the rounded rectangle tool with a radius of 15 pixels.

Hosting Layout #2 image 10

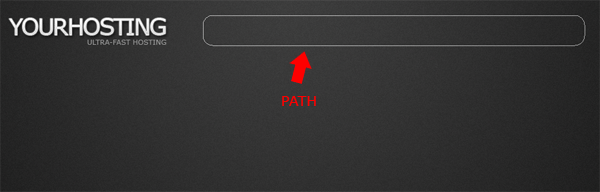

Drag out your path along side the website title, leaving a decent size gap inbetween each element.

Hosting Layout #2 image 11

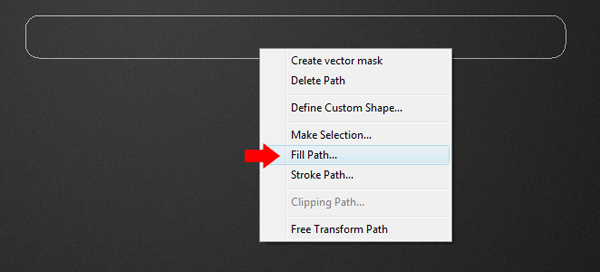

Once you've dragged out your path select the pen tool. Right-click inside the path and go to fill path.

Hosting Layout #2 image 12

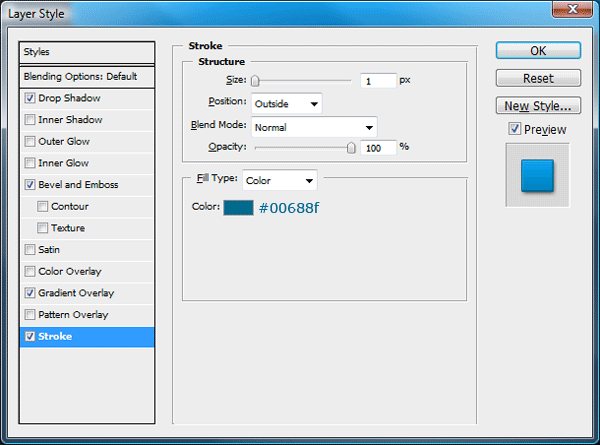

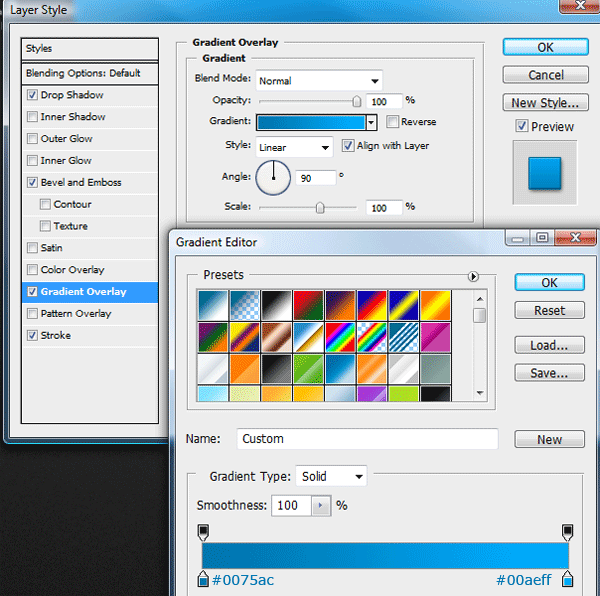

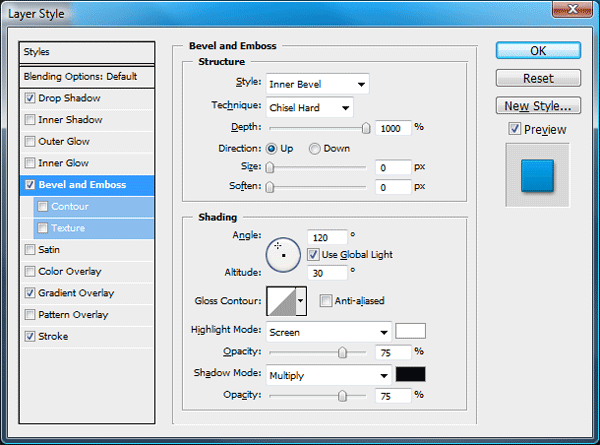

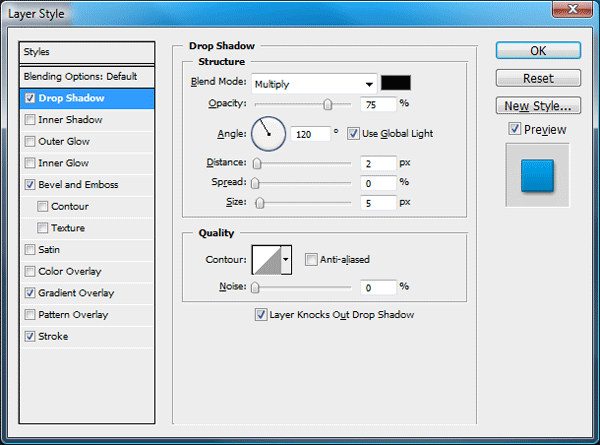

Finally right-click inside the path again and go to delete path. Now add the following layer styles.

Hosting Layout #2 image 13

Hosting Layout #2 image 14

Hosting Layout #2 image 15

Hosting Layout #2 image 16

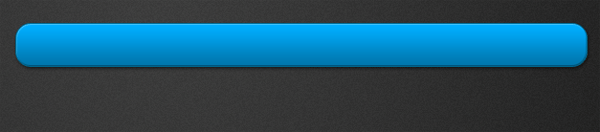

You should have something like this.

Hosting Layout #2 image 17

Using the same method as explained above create another rounded rectangle inside the navigation. Fill the rectangle with the color white.

Hosting Layout #2 image 18

Now set the opacity of the white rectangle to 8% then add your navigation links.

Hosting Layout #2 image 19

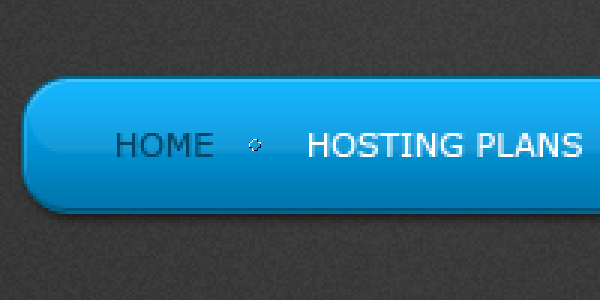

Inbetween each navigation link add a small circle using the elliptical marquee tool.

Hosting Layout #2 image 20

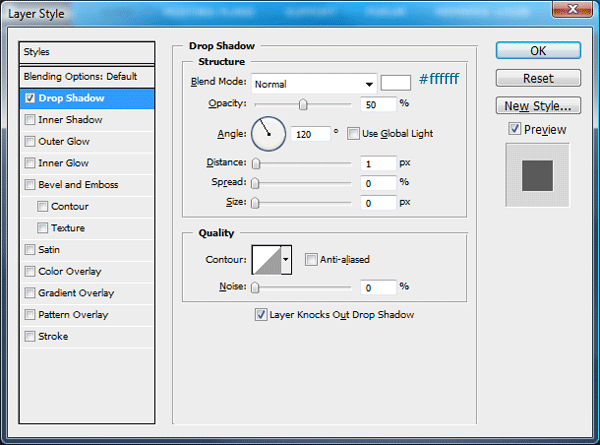

Fill the circle using the color #00688f then add a drop shadow using the settings below.

Hosting Layout #2 image 21

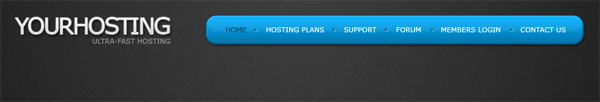

Your navigation should now look like this.

Hosting Layout #2 image 22

Creating The Content Area

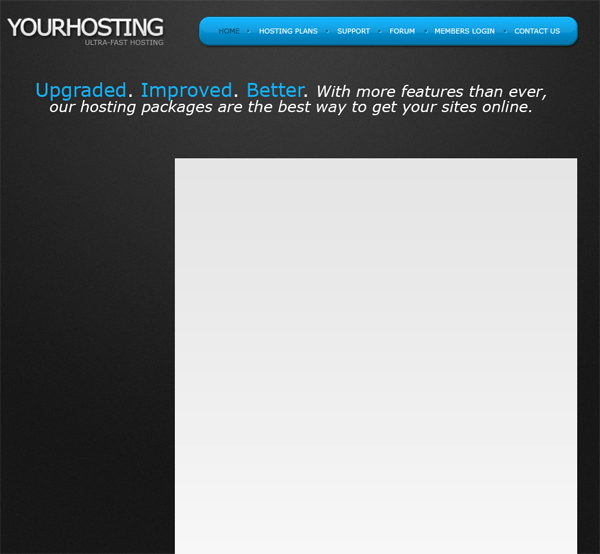

Underneath the website title and navigation add a catchy sentance of some sort, then using the rectangular marquee tool create a rectangle on the right side.

Hosting Layout #2 image 23

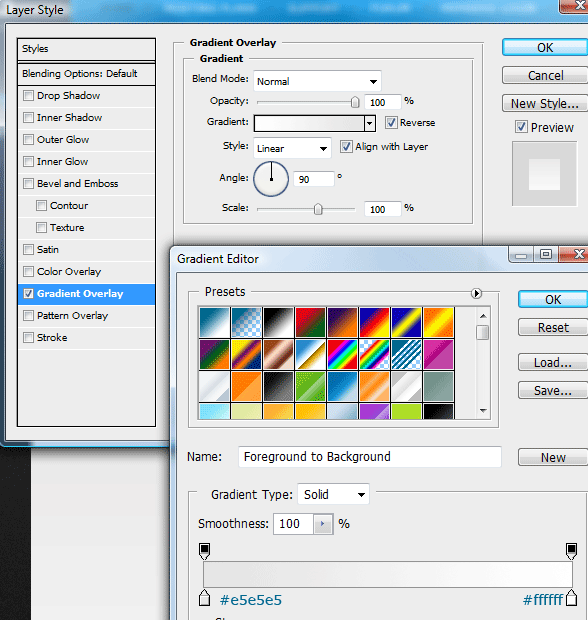

Add a gradient overlay to the rectangle you just created using the settings below.

Hosting Layout #2 image 24

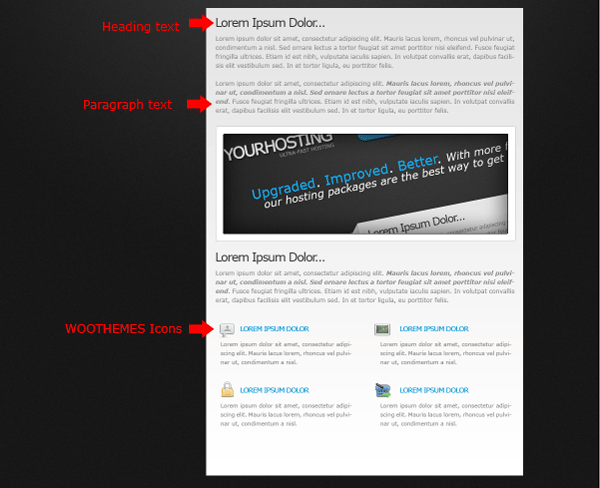

Inside the rectangle add some dummy content. Use the color #373737 for the titles and a size of 14pt, for all paragraphs use the color #898989 with a size of 12pt. Also within the content area throw in some snazzy icons in a nice list form, the icons ive used are from woothemes.

Hosting Layout #2 image 25

Creating The Sidebar

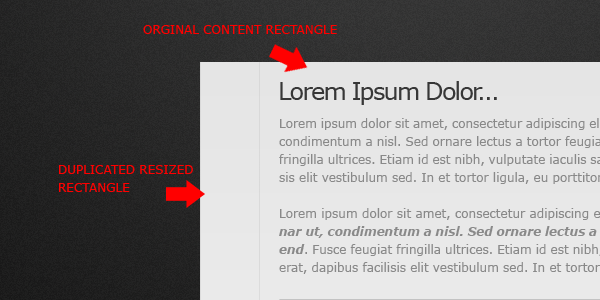

Duplicate your content rectangle layer, then drag the duplicated layer underneath its orginal. Press "ctrl + t" to free transform the rectangle, resize the rectangle to a thin rectangle, then move it side by side to the content rectangle.

Hosting Layout #2 image 26

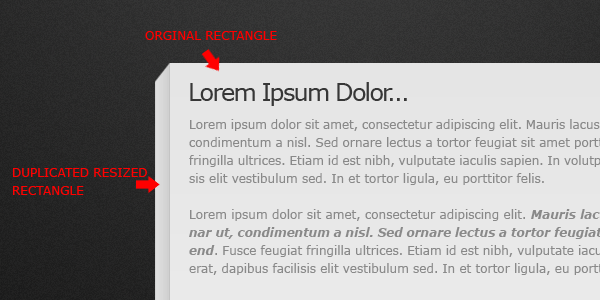

With your duplicated rectangle layer still selected go to "edit > transform > perspective". Select the top left anchor point and move it downwards whilst holding down the shift key on the keyboard.

Hosting Layout #2 image 27

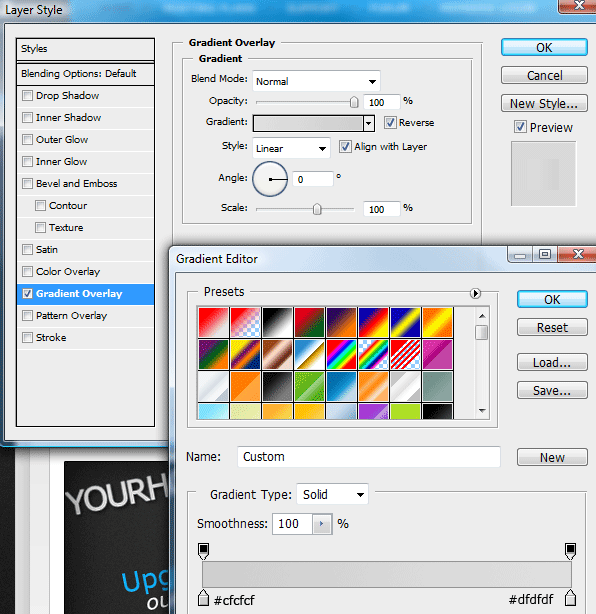

Update the gradient overlay on the duplicated rectangle to the settings below.

Hosting Layout #2 image 28

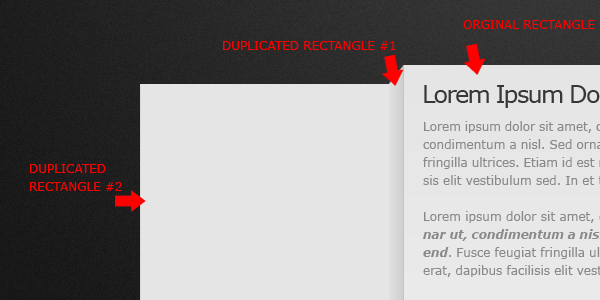

Duplicate the content rectangle once more, resize the rectangle using the free transform tool. The rectangle should be resized to fit side by side the first rectangle we duplicated.

Hosting Layout #2 image 29

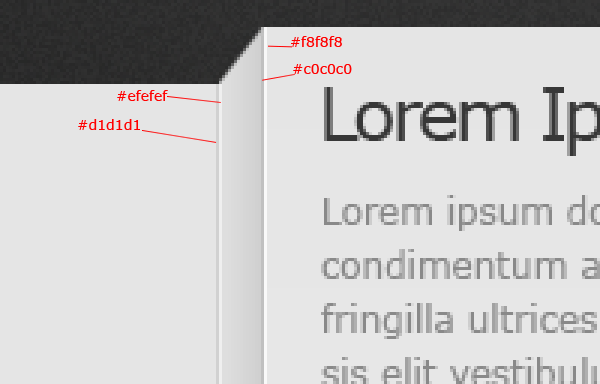

On each crease where the rectangles meet, add a divider using the color's specified below. The dividers should span the whole height of the each crease.

Hosting Layout #2 image 30

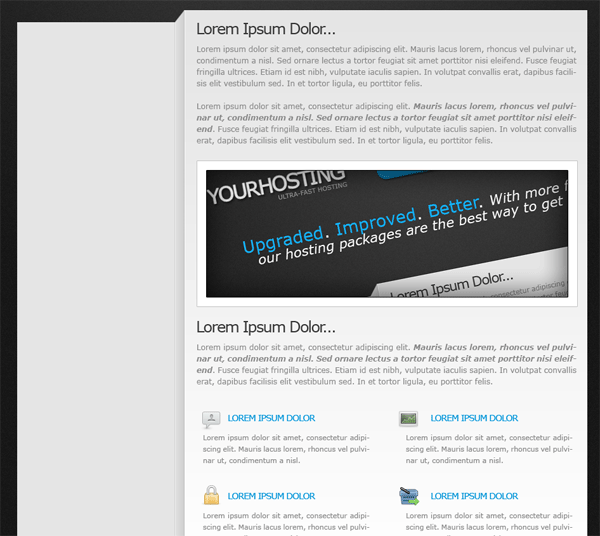

You should have something like this.

Hosting Layout #2 image 31

Adding The Sidebar Content

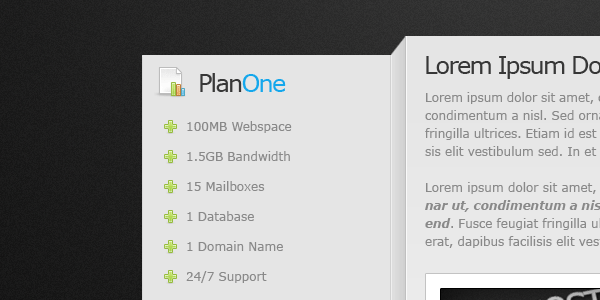

Using the type tool and the plus icon from the woothemes icon set, create a simple list displaying dummy content.

Hosting Layout #2 image 32

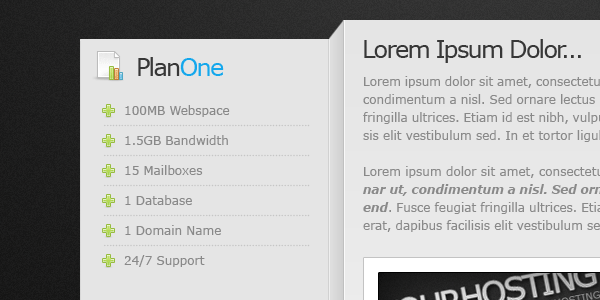

Inbetween each list item add a dotted divider. You can easily create the dotted divider by using the type tool and hold down the full stop key. (...)

Hosting Layout #2 image 33

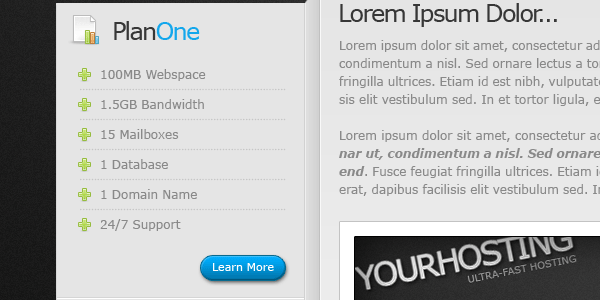

Underneath the list add a simple learn more button. Select the rounded rectangle tool with a radius of 15px same as our navigation bar, drag out a small sized button then fill with any color. Right click the navigation layer and go to "copy layer styles", right click the learn more button layer and go to "paste layer styles".

Hosting Layout #2 image 34

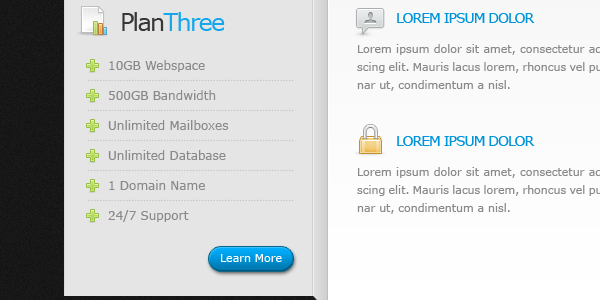

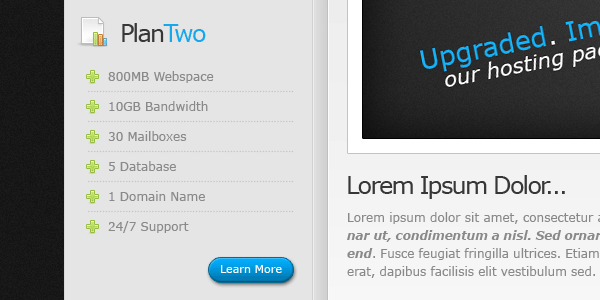

Repeat the steps above to create more plans as needed.

Hosting Layout #2 image 35

Hosting Layout #2 image 36

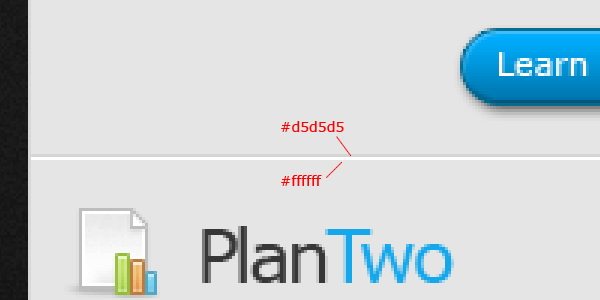

Finally inbetween each plan add a divider to seperate the content. Create two 1 pixel lines using the colors below.

Hosting Layout #2 image 37

Finally...

Finally add your footer content underneath the content rectangle using the type tool. Thats it all done, hope you enjoyed this tutorial, il look forward to your comments.

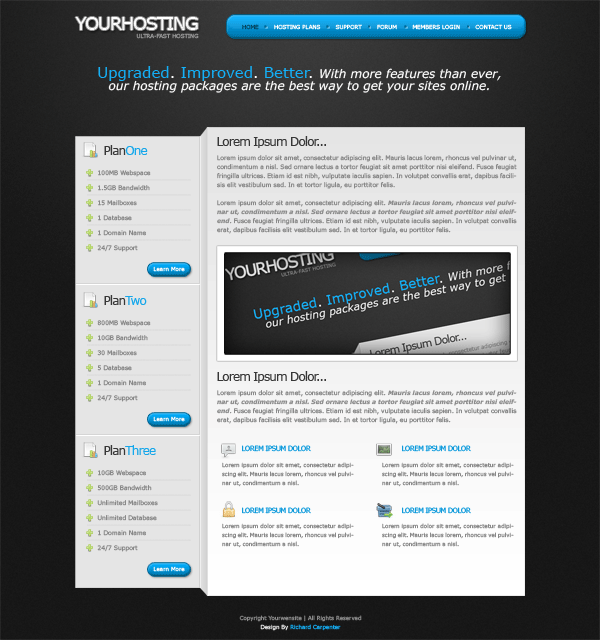

Hosting Layout #2 Tutorial: Final Result



Author's URL: Hv-Designs.co.uk
