Professional Blog Web Layout

Added: Jun 17, 2010 Level: Beginner Software: Photoshop

Step 1

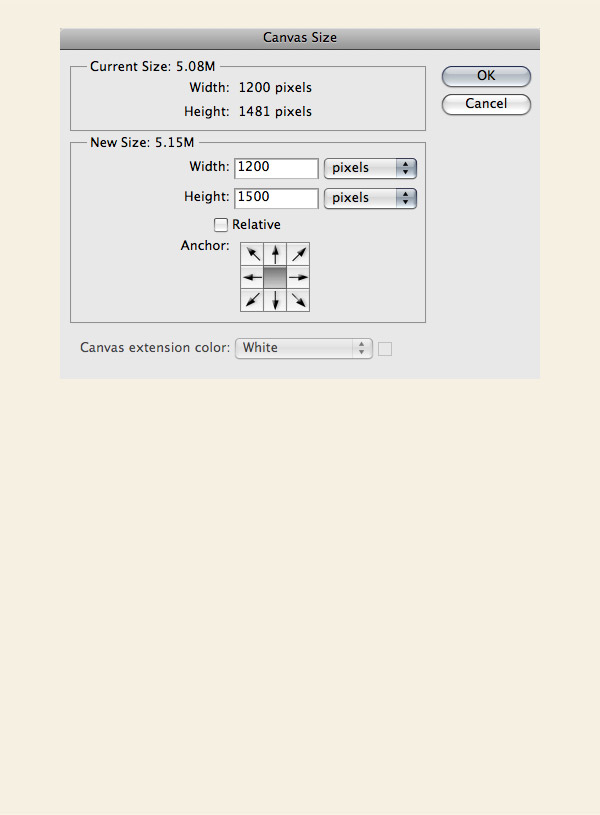

Increase the size of your document by going to Image > Canvas Size. Use the settings from the following image. Then select the Paint Bucket Tool (G) and fill the background with the color #f6f0e2.

Step 2

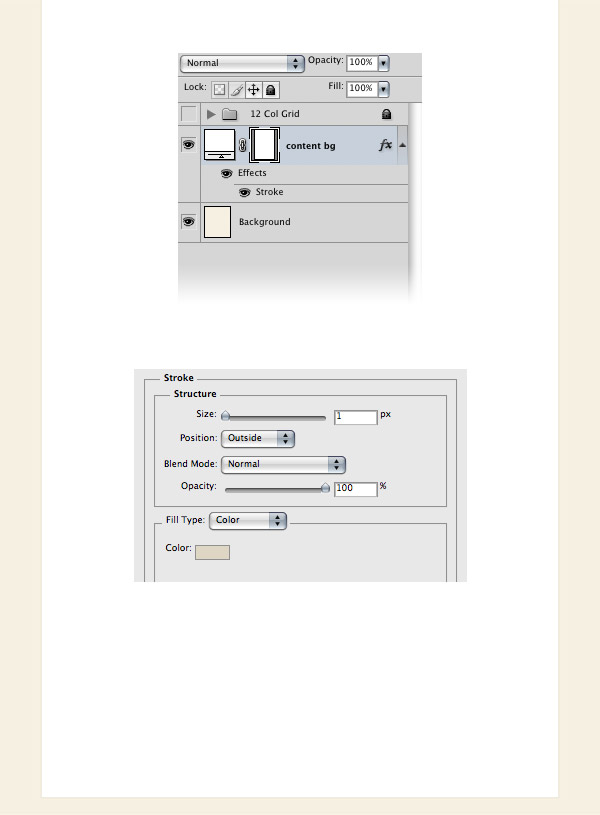

Select the Rectangle Tool (U) and create a white rectangle with the width 940px from the top of your document to the bottom. Leave a distance of 30px from the bottom edge of your document. Name this layer "content bg", double-click on it to open the Layer Style window and add a 1px stroke using the color #ded6c4.

Step 3 - Creating the header

Click on the 'Create a new group' button from the bottom of the Layers panel to create a new group and name it "header".

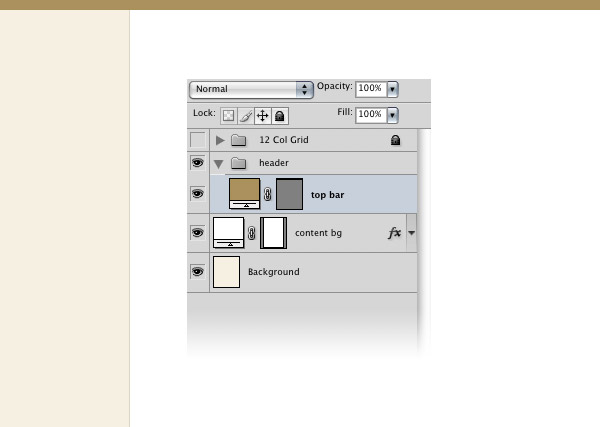

Select the Rectangle Tool (U) and create a rectangle with the height 10px at the top of your document using the color #aa915c. Name this layer "top bar".

Step 4

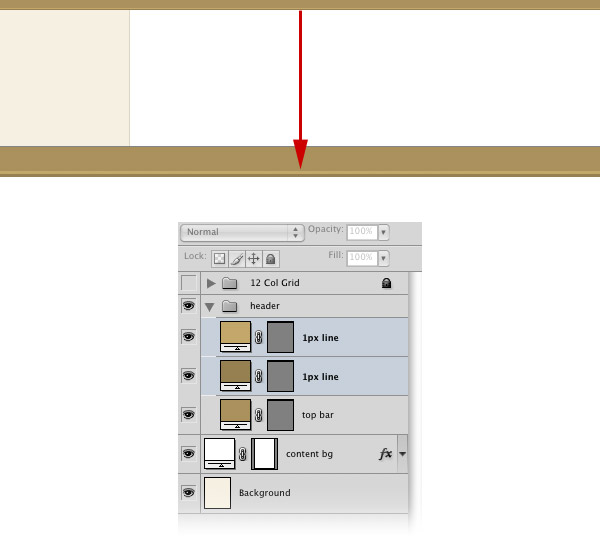

Select the Line Tool (U), set the weight to 1px and create a horizontal line at the bottom of the rectangle you created at the previous step using the color #968051. Name this layer "1px line".

Hit Ctrl/Cmd + J to duplicate this layer. Change the color of the new line to #c3a76a. Then select the Move Tool (V) and hit the up arrow once to move this layer one pixel up.

Step 5

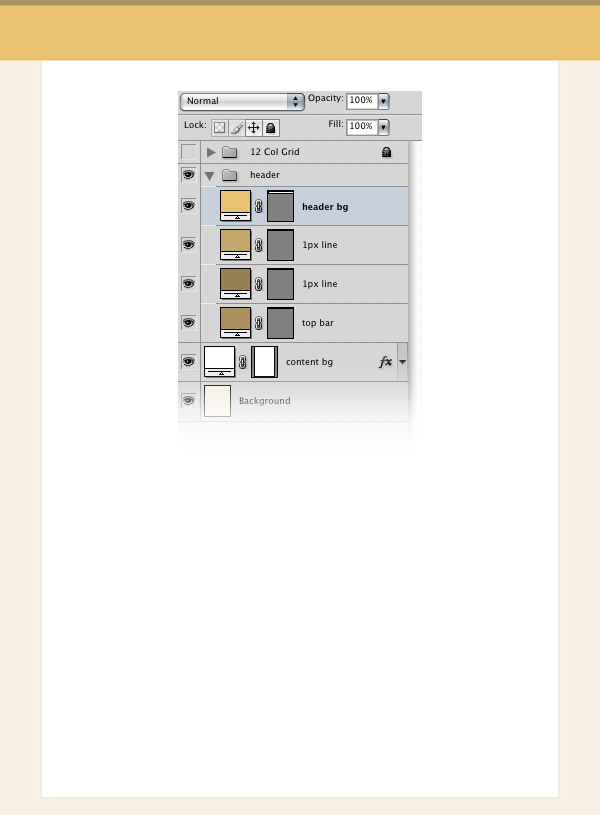

Select the Rectangle Tool (U) and create a rectangle with the height 100px and the color #e8c271 underneath the first rectangle. Name this layer "header bg".

Step 6

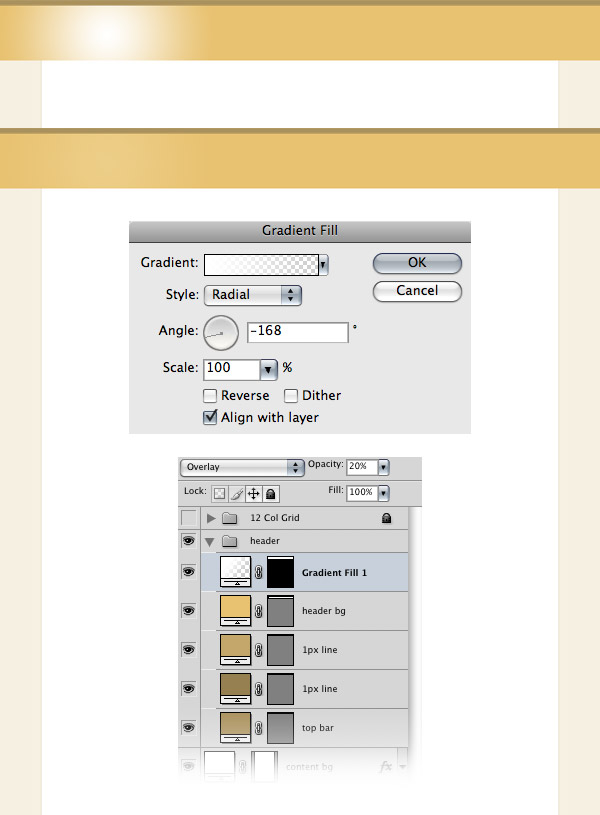

Ctrl/Cmd-click on the vector mask of the "header bg" layer to select it. Then go to Layer > New Fill Layer > Gradient. The selection that you made has now been transformed into a mask and the gradient will be visible only over the header.

Use the settings from the following image for the Gradient Fill layer and move the gradient in the left side of the header (to move the gradient, click on the image and drag the cursor white the Gradient Fill window is opened). Set the blend mode of this layer to Overlay 20%.

Step 7

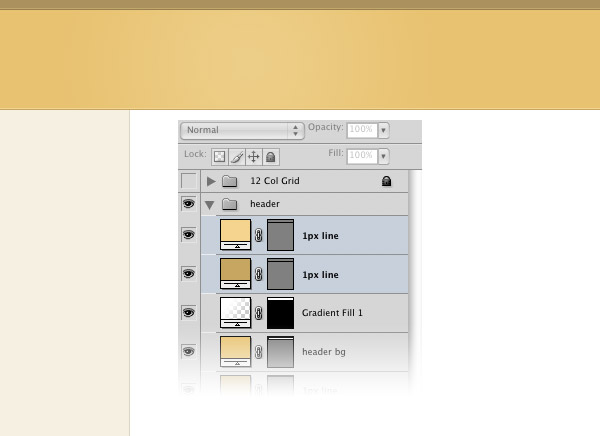

Select the Line Tool (U) and create two lines with the weight 1px at the bottom of the header. Use the color #f4d48f for the first line and #c6a661 for the second one.

Step 8

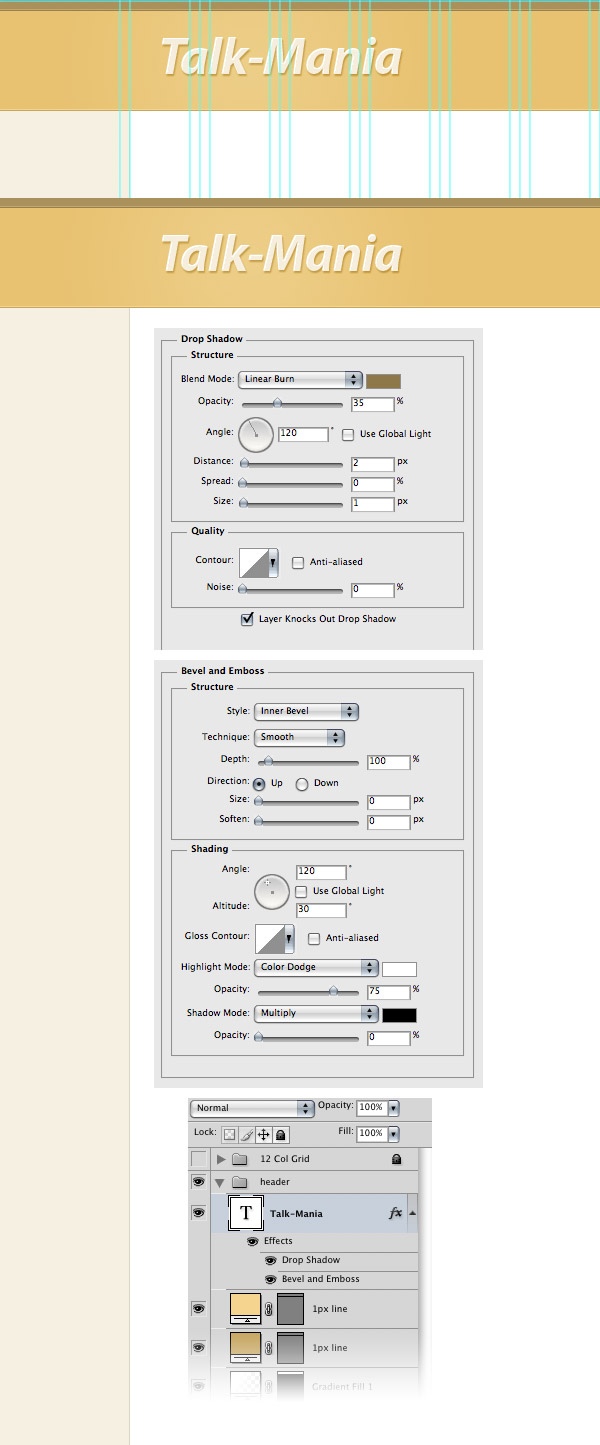

Select the Type Tool (T) and write the name of your web layout in the left side of the header using the color #f6eedd and the font Myriad Pro Bold Italic. Activate the guides to help you position this text layer correctly.

Double-click on this layer to open the Layer Style window and use the settings from the following image. I used the color #8e7849 for Drop Shadow.

Step 9 - Creating the navigation bar

Create a new group and name it "navigation". Select the Rounded Rectangle Tool (U) and create a rounded rectangle with the dimensions 550px by 50px and the color #e9d09b. Name this layer "navbar" and use the Move Tool (V) to move it in the right side of your layout at 10px underneath the header. I used the color #cdbd9b for Drop Shadow.

Step 10

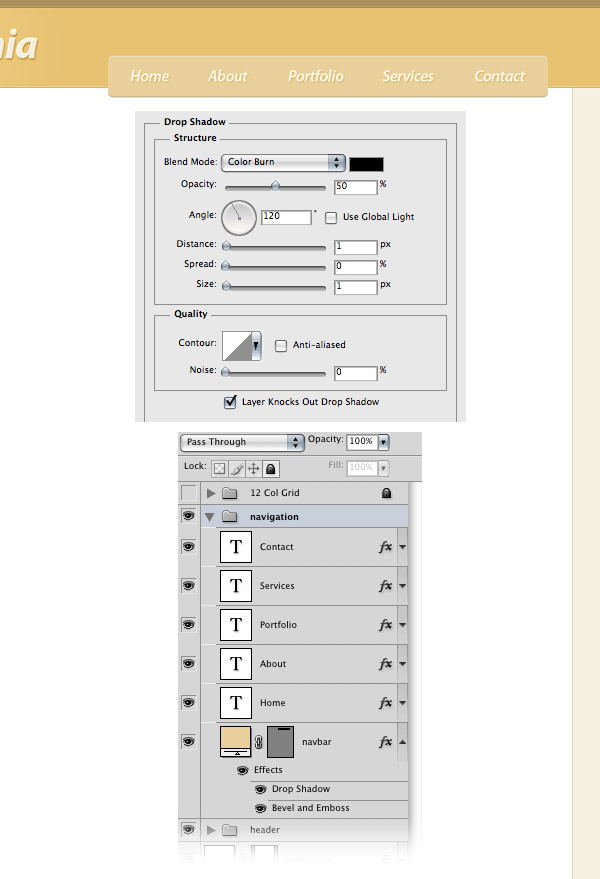

Select the Type Tool (T) and write the name for your navigation menu items using the color #fffcf4. Add a shadow to your text layers using the settings from the following image.

Step 11 - Creating the featured area

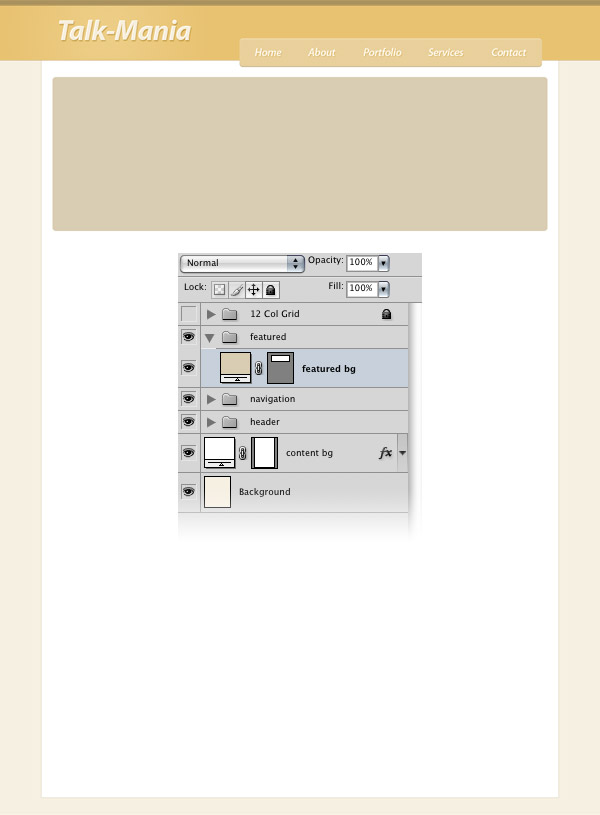

Create a new group and name it "featured". Then select the Rounded Rectangle Tool (U) and create a rectangle with the dimensions 900px by 280px and the color #d9cdb2. Name this layer "featured bg" and move it at a distance of 30px from the bottom edge of the header.

Step 12

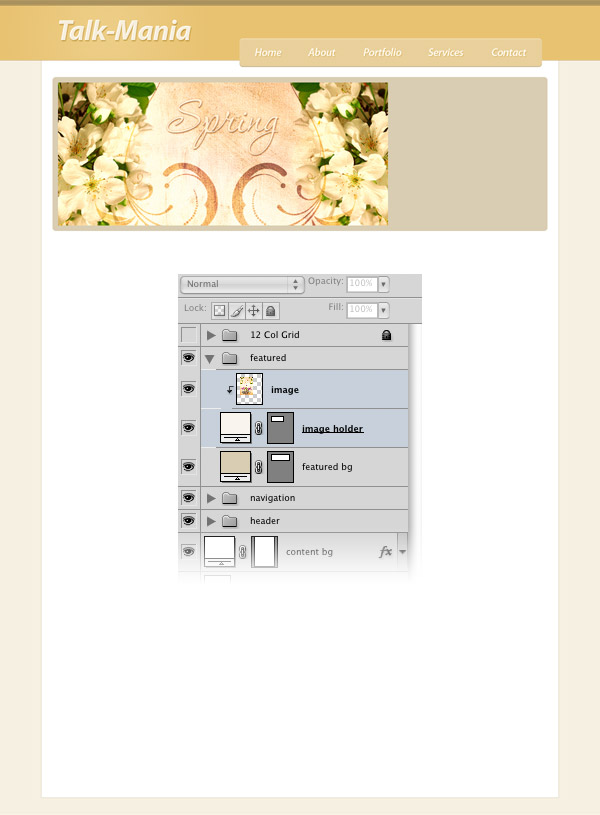

Select the Rectangle Tool (U) and create a rectangle inside the big rounded rectangle with the dimensions 600px by 260px and the color #f9f5ed. Activate the guides to help you create this shape. Then name this layer "image holder".

Open an image in Photoshop and move it into your web layout document using the Move Tool (V). Name this layer "image" and put this image over the "image holder" layer. Right-click on the "image" layer and select Create Clipping Mask.

Step 13

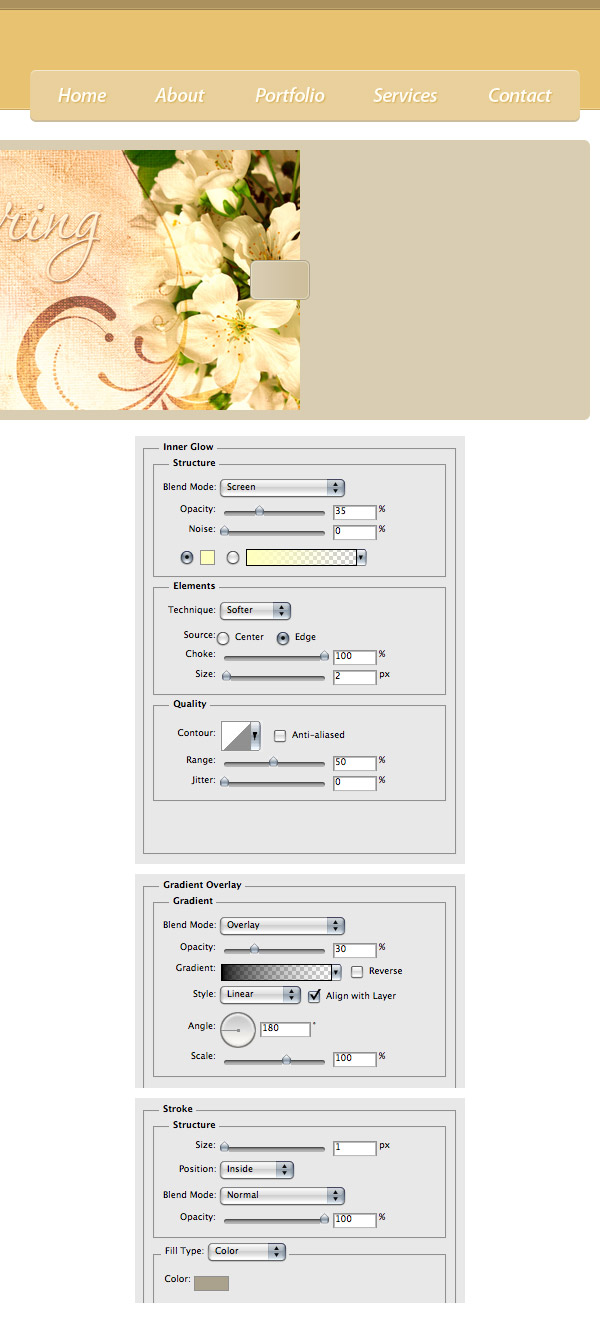

Now we will create two arrows for the featured area. Select the Rounded Rectangle Tool (U) and create a small rounded rectangle with the color #d9cdb2. Double-click on this layer to open the Layer Style window and use the settings from the following image. For the Stroke I used the color #aaa18c. Name this layer "rounded rectangle".

Step 14

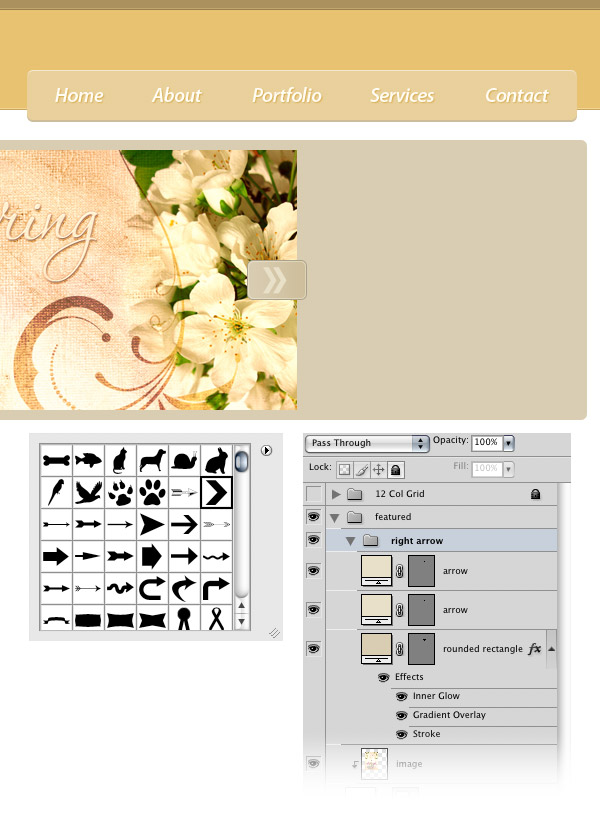

Select the Custom Shape Tool (U) and create an arrow shape inside the rounded rectangle using the color #e8e0c8. Duplicate this arrow and move the new one to the left.

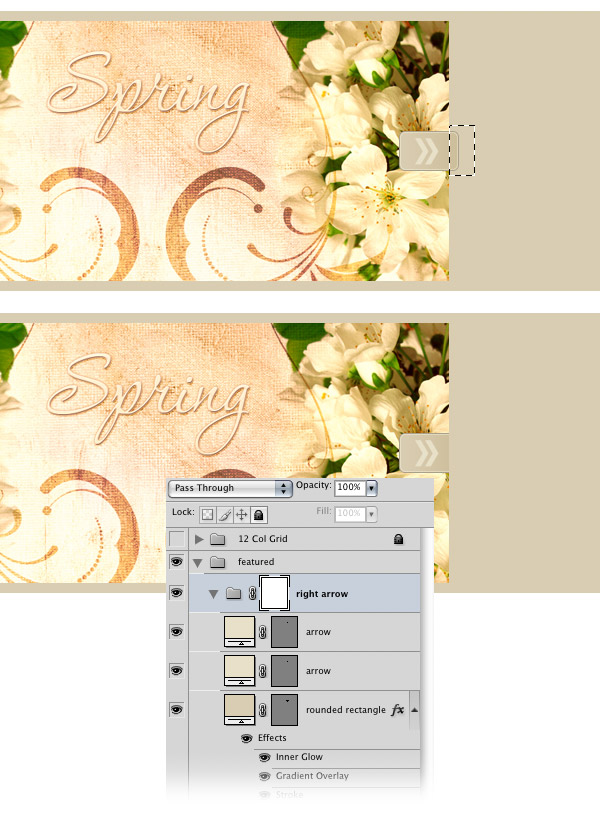

Select the "rounded rectangle" layer and the two arrow layers and hit Ctrl/Cmd + G to put them inside a group. Name the group "right arrow".

Step 15

Use the Rectangular Marquee Tool (M) to select the right side of the small rounded rectangle. Make sure that the "right arrow" group is selected, then go to Layer > Layer Mask > Hide Selection.

Step 16

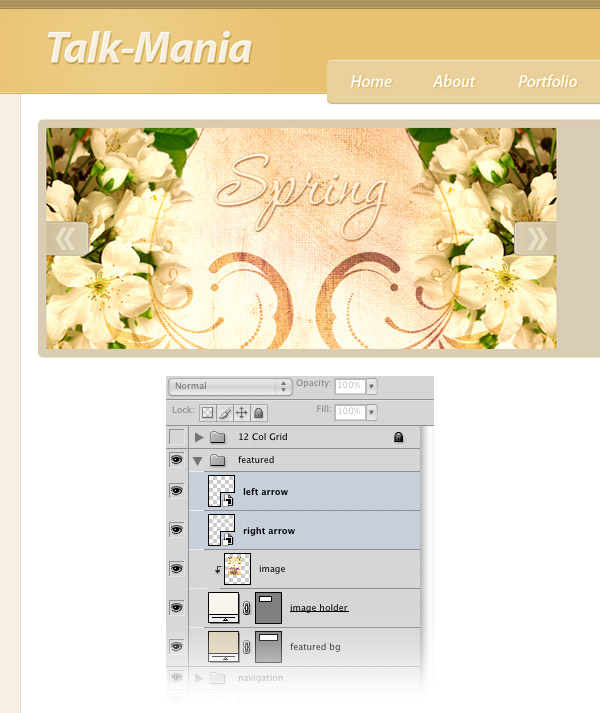

Right-click on the "right arrow" layer and select Convert to Smart Object. Duplicate this layer (Ctrl/Cmd + J). Then go to Edit > Transform > Flip Horizontal. Name the new layer "left arrow" and move it in the left side of the featured area.

Step 17

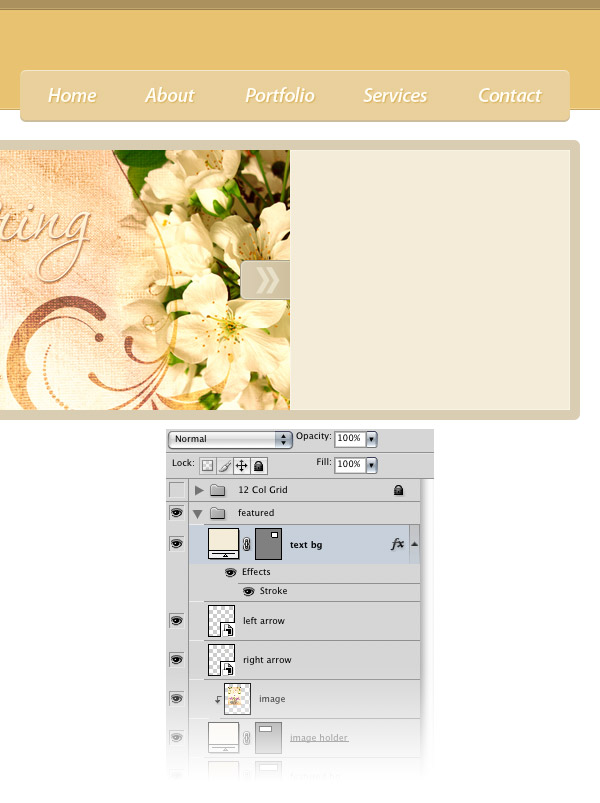

Select the Rectangle Tool (U) and create a rectangle with the size 280px by 260px and the color #f4ecd8. Put the rectangle next to the featured image and name this layer "text bg". Double-click on this layer to open the Layer Style and add a 1px stroke using the color #f8f4ea.

Step 18

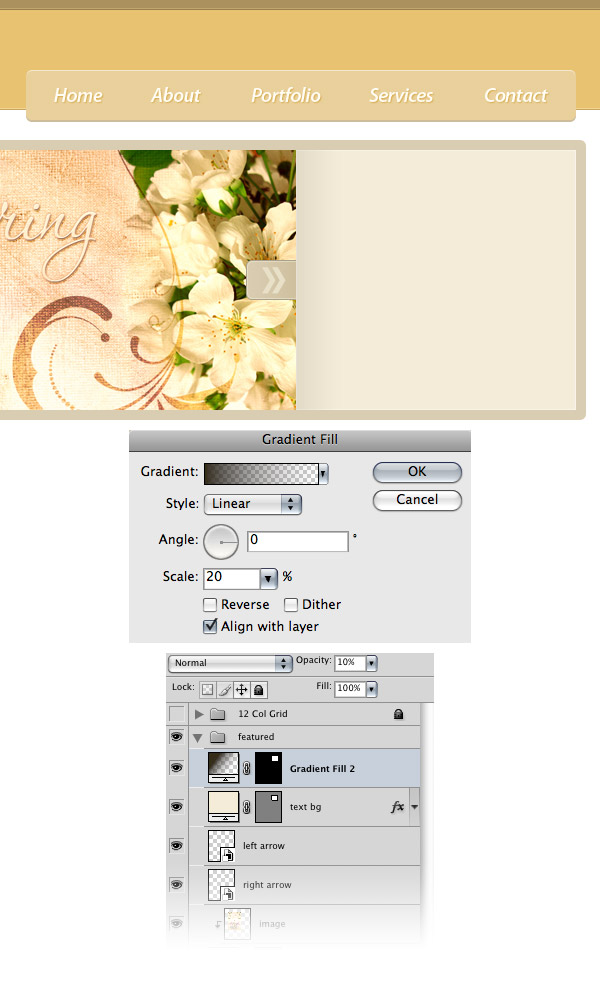

Ctrl/Cmd-click on the vector mask of the "text bg" layer to select the rectangle. Then go to Layer > New Fill Layer > Gradient and use the settings from the following image. I used a #362D1A-to-transparent gradient. While the Gradient Fill window is opened, click on the image and move the gradient in the left side of the rectangle. Then set the opacity of this layer to 10%.

Step 19

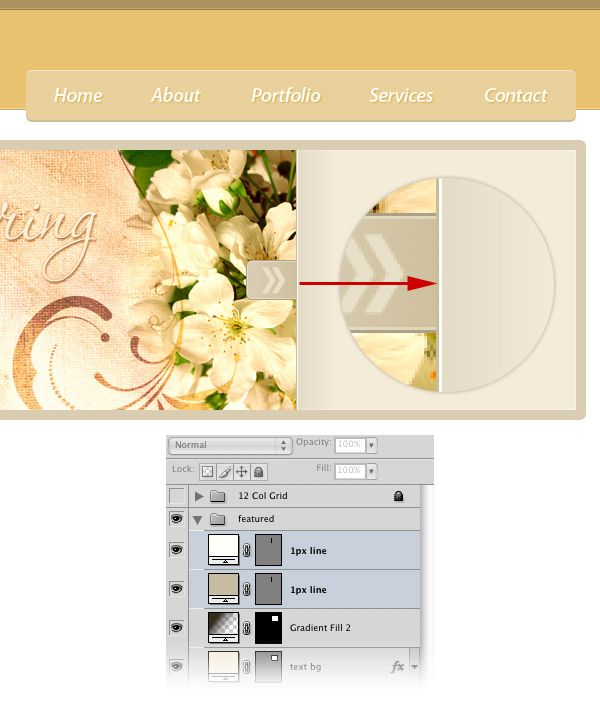

Create two vertical lines in the left side of the rectangle. Use the color #c7bca0 for the first line and #fffdf7 for the second one.

Step 20

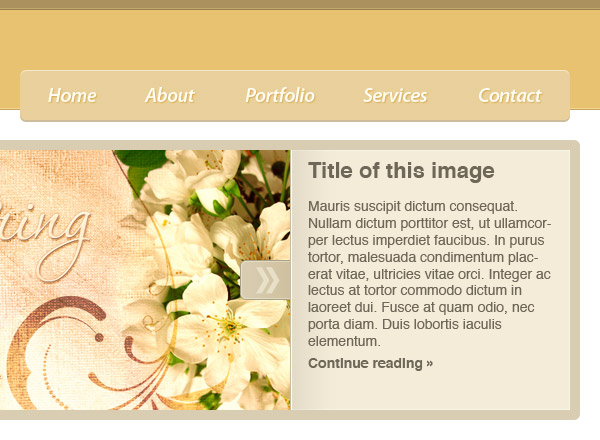

Select the Type Tool (T) and add some text for the featured area using the color #6e6758 and the font Helvetica.

Step 21

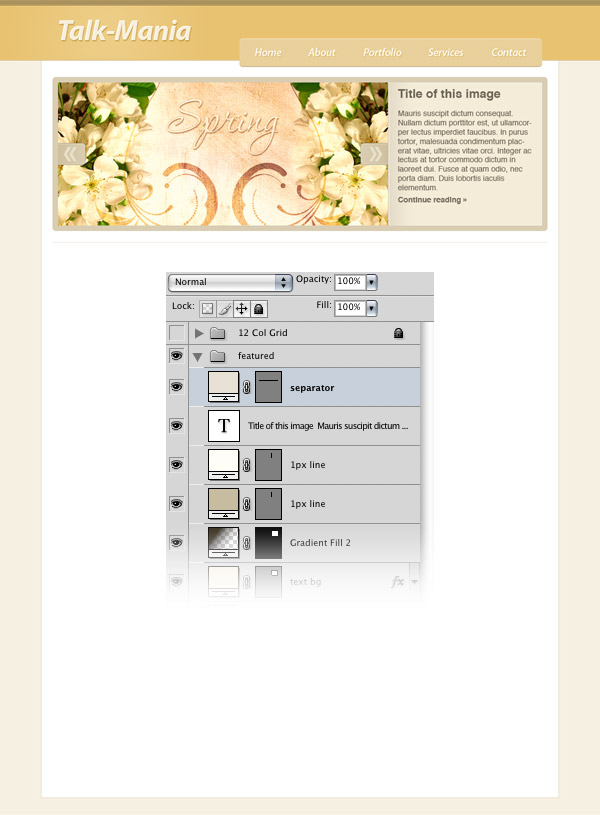

Select the Line Tool (U) and create a horizontal line underneath the featured area using the color #e7e1d5.

Step 22 - Creating the content area

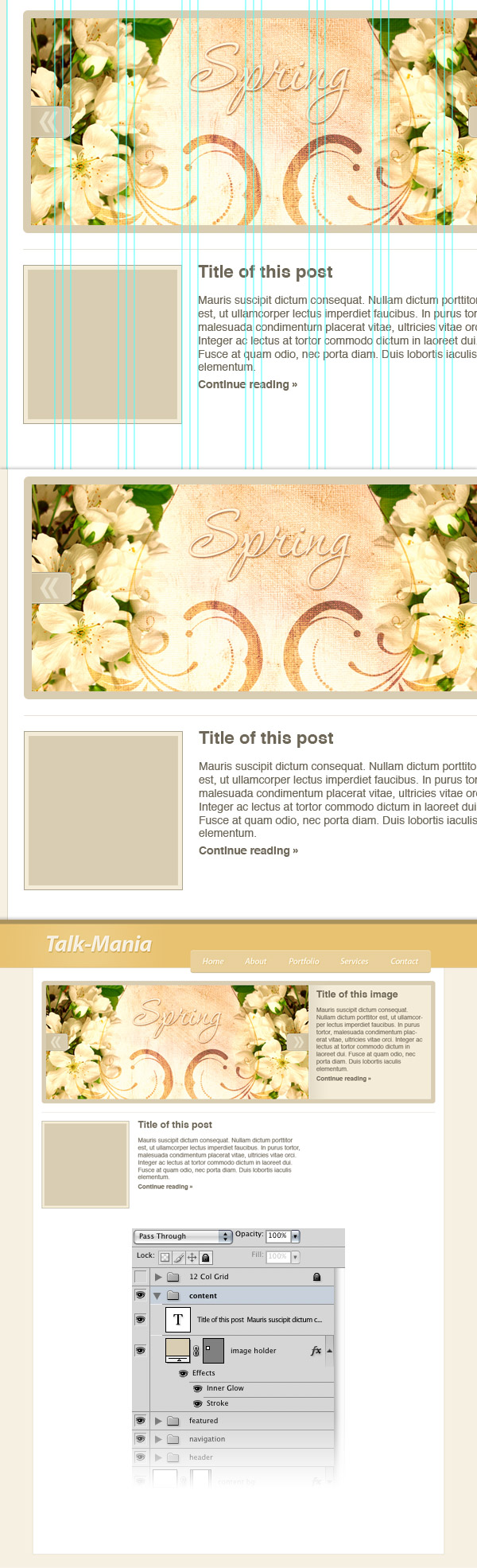

Create a new group and name it "content". Then select the Rectangle Tool (U), hold down the Shift key and create a square with the size 200px by 200px and the color #d9cdb2. Name this layer "image holder", double-click on it and use the settings from the following image to create a double stroke effect. I used the color #f4ecd8 for Inner Glow and #ada48f for Stroke.

Select the Type Tool (T) and add some text next to the square.

Step 23

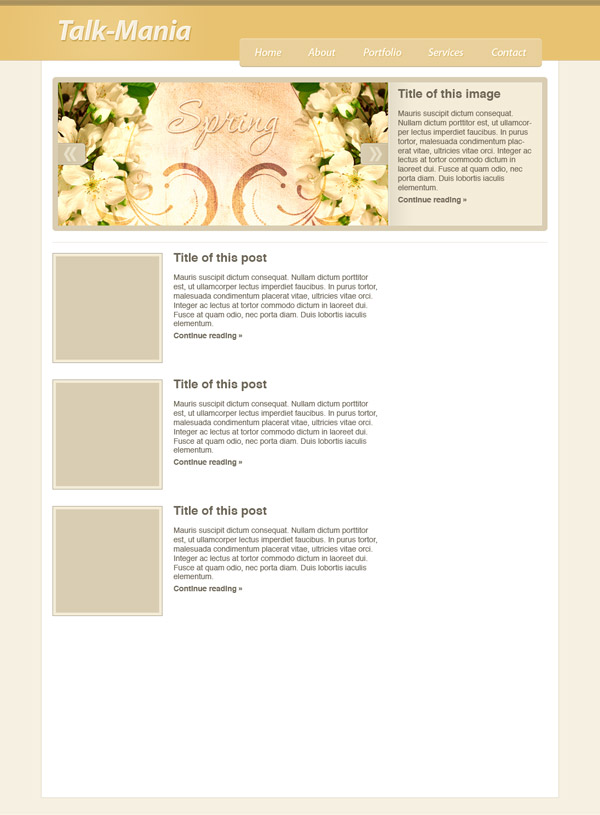

Duplicate the layers that you created at the previous step a couple of times. Use the Move Tool (V) to move the new layers underneath the original ones.

Step 24 - Creating the sidebar

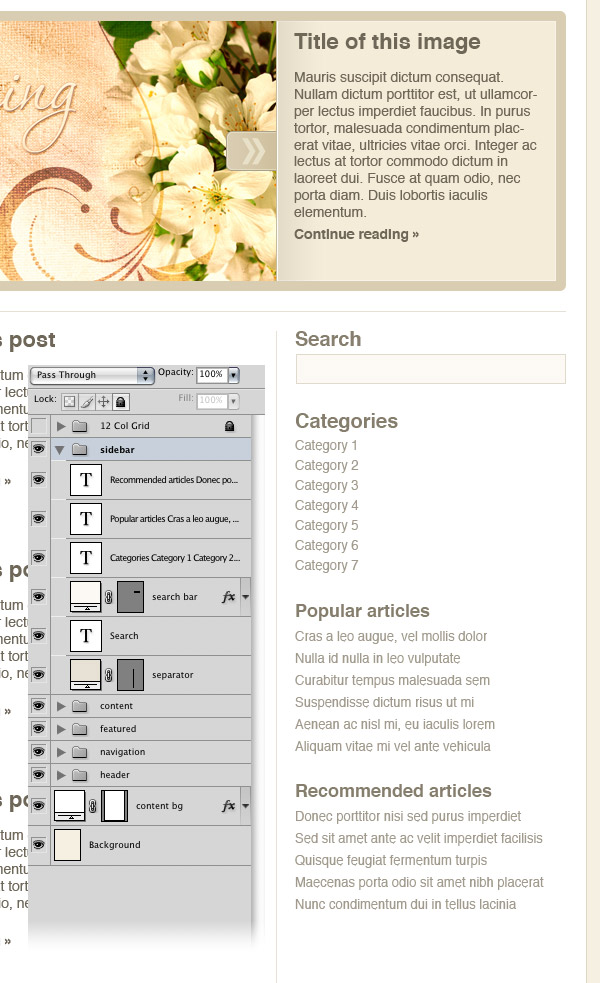

Create a new group and name it "sidebar". Select the Line Tool (U) and create a vertical line next to the blog posts using the color #e7e1d5.

Select the Rectangle Tool (U) and create a rectangle with the dimensions 270px by 30px and the color #fcf9f4. Add a 1px stroke to this rectangle layer using the color #e0dace. Name this layer "search bar". Then select the Type Tool (T) and add the content for your sidebar.

Step 25 - Creating the footer area

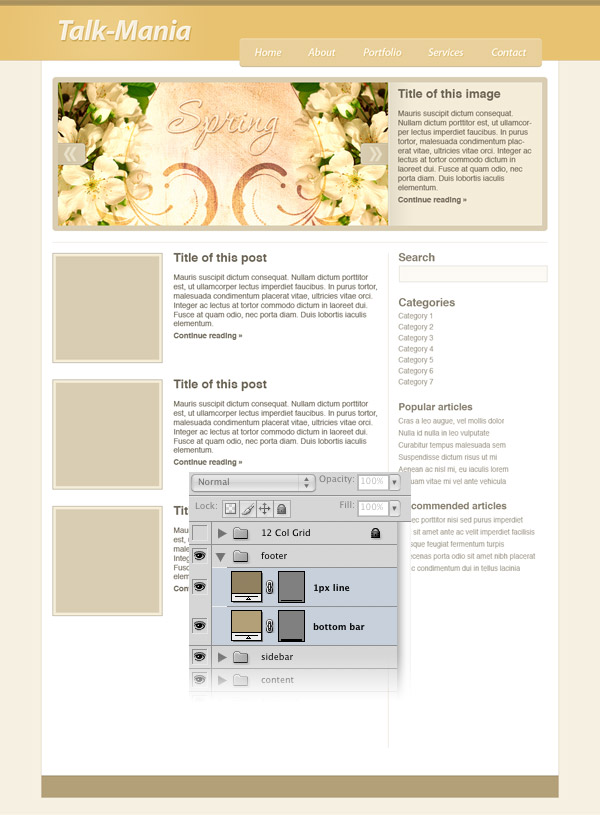

Create a new group and name it "footer". Then select the Rectangle Tool (U) and create a rectangle with the height 40px and the color #b3a078 at the bottom of your layout. Name this layer "bottom bar". Then select the Line Tool (U) and create a horizontal line at the top of this rectangle using the color #918161.

Step 26

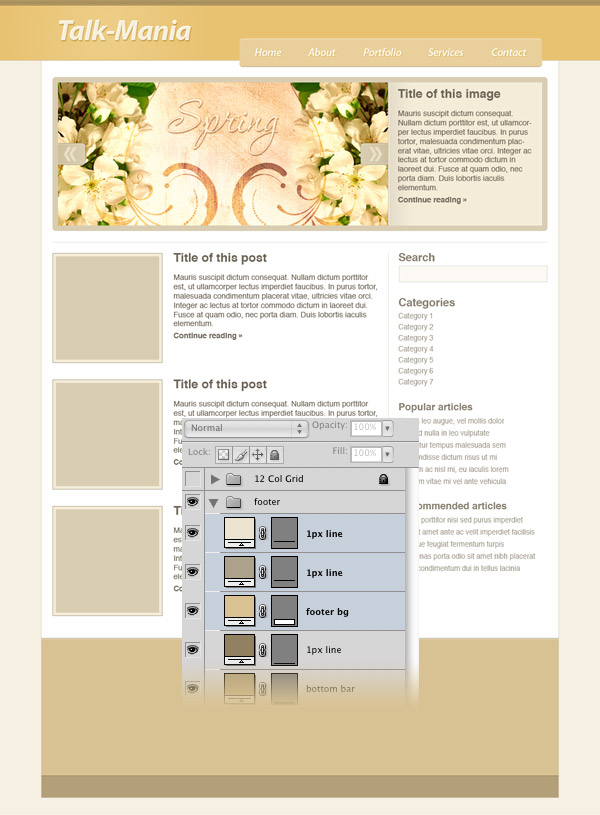

Create another rectangle with the height 250px and the color #d8c293. Put this rectangle at the top of the previous one. Name this layer "footer bg".

Select the Line Tool (U) and create two lines at the top of this rectangle. Use the color #ece4d1 for the first line and #ada28b for the second one.

Step 27

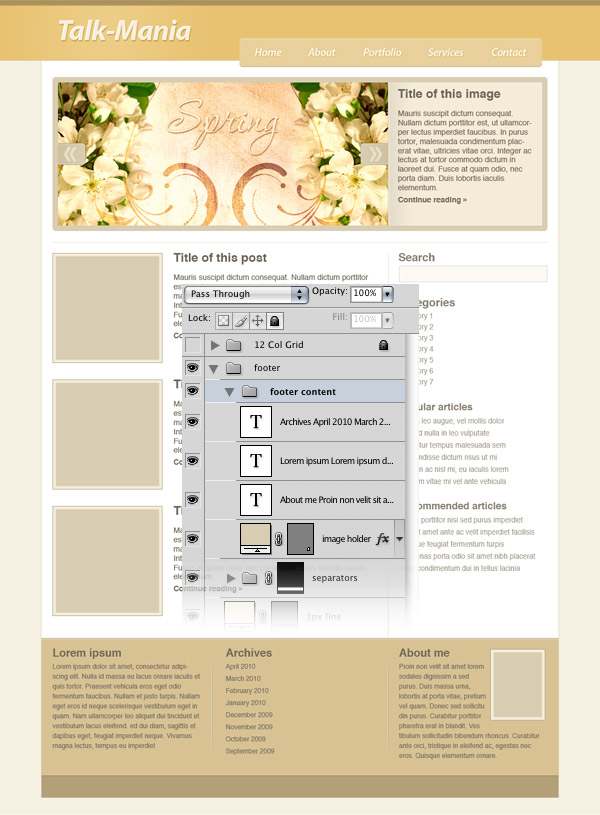

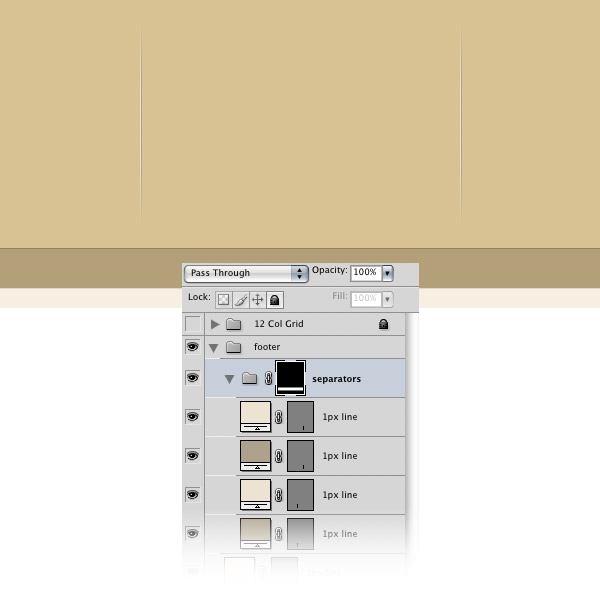

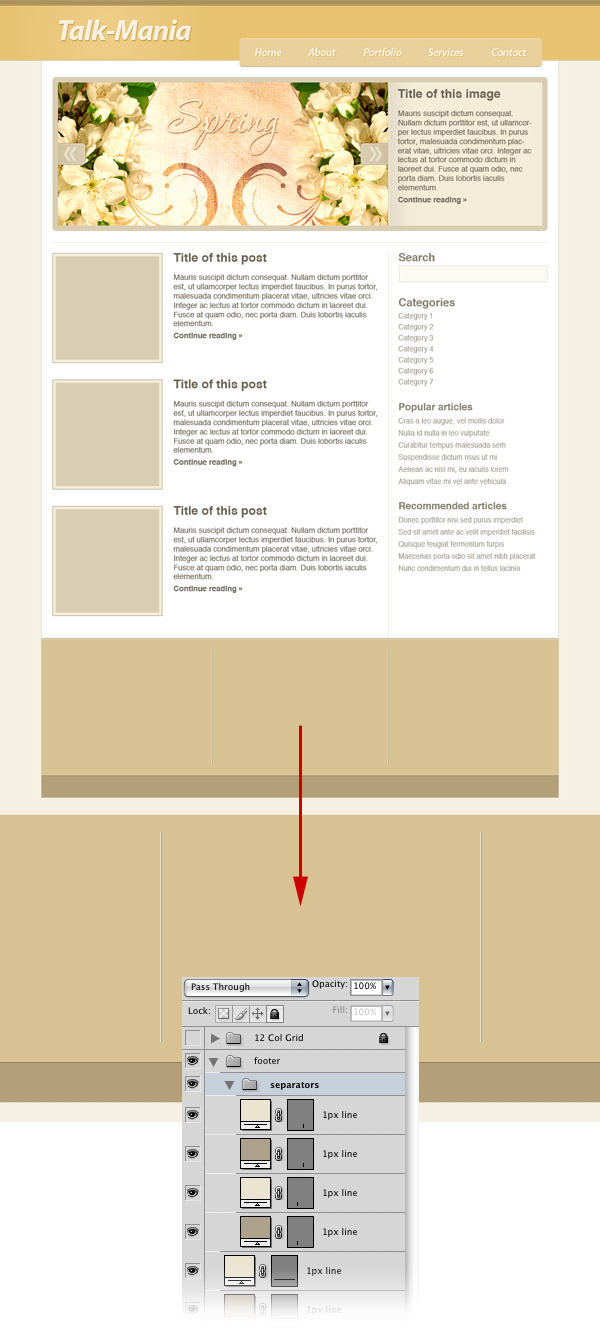

Use the Line Tool (U) to create two separators, each containing two lines - one with the color #ece4d1 and the other one with the color #ada28b. Put these layers inside a group and name the group "separators".

Step 28

Add a mask to the "separators" group by going to Layer > Layer Mask > Reveal All. Then select the Gradient Tool (G) and drag two black to transparent gradients - one at the top of the separators and one at the bottom.
