Photoshop 7's Brushes Palette: The Texture and Dual Brush Options

As we continue to explore Photoshop 7's new Brushes palette, we'll look in this column at the Texture and Dual Brush panes.

Texture

Rather than a texture like those applied with the filter Texture> Texturizer, the Texture option in the Brushes palette applies a pattern to your stroke. Any pattern available in the Pattern picker for the command Edit> Fill or for the Paint Bucket is also available as a brush texture.

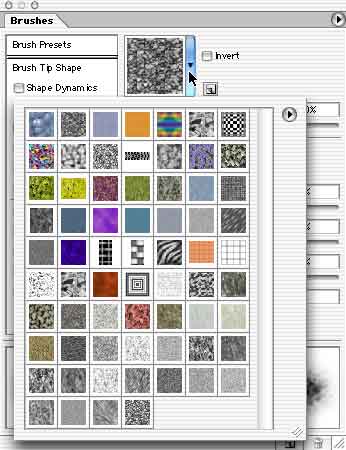

The Pattern picker menu enables you to load sets of patterns. Some of the patterns found in the set Artist Surfaces are especially appropriate for use as brush textures.

You can invert the pattern by checking the box to the right of the pattern sample. Inverting reverses the grayscale values of the pattern.

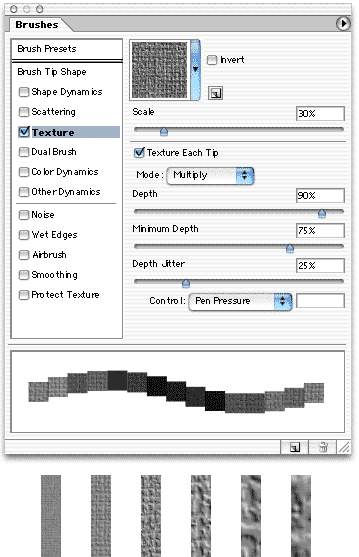

The next image shows the additional options available for texturing a brush. At the bottom are samples of the pattern Dark Coarse Weave at a variety of scale factors. From the left, the pattern is scaled to 15%, 30%, 50%, 100%, 150%, and 200%. The maximum scale factor is 1000%.

The Mode and the various Depth options are only available when Texture Each Tip is selected. The Texture Each Tip option applies the pattern individually to each instance of the brush tip. Rather than treating the brush stroke as a whole, this option treats each application of the brush tip separately. In this image, a single instance of the brush tip is shown to the upper-right. The pattern for the brush texture is Burlap.

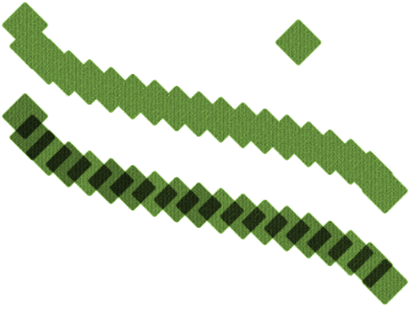

The upper example show how Photoshop applies a pattern to a stroke as a whole. Below, Texture Each Tip is activated. Note the areas of overlap from instance to instance. The pattern is applied over itself.

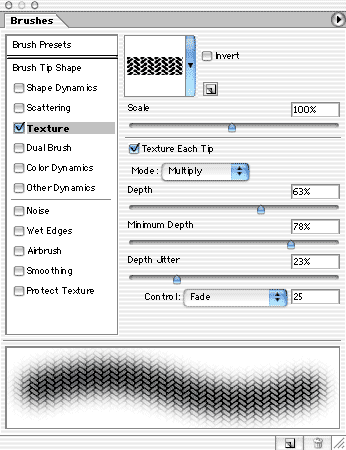

There are several options available for Texture Each Tip:
Mode - The blending modes available for Texture are Multiply, Subtract, Darken, Overlay, Color Dodge, Color Burn, Linear Burn, Hard Mix. The blending mode affects how the overlapping brush instances interact, as well as how the brush itself interacts with other colors already on the layer. Note that the Hard Mix blending mode is only available in the Texture and Dual Brush panes of the Brushes palette. Each of the brush's component color values is compared to the existing color on the layer. If the brush's component color is darker, the existing color is darkened. If it's lighter, the existing color is lightened.

Depth - Depth looks at the texture as a three dimensional object, with the light and dark areas representing high and low points. Changing the Depth setting alters what grayscale values are affected. At 0%, the pattern is completely eliminated. At 100% Depth, the texture is reproduced normally.

Minimum depth - Used in conjunction with Depth Jitter, this slider restricts the lowest jitter value.

Depth jutter - This slider regulates the amount of variation in depth over the course of the stroke. At 0%, there is no variation and the Depth slider determines the appearance of the brush.

Dual brush

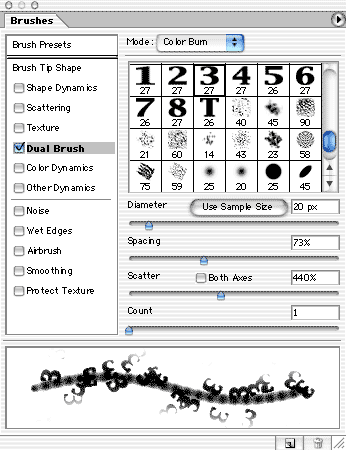

The Dual Brush option adds another brush tip to the tip selected in Brush Presets or Brush Tip Shape. The second tip is overlaid using the blending mode at the top of the Dual Brush pane of the Brushes palette. The Dual Brush pane is a cross between the Brush Tip Shape and Scattering panes. In addition to selecting the second brush tip and blending mode, you adjust the second tip for diameter, spacing, scatter, and count.

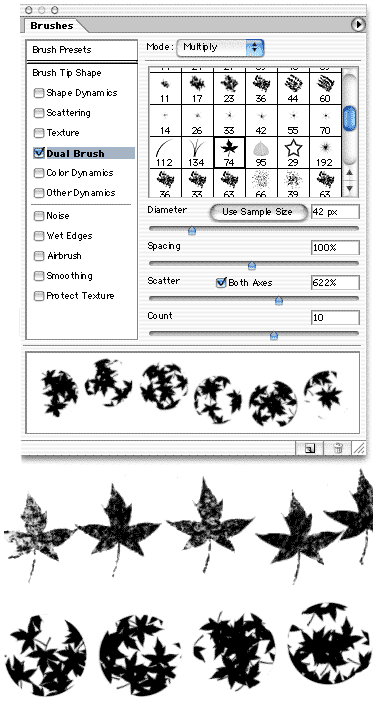

You can use Dual Brush to add a texture to a brush (upper example) or to add a custom brush within a shape defined by the initial brush tip (lower example).
