Industrial Layout

Open the following image in photoshop

Click to enlarge

Duplicate the layer ( press Ctrl+J to duplicate )

Go to Image > Adjustments > Desaturate

This is the result

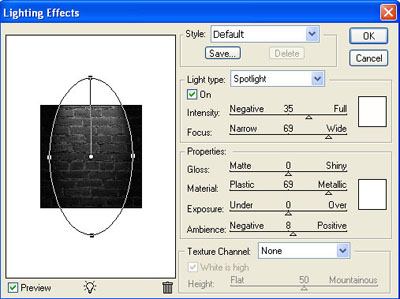

Then go to Filter > Render > Lightning effects

Use the following settings

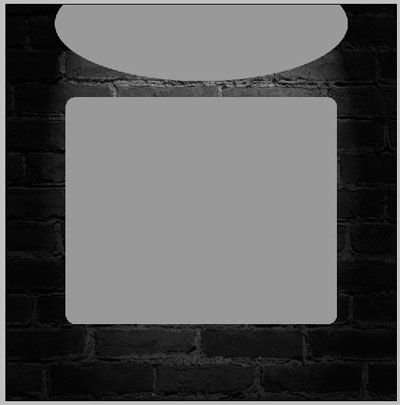

Now create 2 shapes

The first one from the top with Ellipse Tool

And the second one with Rounded Rectangle Tool ( set the radius to 20 Pixels )

Select the Ellipse from the top of the layout , and go to Edit > Transform > Warp and use the following settings

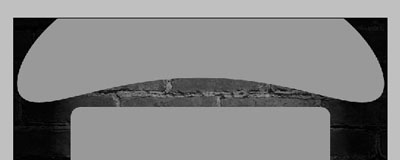

Press enter on your keyboard, then with the move tool place the shape near the rectangle shape

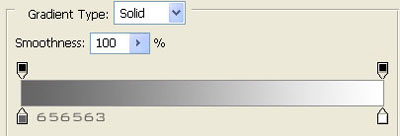

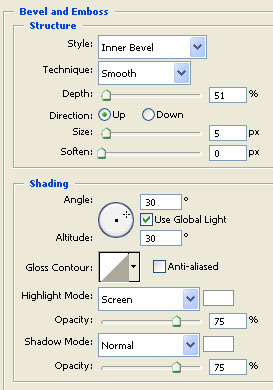

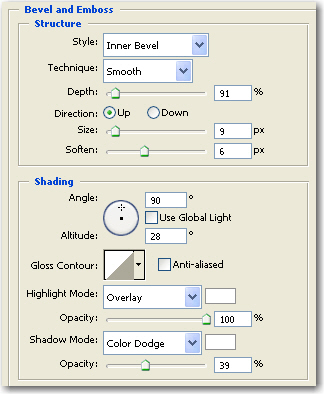

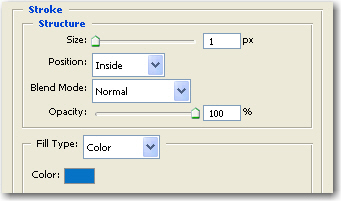

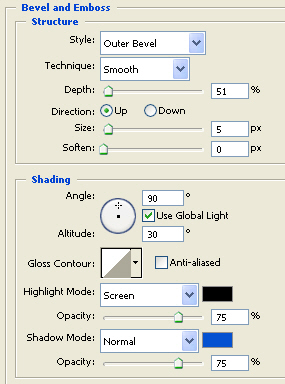

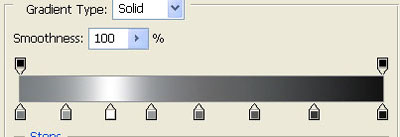

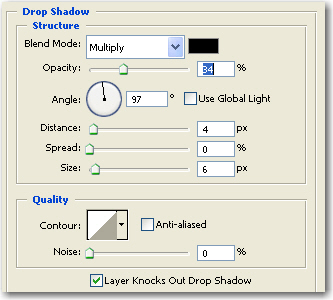

Now for the top shape add the following layer styles

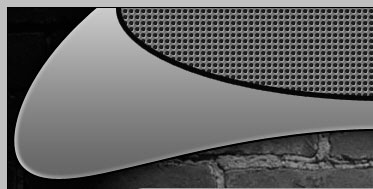

This is the result

Now we will create a new pattern

Create a new pattern . the size should be 6 x 6 pixels

Then with the Pencil tool create the following drawing

Set the brush size to 1 pixel , then with the eyedropper tool look carefully what color i have used in this pattern and create one pattern exactly the same with mine

I have worked over 2 hours for this pattern. And now i am happy with the result

Then when you have this document identical with mine go to Edit > Define Pattern

Choose a name for your pattern and press Ok

Now we will come back to our layout.

Select Elliptical marquee toll and make the following selection

Now create a new Layer ( press Ctrl+Alt+Shift+N )

Select Paint Bucket Tool

Use the following settings ( use the pattern from above )

Then press one time inside the selection and you will have this result

Do not deselect

Now create another layer ( press Ctrl+Shift+Alt+N )

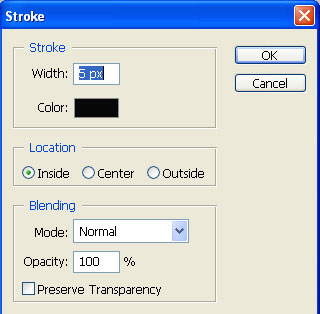

Then go to Edit > Stroke and use the following settings

Now you can deselect ( to deselect press Ctrl+D )

You will have something like that

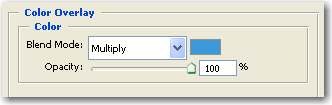

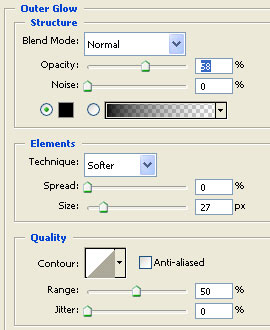

Now for this 5 pixel stroke add the following layer styles

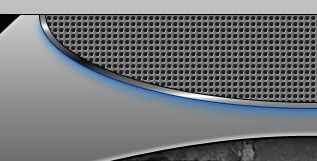

This is the result

Now create a small shape with Rounded rectangle tool

Add the same layer style as we have used for the first Shape

This is the result

Click to enlarge

Rasterize this layer, and then delete some parts of the shape until you get this result. You must choose a rounded brush, and start deleting part's of the shape with the eraser tool

Create another rounded rectangle. Place the shape under the las shape

Now add a layer style:

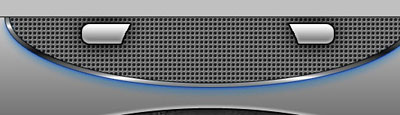

This is the result

Now select one more time Rounded Rectangle Tool , and start doing some small shapes

Duplicate this layers a few times and place it like me

Click to enlarge

Now create with ellipse tool some small circles ( add the same layer styles , but this time be sure you don't use the stroke settings )

This is the result

Click to enlarge

Select rectangle tool and create 2 rectangles ( use the same layer styles as above )

Then add some black circles

Duplicate this layers and place it also on the other side of the layout

Click to enlarge

Now we will add some layer styles for the body of the layout

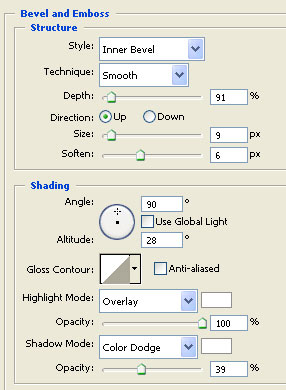

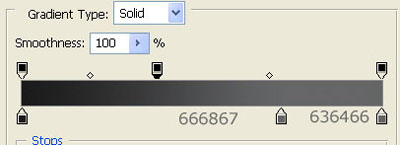

Use the following layer styles

This is the result

Click to enlarge

Select rectangle tool and create 2 rectangles, and place it on the left and on the right side of the layout

Click to enlarge

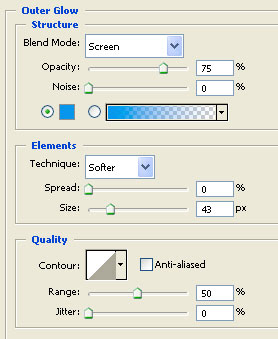

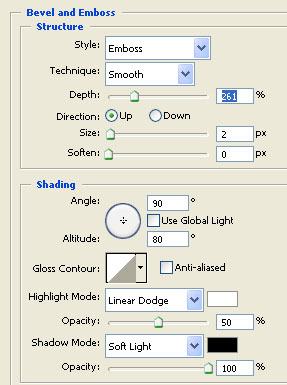

Then add the following layer styles

This is the result

Select Rounded Rectangle tool, and create 2 small shapes. And place then on the end of the neon

Then apply the same layer styles for all 4 shapes

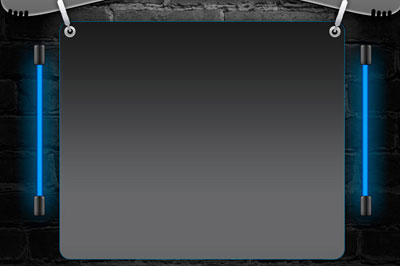

This is the result

Click to enlarge

Load the selection for the following layer

Click to enlarge

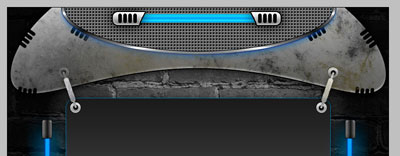

Then grab some grunge brushes , Create a anew layer, and make some random brushes. I will try to create a rust effect

Click to enlarge

Then search over the internet for some bullet holes brushes ( i have used this one link

Create a new layer , and add the wholes like in the following image

Click to enlarge

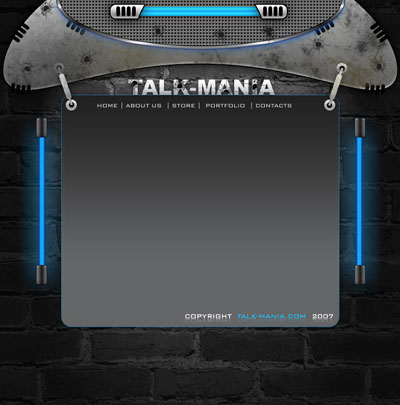

Then you can add alone some text logo, and some text buttons and we are ready

Click to enlarge

I hope you like this layout.
