Generic 3D Game Dude 1 - Modelling the Body/Legs

Psionic3d.co.uk Tutorials Oct 21, 2005

This tutorial is going to go through the process of creating a generic character for use in Game Engines Such as Blitz 3D, Halflife etc, Once complete the model will be available for FREE download. The modelling will done in Cinema 4D, UV's in Unwrap 3D and skin in Photoshop but feel free to use your preferred software. This Second part will go through the modelling of the hands and feet for this dude, the head Tutorial will follow as this one ended up bigger than I thought it was going to ;-) I hope you find it useful, Read on...

Click to enlarge
Click to enlarge

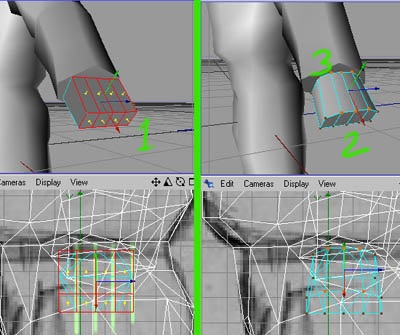

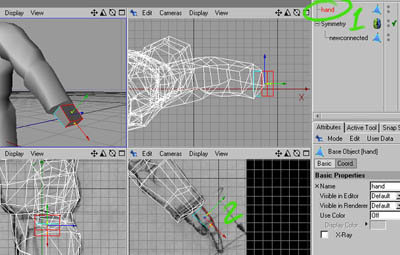

1. Drop in a CUBE and press "C" to Create/Make Editable 2. Move it and rotate it into position over the hand in the Ref pic and in FACE MODE select the faces for the back of the hand and where the fingers will be extruded from.

Click to enlarge
Click to enlarge

1. Make three cuts using "K" the Knife tool 2. Select the points on the back of the hand and arch it up a little, 3. Also scale in the points where the wrist is. Alternative method for Milkshape etc would be to create one section of the hand and extrude it several times to make the cuts that way.

Click to enlarge
Click to enlarge

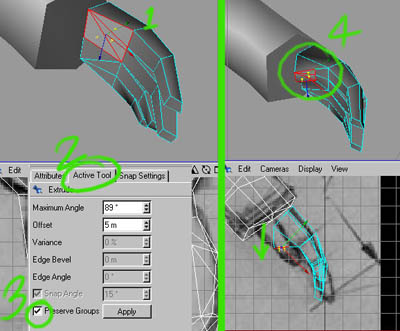

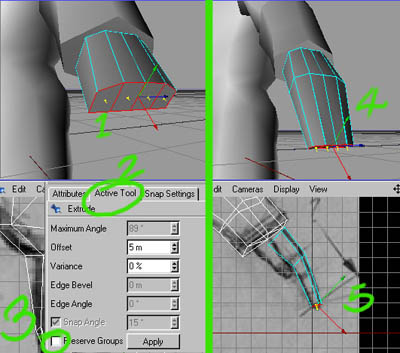

1. Select the faces on the end that the fingers will be extruded from, and 2. Press "D" to EXTRUDE and check the Active tool properties as shown, 3. Make sure "PRESERVE GROUPS" before you extrude so each face is extruded seperately. 4. As you can see the fingers have been extruded and 5. Move/Rotate them into position as shown. Alternative method is to Extrude each finger seperately.

Click to enlarge
Click to enlarge

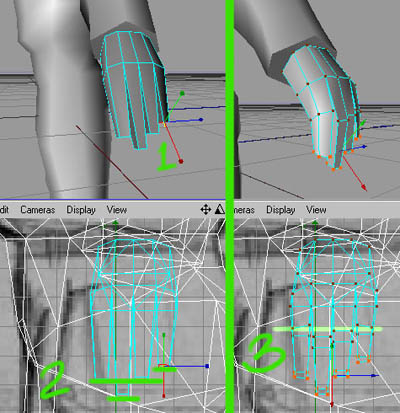

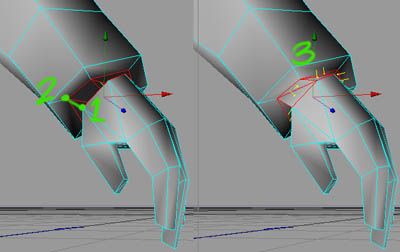

1. Select each finger end seperately and move them apart to seperate them a litte, 2. Using the reference of that thing on the end of your arm, yes your own hand ;-) move the middle finger to be a little longer and the little finger to be a little shorter, the other two are the same length. 3. Make a Cut across for the middle knuckles and in POINT MODE move and position the points into position to get the shape of the hand/fingers better.

Click to enlarge
Click to enlarge

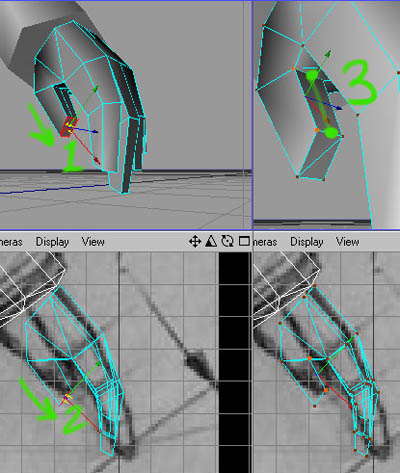

1. Select some faces on the palm of the hand 2. Press "D" to extrude and remember to 3. RE-TICK "PRESERVE GROUPS" so all the faces get extruded together. 4. Extrude and rotate the faces as shown.


1. Extrude again to make the next part of the thumb as shown, 2. Move into position and scale the face down a little. 3. As you can see in stage 1 theres an extra row of points here, I simply welded them to the orange points to get rid of them. Woohoo saved 2 triangles ;-)))


1. Now before we connect the hand to the main part of the model, select the main part and Select the end of the arm in FACE MODE and 2. Press "i" to EXTRUDE INNER as shown or alternatively extrude out "slightly" and scale the faces down.

Click to enlarge
Click to enlarge

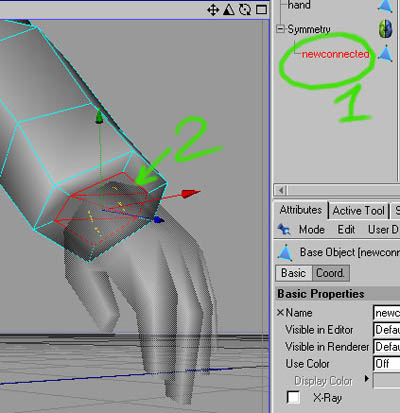

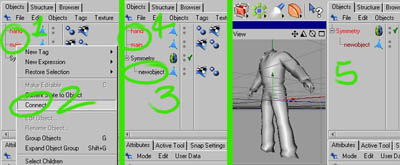

Before we bridge the gap we have to connect/group the hand object and main object together. 1. Select the hand and main objects using the SHIFT key to add to the selection, 2 RIGHT-CLICK and choose CONNECT, 3. A new object is created, drag this back into the SYMMETRY and 4. Select the "old" seperate objects and DELETE em. 5. As you can now see we have one object in the SYMMETRY. Now to actually BRIDGE the gap, see next step...


To BRIDGE the gap 1. In FACE MODE Select the Arm-end Cuff as shown and using SHIFT to add to the selection, select the faces on the hand as shown...See next step...

Click to enlarge
Click to enlarge

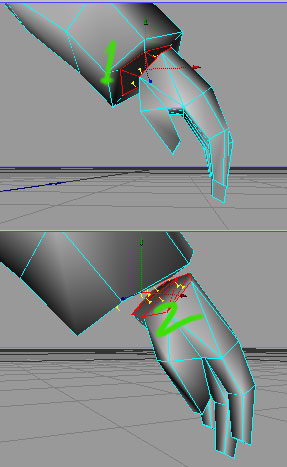

Press "B" to activate the BRIDGE tool and drag from 1. to 2. as shown, Cinema 4D will build faces from one bunch of selected faces to the other bunch...Cool Eh! Alternatively go round building the faces manually!

Click to enlarge
Click to enlarge

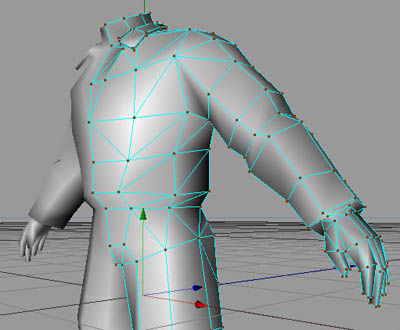

After a bit of tweaking in POINT MODE on the gap I just bridged the hands dont look too bad, OK now onto the Feet.

Click to enlarge
Click to enlarge

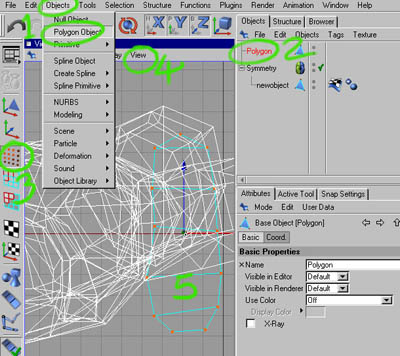

1. Create a new POLYGON OBJECT and it will 2. Appear in here, now 3. Choose POINT MODE and while holding down the CTRL key add some points roughly the shape of the sole of a boot in the 4. TOP VIEW. 5. Build the faces from the points as shown...

Click to enlarge
Click to enlarge

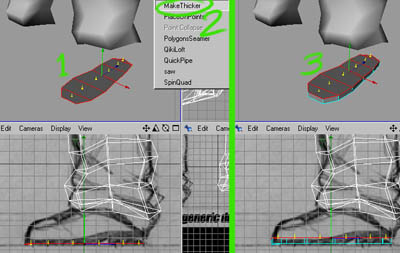

1. New select the faces as shown in FACE MODE now, 2. Use the MAKETHICKER plugin which is free and can be found for C4D on the net easily enough, other programs have similar things 3. it makes the selected faces have depth basically. Alternatively extrude in the usual manner and build the faces on the bottom of the sole later etc.

Click to enlarge
Click to enlarge

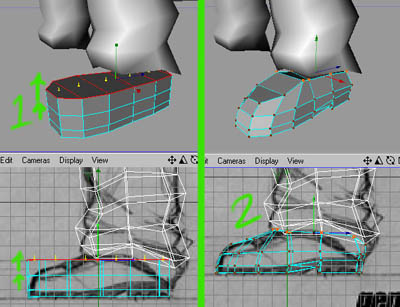

1. Extrude the faces upwards a couple more times as shown and 2. In POINT MODE again move the points to resemble the shape of the shoes from the sides and tweak a few to make it thinner at the top than at the sole...I also added a little cut by the heal and pulled up the points to define the Heal a little.

Click to enlarge
Click to enlarge

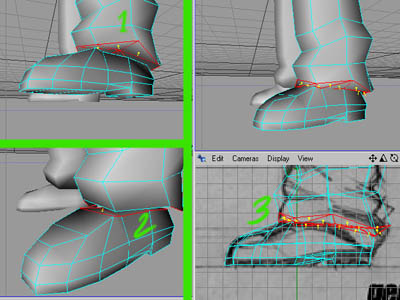

Now its looking vaguely like a shoe I'm gonna BRIDGE from the underside of the trousers to the top of the shoe, 1. After connecting the new object to the main object as demonstrated with the hand earlier and deleting the old objects...in FACE MODE select the faces on the bottom as shown 2. Select the afces on top of the shoe as well and 3. BRIDGE da gap. Alternatively build the faces manually...

Click to enlarge
Click to enlarge

So far we have a headless dude as you can see and in the next stage I will go through the making of a low-poly head and joining it to the body. Hope you found it useful and as usual feel to drop by the forums and ask any questions etc!!
