Modeling of the Head

Browse Pages: << < 2  3  4  5  6

The mouth finished in subdivision 1.

image 1

image 2

image 3

To finish the eyelids, twice extrude the edge of eye and adjust to make an edge rounded towards the interior.

image 4

image 5

image 6

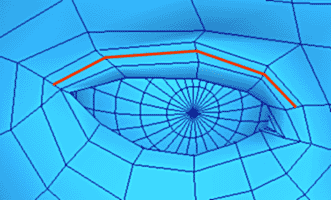

Add an edge on the higher eyelid to detail and exaggerate it more.

image 7

Eyelids in subdivision 2.

image 8

image 9

image 10

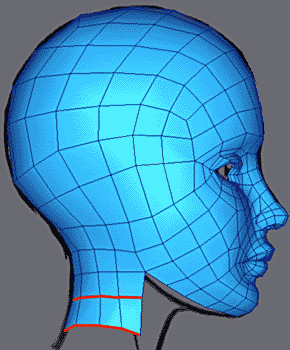

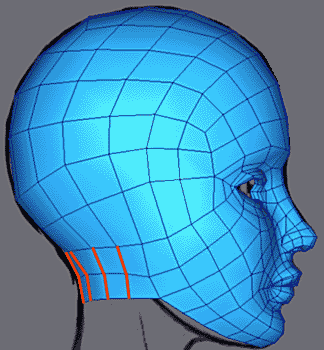

Extrusion of the nape of the neck.

image 11

image 12

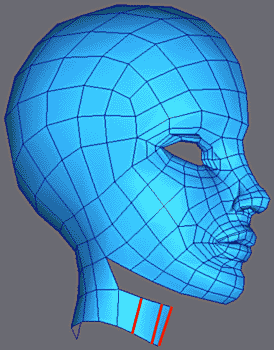

Extrude before neck.

image 13

image 14

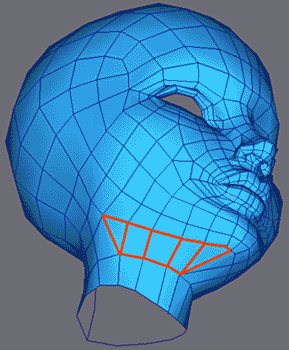

Fill the hole with Create Face.

image 15

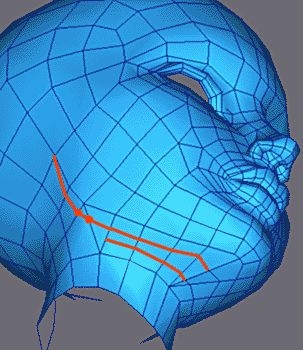

To mark the jaw, first Cut and a second for the junction with the neck.

Select the two marked of a point and then weld the vertices.

image 16

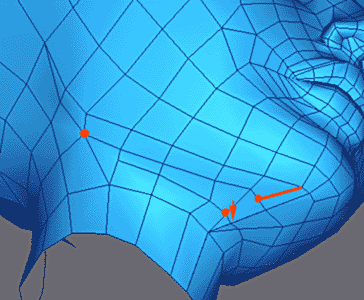

Cut under the chin and Weld Target to put in quadrangle this zone.

image 17

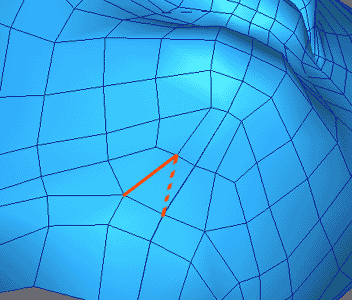

Make visible the edge as shown and hide if you need to form quads in this section

image 18

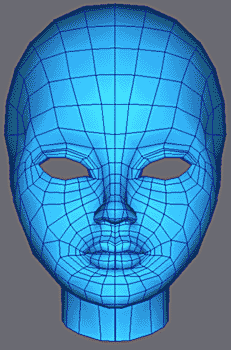

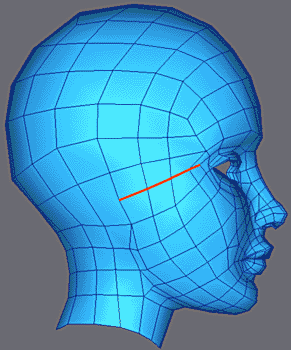

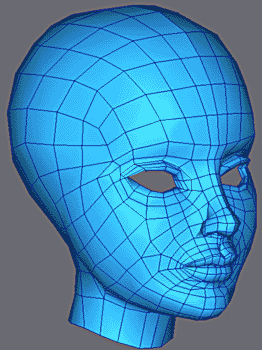

To finish Cut on the temple and here is the finished grid.

image 19

image 20

image 21

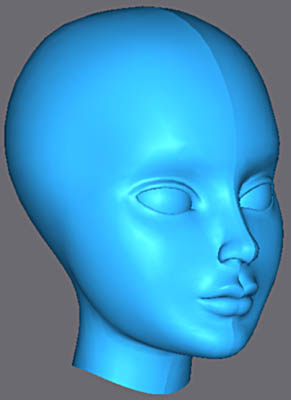

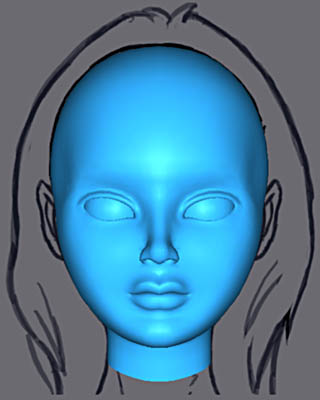

See below for the subdivided iteration 2 version in

image 22

image 23

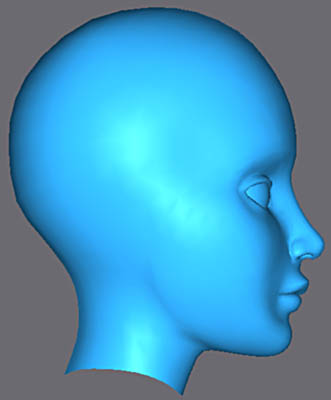

Modeling of the Head Tutorial: Final Result

Ok the text that went here (The whole tutorial was originally in french) is too hard to translate. I think it means dont collapse the stack quite yet cos the low poly mesh is still important for later on ;) - Tom



Author's URL: Michel Roger
