HTML forms are a means of collecting information. People
fill in a form and/or select something. Then they click a button. Forms
don't actually process information.
For something to be done with the information, it must be
sent somewhere. Information processing destinations can be CGI
programs, JavaScript functions, mailto: links, or even a web page
(which directs the browser to load the page at the specified URL).
This tutorial is about how to make forms and how to send the
information, but not how to process the information after it has been
sent off.
Forms begin with the <form> tag and end with the </form> tag. The <form> tag can contain several attributes.
Sometimes you'll need to determine the applicable attributes.
Other times, installation directions for CGI programs or JavaScript
functions specify the <form> tag attributes expected by the installation.

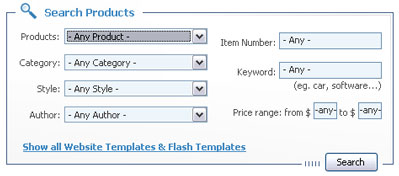

TemplateMonster's search form
Where Information Is Sent
One <form> tag attribute specifies where the information will be sent. That's the "action" attribute.
Sending To CGI Programs
If the information is being sent to a CGI program on the same
domain as the web page containing the form, the action attribute can
contain either a relative URL or an absolute URL. With a relative URL,
it would look something like this:
action="/cgi-bin/handler.cgi"
If the information is being sent to a CGI program on a different domain, the URL must be absolute (a complete http://... URL):
action="http://domain.com/cgi-bin/handler.cgi"
Sending To JavaScript Functions
When sending form information to a JavaScript function, the action attribute would look something like:
action="javascript:SomeFunction()"
or, the action attribute might be replaced with the JavaScript specific "onClick" attribute:
onClick="return SomeFunction()"
If the form information is to be sent to both a JavaScript function
and to a CGI program, then both the action and the onClick attributes
would be specified.
Sending To mailto: Links
To send form information to the visitor's email program, with the To: destination already filled in, use:
action="mailto:name@domain.com"
If you also want to specify a subject for the email:
action="mailto:name@domain.com?subject=My%20Subject"
(Use "%20" instead of spaces when specifying a subject.)
Note that not all browsers recognize the mailto: link. It is suggested you use this only as a last resort.
Sending To a Different Web Page
To send form information to a different web page so the browser opens the page at the new URL, use:
action="http://newdomain.com/page.html"
How Information Is Sent
Another <form> tag attribute specifies how the
information will be sent to wherever it's going. That's the "method" attribute. The method attribute is either
method="POST"
or
method="GET"
Which you use depends on how the destination program or function wants to receive the information.
Sending With Method GET
method="GET" is used if you want to send information
somewhere via a browser URL. You've seen URLs that send information;
they look something like: http://domain.com/handler.cgi?color=red&shape=round
In the above URL, the part after the question mark is
information sent to handler.cgi. Multiple information chunks are
separated with an ampersand. The GET method can send only a limited
amount of information. The limitation depends on the server where the
current web page is on and the server where the information is sent to.
The limitation can be as little as 256 bytes but is often 1k or more.
Another limitation of the GET method is that the information
being sent is visible in the browser's address bar. In some cases this
is of no consequence. In others, it is unacceptable. Some CGI programs
are written to accept information via the GET or the POST method, some
to accept only the GET method.
Sending With Method POST
method="POST" is the most common method used to send
information from a form to an information processing program or
function. This is the method used when sending form information to
JavaScript functions. Most CGI programs are written to accept
information with the POST method, some to accept only the POST method.
The POST method can send much more information than the
typical GET method. Currently, most browsers and servers limit the
amount of POST information to about 32k. With POST, the information is
not sent via the URL. The sending is invisible to the site visitor.
It is not necessary to know the exact interior mechanism of
how POST works, because all you have to do is specify the method and
the browser decides how to accomplish your directive. However, as a
general overview: depending on its destination, the POST information
could be transferred within the browser itself (if sent to a JavaScript
function) or over the internet via a method known as "standard input" -- the default or standard input channel expected by the destination
(such as a server for a CGI program).
Specifying the Encoding Method for the Information Being Sent
The final <form> tag attribute we'll cover in this
tutorial specifies how the information will be encoded before sending
it to wherever it's going. That's the "enctype" attribute. The browser
automatically encodes the information depending on the enctype
attribute.
Encoding transforms special non-alphanumeric characters that
could otherwise wreak havoc during transmission or upon receipt into a
series of characters that the receiving program or function can
recognize. Encoding also inserts separators between the information
chunks.
Often you don't have to concern yourself with the enctype. If you do not specify one, the default is assumed.
The default enctype attribute is:
enctype="application/x-www-form-urlencoded"
If your form includes file uploads, you will need
enctype="multipart/form-data"
And, if you will be using a mailto: link in the action attribute, your email body text will be less jumbled if you use
enctype="text/plain"
Form Related Tags
Between the <form> and </form> tags are the tags that create the body of the form. These are <select> (for drop-down and menu boxes), <textarea>(for multi-line text areas), and <input> (for the rest).
Every form related tag can have a name attribute. Some require
it, others don't. The assigned name is sent with the information and
helps the receiving program or function identify the information chunks
it receives.
Some receiving programs and functions consider tag names to be
case sensitive; some do not. If you don't know which applies to your
form, assume tag names are case sensitive. Some receiving programs and
functions are okay with tag names containing spaces; some are not. If
you don't know whether or not it is okay to use spaces in your form's
tag names, use underscore characters instead of spaces.
Underscore characters are almost always okay within tag names so long as the name doesn't start or end with an underscore.
Here is an example name attribute:
name="my_tag_name"
In most situations, it is highly desirable that no duplicate names exist within the form.
The <input> Tag
Most of the information forms collect is specified by the <input> tag. Single-line text entry fields, checkboxes, radio selections,
password entry fields, form buttons, file upload fields, and image
buttons are all specified with the <input> tag.
The <input> tag can have several other attributes
depending on the "type" attribute. It almost always has a name
attribute. Every input tag requires a type attribute.
The "type" Attribute
It is probably safe to say that every form has an <input> tag of some kind and that the tag contains the "type" attribute. The
type attribute tells the browser what type of form field or button to
create. The type attribute looks something like this:
type="_______"
with the underscore representing one of numerous types of type attributes.
The type="submit" Attribute
The submit button is the most common form element, created with the type="submit" attribute.
It might or might not have a "value" attribute, depending on whether or
not you want to specify the text of the button. Also, the submit button
might or might not have a name, depending on what the information
receiving program or function's requirements are.
In this example, it does not have a name but it does have a value:
|
|
|
 |
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="submit" value="Click Me!">
</form> |
|
|
|
|
|
|
Forms may contain more than one submit button. In that case, it
is usual for the attributes to have names so the processing program or
function knows which of them was clicked. Example:
|
|
|
|
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="submit" name="1" value="First Visit">
<input type="submit" name="2" value="Second Visit">
<input type="submit" name="3" value="Third Visit">
</form> |
|
|
|
|
|
|
The type="text" Attribute
The type="text" attribute is a common form input field. It creates
a place wherein a line of information can by typed. If you want to put
default text into the input field, use the "value" attribute. Example:
value="http://"
Both a "size" and a "maxlength" attribute may be used. These
specify the size of the text input area and the maximum number of
characters that may be typed into the input area. You may use neither,
one, or both of those tags.
Here is an example:
|
|
|
|
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="text" name="url" size="17" maxlength="44">
<input type="submit">
</form> |
|
|
|
|
|
|
The type="password" Attribute
The type="password" attribute works the same as the type="text" attribute except the characters typed into the input area are displayed
as asterisks. Here is an example:
|
|
|
|
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="password" name="P" size="9" maxlength="20">
<input type="submit">
</form> |
|
|
|
|
|
|
The type="checkbox" Attribute
The checkbox either contains information or it doesn't, depending
on whether or not it is checked. Checkbox tags almost always have a
"value" attribute. If you want any checkboxes pre-checked, include the
CHECKED attribute. Example:
|
|
|
|
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="checkbox" name="c_blue" value="yes">
<input type="checkbox" name="c_red" value="yes" CHECKED>
<input type="checkbox" name="c_pink" value="yes" CHECKED>
<input type="checkbox" name="c_yellow" value="yes">
<input type="submit">
</form> |
|
|
|
|
|
|
In the above example, the user will see four checkboxes with
the middle two pre-checked. Notice that each checkbox has a different
name. This separates the information into different chunks for the
receiving program or function to process. In some cases, the receiving
program or function might require the checkboxes to have the same name,
but do it that way only if specified in the instructions.
The type="radio" Attribute
Only one radio button in a set contains information, the one that is checked. Radio tags almost always have a "value" attribute.
If you want to pre-check one radio button, use the CHECKED attribute:
|
|
|
|
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="radio" name="color" value="blue">
<input type="radio" name="color" value="red" CHECKED>
<input type="radio" name="color" value="pink">
<input type="submit">
</form> |
|
|
|
|
|
|
In the above example, the user will see three radio buttons
with the middle one pre-checked. Each radio button in a set must have
the same name. When more than one radio button has the same name, only
one of them can be checked at a time.
The type="file" Attribute
If the form information receiving program or function can upload a
file from the user's computer to your internet server, the type="file"
attribute is used. (To use this attribute, the <form> tag should have the enctype attribute specified as "multipart/form-data")
Optionally, you may restrict the type of file the user may
upload with the "accept" attribute. The accept attribute specifies a
MIME Content Type. There are many MIME types and to list them all would
be space prohibitive. However, here are those you are most likely to
need.
To restrict the uploads to images, use:
accept="image/*"
To restrict to only GIF images, use:
accept="image/gif"
To specify only JPEG, PNG, or TIFF image files, use
"image/jpg,jpeg", "image/png", or "image/tiff",
respectively. To specify only GIF and JPEG, use
"image/gif,jpg,jpeg"
To restrict to text files only, use:
accept="text/*"
To specify HTML files or plain text files, use "text/html"  or "text/plain", respectively.
Optionally, you may specify the size of the input field and the
maximum number of characters that may be entered with the "size" and
"maxlength" attributes.
Here is an example file upload form input area:
|
|
|
|
|
|
|
<form method="POST"
action="/cgi-bin/handler.cgi"
enctype="multipart/form-data">
<input type="file" name="upfile" accept="image/*">
<input type="submit">
</form> |
|
|
|
|
|
|
The type="hidden" Attribute
Use the type="hidden" attribute to specify information for the
receiving program or function that the user may not change. This
information is usually required by the program or function in order to
process the other information and/or to determine what to sent back to
the browser. The installation instructions of the program or function
should specify what hidden fields are required, if any.
Here is an example:
|
|
|
|
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="hidden"
name="nextpage"
value="http://willmaster.com/">
<input type="submit" value="Click For Next Page">
</form> |
|
|
|
|
|
|
The type="reset" Attribute
This attribute creates a reset button. Clicking that button will
reset the form to the state it was in when it was first loaded into the
browser. It might or might not have a "value" attribute, depending on
whether or not you want to specify the text of the button. It rarely
requires a name because the reset button's value is rarely used by the
receiving program or function.
In this example, it does not have a name but it does have a value:
|
|
|
|
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="text" name="url" size="17" maxlength="44">
<input type="reset" value="Erase Everything!">
<input type="submit" value="Submit Now!">
</form> |
|
|
|
|
|
|
The type="button" Attribute
This attribute creates a clickable button with text you specify in
the "value" attribute. This type of button is typically used to send
information to a JavaScript function with the "onClick" attribute. In
this case, a submit button may be optional. Example:
|
|
|
|
|
|
|
<form method="POST" action="/cgi-bin/handler.cgi">
<input type="text" name="email" size="17" maxlength="44">
<input type="button"
value="Verify Email Address"
onClick="return EmailVerification()">
<input type="submit">
</form> |
|
|
|
|
|
|
The type="image" Attribute
An image may be used instead of a submit button. To do that, use the type="image" attribute. When using the type="image" attribute, the "src" attribute must be specified. The src attribute is specified like you would specify the src attribute in an <img> tag to place an image on a web page. Optionally, you may include "align", "border", "height", "width", "hspace", and/or "vspace" attributes, just like you would in an <img> tag.
When the user clicks the image, the form submits its information to the program or function specified in the <form> tag.
Here is an example:
More HTML and CSS:
