Aligning Layers

A lot of designers I know hate math, they are right brained and cannot stand those pesky little numbers cramping their creative style. Something you may not be aware of is the fact that Photoshop is a pretty good mathematician. Photoshop comes with an align and distribute feature that does all the calculations for us.

Lets demonstrate this by creating a metal panel with some rivets on it.

Start with a new document. 300 x 300 pixels.

image 1

Apply a linear gradient using the default copper setting.

image 2

Create a new layer and name it "rivet"

image 3

Choose the elliptical marquee tool.

image 4

Change the gradient to radial

image 5

Draw a small rounded selection and fill with the gradient.

image 6

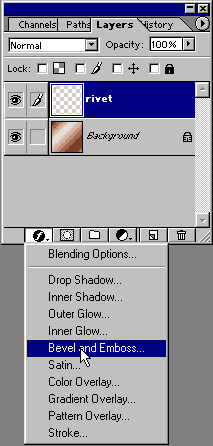

Add a bevel layer style

image 7

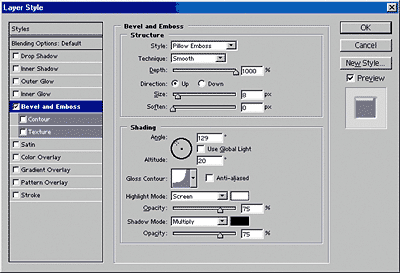

Use the settings here. Make it a "pillow emboss" to give the appearance of the rivet being recessed.

image 8

Here is the finished rivet

image 9

Duplicate the layer 3 times and roughly space them out. Don't worry about precision at this point.

image 10

Link all the rivet layers in the layers palette. The align feature will only work on linked layers and wont effect the layers that are not linked.

image 11

Click the "distribute Vertically" button from the top toolbar.

Notice the rivets are now evenly spaced.

image 12

Click on the align left button and notice that they are now perfectly aligned.

image 13

The evenly spaced riverts.

image 14

Here I merged the rivets, duplicated the layer and dragged it to the right hand side. I then used curves and the hue/saturation controls to get a nice bluish gray metal feel.

Aligning Layers

Have fun with the alignment tools and plaster all your images with rivets.
