Duel Windows with Photoshop


If your the kind of person who likes spending time retouching photo's or creating wacky photo manipulations you will know how annoying it is when you have to keep zooming in and out to check on your progress.

Wouldn't it be nice if you could work on one photo zoomed in at 500%, yet still see the result at 100%. Well you actually can, and il show you how.

Open Up Your Document

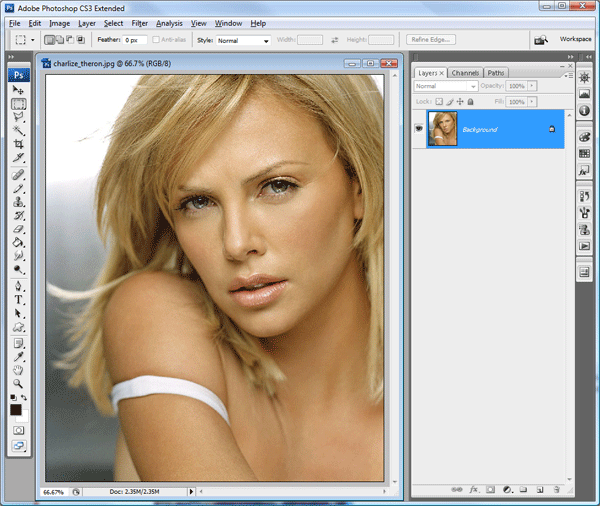

In photoshop I've opened up an image of charlize theron (just for this example).

Duel Windows with Photoshop image 1

Duplicating The Window

Now we have our image open lets duplicate the window, to do this we need to go to "window" in the menu bar.

Duel Windows with Photoshop image 2

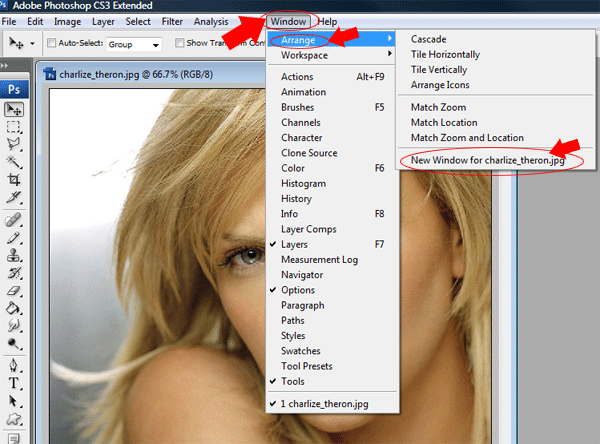

Go to "arrange" then at the bottom click "new window for "file name here".

Duel Windows with Photoshop image 3

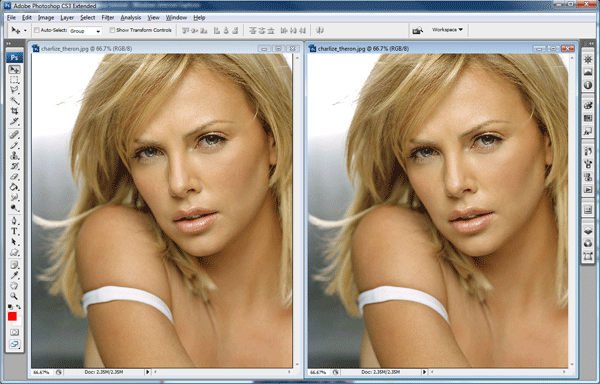

Providing your document window is not maximized you should have two windows. If it is maximized just restore it down.

Duel Windows with Photoshop image 4

Tiling The Document Window

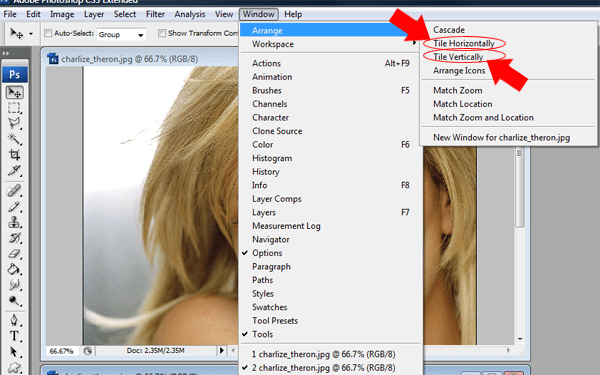

If you head back into the "window" options under the arrange tab you have two options for tiling the document windows, horizontally and vertically.

Duel Windows with Photoshop image 5

Tiling Vertically

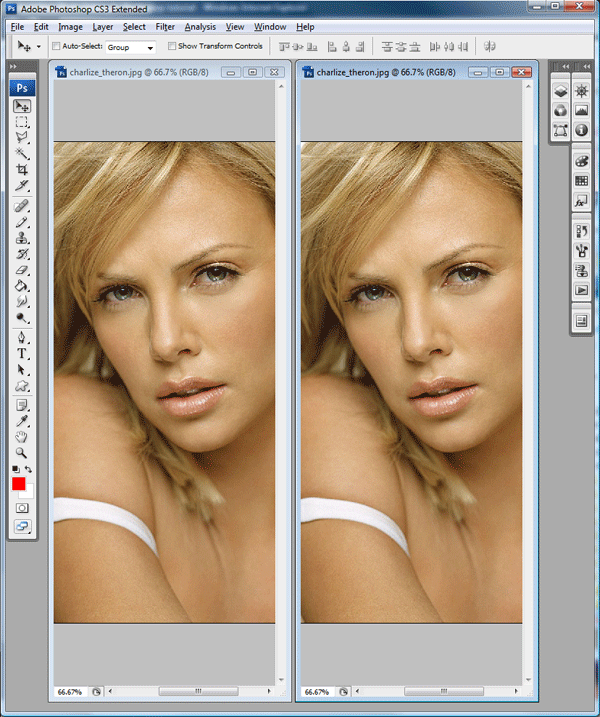

If you click "tile vertically" your windows will be displayed like this.

Duel Windows with Photoshop image 6

Tiling Horizontally

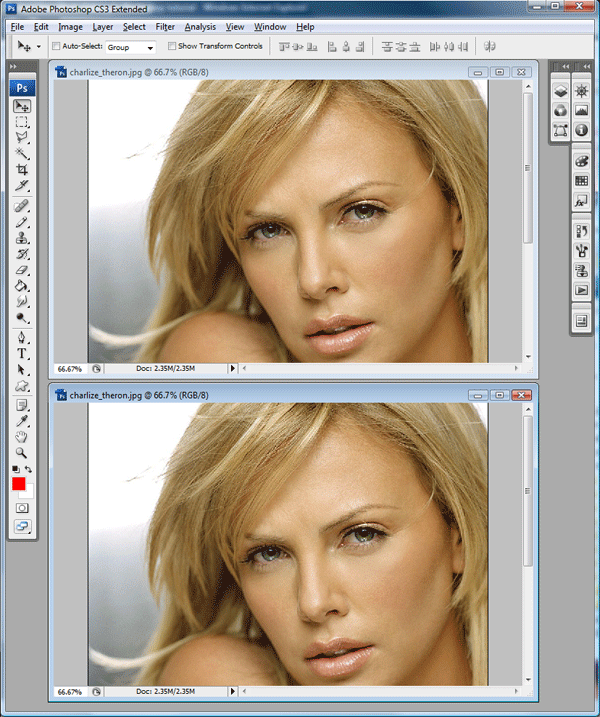

If you click "tile horizontally" your windows will be displayed like this.

Duel Windows with Photoshop image 7

Free Too Zoom

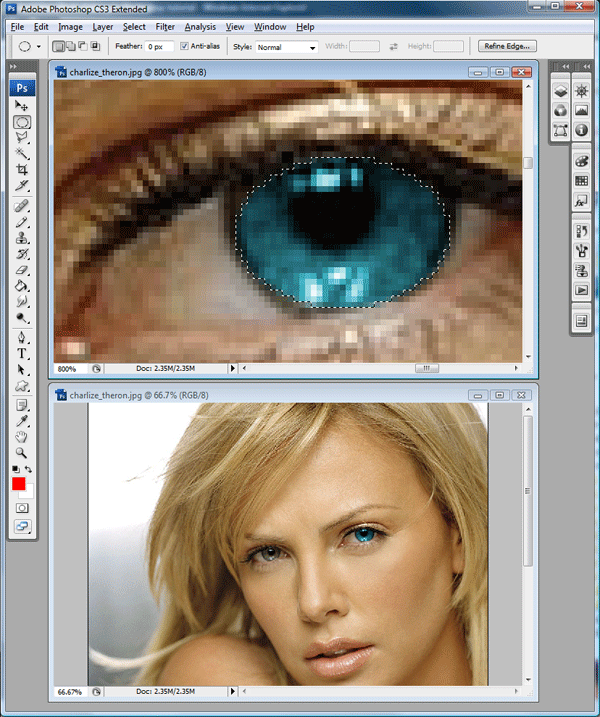

Each window can be zoomed and edited differently but the overall result will be applied to whole image. For example if I were to change her eye color.

Duel Windows with Photoshop image 8

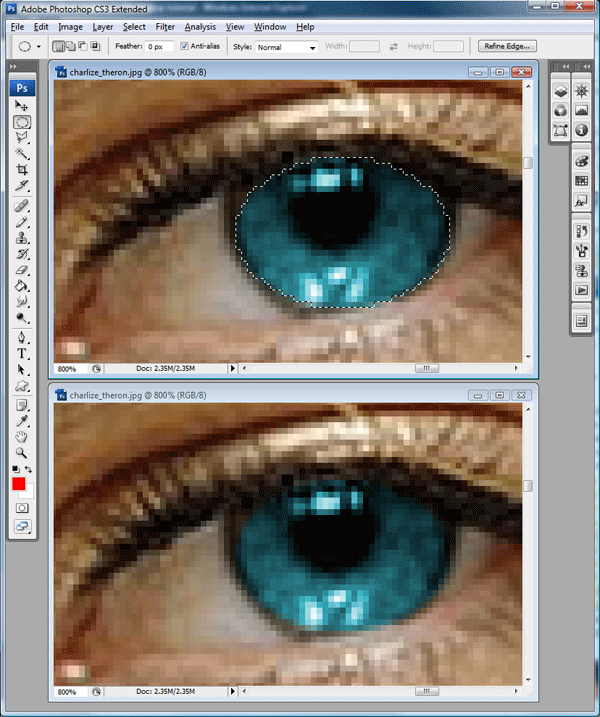

The changes are made in the top window and its updated in the bottom window, notice the zoom levels of each window. If you would like the zoom level to be the same in both windows you can simply go to "window > arrange > match zoom level".

Duel Windows with Photoshop image 9

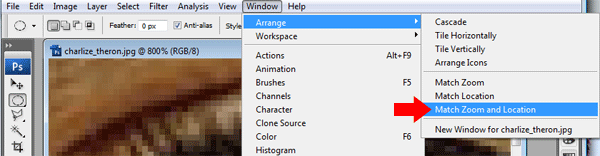

You can also match the windows location by going to "window > arrange > match location", there is also an option to do both at the same time by clicking "match zoom and location".

Duel Windows with Photoshop image 10

Additional Notes

For those using photoshop CS4 I do believe there may be more options to choose from and more views to choose from, more than likely any photoshop version under cs3 will be the same as this article.
