The (hidden) Power of Photoshop Brush Tool

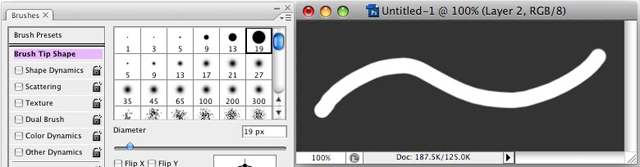

To learn all features, you can simply open Brush palette (Window menu - Brushes), change each setting and try the result when you draw a stroke. The first setting is Tip Shape. You can choose from pre-loaded shapes or you can create your own... more on that later!

The (hidden) power of Photoshop brush tool image 1

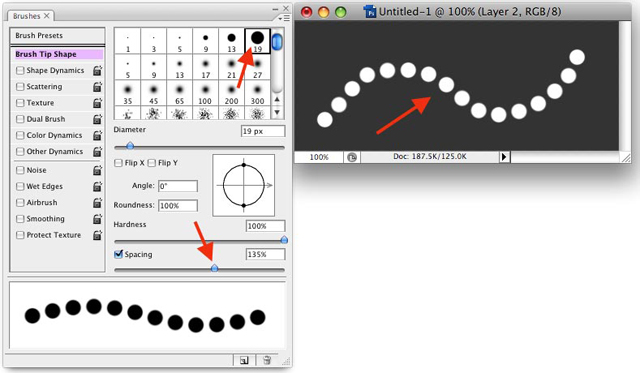

Brush Tip Shape has one interesting setting: Spacing. It is usually around 20-25% but when you set it larger than 100-150% you will get very different result.

The (hidden) power of Photoshop brush tool image 2

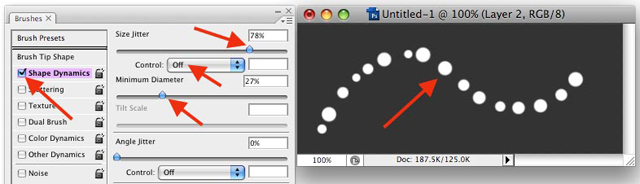

Using Shape Dynamics checkbox, you can randomize sizes and angles of brush dots.

The (hidden) power of Photoshop brush tool image 3

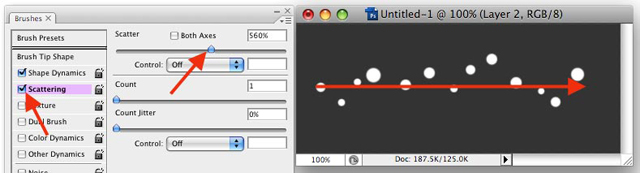

Using Scattering, you can randomize locations of brush dots - as you draw a straight stroke, dots are added randomly around your mouse.

The (hidden) power of Photoshop brush tool image 4

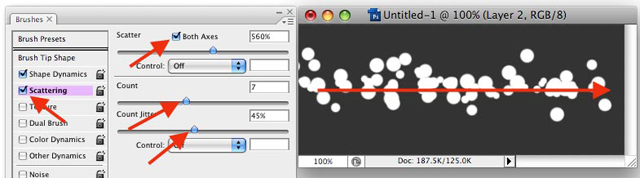

You can use Count setting to control amount of dots.

The (hidden) power of Photoshop brush tool image 5

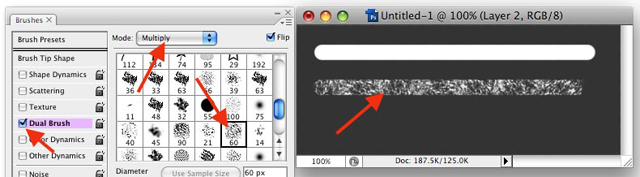

Dual Brush is very interesting feature, which will get you very different results depending on which brush and which mode you choose. Compare the two lines on this screenshot - first line made with simple brush, second - with Dual Brush enabled.

The (hidden) power of Photoshop brush tool image 6

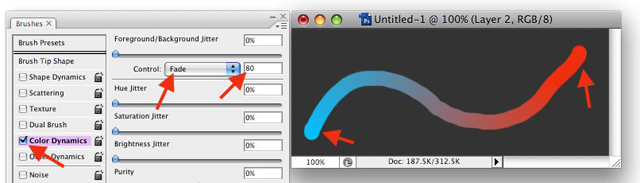

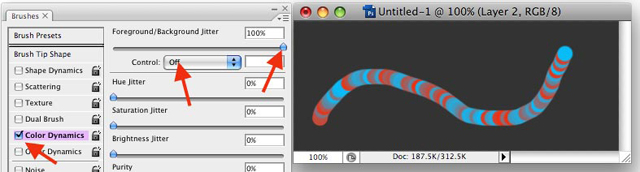

You can use Color Dynamics to randomize (or fade, or control with tablet pen) brush color. I do not use this often, though :-)

The (hidden) power of Photoshop brush tool image 7

The (hidden) power of Photoshop brush tool image 8

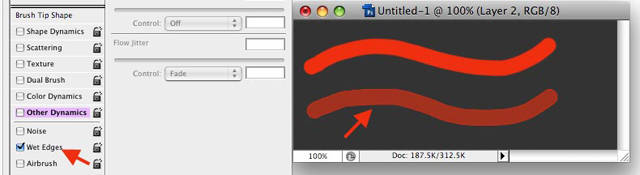

Wet Edges is simple and self-explanatory feature :-)

The (hidden) power of Photoshop brush tool image 9

The most exciting thing is that you can easily create your own brush. Let's make a star brush for example. Create new image with transparent background (square for our star). Set foreground color to Black, switch to Shape tool (U), select Polygon tool on toolbar, open Polygon options, check Star checkbox, set Indent sides = around 90%, and sides = 4.

The (hidden) power of Photoshop brush tool image 10

Draw a shape, rasterize it (Layer - Rasterize - Shape). Select all (Ctrl-A).

The (hidden) power of Photoshop brush tool image 11

Go to Edit menu - Define Brush preset. Choose name for new brush, click OK.

The (hidden) power of Photoshop brush tool image 12

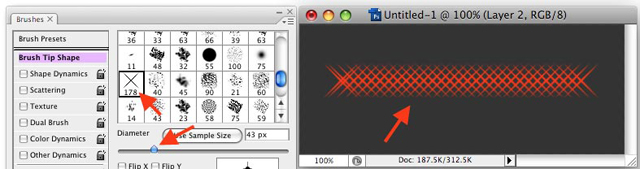

Now, when you open Brushes palette window (from Window menu), you can see your new brush in Brush Tip Shape list.

The (hidden) power of Photoshop brush tool image 13

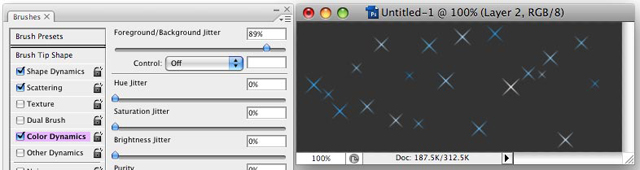

Now you can enable and adjust Size Jitter, Scattering and Color Jitter, and with single mouse move, get result such as this!

The (hidden) power of Photoshop brush tool image 14

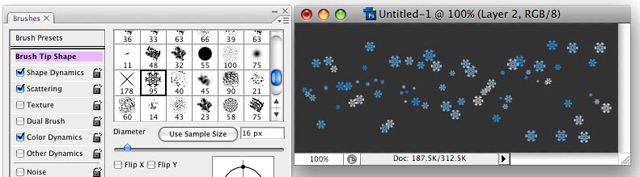

Another example - I took the shape of snow flake, created brush preset from it. With Size Jitter, Scattering and Color Jitter, this is what single brush stroke looks like.

The (hidden) power of Photoshop brush tool image 15

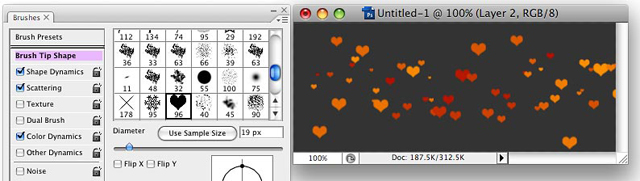

And another example - heart-shaped brush. Again, this screenshot made with only one brush move!

The (hidden) power of Photoshop brush tool image 16



Author's URL: Vlad Gerasimov
