Step 20

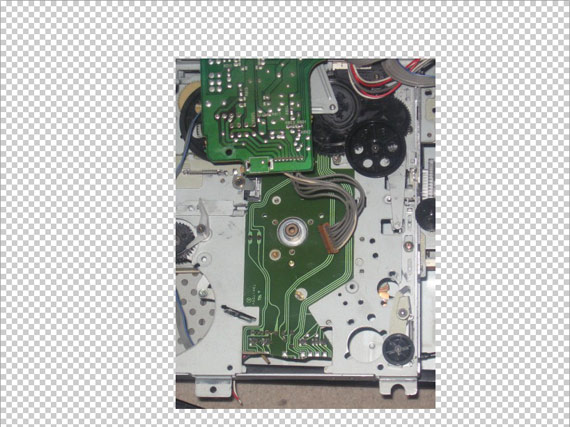

Group this left side of the tape area and label it something applicable, this makes it easier to toggle the visibility on and off without forgetting which layers we are using. Now we'll do what we did earlier, open up this image of the 'VHS circuit' in a new document, make a cut-out similar to the image referenced below. Use the marquee tool and Ctlr + J to copy it into a new layer. Then deselect it and drag it (while holding down shift) into the X-Ray document.
Step 21

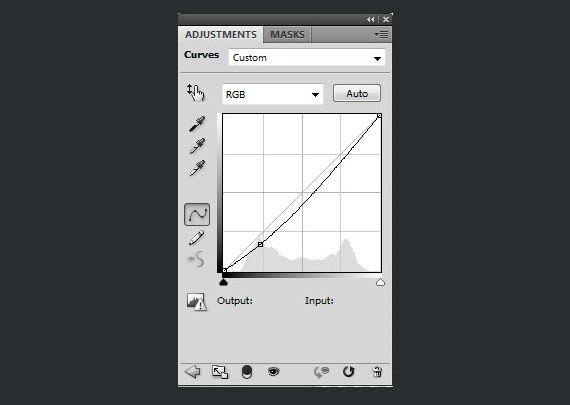

Once in the X-Ray document, add a curves adjustment layer with Output 43 and Input 59.
Step 22
Position the circuit similar to how we did it in step 17, using the image below as a reference. Use the Free Transform Tool (Ctrl+ T) and distort it (right click) into position. Also resize the image, but remember if you make it smaller than you'd like and you have to enlarge it later you'll lose quality.
Step 23
Now Ctrl + click the right tape outlines and add a layer mask. Duplicate the layer and set both the layers to multiply.
Step 24

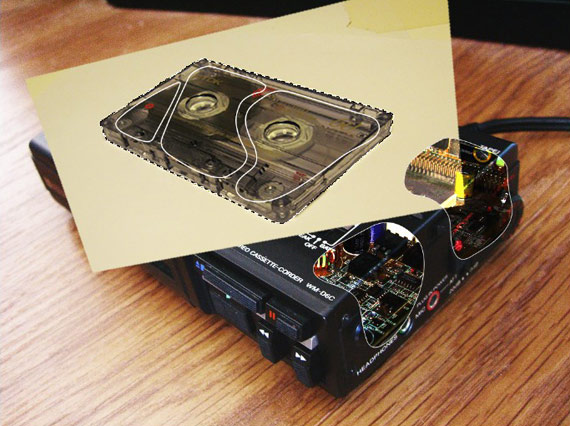

Place this image of a tape into the document right below the strokes for the outlines, but above the circuits. Resize and position it using free transform and distort. Make the edges line up, for the tape and tape area. Lower the opacity so you can see clearly where to put it.
Step 25
Now cut out the outside of the tape using the pen tool, aim to be accurate however we'll refine the edge later on. Double click the path to save it, and then Ctrl click it to bring up the selection.
Step 26

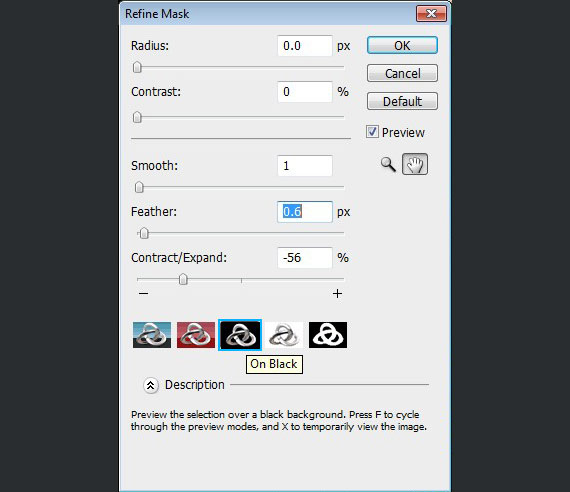

With the selection active add a layer mask. Click Select->Refine Edge, at the bottom you can scroll through how you want the preview to be. Use the values shown here, however if you need to remove more increase the feather value. Then press Ctrl + Shift + I to inverse the selection and erase away the extra.
Step 27
With the layer mask selected, Ctlr + click the tape outline strokes (or paths). Fill this selection with black to reveal the layer below. Then deselect using Ctrl + D and you should have the following result.
Step 28

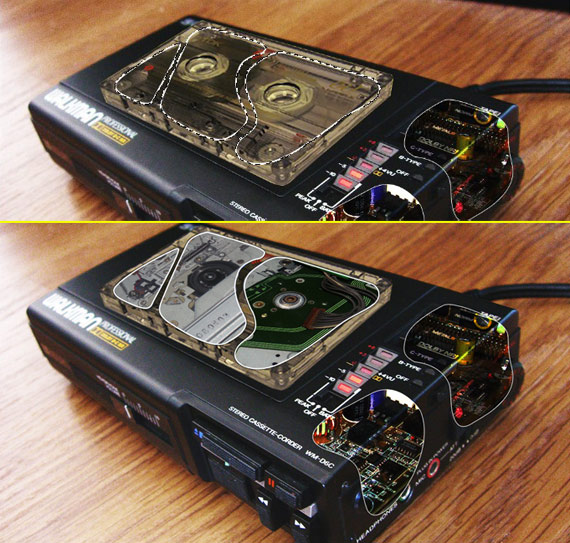

Again, to create a pseudo X-Ray effect we'll duplicate this tape layer & put the original blend mode on Colour Dodge and the copy on Lighten. Then reduce the copied layer's Opacity down to around 24%.
Step 29

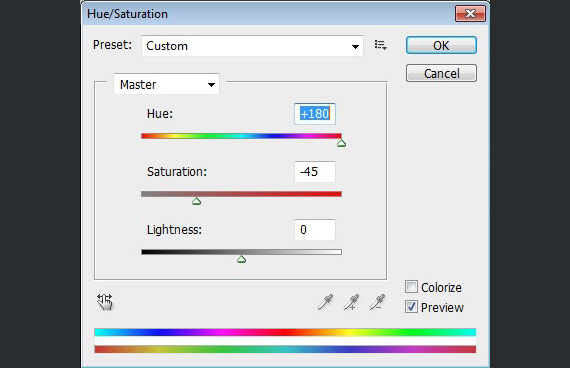

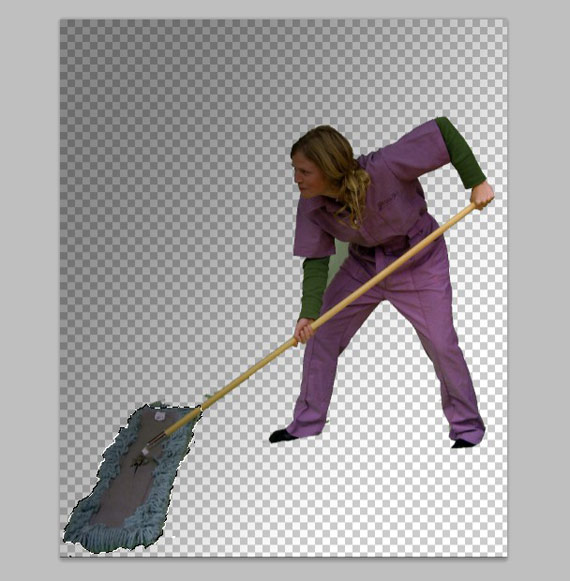

Bring in this image of a woman cleaning into a new document. First off we'll extract her out using the pen tool. It shouldn't matter too much if you make mistakes as we'll be reducing the size quite a bit. Now, use the Lasso Tool (holding alt) to isolate the end of the mop. With the end selected change the colour from blue to white. Then click Image->Adjustments->Hue/Saturation and input the values shown below.
Step 30

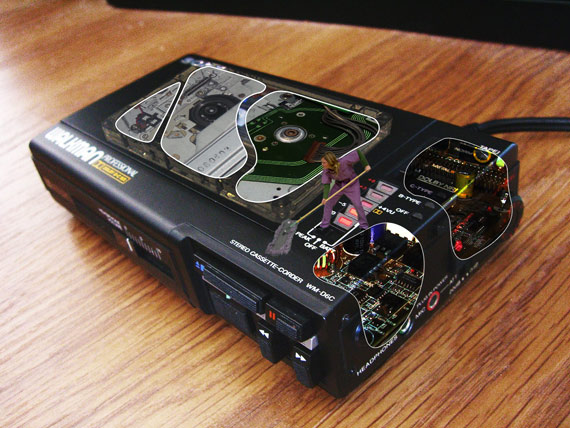

Next bring the mop figure into our working document. Put it into a group and place it above all the other layers. Add a layer above the mop woman and clip it to this layer. This will be the shading that blends the figure in. Use a linear gradient set from black to transparent and draw a gradient from the top left hand corner of the figure to the lower right hand corner then lower this layer's Opacity to around 35%.
Step 31

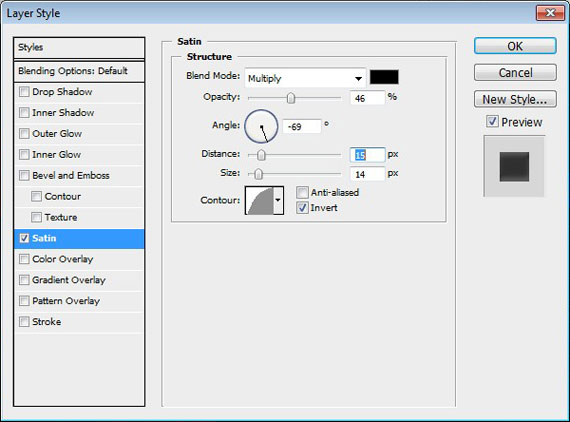

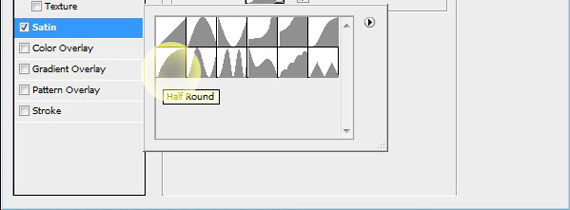

On the figure layer add a Satin Layer style and use the settings below. Also change the Contour to Half Round. This makes the areas in the light glow and the areas in the shadow darker. This adds to the realism of the figure. If the effect is overbearing, lower the style's opacity.
Step 32
Open up this image of a man standing near a fence. Extract him out using the pen tool. As you can see the fence overlaps his legs, so isolate this area and add a light grey/blue fill in a new layer. Use the eye dropper to sample from the trouser area. Change the blend mode to until the colour merges into the trousers and the fence disappears. Then merge the layers with Ctrl + E. Use the Refine Edge Tool to soften the edges, try to get as much light away from the edges as you can. Place the figure into the X-Ray document, resize it and position it so that he is looking at the controls. Then add a Satin Layer Style so the lighting fits in with the overall scene. Put in these values and set the Contour to Half Round again.
Step 33
Now we'll create the shadow for the figure. Create a new layer below the figures layer; you can Ctrl + click the new layer icon to do this. Make a selection of the figure by Ctrl + clicking it and fill the selection with black. Lower this layer's Opacity to 31%.
Step 34
Add a Layer Mask to the shadow layer, choose a linear gradient that goes from black to white and drag it across the shadow. It should be faded, try to copy the shadow on the walkman as closely as you can.
Step 35

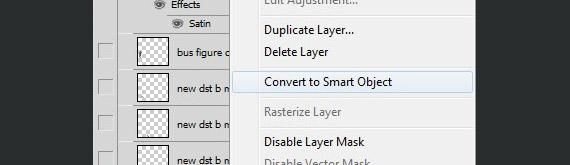

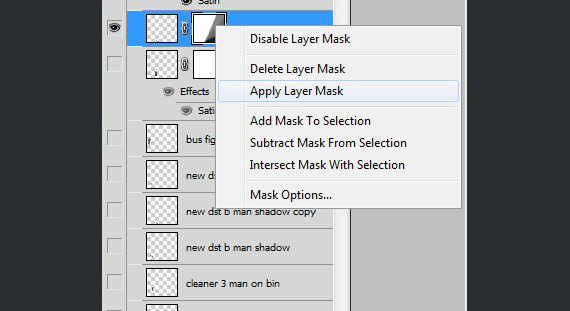

Right click the Layer and choose Apply Layer Mask. This merges the Layer Mask with the shadow layer itself. Then right click again and choose convert to smart object. Now go to Filter->Blur->Gaussian Blur and enter 1.6. The great thing about converting the layer to a smart object is now the filter's are smart, so we can go back and edit them very easily. To do so, you can double click on the filter below the layer.
Step 36

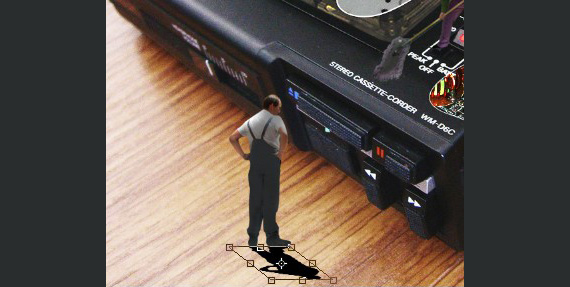

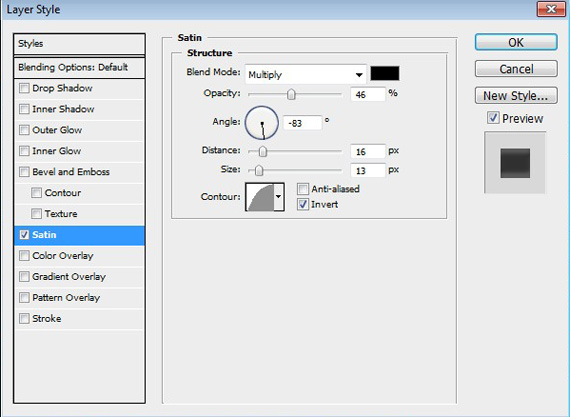

Next download this image of a man cleaning a bus . Then it's more of the same, extract him with the pen tool, refine the edge and place him into the X-Ray document. Resize him so he is in proportion with the other 2 figures. Now add a Satin Layer Style with the following settings.
Step 37
Now, repeat steps 33 - 35 to add a shadow to this figure.
Step 38
Carefully cut out the walkman using the pen tool. Inverse the selection and copy this to a new layer. Now we have the background table on a new layer. Desaturate this layer (Ctrl + shift + U) and change the blend mode to Multiply. Lower the opacity to 38%. Make sure this layer is beneath all of the small people and circuit layers. Now add a Gradient Fill Adjustment Layer on top of all the layers. Begin with #006e2e and end with #006e05. Ctrl + click the 5 outlines we drew earlier, inverse the selection and fill those selections with black so that the green only covers the cut out areas. Change the blend mode to Hue and drop the Opacity to 70%.
Step 39

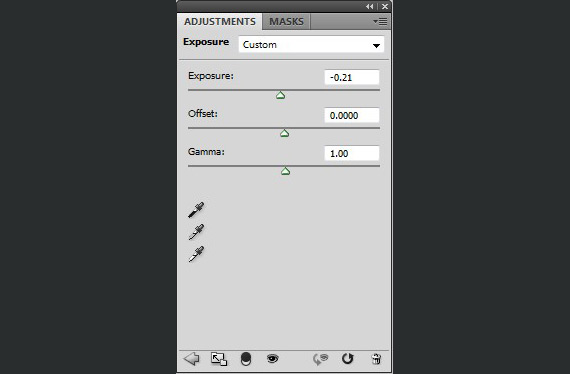

Add an Exposure Adjustment Layer with the following settings. This is just to reduce the glare and shine in the image.
Step 40

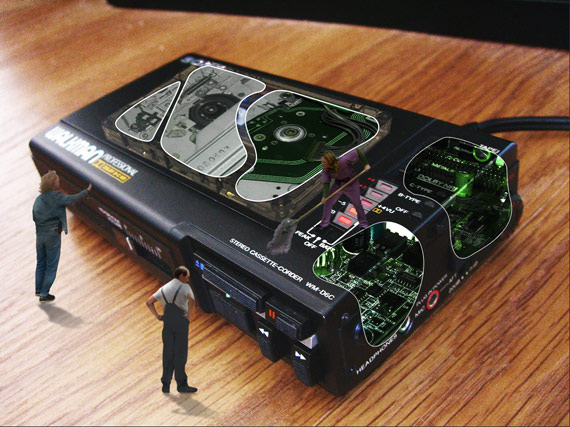

Add an Adjustment Photo Filter (cooling filter LBB) lower the Opacity to 33%. Then crop the image so that the large dark bar at the top is removed. Also cut away the right side so the image so it's more proportional. Here is my final result.
