Convert 2D Images to 3D for Lenticular Printing

vicgi Special Effects Nov 10, 2010

Abstract:

Traditionally, making a 3D lenticular print requires taking multiple pictures of the same scene along a straight line. The pictures are then interlaced together to create a lenticular print. However, obtaining the source images this way requires very careful planning ahead of time and it is not always feasible due to various environmental limitations and time constraints. Hence, converting a 2D picture into a 3D image easily has been the interest of the lenticular printing industry for years.

Before Photoshop CS4 Extended, converting a 2D image to a 3D image required ad hoc software. Since CS4 Extended, 2D to 3D image conversion became possible within the integrated environment of Photoshop. To the lenticular printing enthusiast, this is a quantum leap. Nevertheless, it is still not intuitive enough to the novice. Beginners still need to do many trial and error runs in order to gain the experience.

In this paper, the author will explain the theory on how to convert a flat 2D picture into a 3D picture by using only the basic functions of pre-CS4 Extended Photoshop in a systematic manner. By understanding the theory behind the conversion you will become confident in creating successful lenticular prints; whether you are using ad hoc software or Photoshop CS4 Extended. Users of pre-CS4 Extended and other graphics editing software such as Gimp or PhotoImpact will also benefit from this tutorial.

Principle of lenticular printing

Lenticular printing is a technology in which a lenticular sheet is used to let different images be seen by the left and right eyes so that the illusion of depth becomes possible on a 2D image. The theory is simple and it is based on the principle of binocular disparity. To understand this, one can do a simple experiment by looking at an object using the left and the right eye separately. You will find that the relative position of an object seen from the left and the right eye is slightly different. By emulating this binocular disparity using a lenticular sheet, one can see an illusive3D effect come alive.

Principle of 2D to 3D conversion

image 1

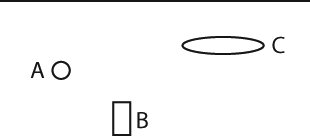

Figure 1: Spatial relationship of 3D objects

Figure 1 shows the plane view of three objects in different locations. Once this view is captured by a 2D camera, all the depth of field information will be lost and you will notice these three objects appear to be on the same plane as show in Figure 2.

image 2
Figure 2: 2D picture loses depth information

The linchpin of converting a 2D picture to a 3D picture is the reverse process that converts the image in Figure 2 back to the image in Figure 1.

image 3

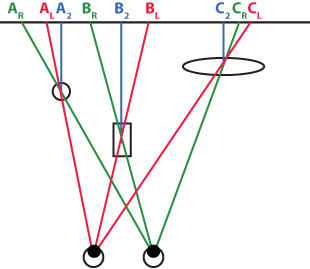

Figure 3: Binocular shift of objects

In Figure 3, A2, B2, and C2 are the original positions of objects A, B, and C in the 2D picture. In order to create the spatial depth, the left eye needs to see objects A, B, and C at position AL, BL, and CL. Similarly, the right eye should see them at positions AR, BR, and CR. When the objects are layered with Photoshop it is easy to create a left-eye picture and a right-eye picture as shown in Figure 4.

image 4

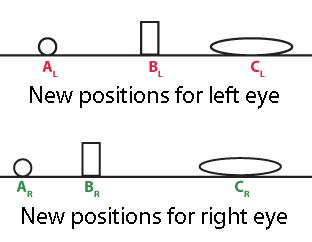

Figure 4: New positions of objects

The foreground, middle-ground, background, and the focal plane

Conceptually, when choosing a 2D picture for the 3D conversion, the best picture should have a very obvious foreground, middle-ground, and background. In Figure 1, one can consider object B to be the foreground, object A to be the middle-ground, and object C to be the background. Although this partition might not be obvious in some pictures, it will be a guideline for choosing a good candidate for the 2D to 3D conversion. Pictures that deviate too much from this property will become either too tedious for the time and effort or it is simply impossible for the conversion.

A focal plane is the plane where there is no parallax, i.e. the left and the right eyes are seeing the same objects on this plane. One can actually set the focal plane anywhere along the axis perpendicular to the picture surface. For example for the three objects in Figure 1 and Figure 3, if the focal plane is set at the same position as object A, then object B will seem to pop out of the picture and object C will seem to be set further into the picture leaving object A to appear as if it is on the lenticular print itself.

The Game Plan

You can download the asset files for this exercise from our 2D to 3D Conversion (34.3 MB) archive.

image 5
Figure 5: A 2D picture to be converted

Figure 5 is a picture obtained from Google image by searching the keyword "US Open." The picture has a very clear foreground (the net), middle-ground (the tennis player), and the background (everything else). To enhance the 3D effect a tennis ball is added to the picture as shown below. The size of the tennis ball is deliberately magnified to exaggerate the effect that the ball is just right in front of the viewer's eyes. The position of the ball should be somewhere before the net and in-line with the player's eye sight.

image 6
Figure 6: Adding object to the original 2D picture

For this exercise, let's plan to set the focal plane on the tennis player, hence the net and the tennis ball will be in the foreground giving the viewer the "popping out" impression. On the other hand, the background will recess into the picture.

Now, let's open the picture in Photoshop and set the Resolution to 720 dpi if you intend to use an Epson printer. If you plan to use HP or Canon printer, set the Resolution to 600 dpi instead. Set the width to 12 inches. We will explain these settings later.

image 7

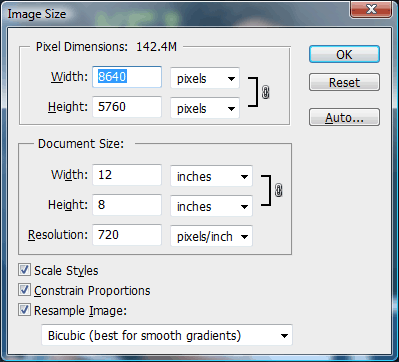

Figure 7 - Setting of image size

How much parallax?

image 8

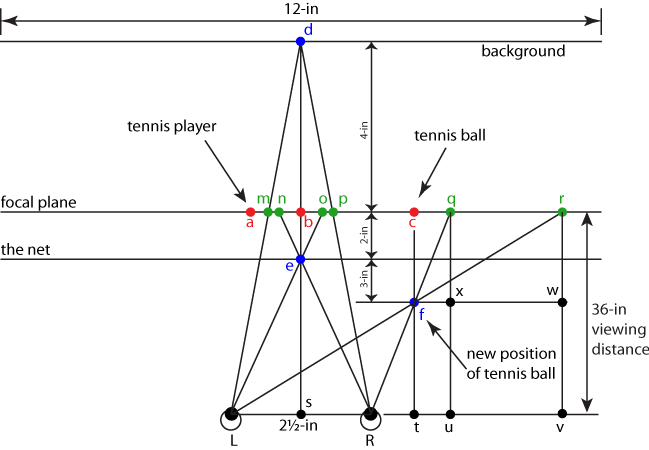

Figure 8 - Schematic for parallax planning

Figure 8 is used to determine the amount of parallax. Please do not be intimidated by the complexity of the drawing. Once explained, it will become obvious. We also suggest that you print out this drawing for reference so you do not have to scroll up and down.

On the drawing point "a" is the original position of the tennis player and point "b" is the original position of the net and the background. The net and the background span across the entire picture so the mid-point of the picture is considered as their positions. Point "c" is the original position of the tennis ball.

If we are going to use the Micro Lens 40 LPI lenticular sheet, the specifications suggest the viewing distance to be 3-feet, i.e. 36-in. The width of the picture is 12-in as we have set.

Since we choose to use the layer of the tennis player as the focal plane, we can ignore point "a" from now on as it already lies on the focal plane.

The tennis ball will be moved from point "c" to point "f", 5 inches in front of the focal plane. Because of this move, the left eye should see the tennis ball at point "r", and the right eye should see it at point "g".

The net will be moved from point "b" to point "e", 2 inches in front of the focal plane. Again, the left eye should see it at point "o", and the right eye should see it at point "n".

Similarly, the background will be moved from point "b" to point "d", 4 inches behind the focal plane. To account for this move, the left eye should see it at point "m", and the right eye should see it at point "p".

The table below summarizes the descriptions above

Object Original position New position for left eye New position for right eye
Tennis ball c r g
The net b o n
Tennis player a - -
The background b m p

Now we need to use our knowledge of geometry and trigonometry to find out the necessary shifts. Let's work out the details on the tennis ball. The net and the background are less tedious and can be calculated by the properties of similar triangles.

Left eye of the tennis ball

The original position of the tennis ball is at point "c". From Photoshop we know that its x coordinate is 5850.5 pixels from the left, or 8.126 inch if we divide it by 720 dpi.

Since point "b" is at the center of a 12 inch wide picture therefore the length of line "bc" should be 8.126 - 6 = 2.126 inch.

Now to find the shift for "cr".

Since ?rfw ~ ?fLt,

  fw   Lt       Lt . rw   (2.126 + 1.25) x 5
? ------ = ------ ? fw = ---------- = ------------------------ = 0.545 or 392 pixels
  rw   ft       ft   (36 - 2 3)

Right eye of the tennis ball

Similarly for the right eye we need to find the shift for "cq".

Since ?qfx ~ ?fRt,

  fx   Rt       Rt . qx   (2.126 + 1.25) x 5
? ------ = ------ ? fx = ---------- = ------------------------ = 0.141 or 102 pixels
  qx   ft       ft   (36 - 2 3)

The following table summaries all the necessary shifts which include the shift for the net and also the shift for the background.

Object Original position New position for left eye New position for right eye
Tennis ball c cr=392 pixels cg = 102 pixels
The net b bo = 53 pixels bn = -53 pixels
Tennis player a - -
The background b bm = -90 pixel bp = 90 pixels

Using above table as a guide, we can come up with two new pictures; one for the left eye and one for the right eye as shown below.

image 9
Figure 9 - Picture for left eye

image 10
Figure 10 - Picture for right eye

If you observe carefully, you will see a slight difference between the above two pictures.

Test drive the depth

To see how it works out, the simplest way is to make an anaglyph picture. This can be done relatively easily.

Use Photoshop to open the right picture first then follow by opening the left picture. Copy and paste the left picture on top of the right picture. Double click the layer property of the left picture and then disable the [G] and [B] checkboxes under the [Advanced Blending] section. Now you can view the result in the following picture (picture with some red tint) with a pair of red-cyan glasses.

image 11

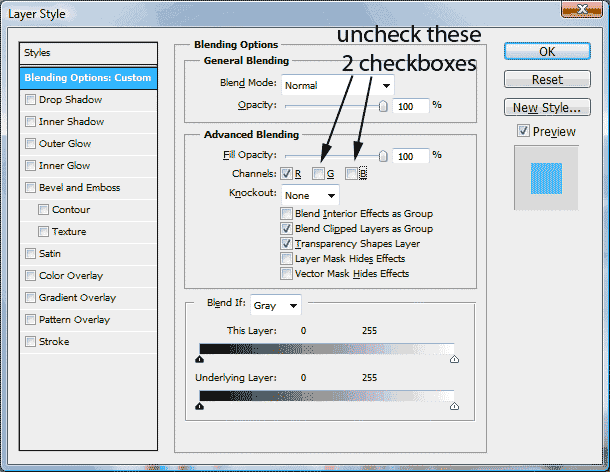

Figure 11 - Setting for creating an anaglyph

image 12
Figure 12 - Anaglyph

Interlacing the pictures

We just created an anaglyph by combining a picture that is for the left eye and a picture that is for the right eye. Now it is time to slice these pictures to match them up with the lenticular sheet. Remember we set the resolution of the picture to 720 dpi (or 600 dpi if you use HP or Cannon printer)? Now let us explain why.

Since an Epson printer can print 720 dots per inch, we want to map each dot the printer prints to a single pixel on the image file. This is why we need to set the image resolution to the resolution of the printer, i.e. 720 for Epson and 600 for HP and Canon.

Another number we need to know is how many dots will be under each lenticule. We will continue to use the Micro Lens 40 LPI lenticular sheet as an example. Since 720 divided by 40 equals 18, there will be 18 dots under each lenticule. There are several ways we can arrange these dots, all with the purpose of alternating the dots from left and right picture. For example, we can arrange the first 9 dots from the left (9L), and the next 9 dots from the right (9R). Alternatively we can have 3L3R3L3R3L3R because this pattern can be repeated and the sum of dots also equals to 18. 2L2R2L2R2L2R2L2R2L won't work because the pattern cannot be repeated to the next lenticule although the sum is still 18.

Let's use the simpler pattern 9L9R in the following interlacing example.

To accomplish this, all we need to do is to create a mask for both pictures. The mask will contain vertical stripes of 9 pixels wide and 9 pixels apart. For the left picture, the mask will start with a white stripe and for the right picture, the mask will start with a black stripe. When we paste the mask to the channel of the mask layers, the image will be interlaced as we intended.

Let's outline the steps below.

Step 1: Create a mask for both the left and the right layer.

image 13

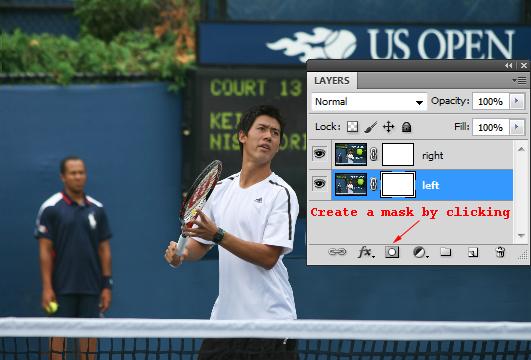

Figure 13 - Create a mask for each layer

Step 2: Create a vertical stripe pattern for the left layer and the right layer with the same image size as the image.

image 14                     image 15
Figure 14 - Pattern used as mask for interlacing

Step 3: From the [Channel] palette, highlight and make it visible for the mask layer, paste over the vertical stripe pattern, one for the left and one for the right.

image 16

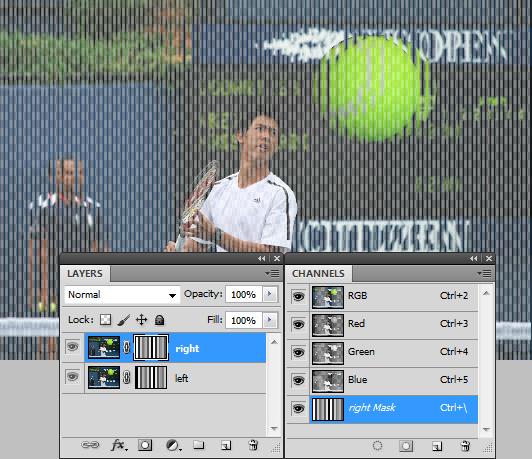

Figure 15 - Paste mask pattern to the mask layers on the [Channel] palette

Step 4: Flatten the image, print it at 720 dpi on a photo glossy paper.

Convert 2D images to 3D for lenticular printing

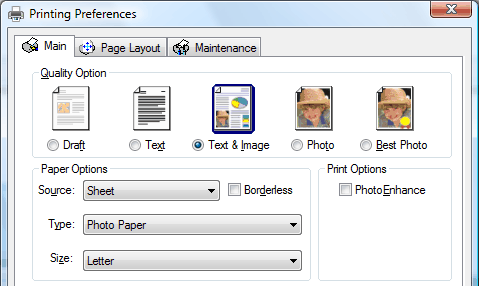

Figure 16 - Epson 720 setting

Step 5: Put the lenticular lens over the printout and align them to obtain the clearest picture.

Step 6: Laminate the lenticular sheet to the printout by using double-sided adhesive sheet.



Conclusion

If the steps above are too detailed for you to follow, then try to understand the principle behind the 2D to 3D image conversion. By understanding the principle, you can draw your own diagram, map out the necessary shift for each object, and experiment with the effect by using the anaglyph diagram. The steps described above are part of a tutorial so that you can try them out yourself. The values in your calculation can be quite different depending on the objects and the complexity of the picture you are using.

The main point is that we need to create a picture for the left eye and a slightly different picture for the right eye in order to create proper depth amongst all the objects in the picture. If this is our goal, we can use Photoshop to move the objects left and right to achieve this goal. With this in mind, here is a high level set of steps for any 2D to 3D image conversion project for lenticular printing.



Choose a 2D picture that can be layered easily

Layer the objects in this 2D picture

Identify the foreground, middle-ground, and the background

Decide which object among the layers will be the focal plane.

Create a diagram to represent the objects and their prospective depth

Use your knowledge of geometry and trigonometry to find out the necessary shift for each object

Make a picture for the left eye by adding necessary positional shift for each object

Repeat step 7 for the right eye. Interlace the pictures for the left eye and the right eye by using vertical stripes pattern.

The width of the stripe is the function of the printer resolution and the line density of the lenticular sheet to be use. Print and laminate.

C'est fini!
