Create dramatic meteor and burning city effect in photoshop


Step 1

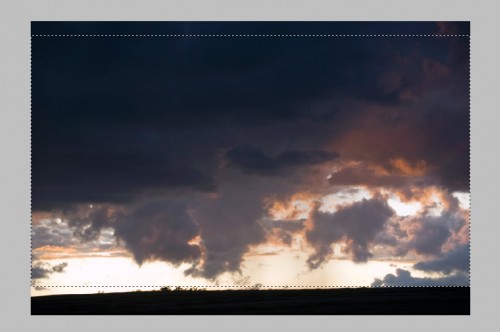

Create a new document sized 1440*900px, fill the background with black colour. Load the Sky image into Photoshop and select a portion as shown below:

image 1

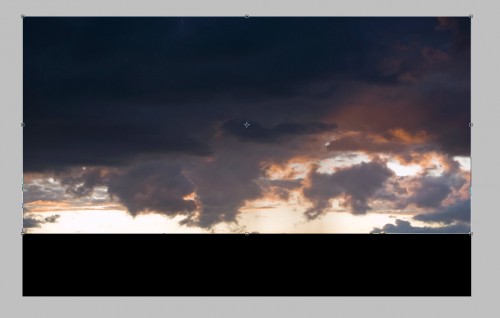

Copy and paste the selection onto our document, resize it to fit the width of the canvas:

image 2

Add the following image adjustment layers as clipping mask to this sky layer:

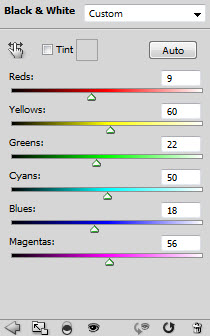

Black and White

image 3

Channel Mixer

image 4

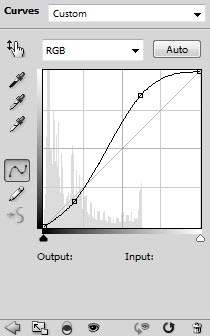

Curves

image 5

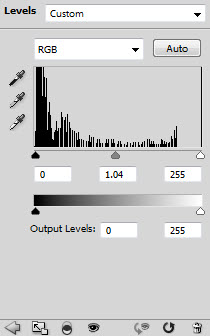

Levels

image 6

Erase the upper portion of the sky, and you will have the following effect:

image 7

Step 2

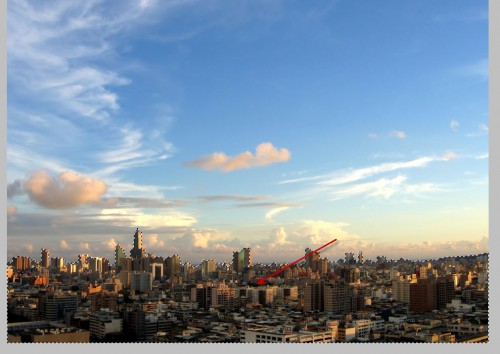

Load the city photo into Photoshop, cut out the city portion of the image as shown below: (use quick selection tool here)

image 8

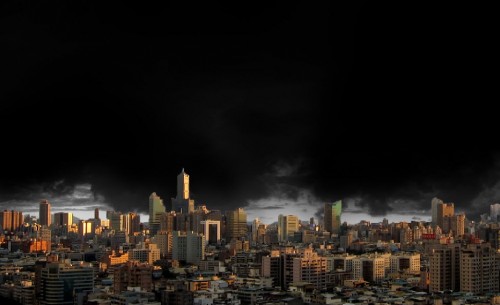

Paste the city onto our document, resize it to fit the width of the canvas:

image 9

Add the following image adjustment layers to the city layer as clipping mask:

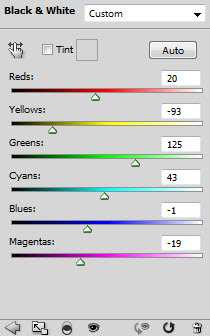

Black and white

image 10

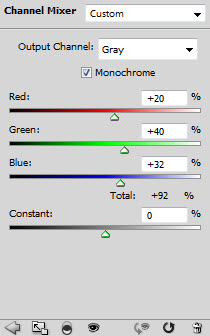

Channel Mixer

image 11

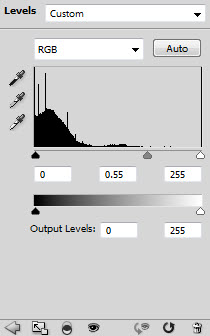

Levels

image 12

Mask on Levels adjustment layer:

image 13

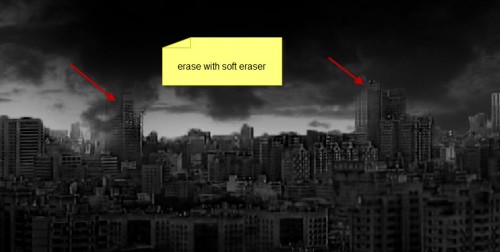

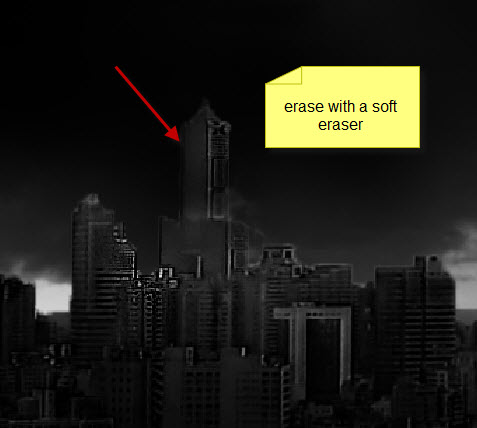

Use a small size soft eraser, erase some portions of the highest buildings, as shown below: (We do this in order to prepare for the burning effect later on)

image 14

image 15

and here is the effect so far:

image 16

Step 3

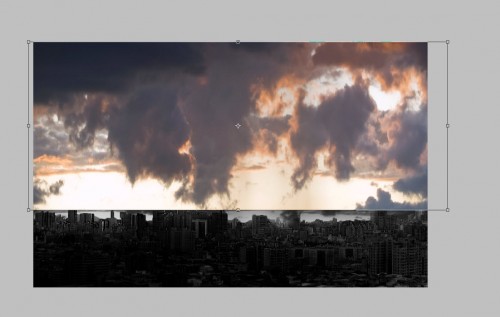

I decided to use the sky image again to fill the empty space on the upper side of our document. So let's copy and paste the sky photo onto our document again:

image 17

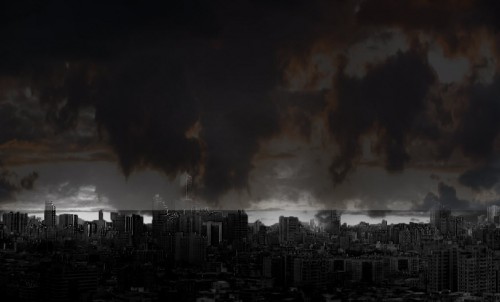

Reduce the layer opacity of this new sky layer to around 50%:

image 18

Black and White

image 19

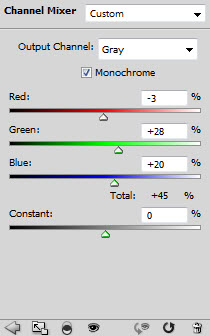

Channel Mixer

image 20

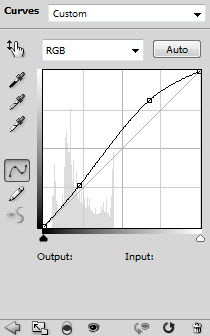

Curves

image 21

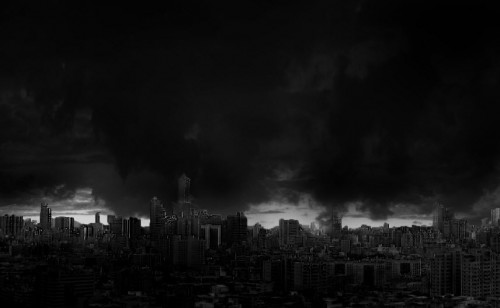

and here is th effect so far:

image 22

Step 4

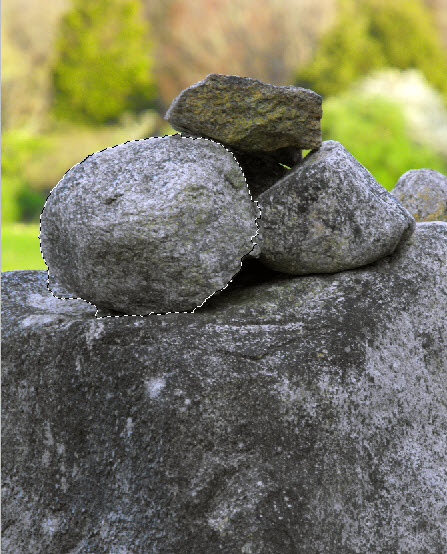

Load the rock image into Photoshop, select one rock from the image - we will use it for the meteor effect:

image 23

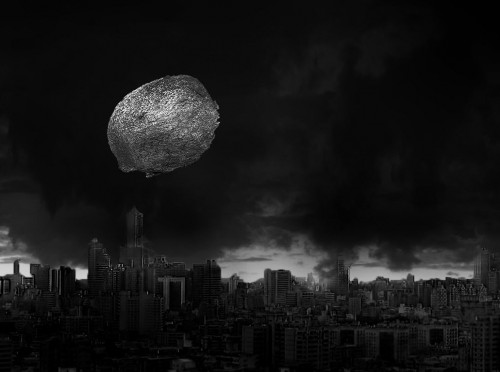

Paste the selection on to our document, sharpen it a little bit with the sharpen filter:

image 24

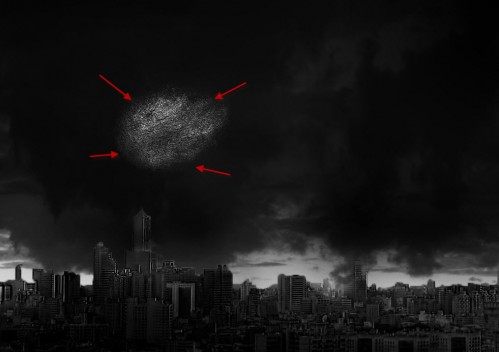

Erase the edges of the rock with a soft eraser:

image 25

For your reference, this is the layer mask I added on the rock layer - by mixing soft eraser and grungy brushset:

image 26

Apply the following layer blending options to this rock:

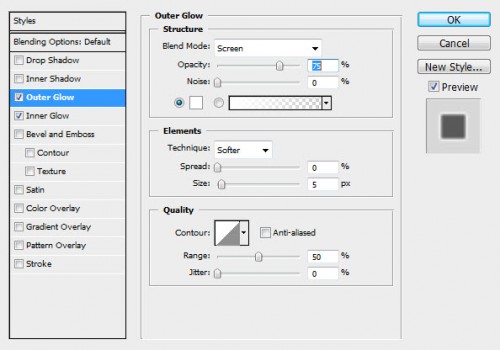

Outer Glow

image 27

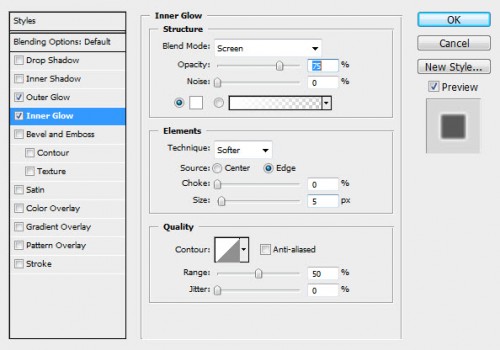

Inner Glow

image 28

and here is the effect so far:

image 29

Step 5

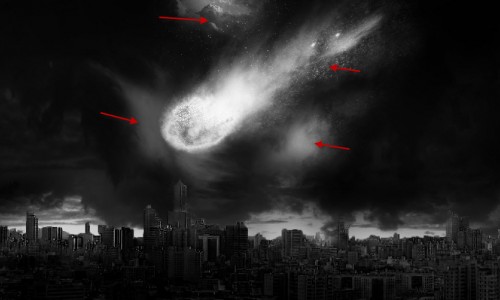

We're almost done. Now we can fine-tune the image a a bit by adding some cloud around the meteor. Make sure you warp/distort them to form a trailing effect:

image 30

Optionally, you can add a few more rocks to the image, use the same step described before:

image 31

Now you can either render some cloud with the cloud filter, or use some cloud brushes (reduce their sizes) to paint some cloud/smoke BEHIND the high-rises:

image 32

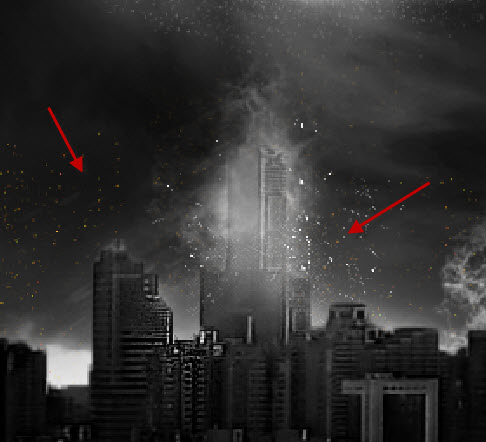

Paint some particles with the dirt brush you downloaded:

image 33

Also add some cloud overlay to the high-rises on the far distance:

image 34

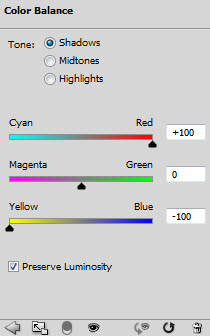

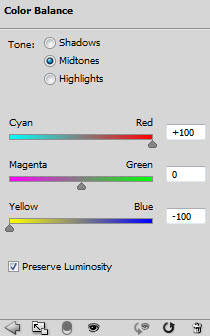

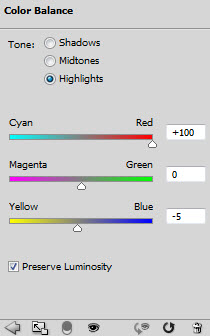

Add a colour balance adjustment layer on top of all layers:

image 35

image 36

image 37

Add a layer mask on this colour balance layer for some variation and increase depth of the image: (we don't want to the whole image to be red!)

image 38

After adding this colour balance layer, you will see those smokes and cloud we added before will transform into flame/burning effect:

image 39

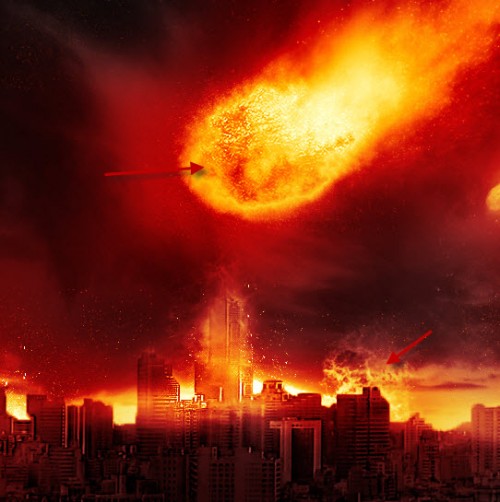

Plus the meteor is now red-hot as well:

image 40

And here is the overall final effect: (click to enlarge)

image 41

That's it! I hope you enjoy this tutorial and find it useful! Till next time, have a great day!
