Step 1
Create a new document sized 940px * 700px, fill the background with black colour. Let's create the Planetary Ring first.

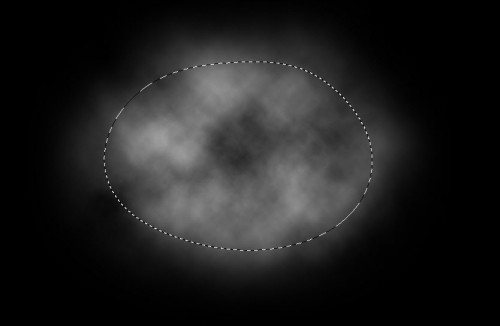

Create a new layer and use the lasso tool (50px feather) to draw a selection, render some cloud in it:

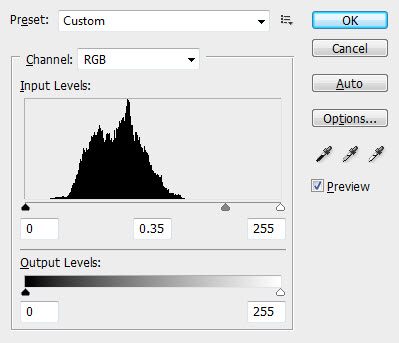

Hit Ctrl + L and apply the following Levels adjustments:

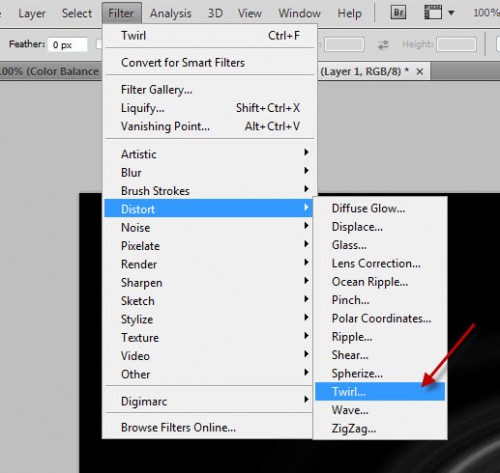

Go to Filter > Distort > Twirl:

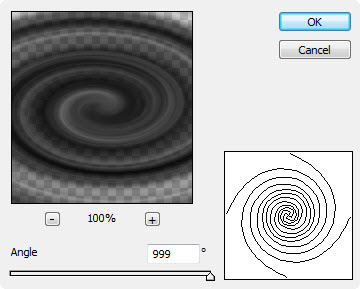

and apply the following settings:
Then hit Ctrl + T and perspective the ring as shown below:
Reduce the height a bit and you will have the following effect:
Erase the edges with a a soft eraser, and you have made a simple ring:
Step 2
Now let's draw a planet on top of the ring layer. Firstly draw a circle on a new layer, then fill the circle with black color and apply the following layer blending options:

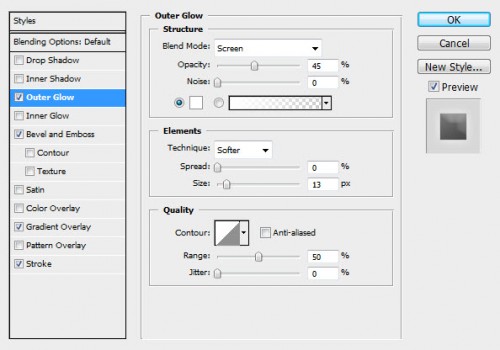

Outer Glow

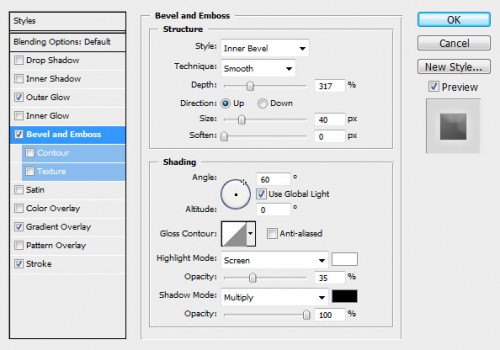

Bevel and Emboss

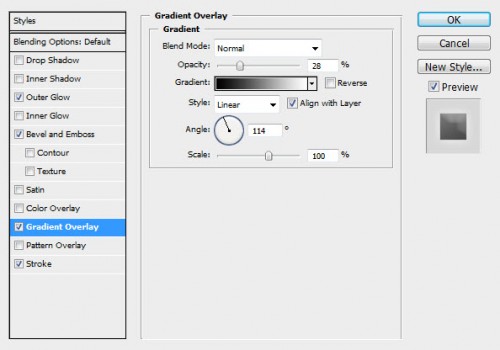

Gradient Overlay

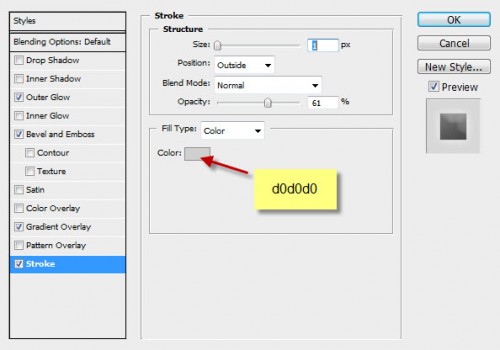

Stroke
here is the effect so far:
Step 3

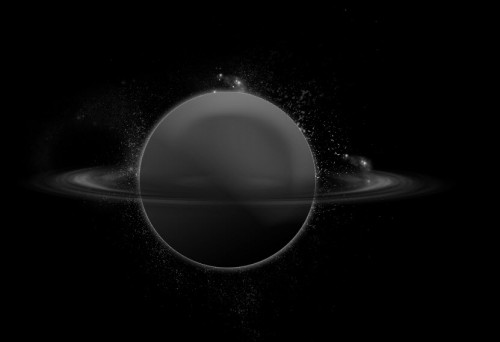

Now create a new layer under the planet layer, use the star and debris brush you downloaded, paint some splashing effect around the planet, as shown below:
Now we can create some cloud/nebula effect around the planet. To do this, create a new layer below the planet layer, use a lasso tool (50px feather)to draw a selection, render some cloud inside.

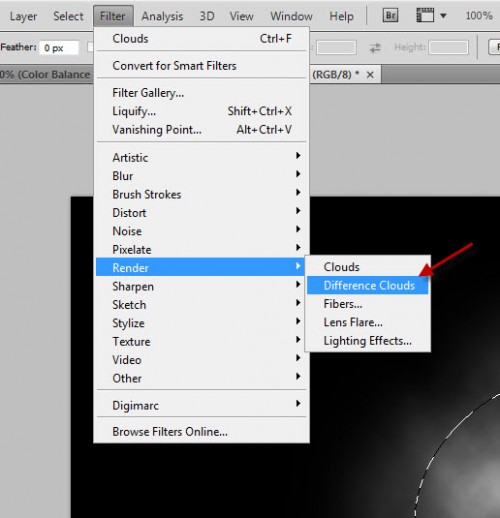

Then apply the Difference cloud filter to it:

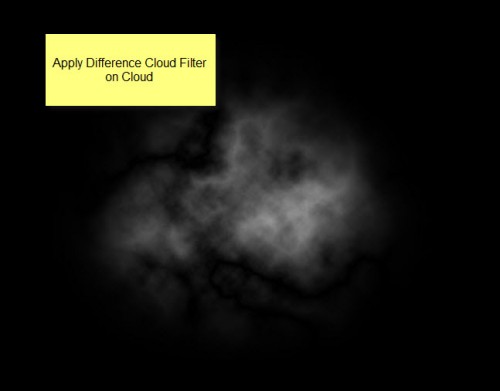

Here is the effect after applying the difference cloud filter:

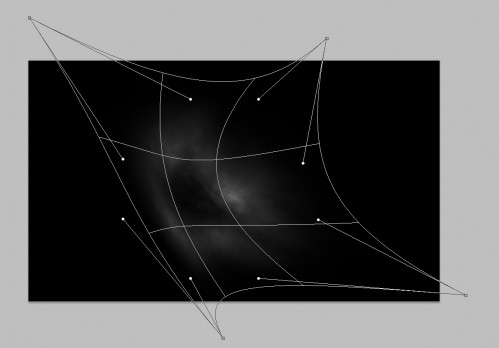

Then Warp the cloud as shown below:
Duplicate this layer a few times and scatter them around the globle, as shown below:

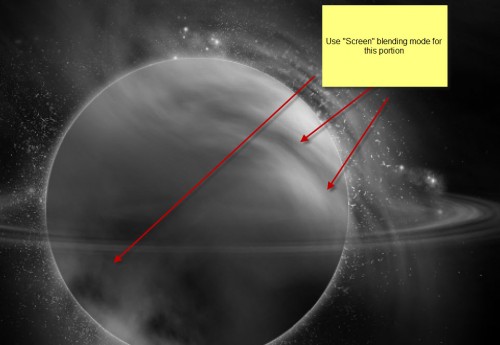

You can also duplicate and drag some nebula layers above the planet layer, position the nebula as shown below: (make sure to set the blending mode of those layers to "screen")
Here is the effect so far:

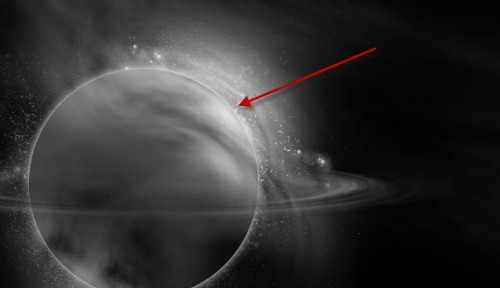

Now we can add a bit of backlight for this planet to increase the depth. Create a new layer under the planet layer called "highlight", grab a soft white brush and do a single-click to the position shown below:
Step 4
Now let's add some abstract lines to decorate the planet. Once again we can use the Pen Tool to draw a path as shown below:

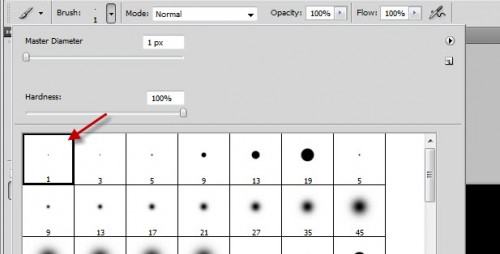

Choose the 1px hard brush from the brush pane:

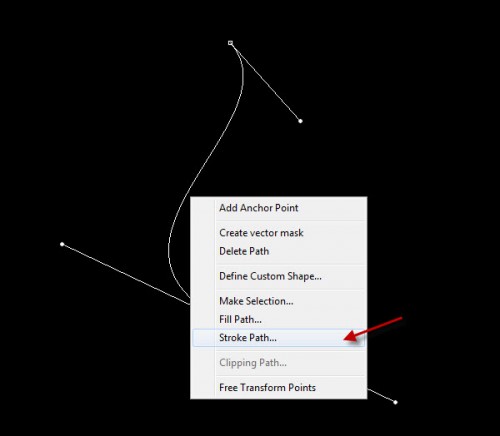

Right-click on the path with Pen Tool selected, and choose "Stroke Path":

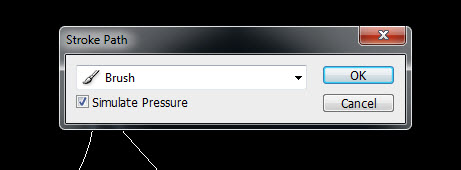

Select "Brush" from the drop down box, tick "Simulate Pressure", click "OK":
and here is the effect:

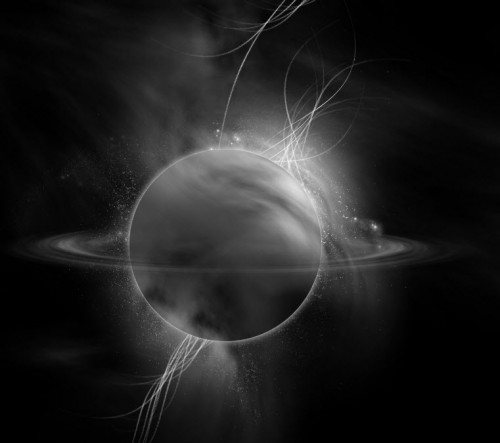

Duplicate this line layer a few more times, rotate and resize them then scatter the lines around the planet, as shown below:
Step 5
Ok we're almost done. Let's add a few image adjustment layer on top of all previous layers to fine tune the image a bit:

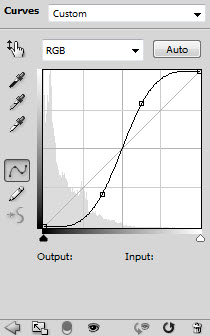

Curves

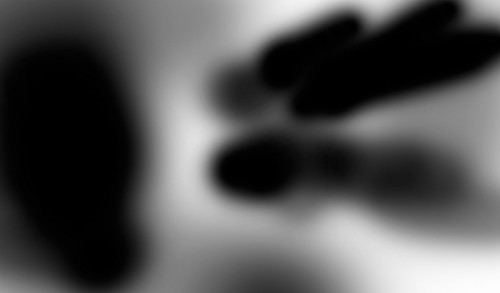

Mask on Curves adjustment layer:

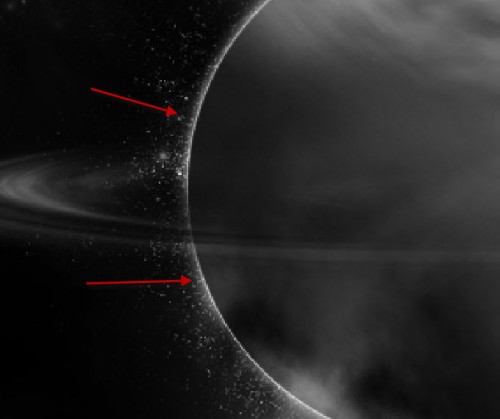

As you can see, we increased the contrast of the debris on the left so it looks more distinctive:

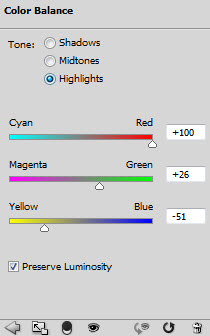

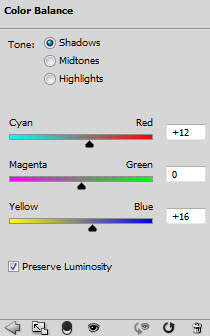

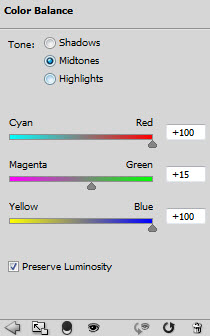

Colour Balance
and here is the effect after apply those adjustment layers:
and here is the final effect for this tutorial: (I further adjusted the colour and contrast of the image)
That's it! Hope you enjoy this tutorial and find it useful :)
