1. The first illustration is an image that I snapped during a trip to the amazing city of Hong Kong. As you can see, the image is lacking a bit of contrast and also has a slight color cast to it. It's really not that bad (or is it?), but just looks somewhat dirty. You will soon see a huge difference in image quality. You can download this image to work with during the tutorial, or pick an image of your own.

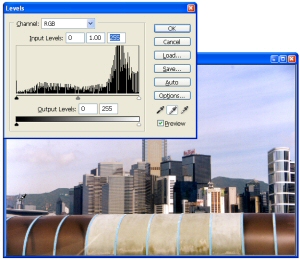

2. Setting the black point. Choose a Levels adjustment layer from the layers palette. We are now going to set the black and white points in the levels settings. In the Levels dialog box double click the Set Black Point tool as shown at left.

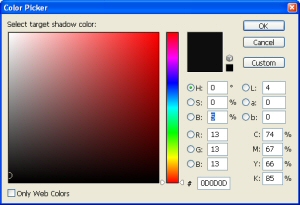

3. Black point settings. You will see a color picker. Set everything to solid black and then change the setting under "B" to 5, as shown at left (this sets the black point to 95% black). Click OK.

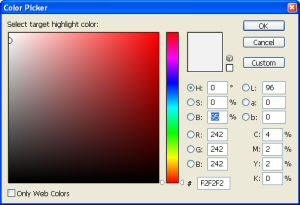

4. Setting the white point. Double click the Set White Point tool, which is the white eyedropper. In the color picker, set for pure white and then enter 95 into the "B" setting as shown. The white point is now set to 95% white.

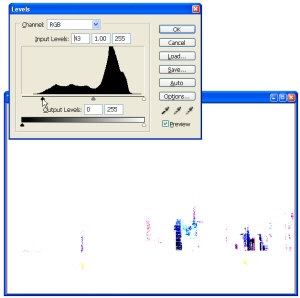

5. Finding shadows. We are now ready to perform the image correction. What we are going to do is click the Set Black Point tool in the darkest part of the image and the Set White Point tool in the lightest part. Locate the darkest part of the image. Hold down the Alt (Option on Mac) key and as you move the shadow slider to the right, the image should turn white. As you move the slider you will see some areas start to show through. This is the Black Point threshold, as shown at left. The areas that start to show are the darkest areas of the image.
6. Adjusting the shadows.Take note of where the dark portions of the image are on the threshold and return the slider to the far left. Choose the Set Black Point tool and click on the darkest portion of the image in the main image window as shown at left. The image will be shifted and the area we clicked on will now be set to the 95% black that we selected earlier.

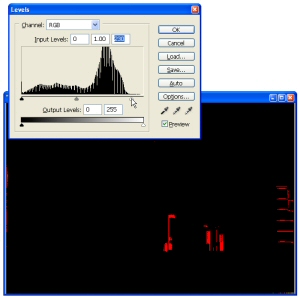

7. Finding highlights. Hold down the Alt (Option on Mac) key and move the right slider to the left to reveal the whitest point of the image. The image will begin as black and the highlight areas will show through as shown in the illustration.
8. Adjusting highlights. Choose the Set White Point Eyedropper tool from the Levels palette. Click on the whitest area of the image as shown at left, the lightness of the image will be adjusted to match.
9. Setting the Gray point. The tonal qualities of the image will be looking much better now and the color cast will be reduced a bit. Now to totally remove the color cast. Choose the Set Gray Point eyedropper from the Levels dialog box. When we click on the image with this tool it will choose the selected area as the gray point of the image and balance all the color to match. Click on a portion of the image that should be a neutral gray, such as the small tower in the illustration. The colors will shift; if you are not happy, keep experimenting by clicking the Set Gray Point tool in different parts of the image.
When you are happy with the result, click OK to apply the Levels to the image. You have now learned how to use the Levels tool correctly. It may seem like a lot to do, but with some practice you can perform this entire correction in under a minute. The illustration below shows the final corrected image, a vast improvement from the original.
